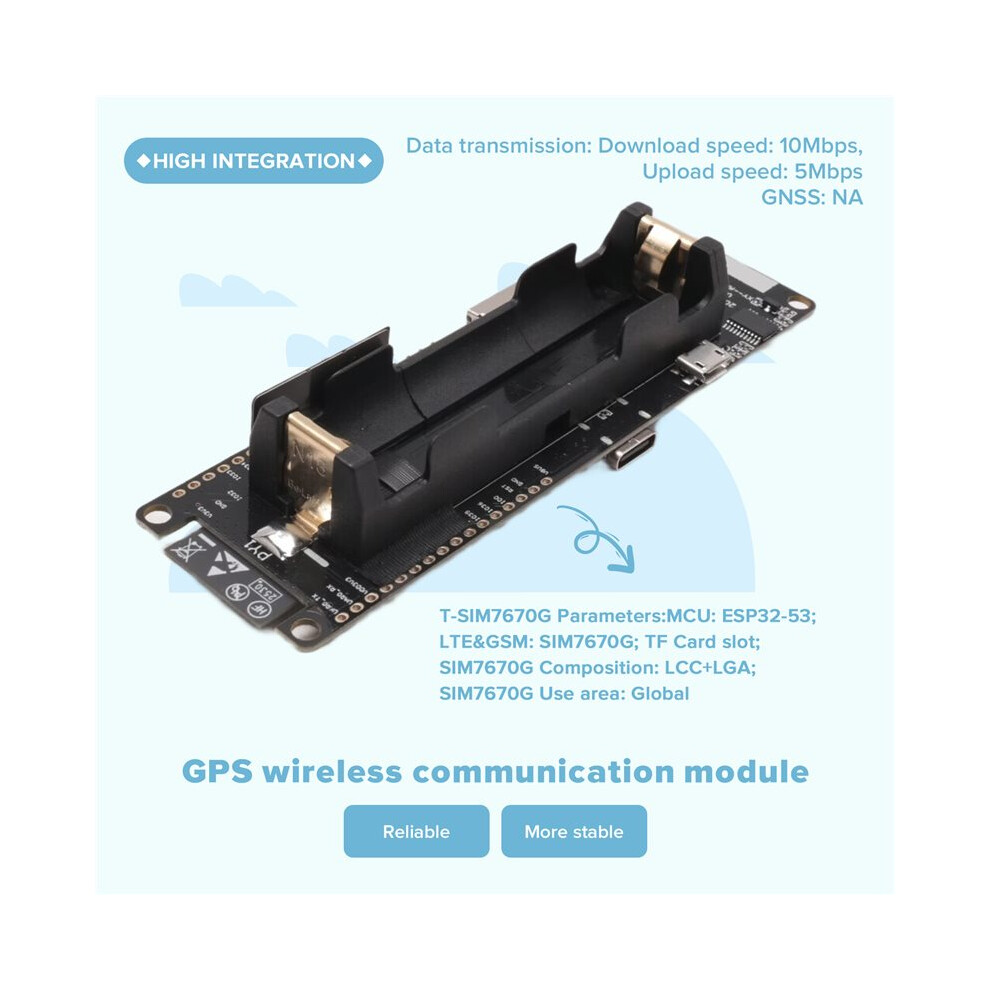

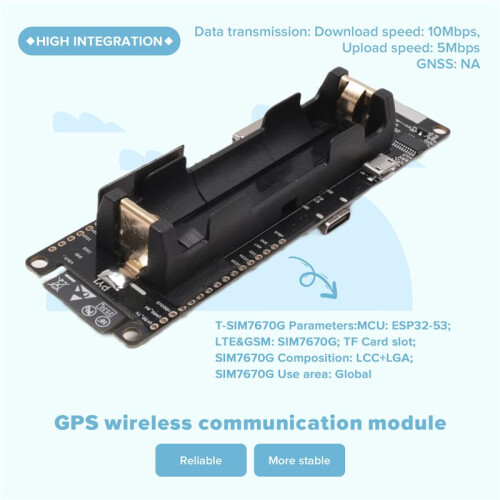

T-SIM7670G-S3 LTE 4G ESP32-S3 Development Board Cellular Module IOT Devices Low-Power Long-Range Communication with GPS
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 128,000 anmeldelser med vurderingen “Utmerket”
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | ons 15. - man 20. jul
Returer: 30 dager
180 dagers betalingsbeskyttelse
Mest populære i Spektiv
Sammendrag
- T-SIM7670G Parameters:MCU: ESP32-53; LTE&GSM: SIM7670G; TF Card slot; SIM7670G Composition: LCC+LGA; SIM7670G Use area: Global
- ESP32-S3 Parameters:Clock frequency: 240Mhz; Flash: 16MB; PSRAM: 8MB; Supported wireless communication protocols: 2.4 GHz Wi-Fi (802.11 b/g/n), Bluetooth 5 (LE);Serial bus communication protocols: I2C, SPI, UART, SDIO, I2S, CAN
- T-SIM7670G ESP32-S3 Development Board
- 4G Development Board
- GPS wireless communication module
T-SIM7670G-S3 LTE 4G ESP32-S3 Development Board Cellular Module IOT Devices Low-Power Long-Range Communication with GPS Beskrivelse
T-SIM7670G Parameters:MCU: ESP32-53; LTE&GSM: SIM7670G; TF Card slot; SIM7670G Composition: LCC+LGA; SIM7670G Use area: Global
ESP32-S3 Parameters:Clock frequency: 240Mhz; Flash: 16MB; PSRAM: 8MB; Supported wireless communication protocols: 2.4 GHz Wi-Fi (802.11 b/g/n), 5 (LE);Serial bus communication protocols: I2C, SPI, UART, SDIO, I2S, CAN
SIM7670G Parameters:
Frequency:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
Data transmission: Download speed: 10Mbps, Upload speed: 5Mbps
GNSS: NA
Supported protocols: TCP/IP/IPV4/IPV6/Multi-PDP/FTP
FTPS/HTTP/HTTPS/DNS/MOTT
Android RlL: Android 5.0/6.0/7.0/8.0/9.0
USB driver: windows 7/8/10, Linux, Android
Supported voltage: 3.4~4.2V
SlM Card: 1.8V/3.0V
Different batches may have different screen printing/appearance, but it will not affect the use
Colour:Black
Material:PCB+electronic components
Package Contents:
1 x development board
1 x antenna
1 x battery cable
2 x pin headers
1 x GPS antenna
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Detaljer
| OPC | PVXTZGC |
|---|---|
| Merke | Exogio |
| Koder | 4712511988802 (EAN) |
Produktdata
| Height | 3cm |
|---|---|
| Width | 5cm |
| Length | 13cm |
| Weight | 0.069kg |
| Colour | Black |
| Material | PCB+electronic components |
