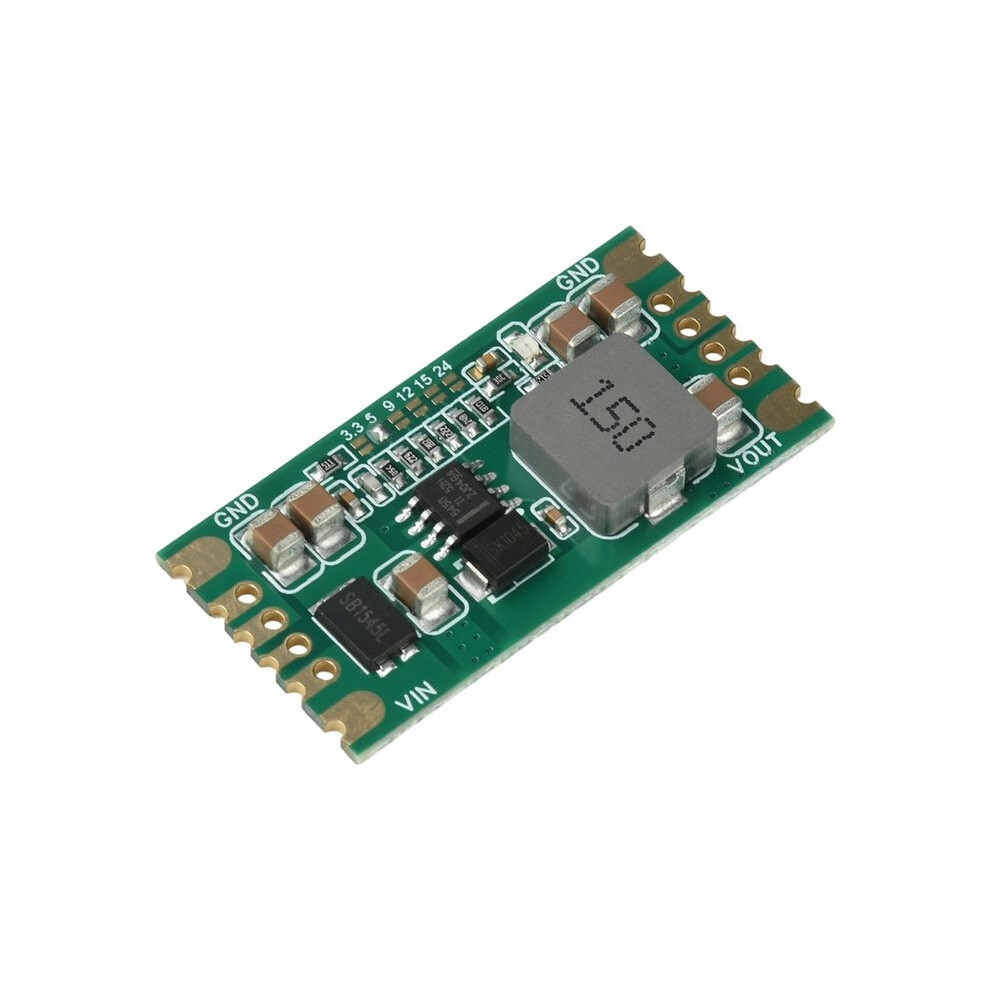

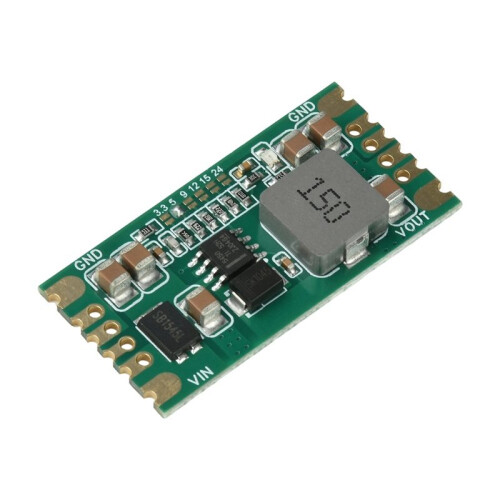

TPS5450 5A Bucks Switching Power Supply Module - DC5.5V-36V Voltage Output Step-Down Board Low Ripple
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 131,000 anmeldelser med vurderingen “Utmerket”
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (Gratis) | tor 27. - lør 29. aug
Solgt av: PUPUSUN
Returer: 30 dager
180 dagers betalingsbeskyttelse
Du vil kanskje også like
Sammendrag
- Supports wide voltage input, 5A high current output, and conversion efficiency up to 95%
- High-quality materials, low ripple, convenient and practical power output, flexible and practical
- Equipped with enable pin, overcurrent and thermal protection, and power consumption of only 18µA in off-state
- Immersion gold half-hole process, supports both through-hole and surface mount applications, suitable for competitions and project development
- Wide range of applications, suitable for electronic competitions, industrial control, instrumentation, and communication equipment
TPS5450 5A Bucks Switching Power Supply Module - DC5.5V-36V Voltage Output Step-Down Board Low Ripple Beskrivelse
Supports wide voltage input, 5A high current output, and conversion efficiency to 95%
High-quality materials, low ripple, convenient and practical power output, flexible and practical
Equipped with enable pin, overcurrent and thermal protection, and power consumption of only 18µA in off-state
Immersion gold half-hole process, supports both through-hole and surface mount applications, suitable for competitions and project development
Wide range of applications, suitable for electronic competitions, industrial control, instrumentation, and communication equipment
Module model:TPS5450
Output voltage: 5V
Input-output voltage difference: greater than 2V
Module type: Switching power supply
Output current:5A (TPS5450)
Maximum conversion efficiency: 90-95%
Input voltage: 5.5V-36V; Recommended for use with voltages below 30V (for high-voltage power supplies, our TPS54560 module can be used).
Minimum output current: 10mA
Output ripple: 30mV@+5V; the higher the output current, the greater the ripple.
Color: As Shown
Material: PCB
Package Contents:
1*TPS5450 5A Switching Module
Detaljer
| OPC | PX2C9C8 |
|---|---|
| Merke | Semoic |
| Koder | 6032928590701 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 9cm |
| Weight | 0.0075kg |
| Colour | As Shown |
| Material | PCB |
