TSL1401 Linear CCD Camera Module Electrical Signal Processing with 128 Pixels 5IN-XH2.54 Port for DIY Robot

TSL1401 Linear CCD Camera Module Electrical Signal Processing with 128 Pixels 5IN-XH2.54 Port for DIY Robot Beskrivelse

128 pixels Linear CCD for high-resolution image capture
Operating voltage range of 3.3-5V for versatile power supply options
Detection distance of 5-40cm for precise tracking and obstacle avoidance

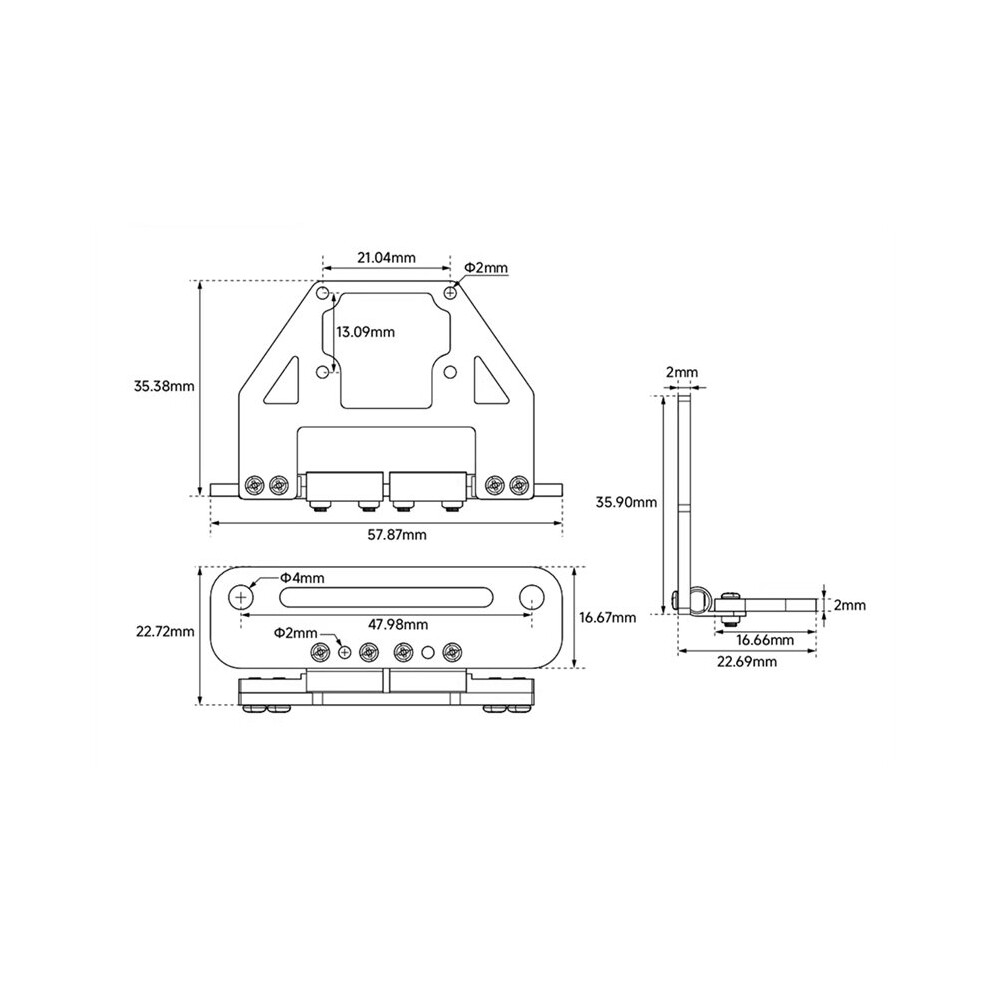

Yahboom unique height brackets available for easy installation

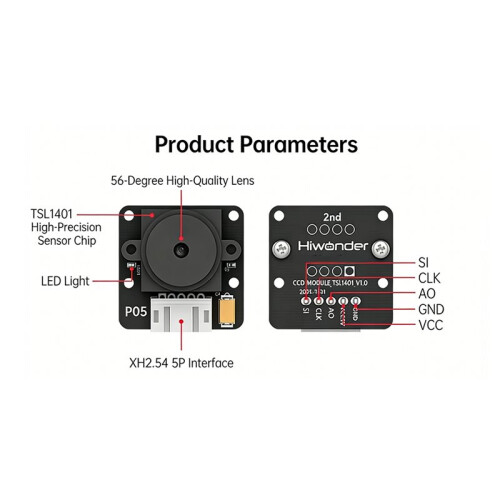

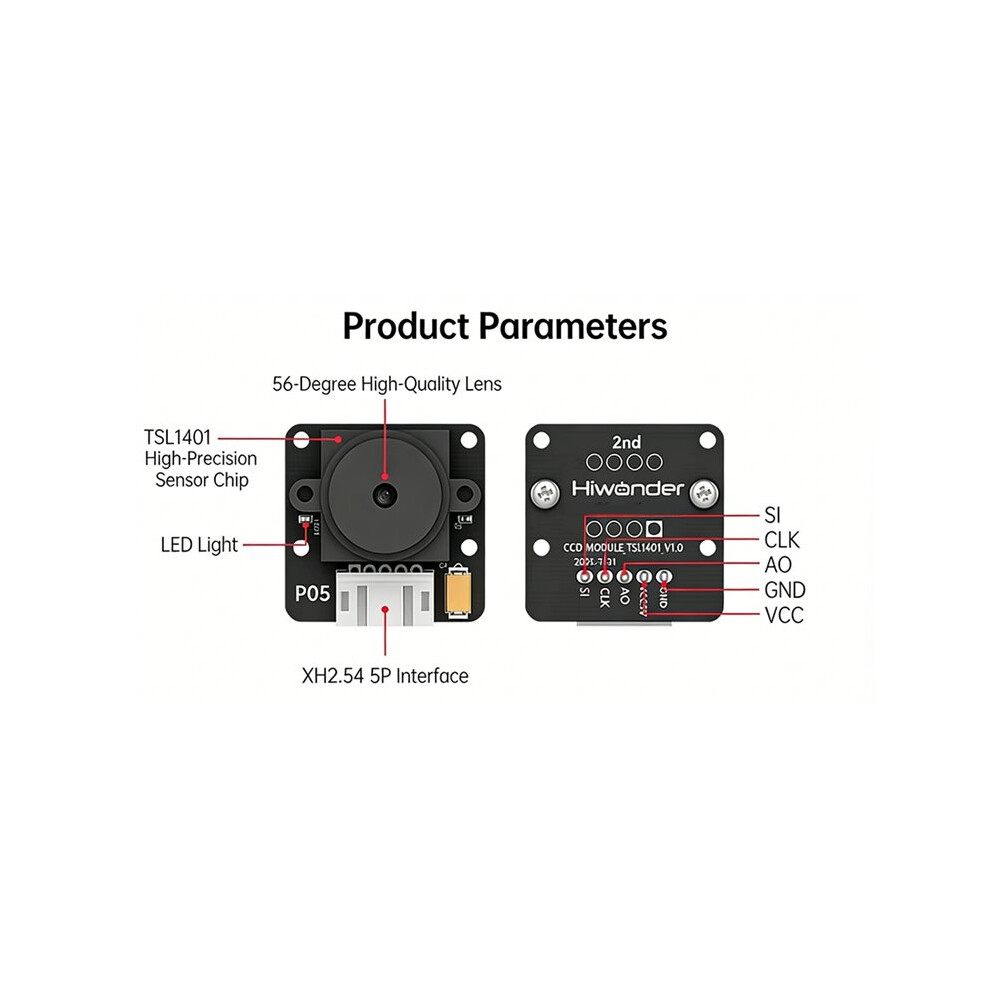

board 5PIn-XH2.54 anti-reverse connection interface with pin distribution for GND, VCC, AO, CLK, SI; STM32 driver codes and tutorials provided for free, suitable for car tracking with higher speed

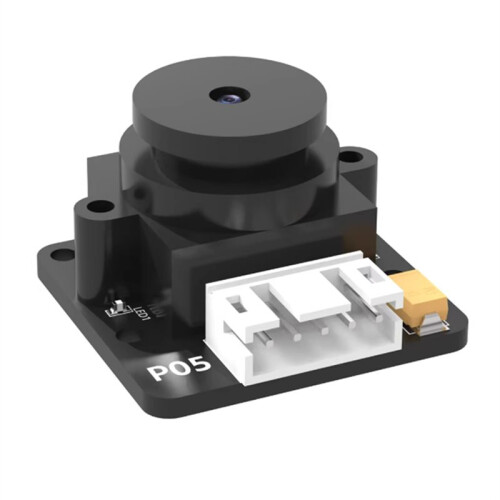

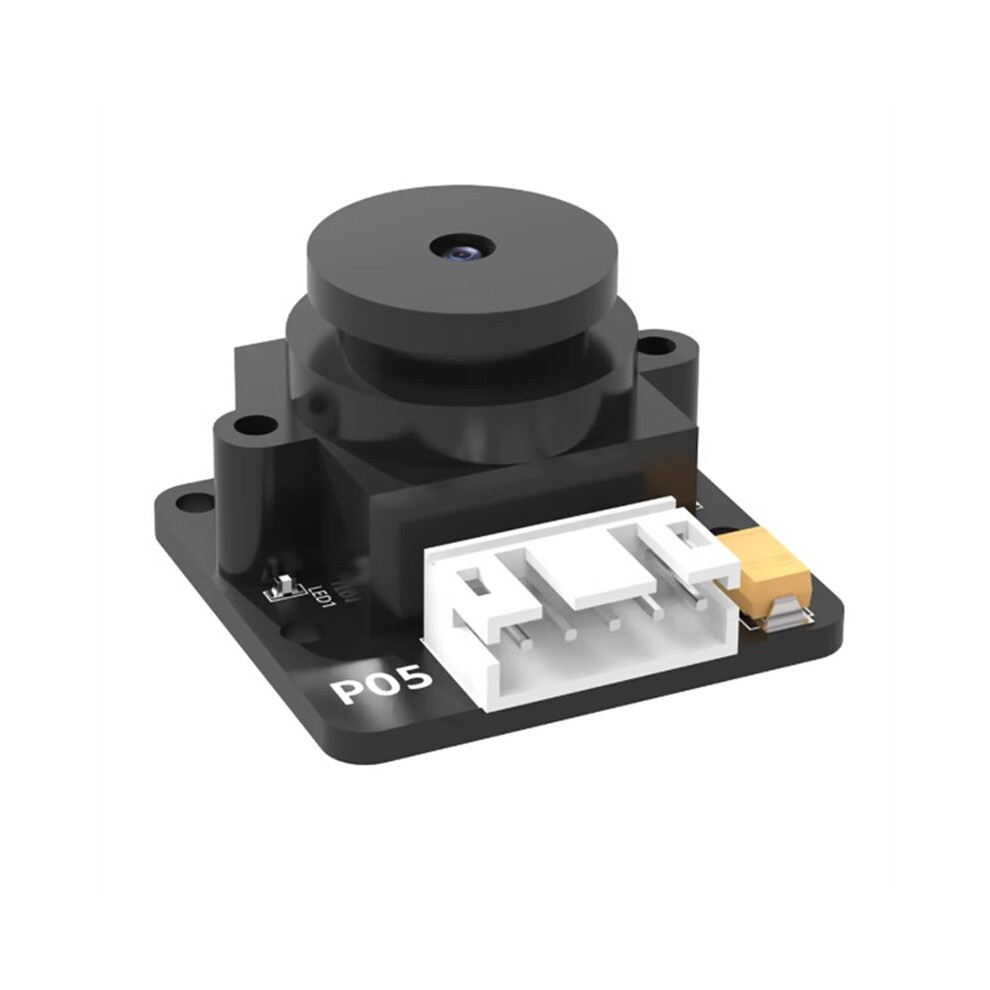

The core part of this TSL1401 module is a linear CCD with 128 pixels. It can convert the captured scene into an electrical signal and obtain image data. We can process the returned data through the single-chip microcomputer, so as to use it for car path recognition, tracking, obstacle avoidance and other functions. The module is less affected by external ambient light, can be used in indoor and outdoor occasions where high-speed tracking is required.
Color: Black
Material: plastic

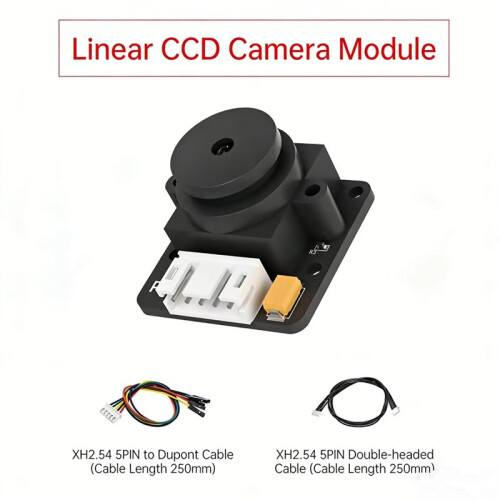

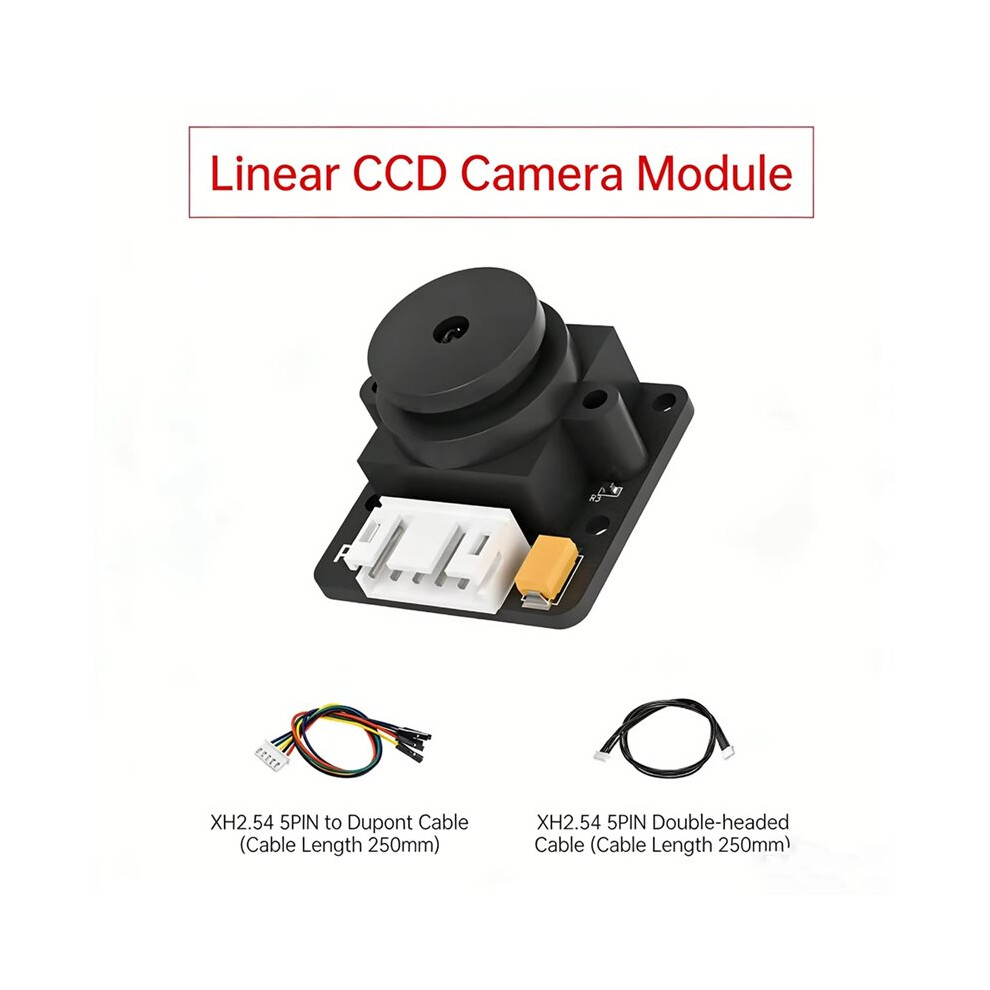

Package Contents:
1* Linear CCD Camera
1*DuPont wires cable
1*Ribbon cables
