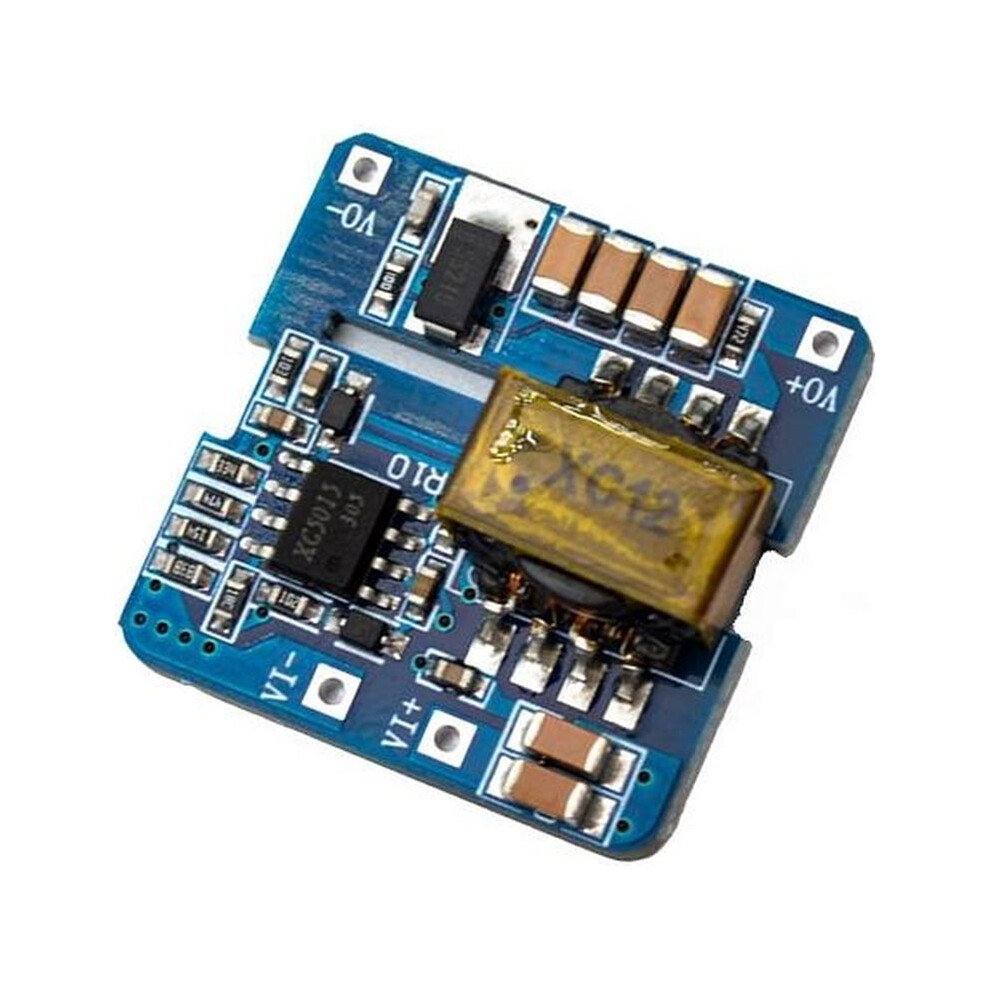

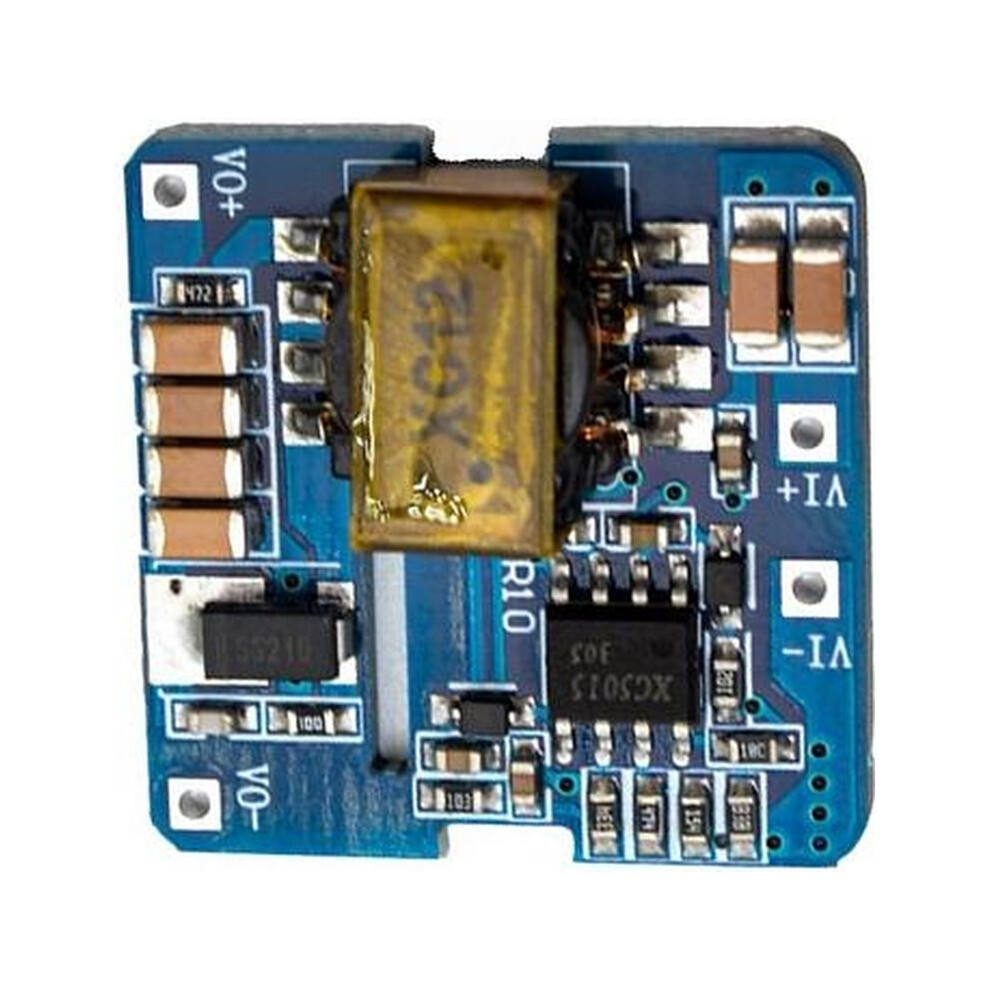

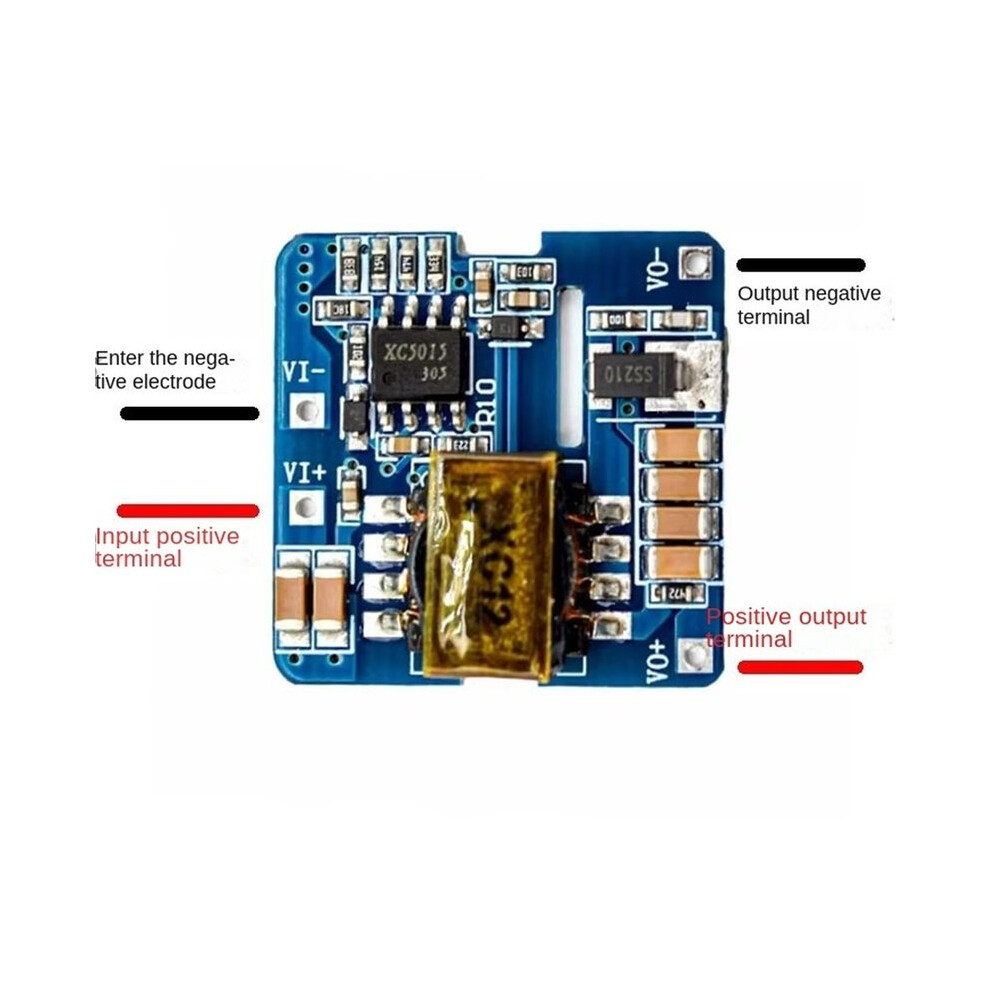

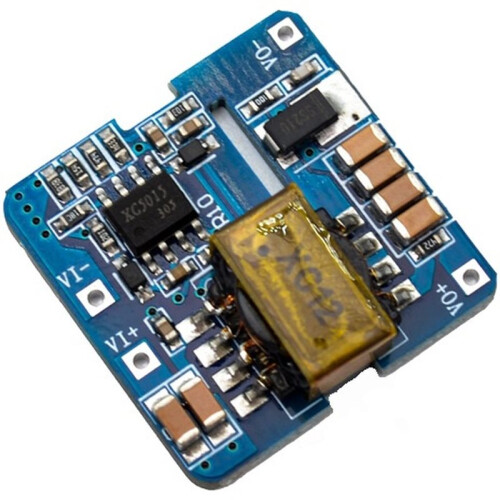

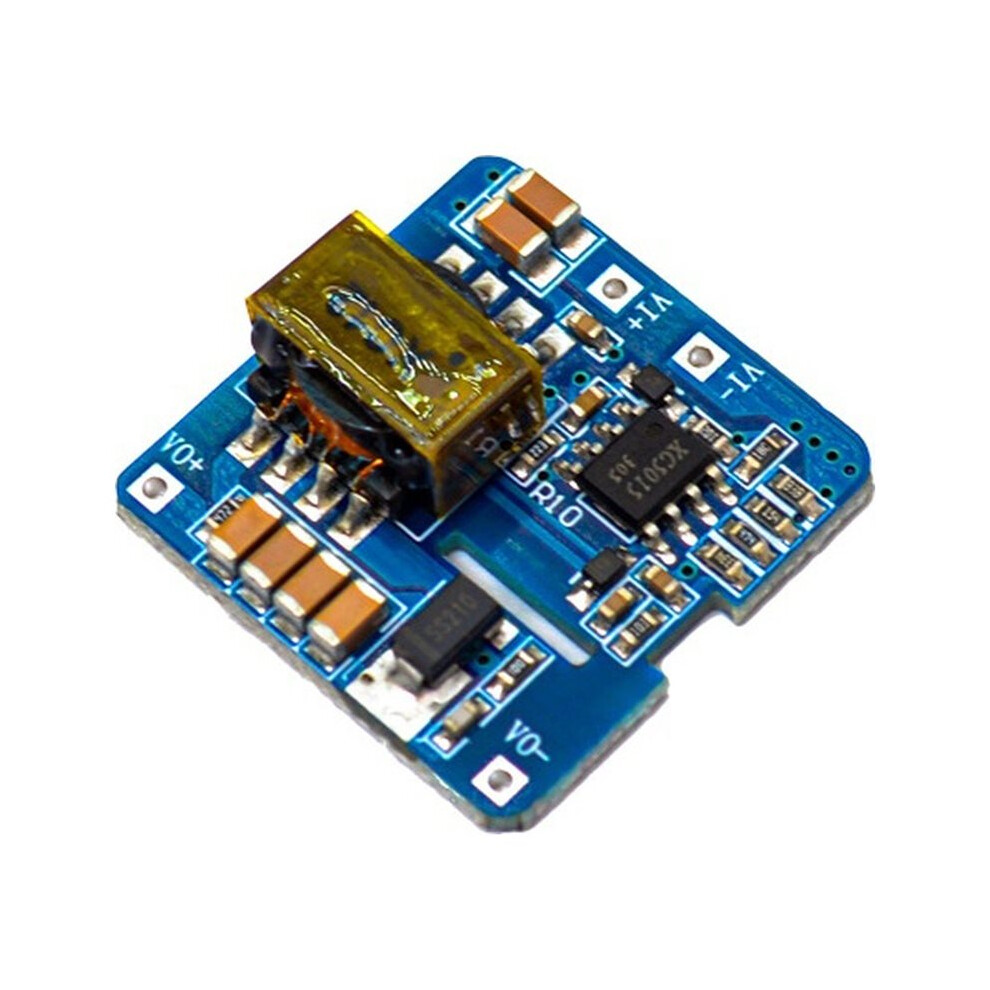

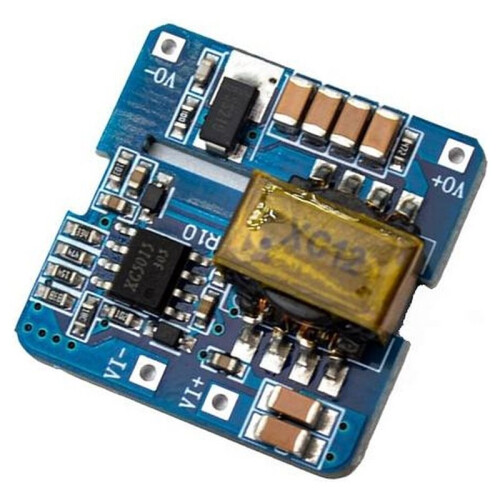

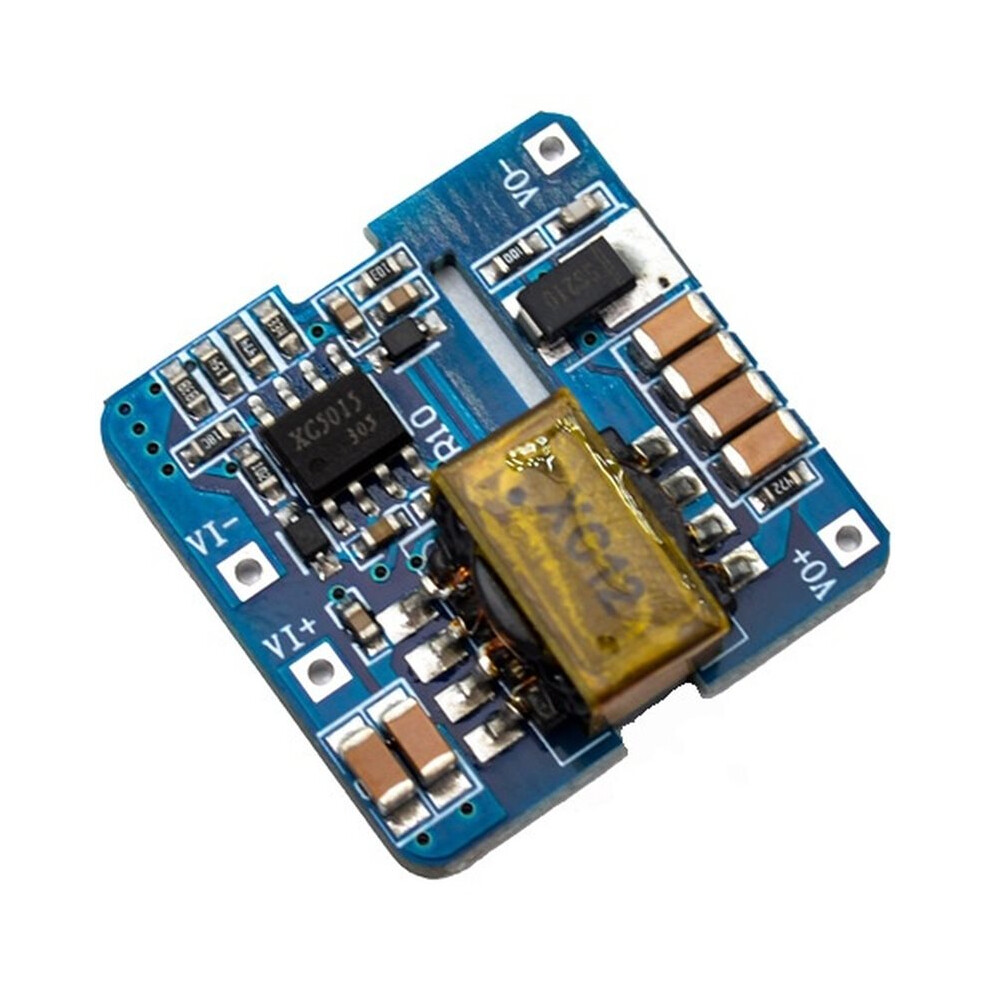

XC5015 Isolated Power Module 9-36V Input 24V Output - Converter 6W Rated 10W Max Isolated Power Supply Module
Ny
På lager
Derfor vil du elske å handle hos OnBuy:
- Tjen Cashback på hvert kjøp – bruk det umiddelbart på din neste bestilling
- Gratis levering – på millioner av varer på hele nettstedet
- Kunder elsker oss – 136,000 anmeldelser med vurderingen “Utmerket”
174,24 kr
188,46 kr
8 % rabatt!
+1,50 kr levering
1%
Tjen 1,74 kr med én gang
Les mer
Prisene for varer solgt av OnBuy inkluderer mva.
Rente- og gebyrfri delbetaling tilgjengelig
Se full produktbeskrivelse og detaljer
Levering: Standard (1,50 kr) | man 19. - ons 21. okt
Solgt av: YPDblue
Returer: 30 dager
180 dagers betalingsbeskyttelse
Beskrivelse og detaljer
Sammendrag
- The XC5015 is designed for a variety of topologies (Flyback/Boost/Buck) and output voltage feedback mode (SSR/PSR/ resistor partial voltage) highly integrated power control chip.
- PSR feedback can be achieved at hundreds of KHz operating frequency, built-in The output voltage sampling circuit can work in CCM and DCM mode at the same time, and the time width of sampling voltage is as low as 400ns.
- Built-in loop compensation circuit with fast dynamic response function, so that the switching power supply stability and dynamic response indicators have a good performance.
- XC5015
- 24V Output DC-DC Converter
XC5015 Isolated Power Module 9-36V Input 24V Output - Converter 6W Rated 10W Max Isolated Power Supply Module Beskrivelse
The XC5015 is designed for a variety of topologies (Flyback/Boost/Buck) and output voltage feedback mode (SSR/PSR/ resistor partial voltage) highly integrated power control chip.
PSR feedback can be achieved at hundreds of KHz operating frequency, built-in The output voltage sampling circuit can work in CCM and DCM mode at the same , and the width of sampling voltage is as low as 400ns.
Built-in loop compensation circuit with fast dynamic response function, so that the switching power supply stability and dynamic response indicators have a good performance.
Wide input voltage range: 9-36V
Output voltage: 24V
Rated power: 6W
power: 10W
Efficiency: 88%
No-load power consumption: 0.12W
Isolation voltage: 1500VDC
Input under-voltage protection; output over-voltage, over-current, and short-circuit protection
Operating temperature: -40C to +85C
Color:
Material: PCB
Package Contents:
1 * XC5015 Isolated Power Module
Detaljer
| OPC | PYD7NC7 |
|---|---|
| Koder | 6031888449982 (EAN) |
| Produkt- og sikkerhetsinformasjon |
Produktdata
| Height | 1cm |
|---|---|
| Width | 1cm |
| Length | 2cm |
| Weight | 0.0045kg |
| Colour | Blue |
| Material | PCB |
