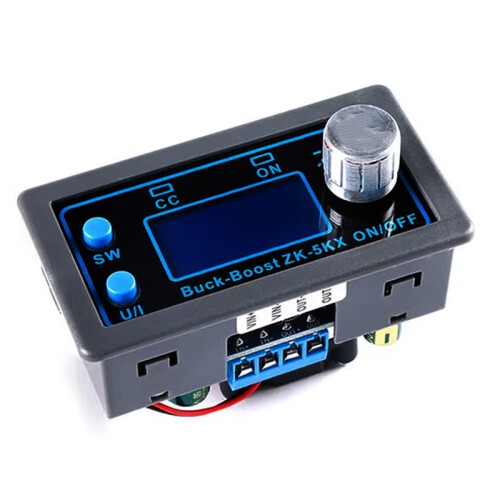

ZK-5KX DCDC Buck Boost Converter CC CV Power Module Adjustable Regulated Laboratory Power Supply

ZK-5KX DCDC Buck Boost Converter CC CV Power Module Adjustable Regulated Laboratory Power Supply Beskrivelse

1 LCD can display input/output voltage, output current/output power/output capacity/output ;
2. CNC adjustment, accurate and fast, can boost and lower voltage, output voltage can be adjusted at will from 0.5-30v, limit current 0-4a can be adjusted at will;
3. Anti-reverse connection protection of input end, which will not burn out;
4. Anti-reverse irrigation at the output end, no additional anti-reverse irrigation diode is needed to charge the battery;
5. The module can be set to open/close by default;

Multiple software protection mechanisms are available, and the protection threshold is adjustable.When the working parameters of the module exceed the protection threshold, the output will be automatically closed.
Output ripple is small and PI filter is available;
Thicken radiator fins.
Input voltage: 5.0-30v
Output voltage: 0.5-30v
Output current: can work stably at 3A for a long , and can reach 4A under enhanced heat dissipation
Output power: natural heat dissipation 35W, strengthen heat dissipation 50W
Voltage display resolution: 0.01V
Current display resolution: 0.001A
Conversion efficiency: about 88%
Soft start: yes (with high power and load module may fail when starting)
Protection mechanism:
Input anti-reverse connection;
Output anti-reverse irrigation;
Input undervoltage protection (4.8-30v adjustable, default 4.8v)
Output overvoltage protection (0.5-31v adjustable, default 31V)
Output overcurrent protection 0-4.1a (adjustable, default 4.1a)
Overpower protection (0-50w adjustable, default 50W)
Overtemperature protection (80-110 adjustable, default 110)
Timeout protection (0-100h adjustable, off by default)
Super capacity protection (0-60ah adjustable, off by default)
Operating frequency: 180KHZ
Color: As Shown
