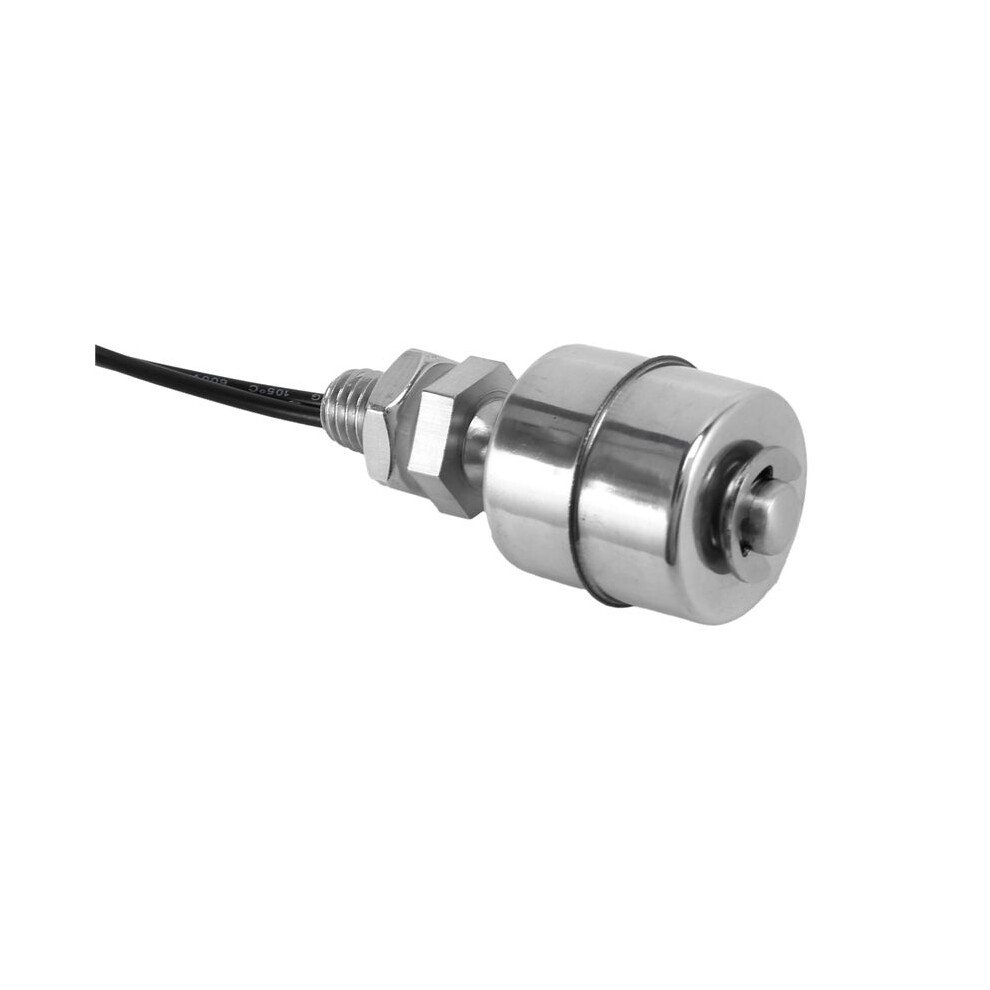

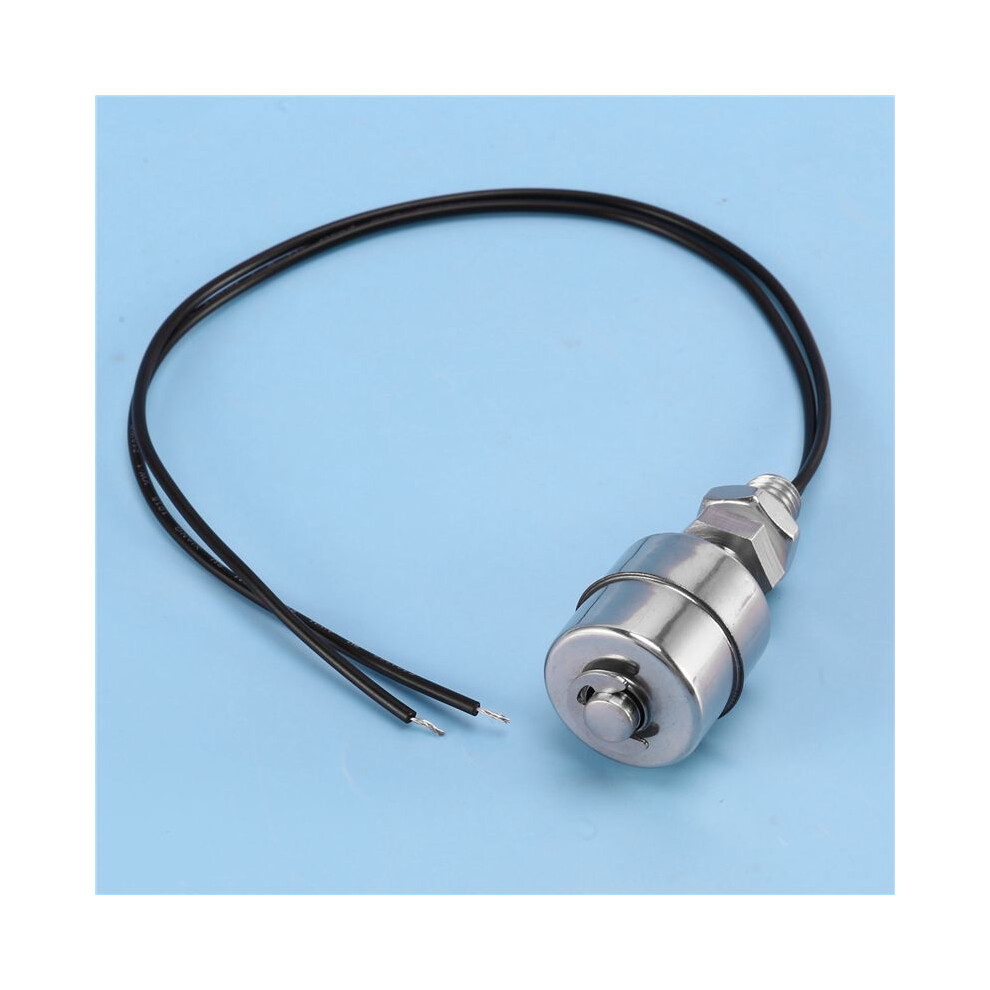

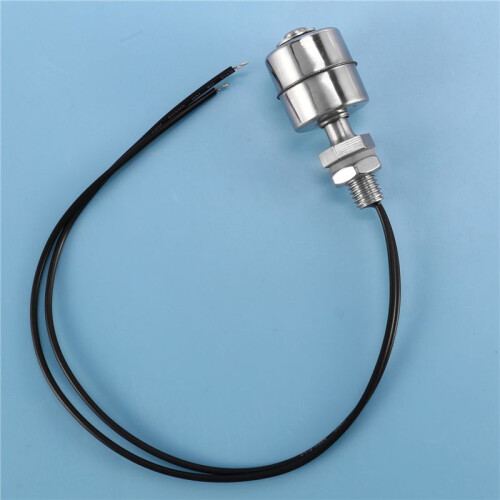

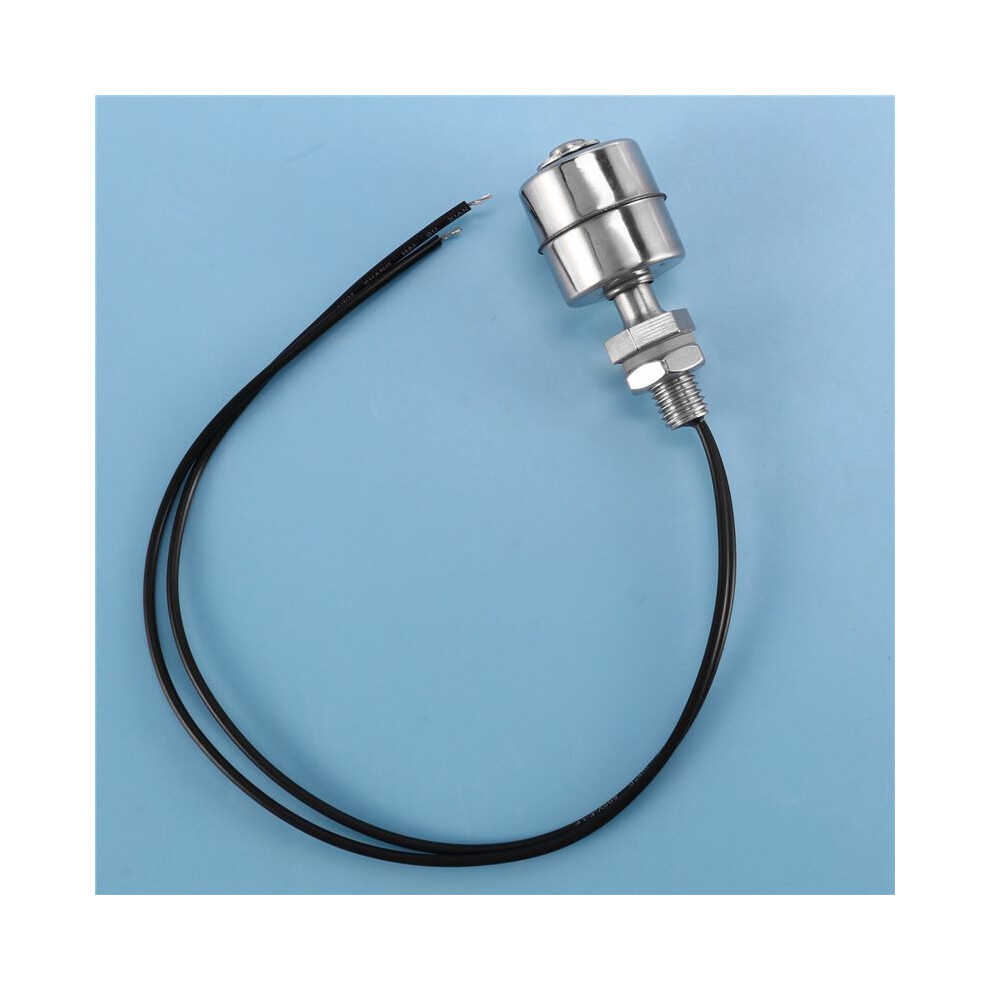

10X Aquarium Pool Liquid Water Level Sensor Stainless Steel Float

Opis produktu: 10X Aquarium Pool Liquid Water Level Sensor Stainless Steel Float

A float is a device used to sense the level of liquid within a tank.
The may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
Note: because the current that the can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.

Product Name: Water Level Sensor;
Model No.: ZP4510-S;
Contacts: NO+NC;
Max Contact Rating: 10W
Max Switching Voltage: 100V ;
Max Switching Current: 0.5A;
Max Breakdown Voltage: 220V ;
Max Carry Current: 1.0A;
Max Contact Resistance: 100mΩ
Temperature Rating: -30 - +125C;
Float Material: SUS304;
Float Body Material: SUS304;
Float Size(Approx): 26 x 26mm / 1.02 inch x 1.02 inch(L x D);
Thread Dia(Approx): 9.8mm / 0.386 inch
Bottom Clip Dia(Approx): 14.7mm / 0.579 inch;
Hex Nut Size(Approx): 16.6mm / 0.654 inch;
Body Total Length(Approx): 62mm / 2.4 inch
Cable Length: 31cm / 12.2 inch;
Color: Silver Tone;
Net Weight: 390g;

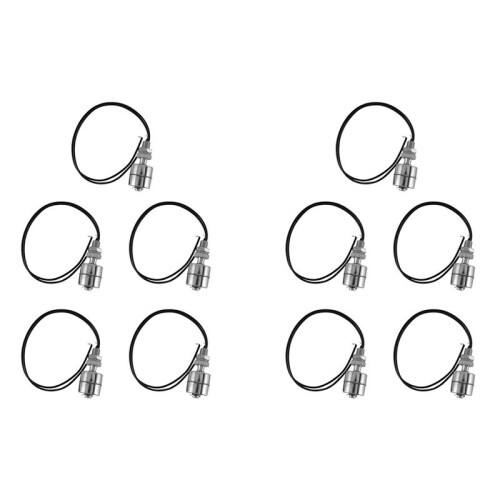

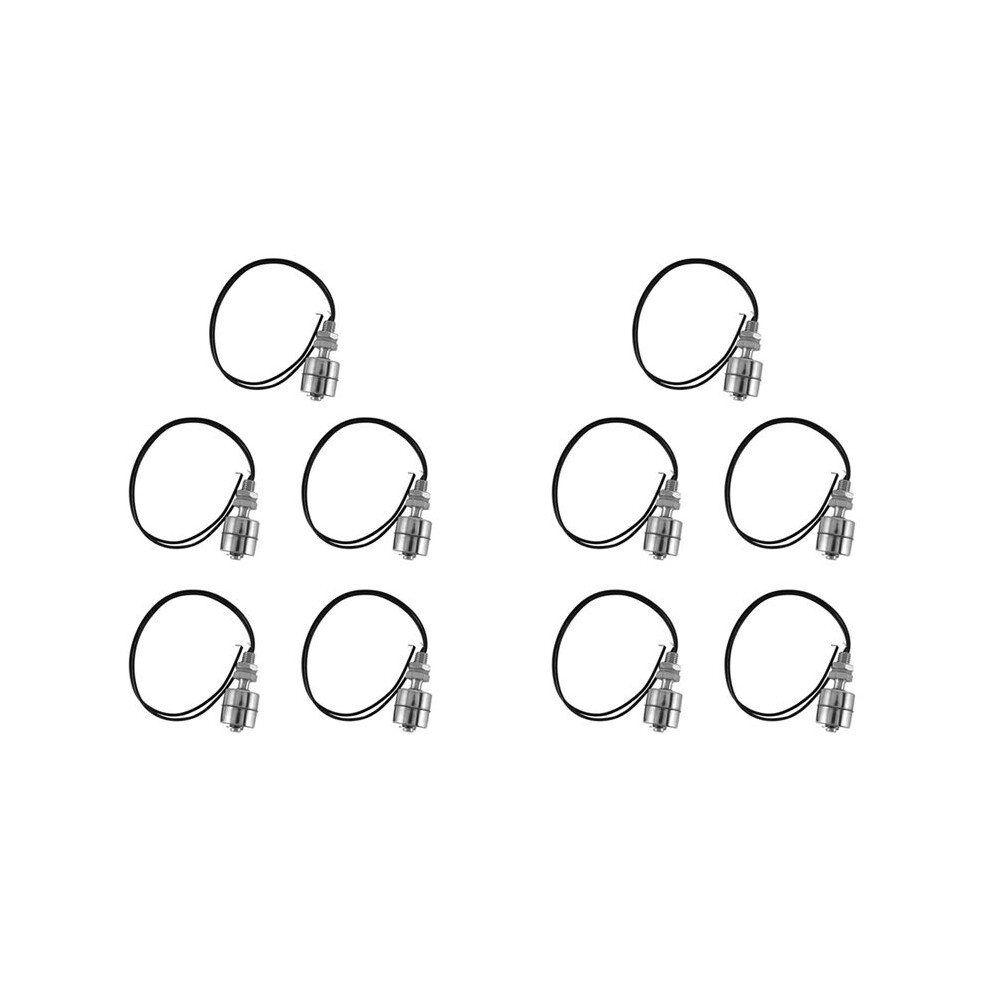

Package Contents: 10 x Water Level Sensor
