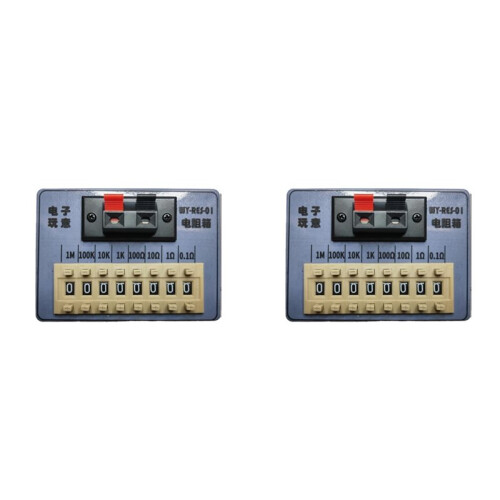

2X WY-RES-01 Resistance Box Pocket Resistance Box, Dial Programming Resistance Box for Electrical Equipment Tool

Opis produktu: 2X WY-RES-01 Resistance Box Pocket Resistance Box, Dial Programming Resistance Box for Electrical Equipment Tool

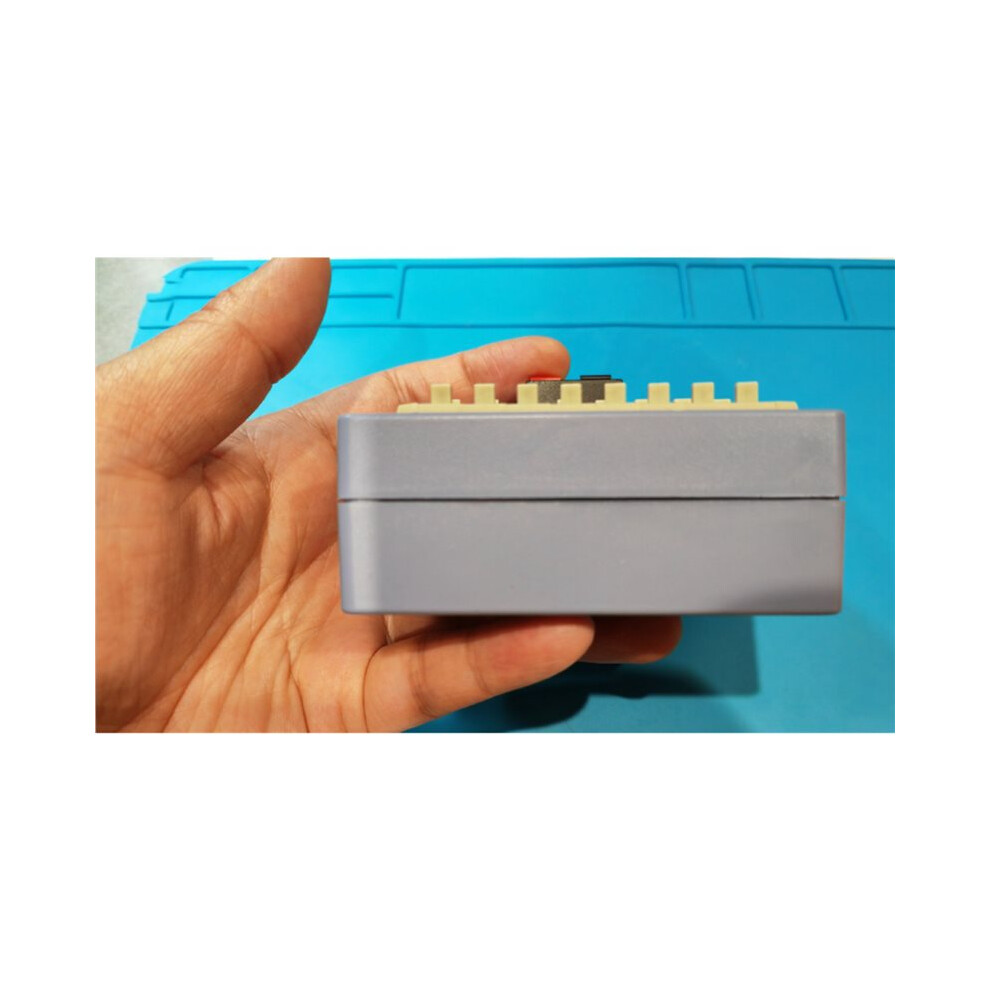

portable, compact, and flexible resistor box
This is a convenient alternative to potentiometers and larger resistor boxes. When not in use, you can simply stash it in a drawer or bag.

Instructions:

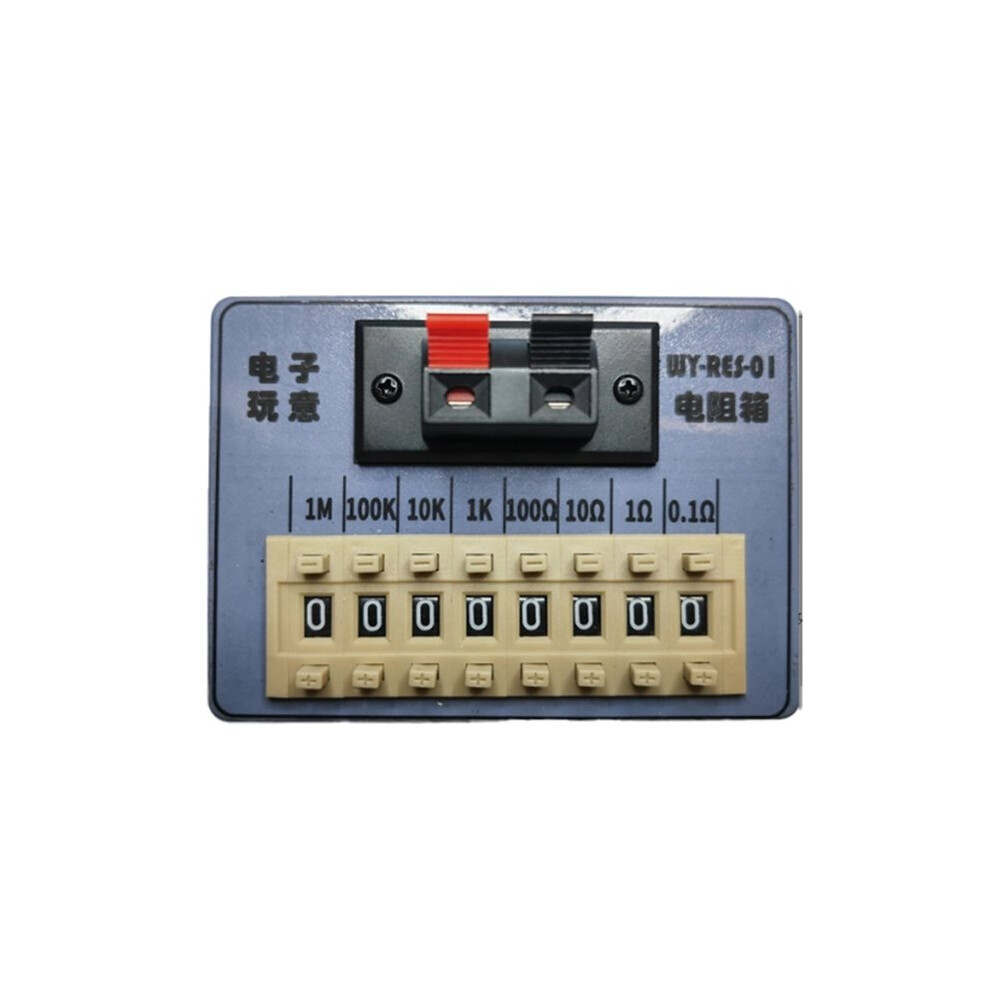

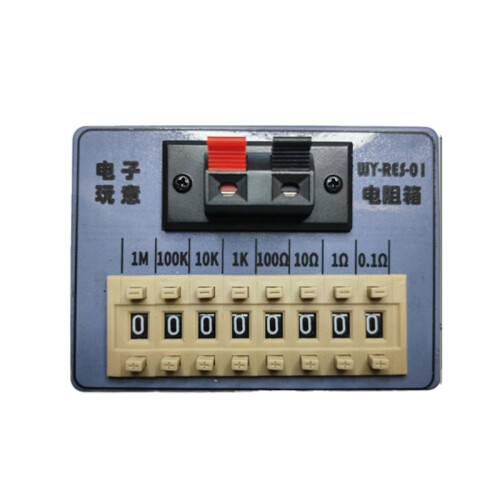

The resistance box has 8 levels, each adjustable from 0 to 9.

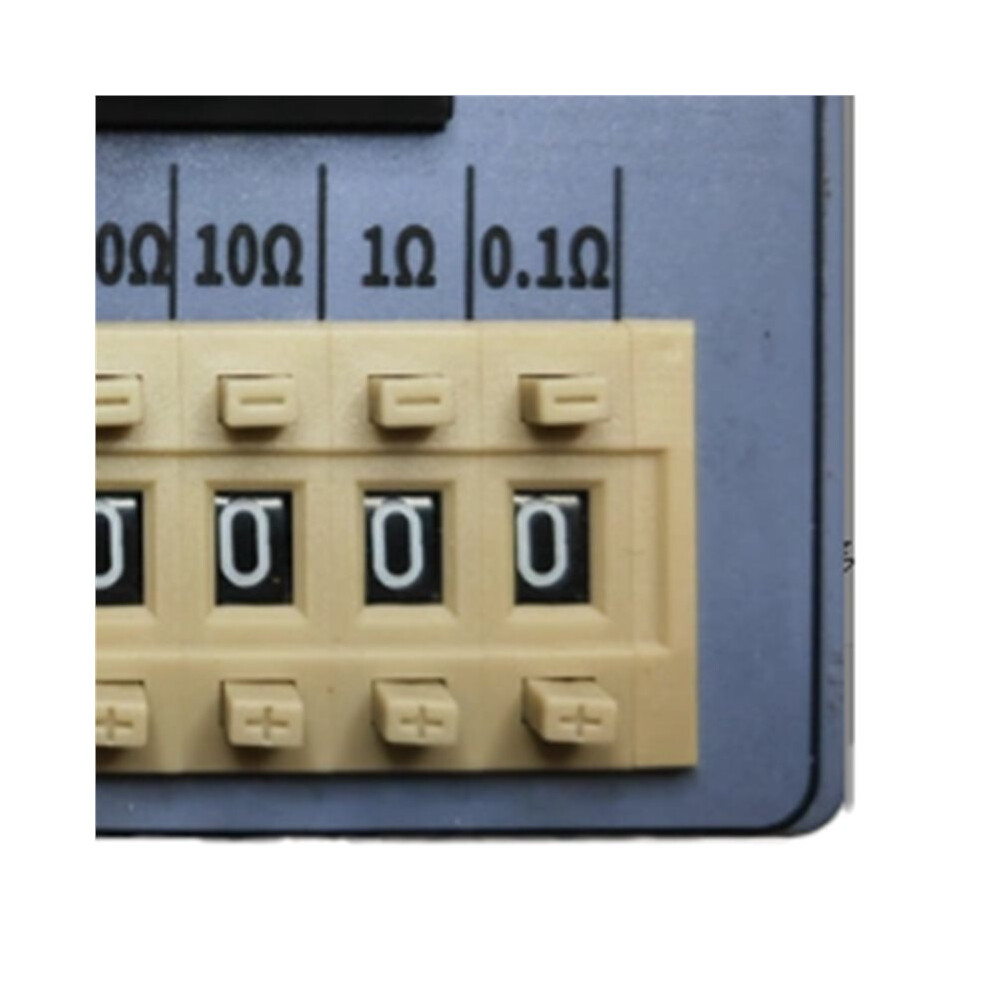

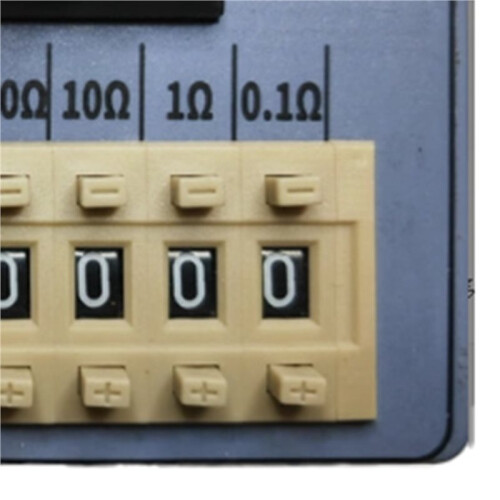

These are 1M, 100k, 10k, 1k, 100Ω, 10Ω, 1Ω, and 0.1Ω. For example, to select 23.6K, then:
x1M, select 0;
x100K, select 0;
x10K, select 2;
x1K, select 3;
x100R, select 6;
x10R, select 0;
x1R, select 0;
x0.1R, select 0.
Resistance value = 0x1M + 0x100K + 2x10K + 3x1K + 6x100R + 0x10R + 0x1R + 0x0.1R = 23.6K
Specifications:
Part Name: WY-RES-01 Resistor Box
Material: ABS
Color: Gray
size: As shown
Adjustment Range: 2Ω~9999999.9Ω
Resolution: 0.1Ω
Accuracy: 1%
Power: 250mW

Package Contents:

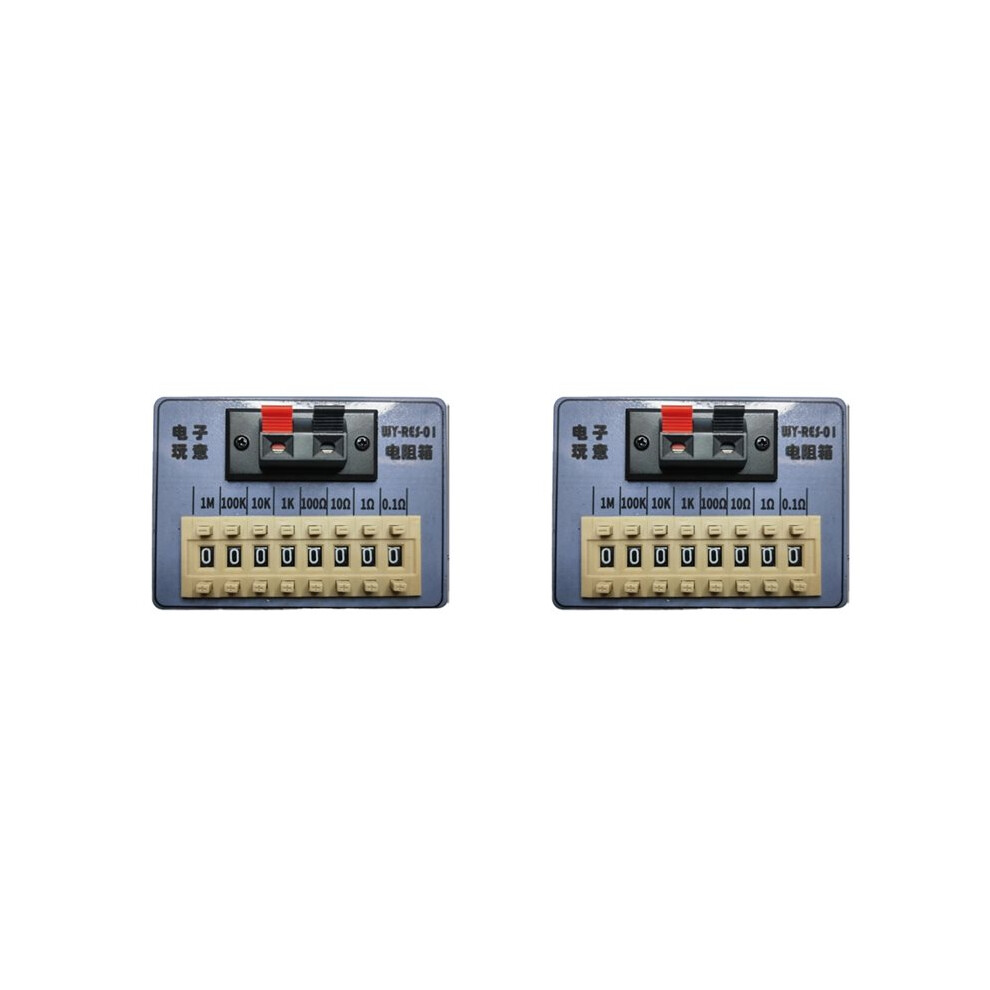

2 x Resistance Box
