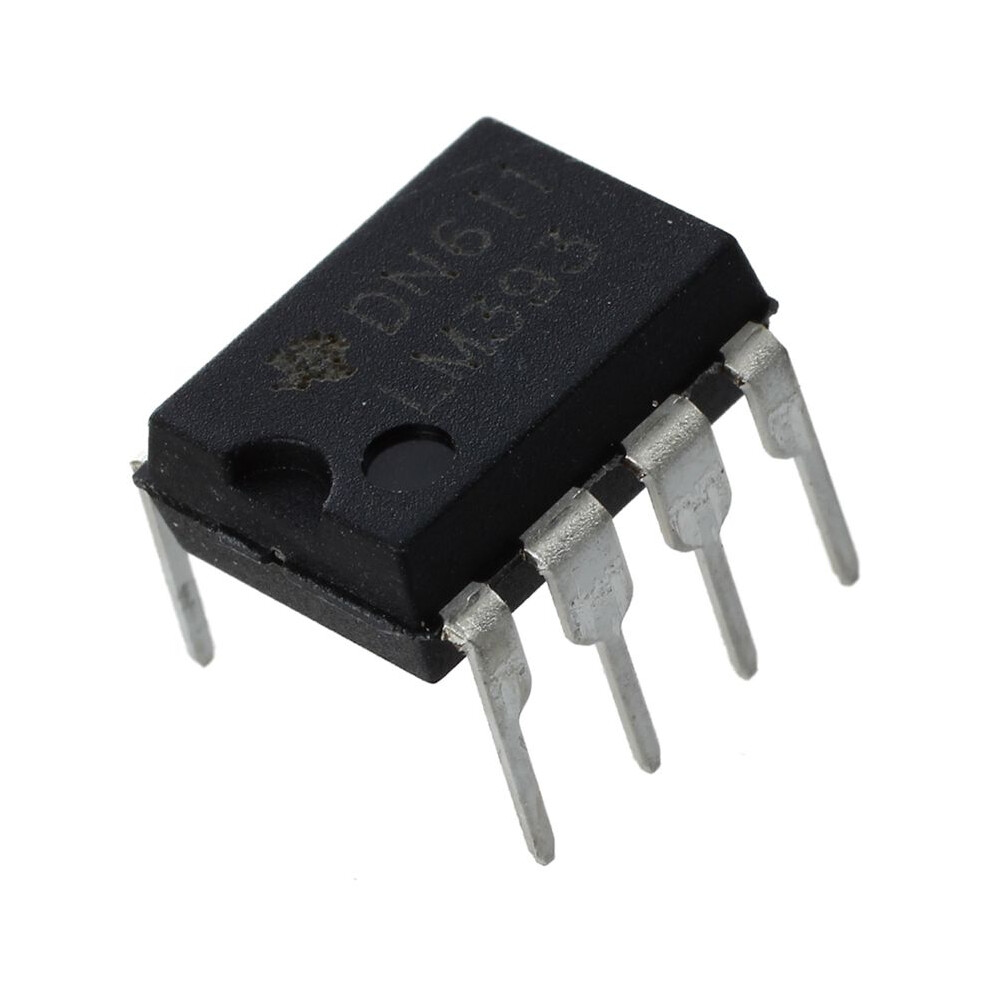

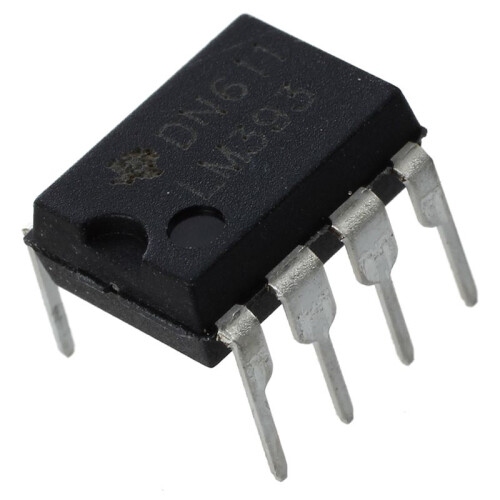

30 PCS LM393N LM393 DIP-8 Low Power Dual Voltage Comparator

Opis produktu: 30 PCS LM393N LM393 DIP-8 Low Power Dual Voltage Comparator

Item No.: LM393N
Package: DIP-8
Low Current Supply: 0.4 mA
Low Input Bias Current: 25 nA
Size (L x W x H): approx. 9 x 9 x 7 mm

LM393N high-precision low-power voltage comparator, the offset voltage is caused by temperature drift.
The LM393N voltage comparator supports single power supply and is compatible with logic circuits.
This LM393N voltage comparators are equipped with low power consumption.
Description:
wide operating voltage range: 2.0V to 36V (for a single person power), +/- 1 V to +/- 18V (for dual power supply)
low input offset current: +/- 5nA
Max. input offset voltage: +/- 3 mV
package content: 30 x voltage comparator
