3X 6-15V to AC 10kV-25kV High-Voltage Generator Ignition Module 70W Automatic Arc Initiation Transformer

Opis produktu: 3X 6-15V to AC 10kV-25kV High-Voltage Generator Ignition Module 70W Automatic Arc Initiation Transformer

1. High voltage output: provide AC 10kV-25kV output, ensure stable and reliable ignition effect
2. Low heat design: 12V power supply natural heat dissipation, support for long continuous work without burnout

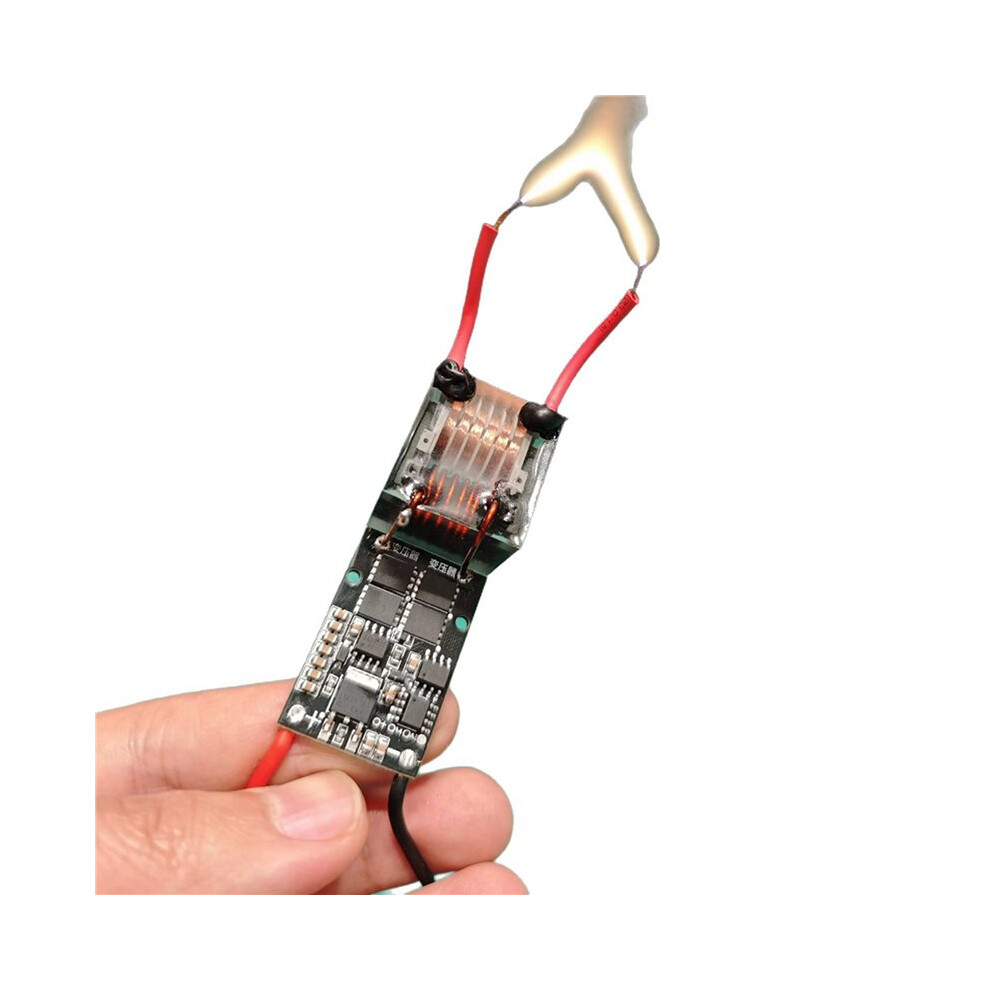

3. Dynamic sweeping arc: automatic arc starting without manual arc, convenient and efficient
4. Overheating protection mechanism: MOS overheating automatic protection, effectively prevent high temperature damage to the equipment

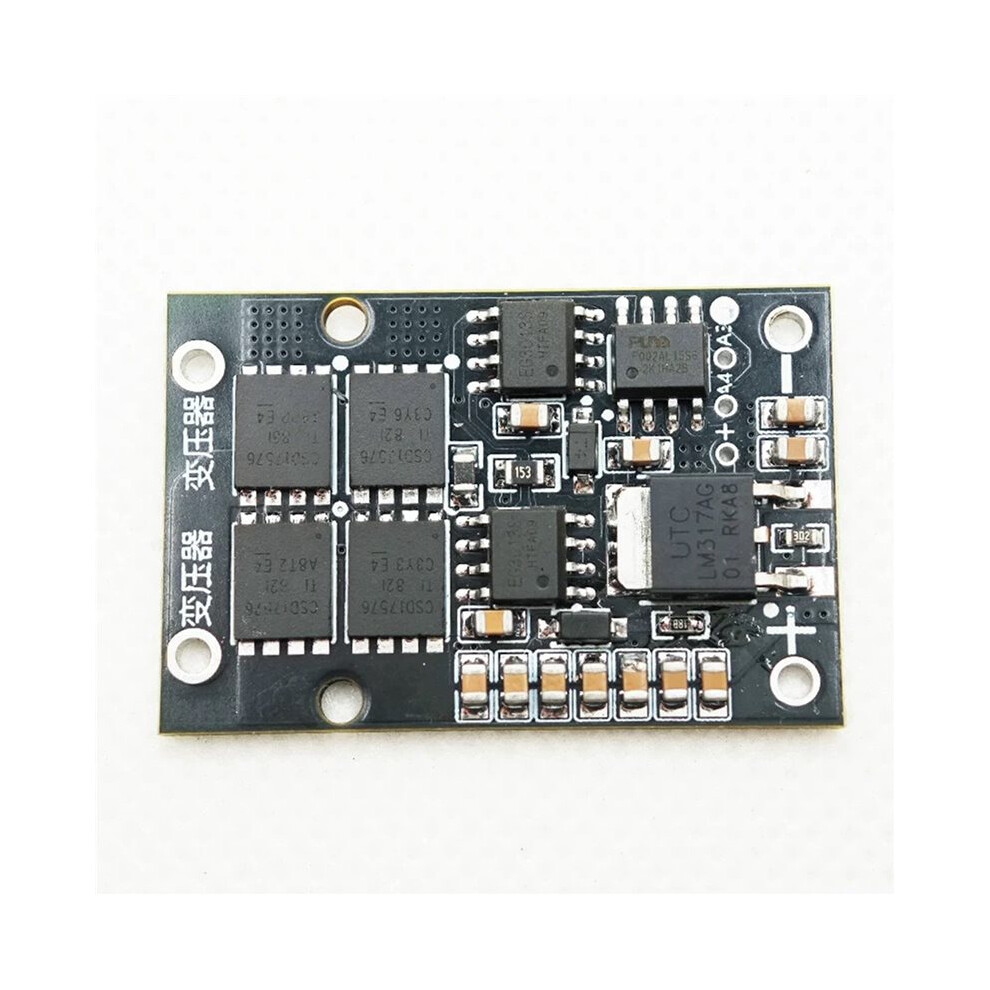

5. Compact size design: small circuit board and transformer, easy to integrate into a variety of equipment

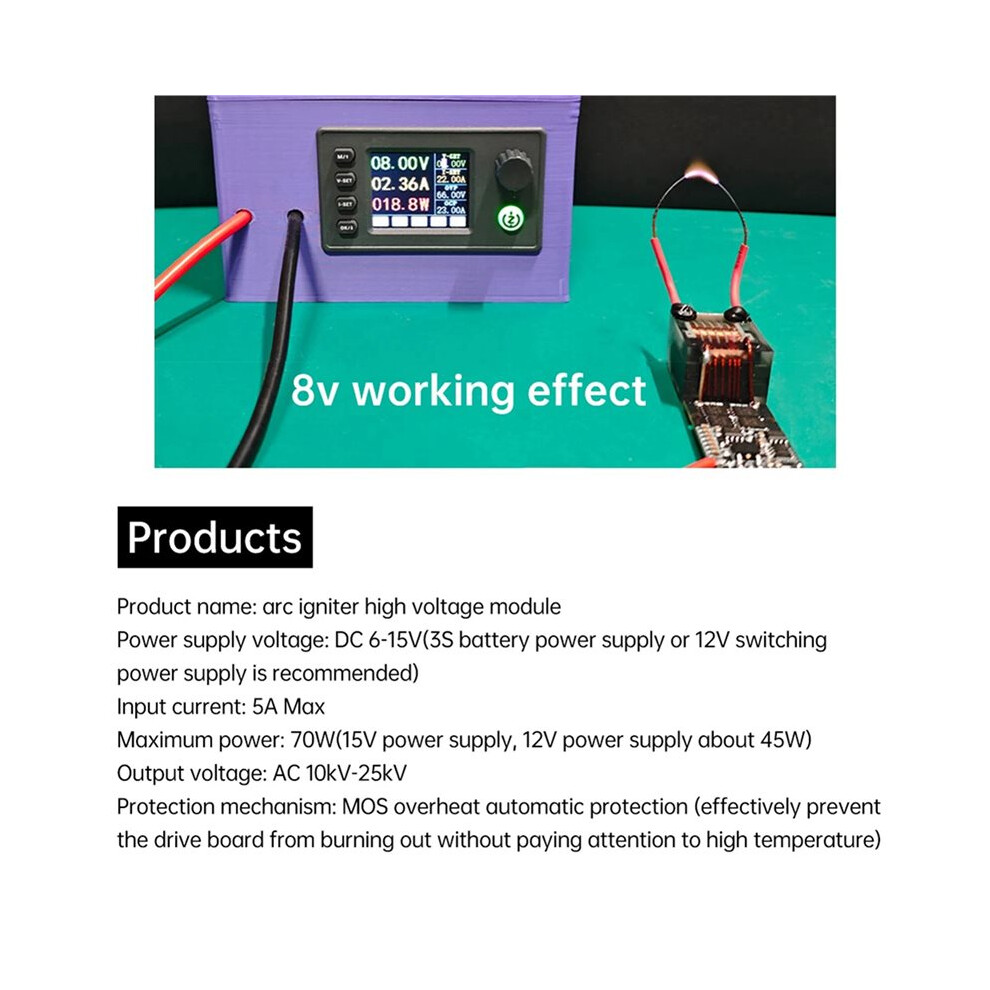

Product name: Arc igniter high voltage module
Supply voltage: 6-15V (recommended 3S battery power or 12V switching power supply)
Input Current: Maximum 5A

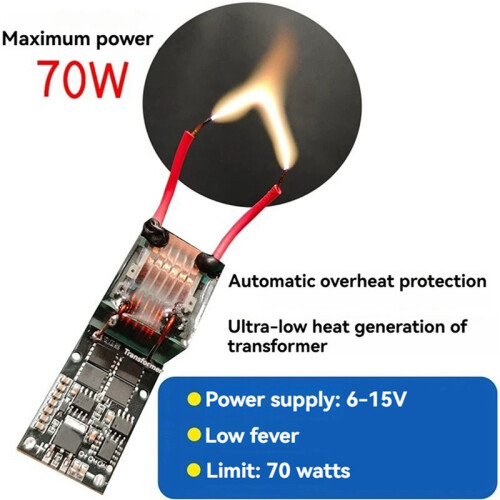

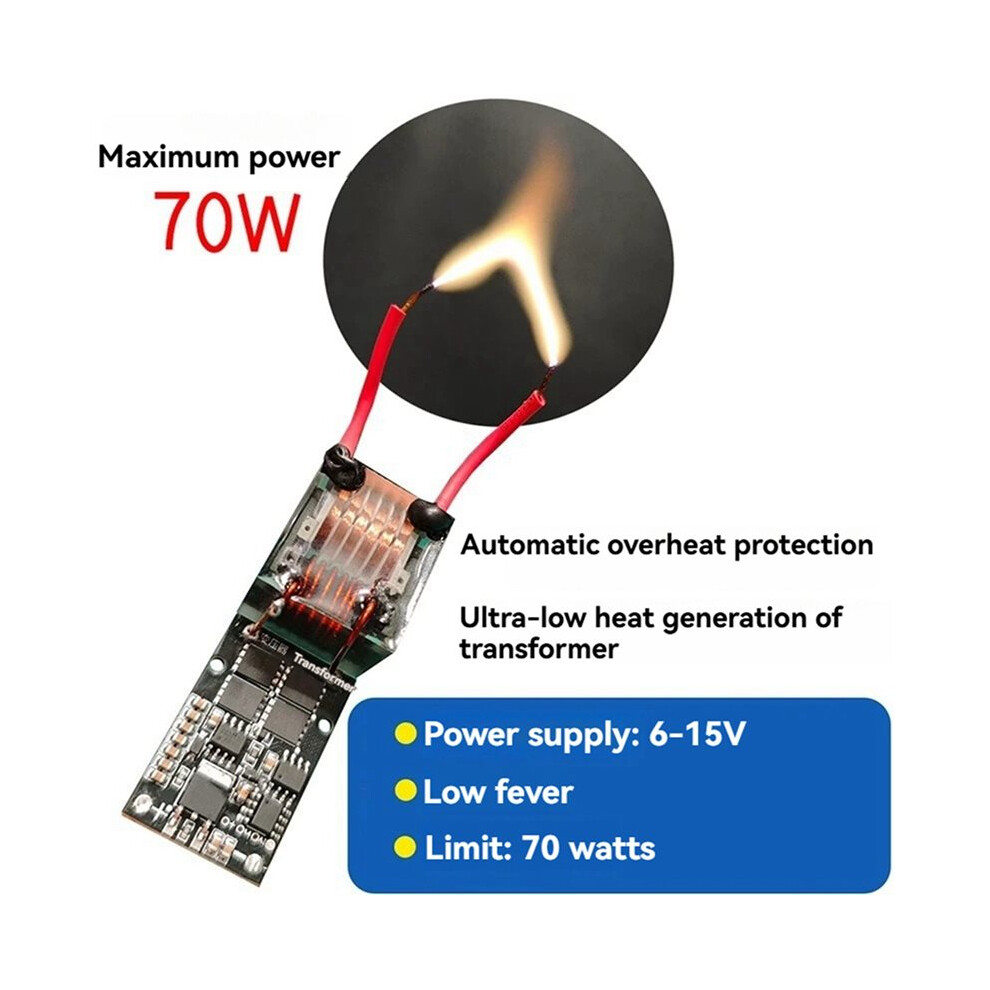

Maximum power: 70W (15V power supply, 12V power supply about 45W)
Output voltage: AC 10kV-25kV
Protection mechanism: MOS overheating automatic protection (effective prevention of not paying attention to the high temperature burned driver board)

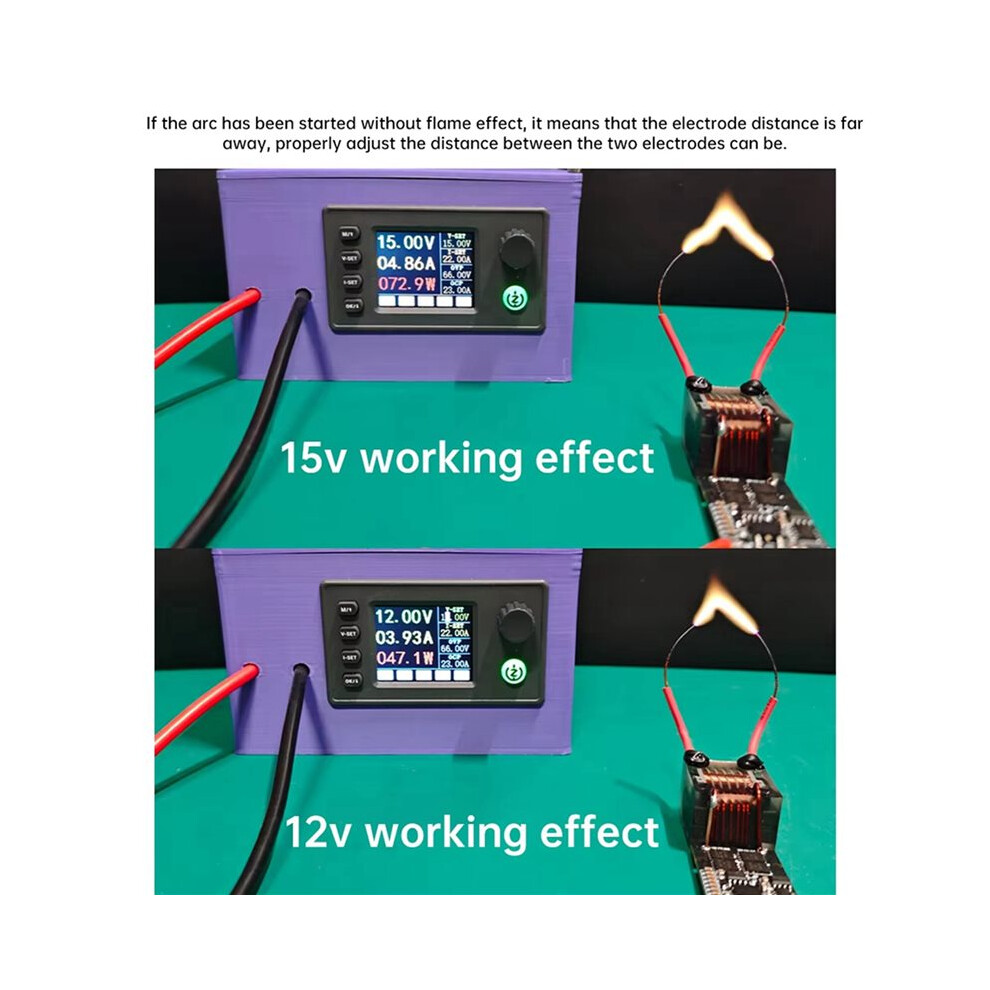

This ignition module using dynamic frequency sweeping automatic arc, without manual arc, supporting transformer 12V power supply natural heat dissipation can work for a long , the driver board mos temperature rise rate and ignition electrode distance related to the closer the temperature rises faster, the high-voltage output should not be too long, such as the need to extend the power supply can be extended, or transformer secondary
Attention:

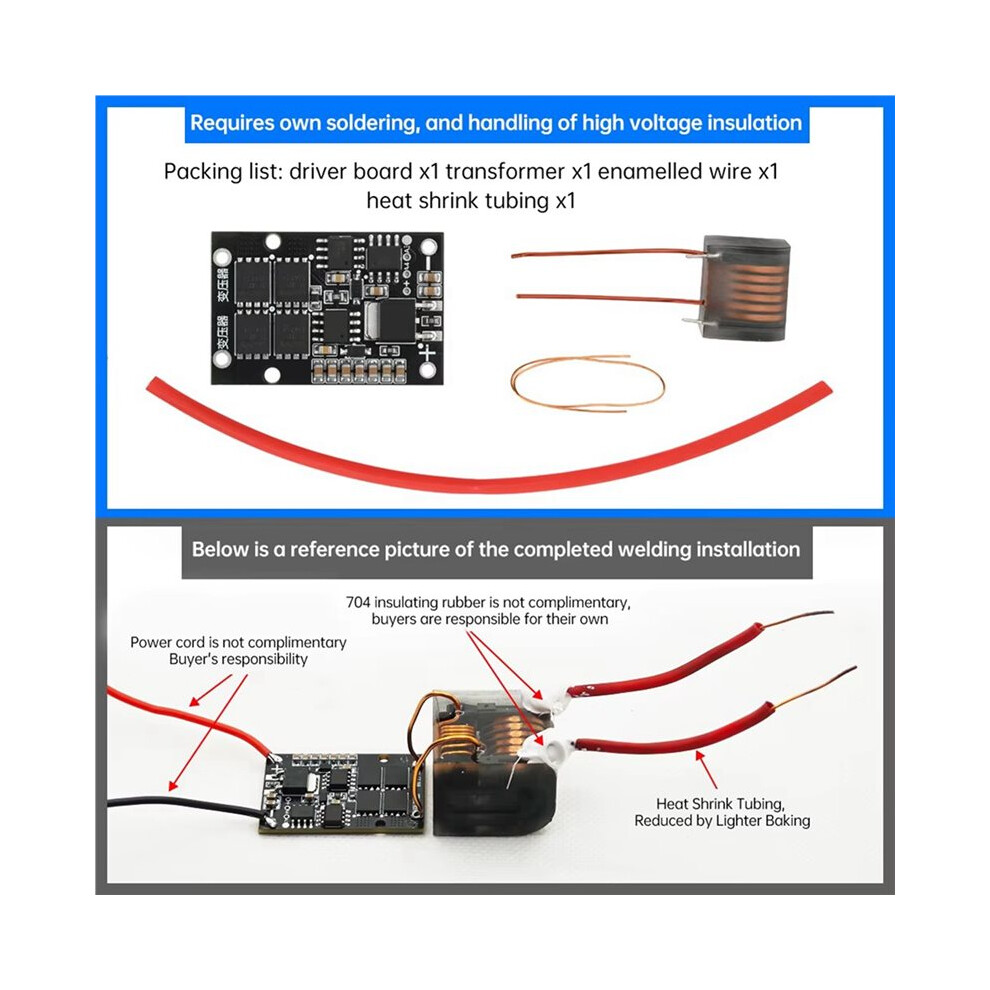

Due to the higher power, the secondary output of the transformer (that is, the high-voltage output pin) must be well insulated to prevent the arc in the transformer high-voltage output pin ignition, resulting in burned and burned off the pin, which is irreversible damage. No insulation can only be powered momentary test
Color: Black
Material: PCB+Plastic+Metal

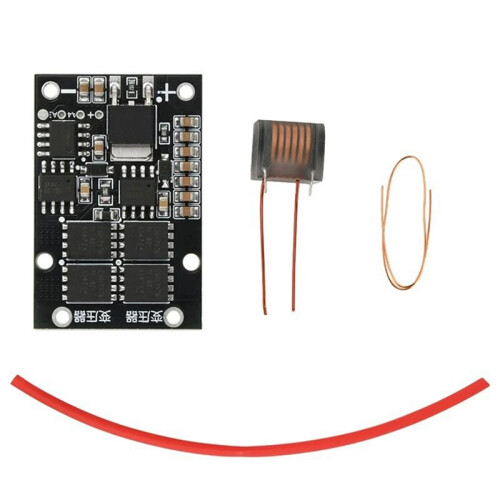

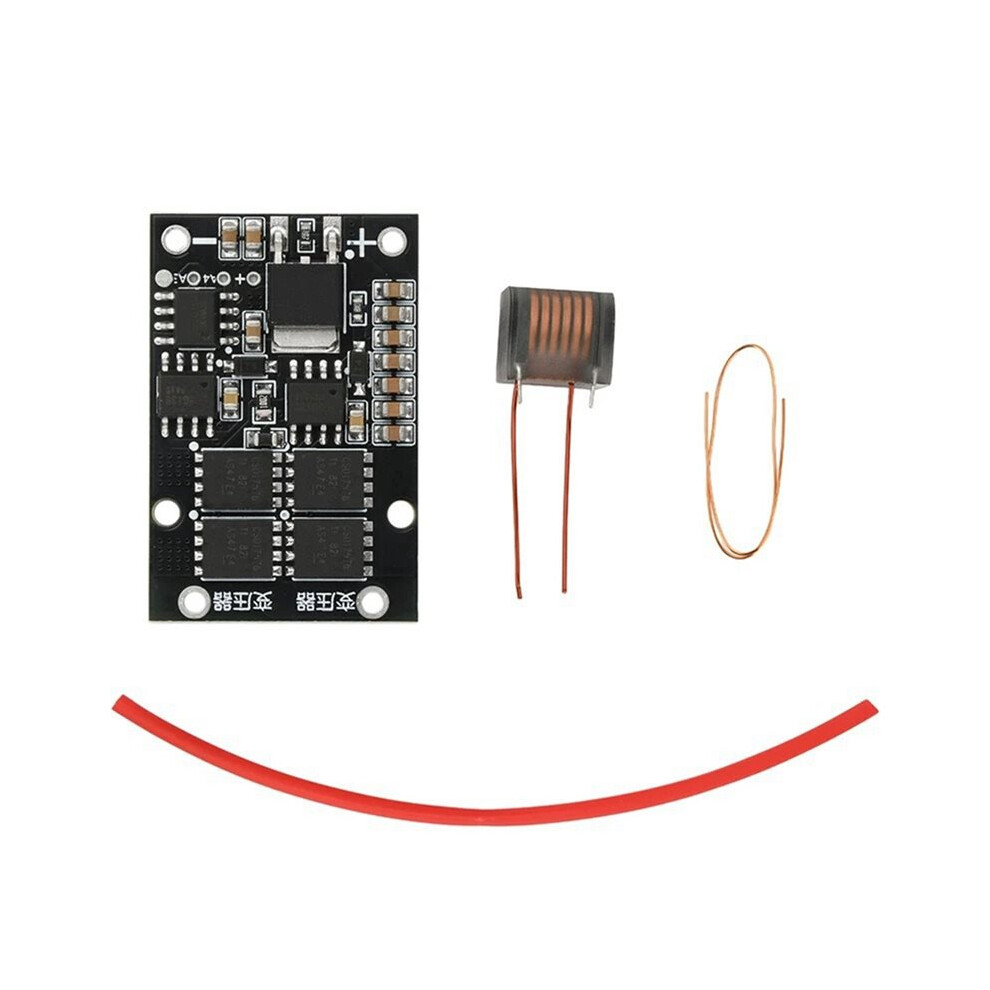

Package Contents:
3 x d
