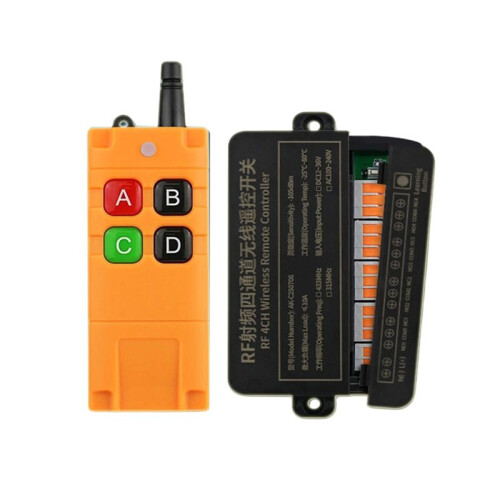

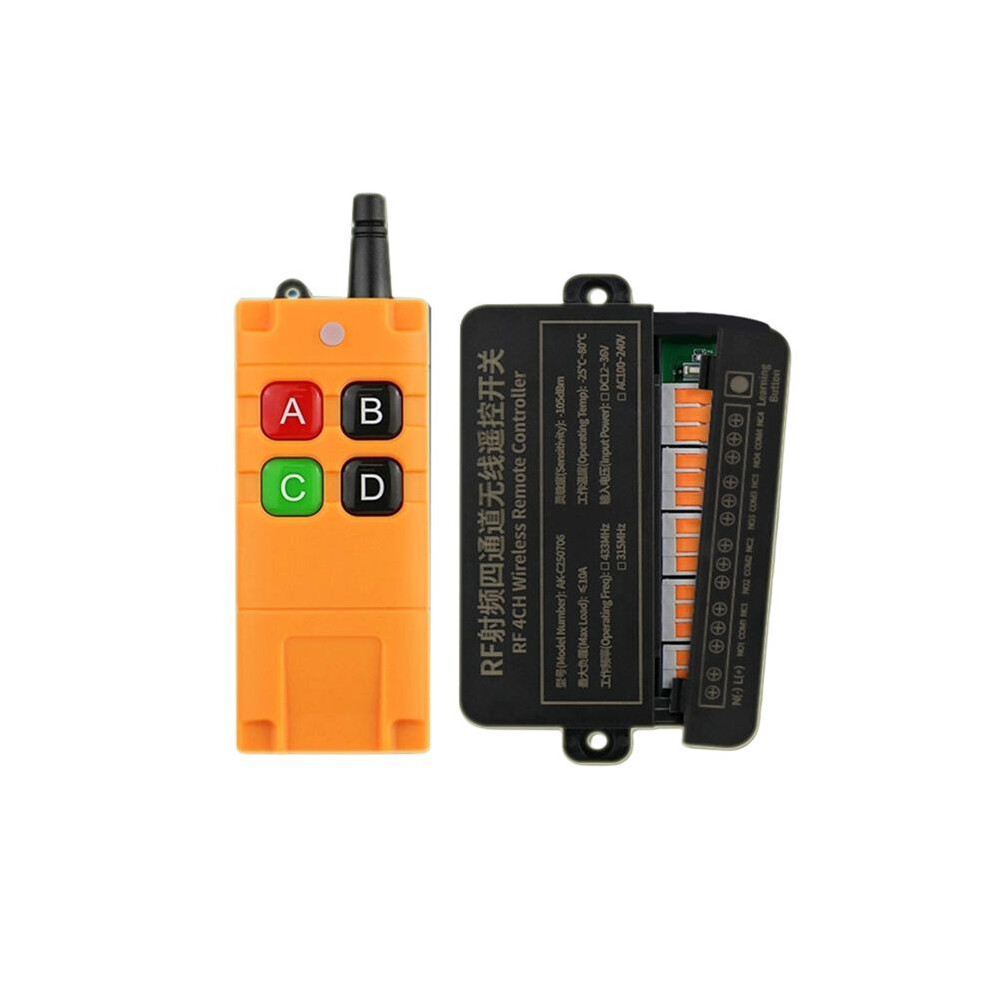

433MHz Wireless Remote Control Universal 4CH Relay Receiver Module for Gate GarageDC12V-36V RF Radio Controller A

Opis produktu: 433MHz Wireless Remote Control Universal 4CH Relay Receiver Module for Gate GarageDC12V-36V RF Radio Controller A

Specifications: Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.
Working Voltage: DC12V-36V
Current:Standby less than 10mA,Working less than 128mA
Working Temperature: -10-+60
Receiver Frequency: 433.92MHZ

Receiving Sensitivity: -105dB
Output State: Switching Value
Max Load:10A Relay, Resistive load less than 8A, Inductive load less than 3A
Encoding Type: Learning Code
Add transmitter by the Learning Button the receiver
About Working way:Working way changed by Learning button
Momentary: Press the Learning Button 1 times.
Relay: Press and hold ; Release Off.
Toggle: Press the Learning Button 2times.
Relay: Press ; Press same button again Off
Latched:Press the Learning Button 3 times.
Relay: Press ; Press other button Off.
2channel Momentary+2channel Latched: Press the Learning Button 4 times
(The product printed words may vary depending the batch, but this does not affect use)
Color:Black
Material:ABS

Package Contents:
1 * 433MHZ RF Wireless Remote
1 * Relay Receiver Module
