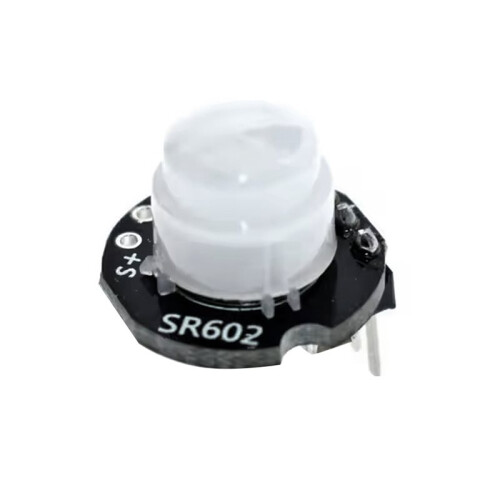

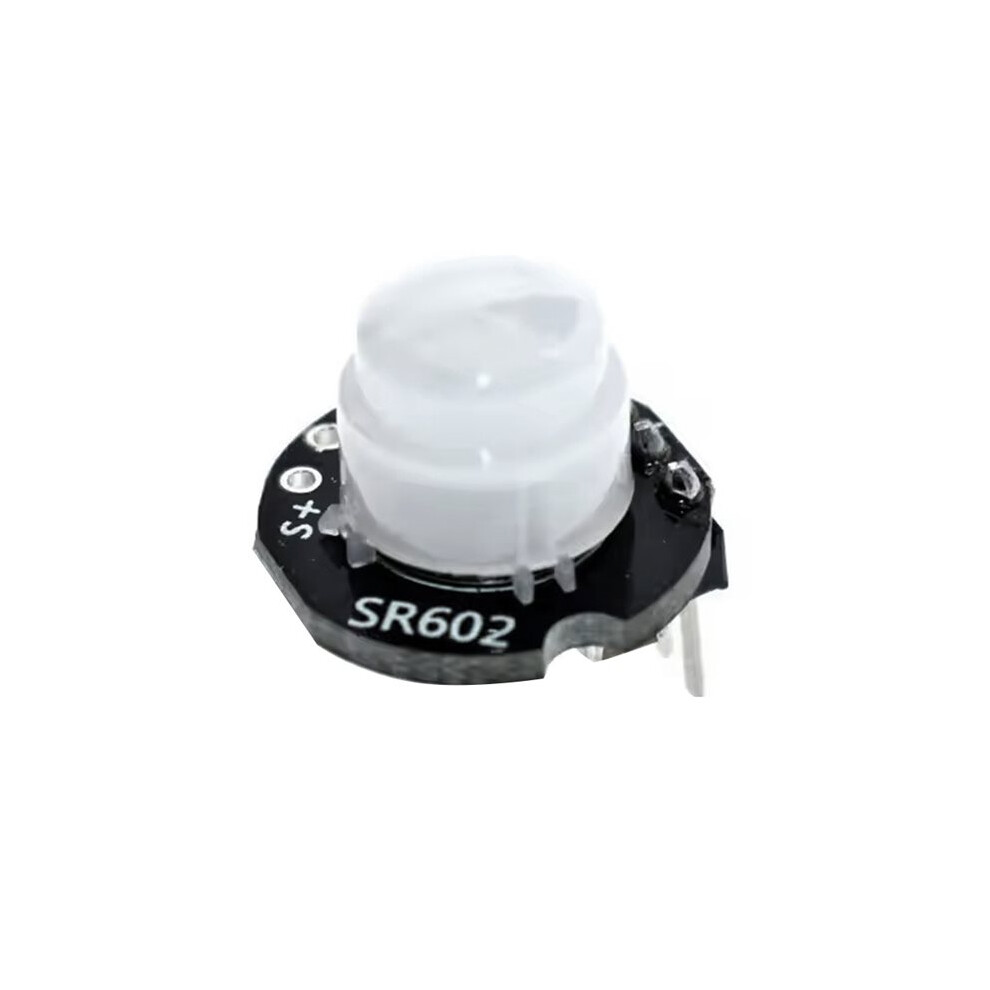

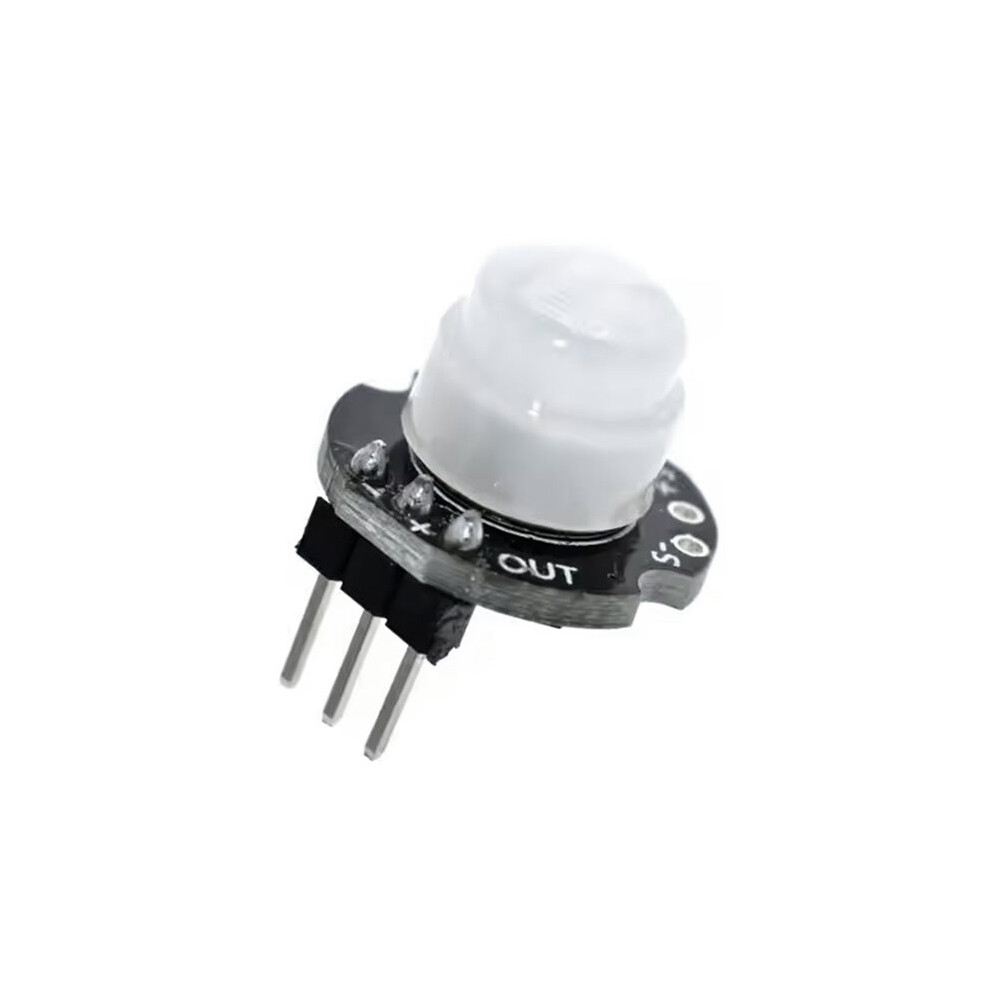

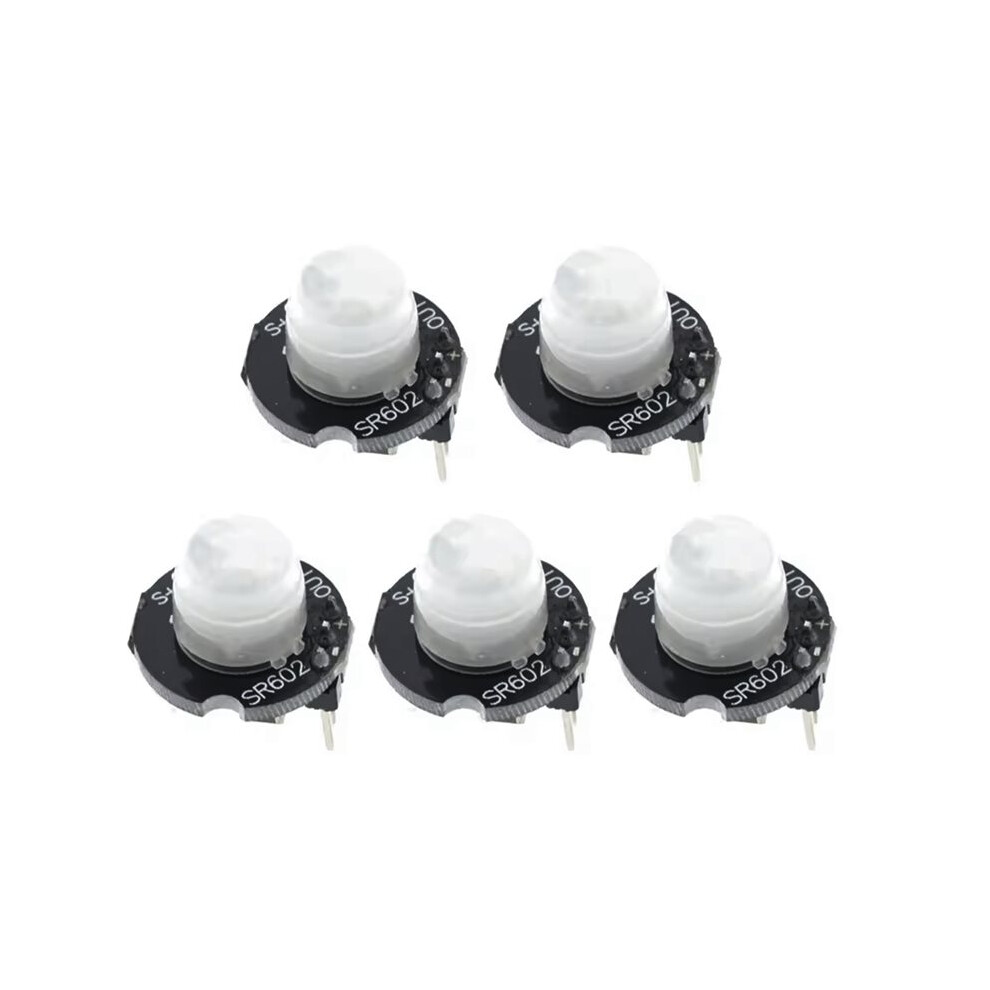

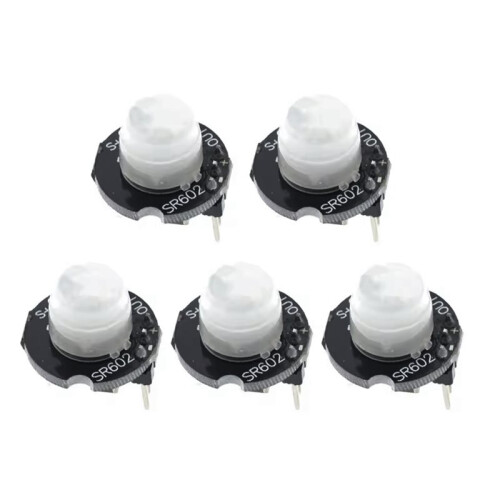

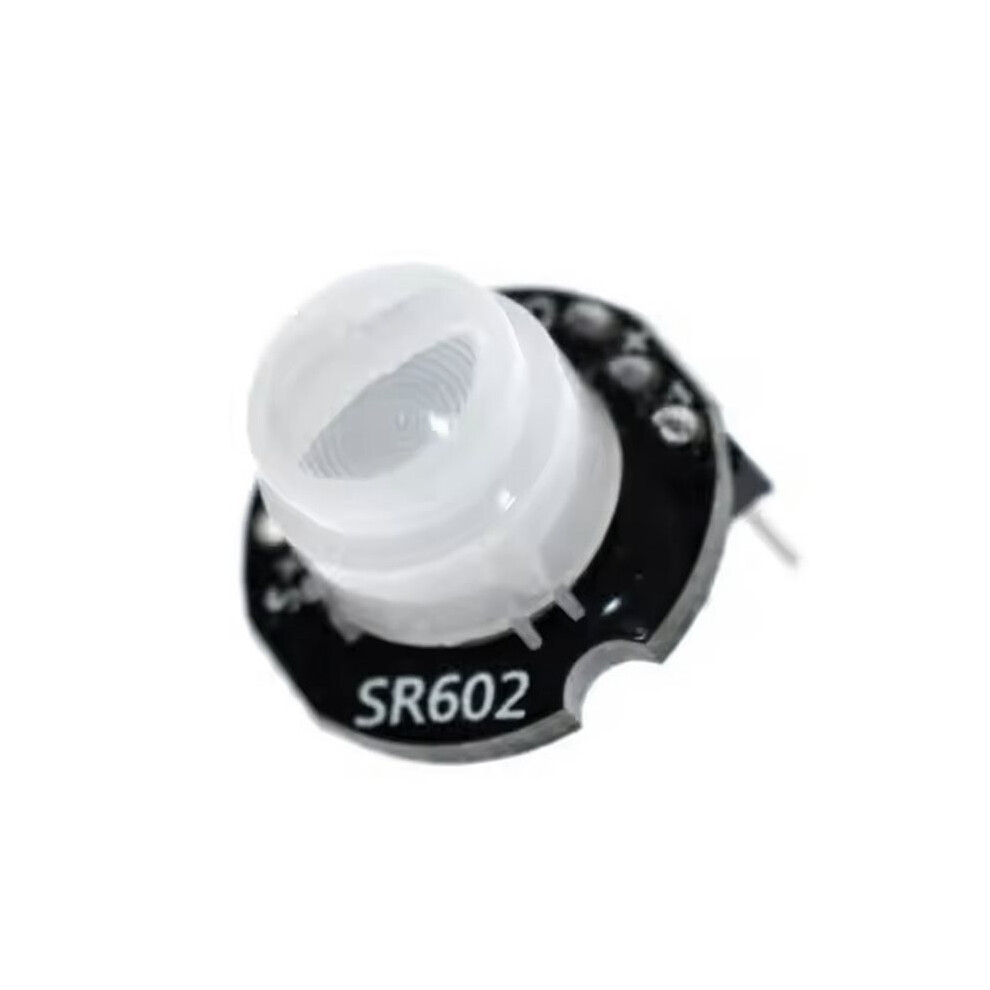

5 Pcs Motion Sensor Module SR602 - Pyroelectric Infrared PIR Kit with for DIY

Opis produktu: 5 Pcs Motion Sensor Module SR602 - Pyroelectric Infrared PIR Kit with for DIY

Customization and Application: Tailored for versatility, this module is perfect for computer applications, allowing tech enthusiasts and DIYers to integrate motion sensing capabilities into their projects seamlessly.
Product Condition and Type: Each SR602 module is new and classified as a high-performance module, designed to enhance your projects with reliable motion detection technology.
Environmental and Safety Assurance: Free from high-concern chemicals, this product promises a safe and environmentally friendly usage, making it an ideal choice for your and technological endeavors.
Description/Features:
The SR-602 Pyroelectric Human Body Infrared Sensor Module is designed for high sensitivity and quick response applications. It features low static power consumption, compact size, and easy installation with pre-soldered lens and pin headers. The module is ideal for body sensor lights, alarms, security systems, access control imaging, and automatic equipment in agriculture, forestry, and mining sectors.

Specifications:
Sensing Distance: to 5 meters; optimal 0-3.5M.
Output: High level (H=3.3V), Low level (L=0V).
Power Supply: 3.3V-15V; limit voltage 2.8V-18V.
Quiescent Current: 20uA.
Output Timing: Initial high level for 2 seconds post-power-, then switches to low, entering standby mode.
High Level : Adjustable from 2.5 seconds to 1 hour (factory default is 2.5 seconds). Changeable via a chip resistor.
Blocking : Fixed at 2 seconds.
Trigger: Factory set to repeatable trigger mode.
Sensitivity: Adjustable by changing a chip resistor.
Installation: Avoid heat sources and direct sunlight to minimize sensitivity issues.
Soldering: Disconnect power before soldering with a standard 220V iron; a 24V low voltage iron is recommended.
Color: As Shown
