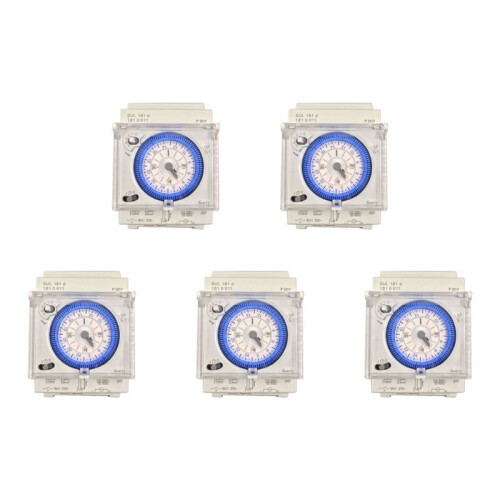

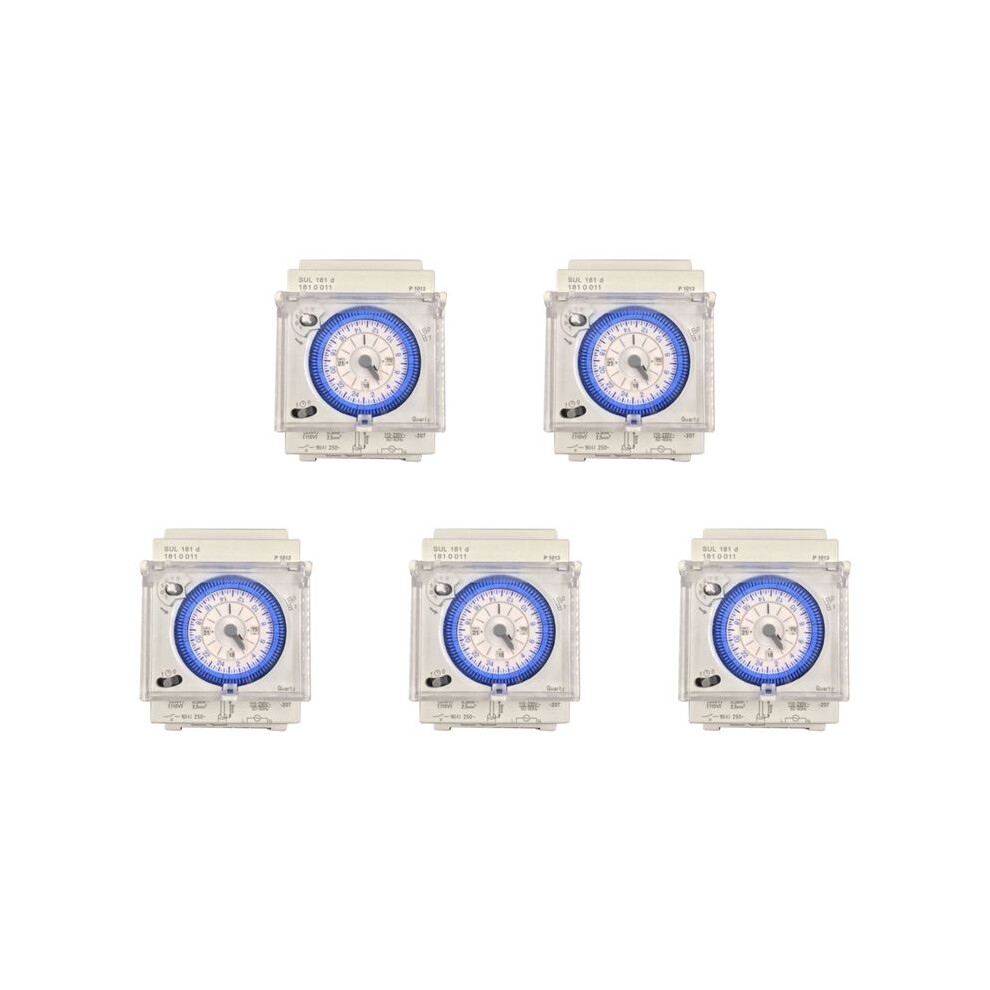

5X Analog Mechanical Timer 110V-220V 24 Hours Daily Programmable 15Min Setting Relay SUL181D Hot

Opis produktu: 5X Analog Mechanical Timer 110V-220V 24 Hours Daily Programmable 15Min Setting Relay SUL181D Hot

Product range: control range / industrial / complete / street light / lighting / farm / industrial control / home / household appliances
Electrical life: (under power load) more than 100,000 times; Mechanical life: () = 10 million times or more; Mechanical life: (AC) = 10 million times or more
Insulation voltage: (between coil and contact) less than equal 1000VAC; Insulation voltage: (between contacts and contacts) less than equal 1000VAC
Contact resistance less than equal 50Ohm Ambient temperature: -20 Celsius ~ +55 Celsius
range: 24h/24 hours storage 150/minimum setting unit 15 points/ total 96

Model: SUL181D
Rated voltage: 250VAC
Coil power supply: 230VAC
Rated current: 16A
Coil power: 0.2W
Contact switching current: 16A
Contact switching voltage: 250VAC
Protective features: plastic type
Contact load: 16A
Contact form: 1H
Frequency: 50~60 Hz
Number of contacts: 1
Cycle: 24 hours

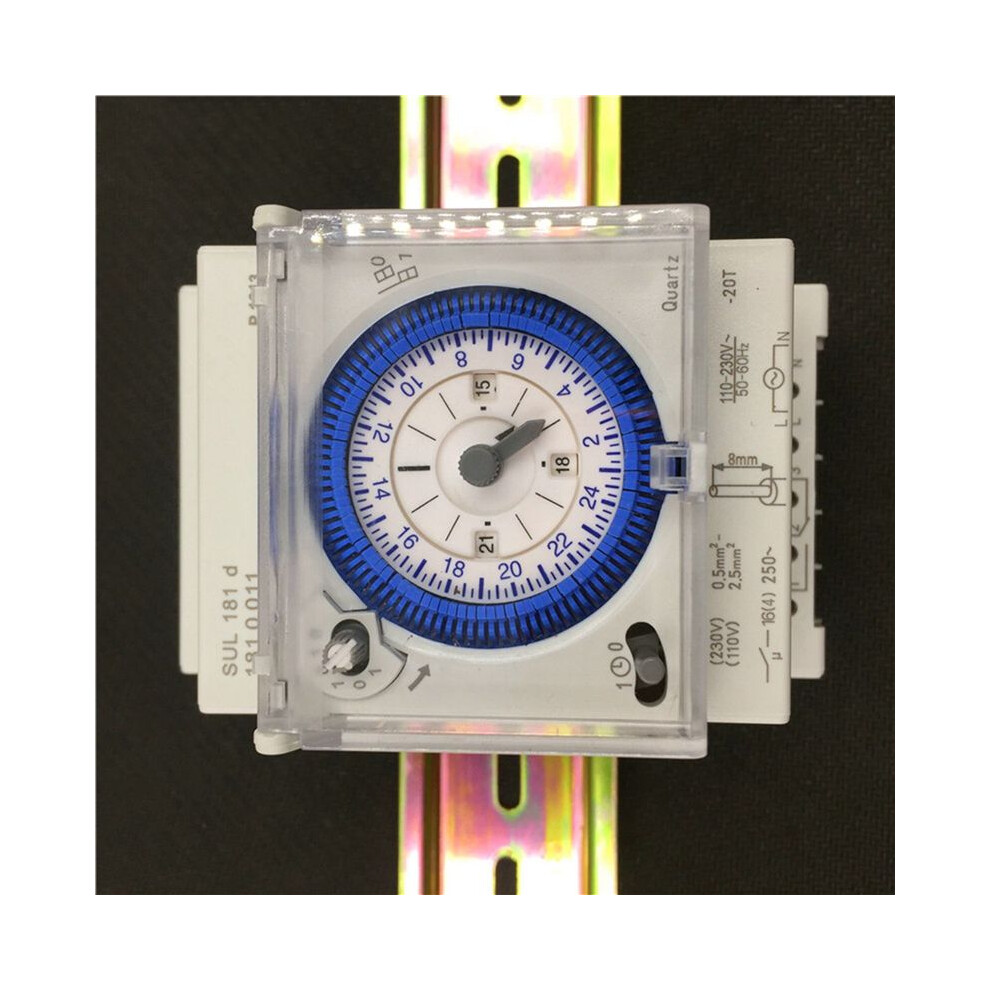

Installation form: DIN rail
Terminal block form: plug-in terminal
Cycle: 4 hours
Power outage retention hours: approximately 100 hours at 110 V
Contact capacity at 250 V AC, cos Diameter = 1: 16 A
Contact capacity at 250 V AC, cos Diameter = 0,6: 4 A
Minimum switching : 15 minutes
Minimum setting interval: 15 min
accuracy: Less than equal +/- 1 s/day (quartz)
Output contact: 1c x 1
output: Potential-free and phase-independent
Number of segments: 96
Standby consumption: 0,5 W
Test light: VDE
Shell and insulation material: high temperature resistant, high temperature resistant, fire resistant thermoplastic material
Protection level: IP 20
Security level: II as per EN 60 730-1
Applicable ambient temperature: -20 ~ +55 Celsius
colour: white
Material: ABS+ electronic co
