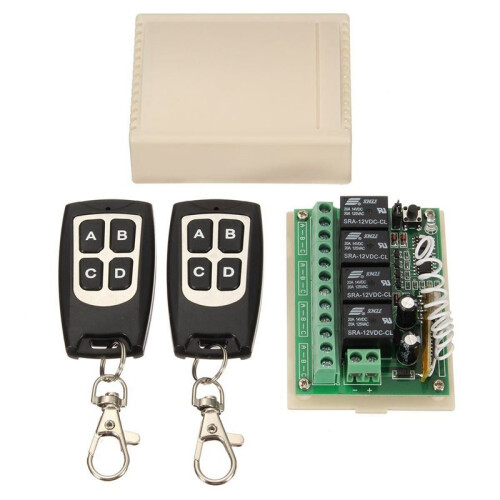

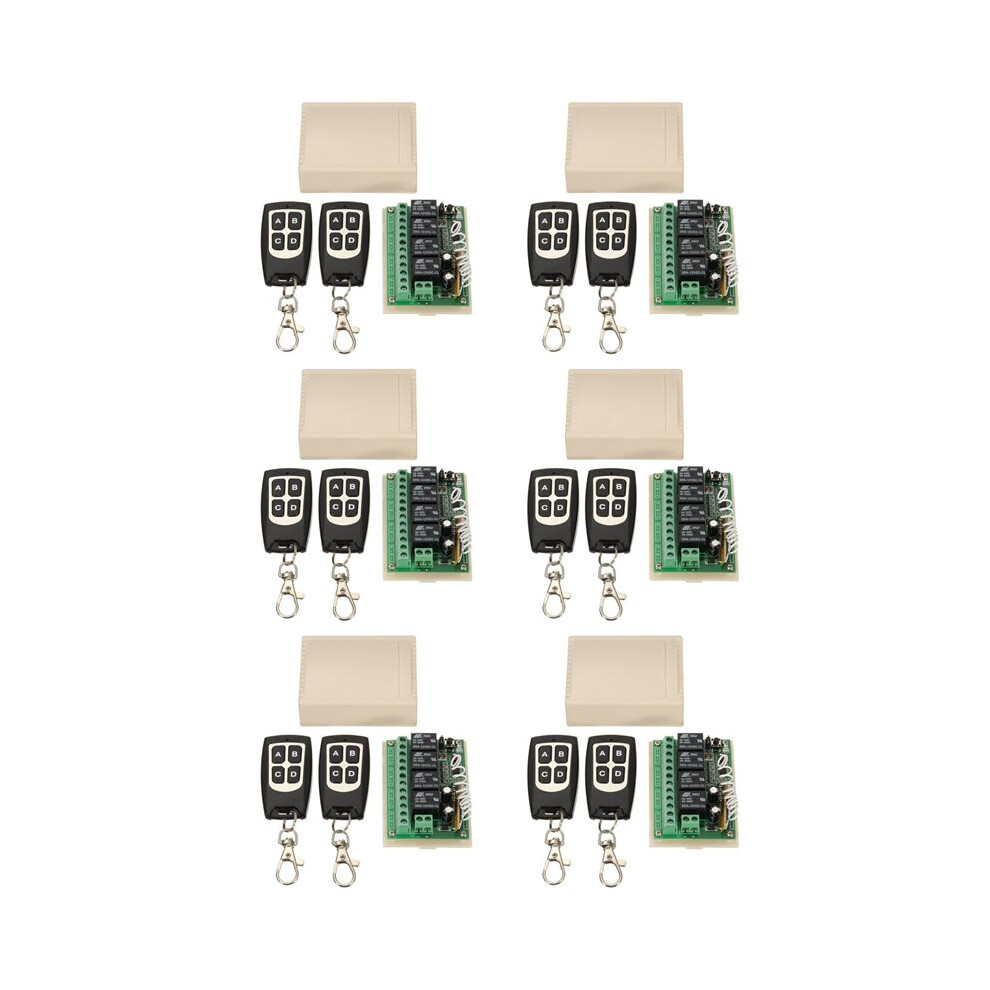

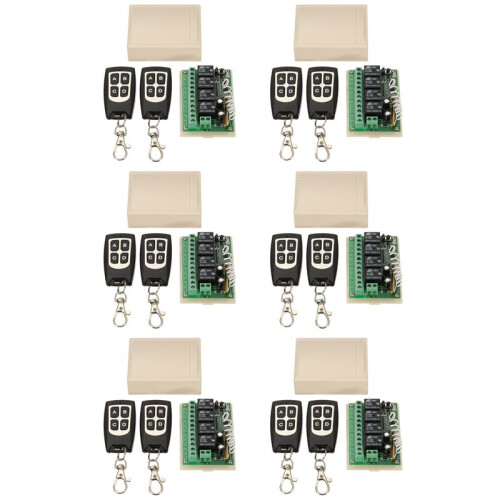

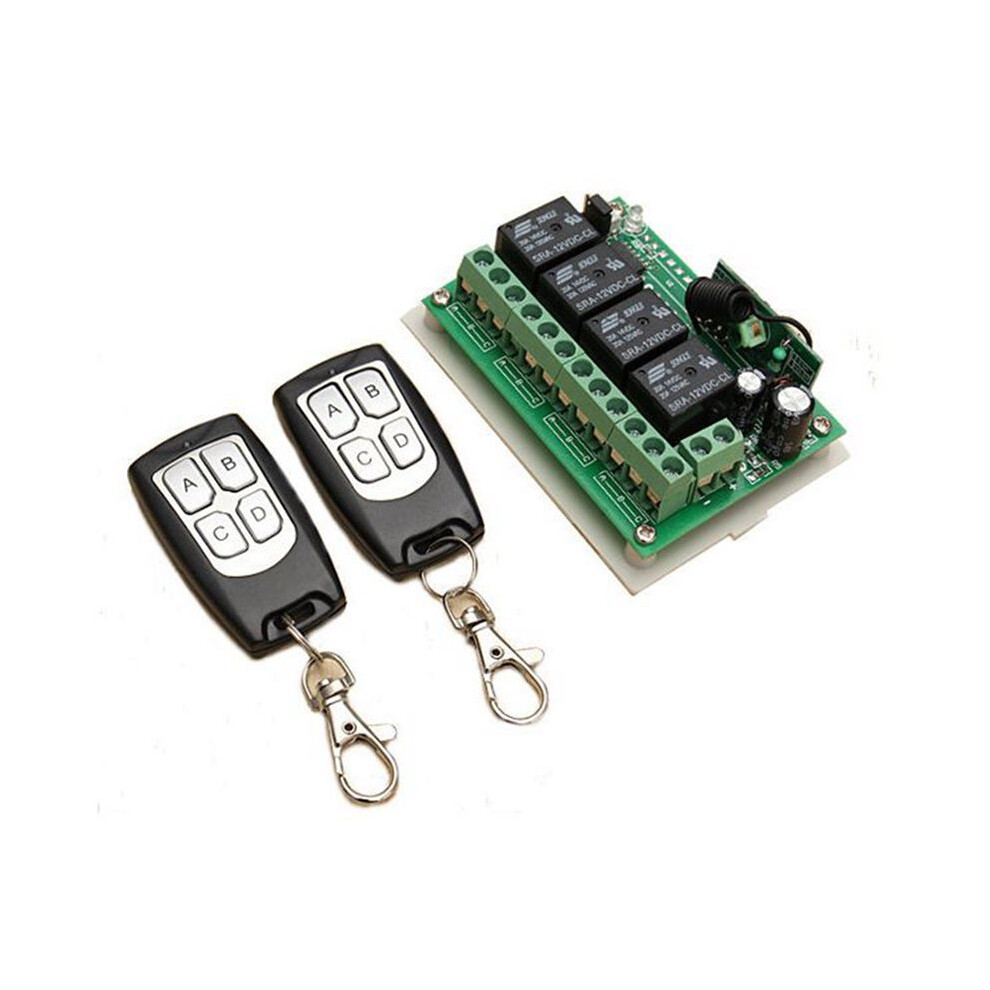

6X 12V 4CH Channel 433Mhz Wireless Remote Control Integrated Circuit with 12 Transmitter DIY Replace Parts Tool

Opis produktu: 6X 12V 4CH Channel 433Mhz Wireless Remote Control Integrated Circuit with 12 Transmitter DIY Replace Parts Tool

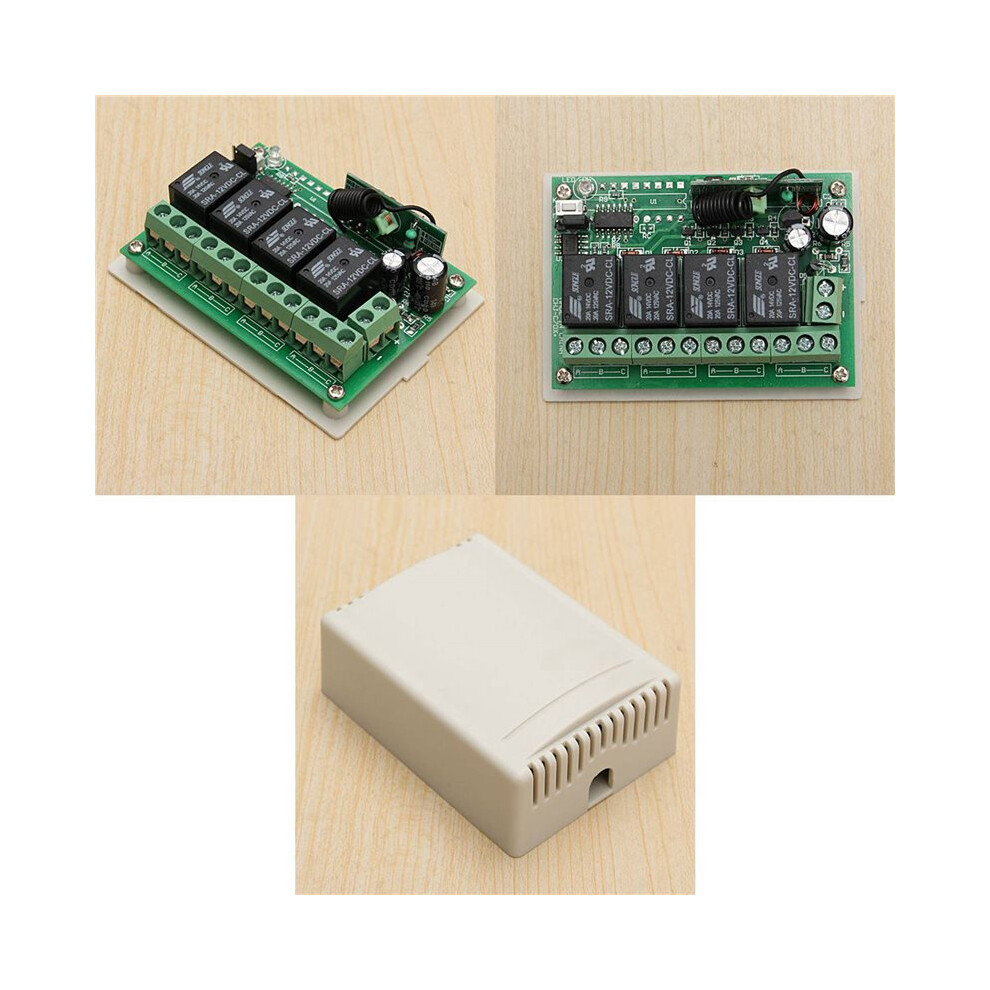

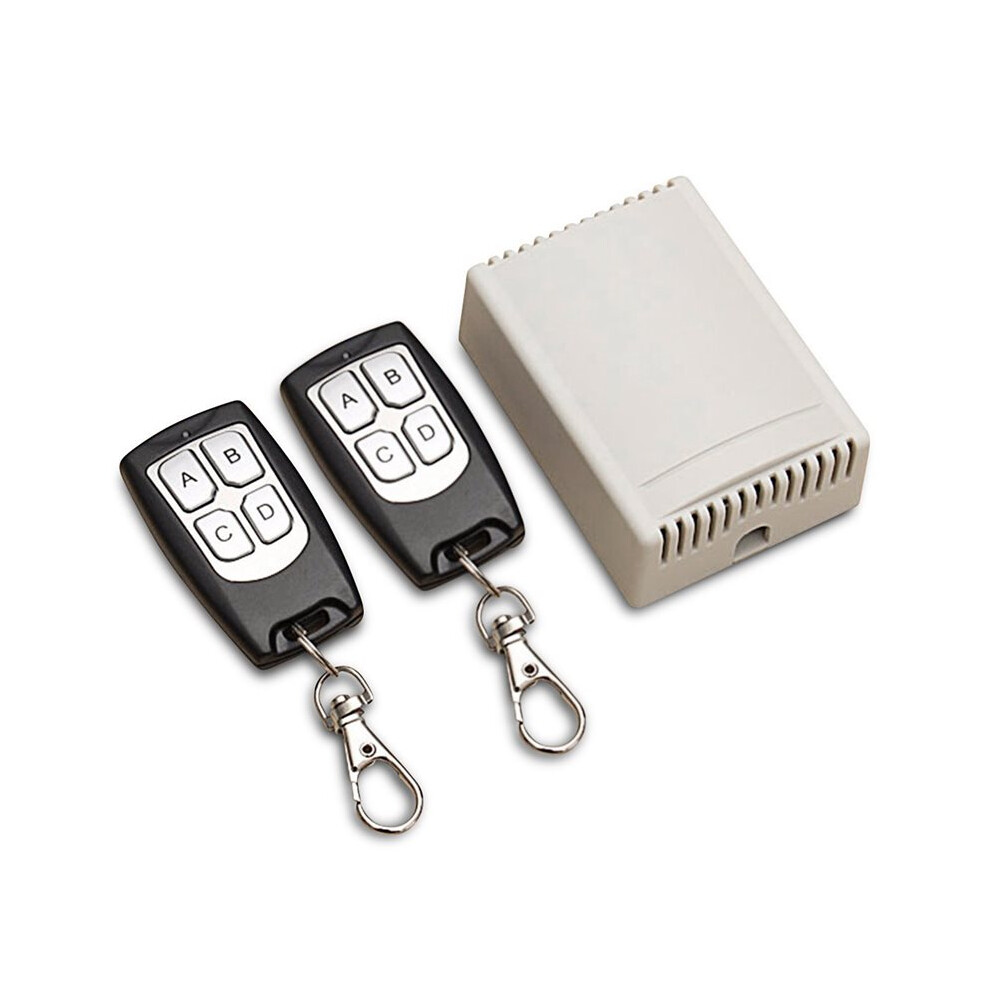

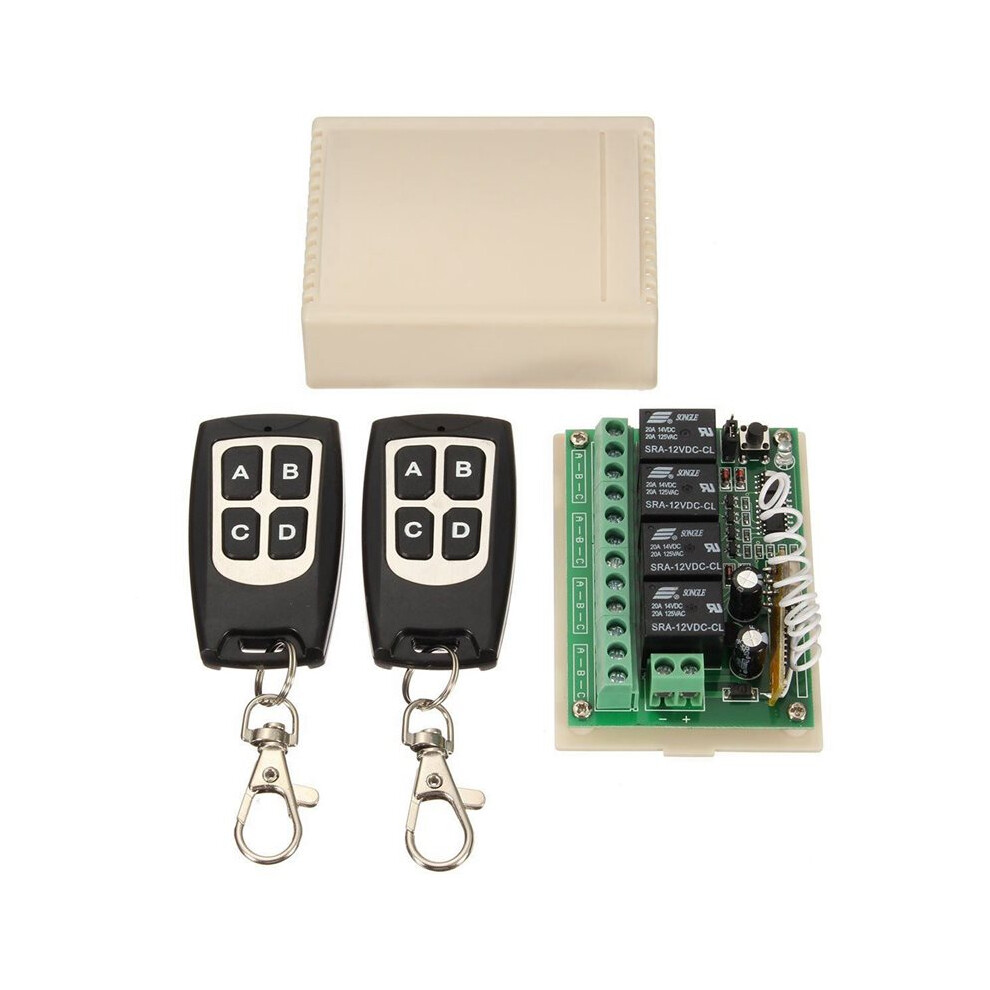

It is a learning code wireless remote control (receiver), the output way /working way can be changed as you like, it is easy to match the transmitter. It has 4 Relays which can make the equipment turn or reverse, /off and so come true. The volume is small and the performance is stable and reliable, high receive sensitivity.

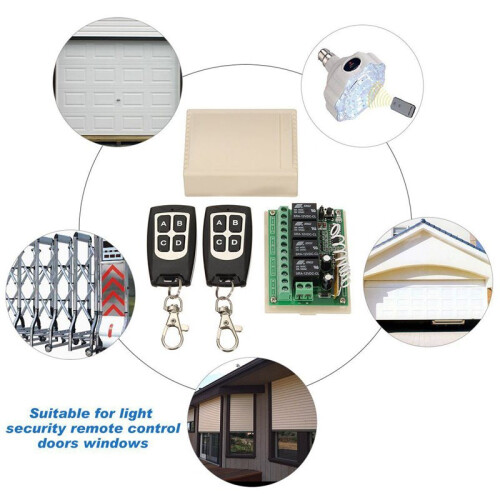

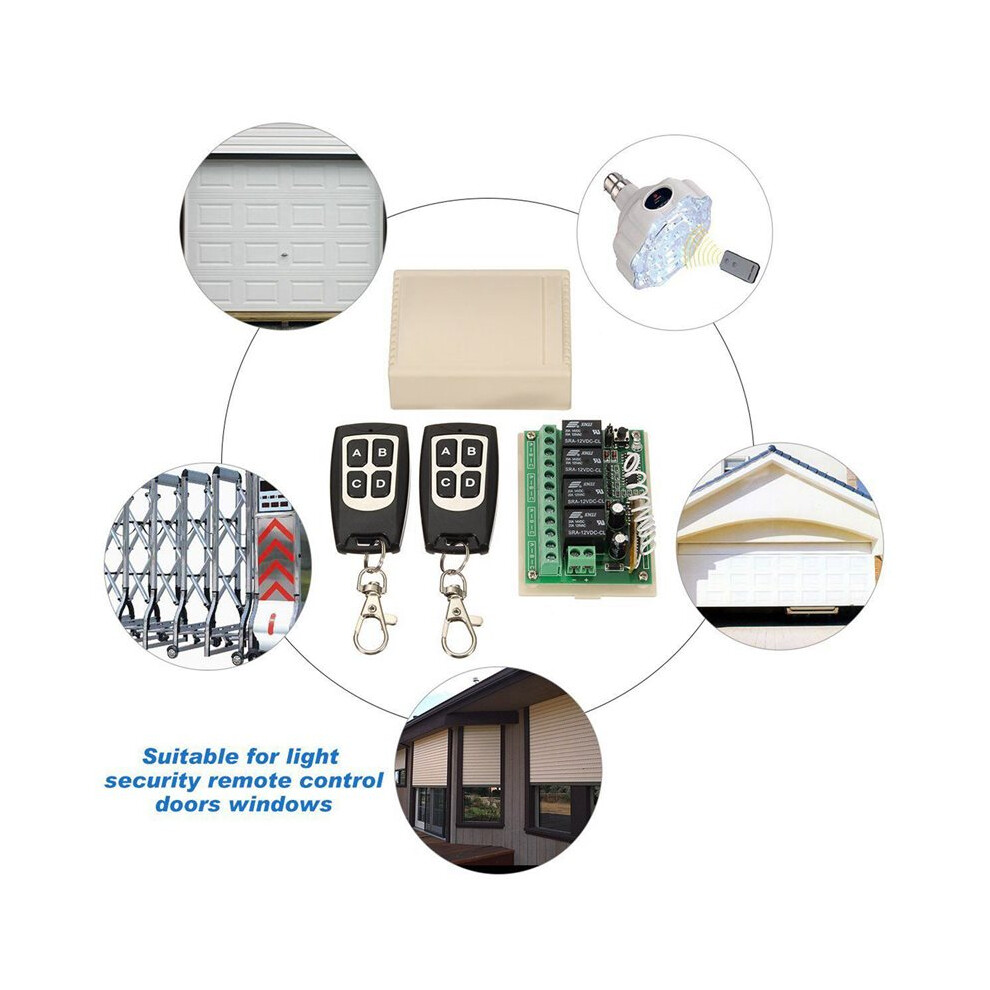

It covers application ranging from simple domestic remote control to autonomous control, like auto door, window, lifting equipment, entrance access, and down controller, alarm system industrial control and security etc. 2. These remote controls are designed to control a wide variety of electronic devices with a wireless signal.
3. Extremely easy to set and use. 4. Compatible with 2262 / 2260 / 1527 / 2240 etc chip and several code wireless remote control. So it can meet someone's need of choosing the wireless remote control as they like to work with it .
Press the learning code, the indicator flash, loosen your finger, press any button of the remote control, the indicator flash 2 times and off, it means you learn it successfully .
It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless remote control. remove/clean: press the learning button about 8 seconds , the indicator turn to off, it means the information that you keep have been removed successfully. Used battery type: 2016 button battery

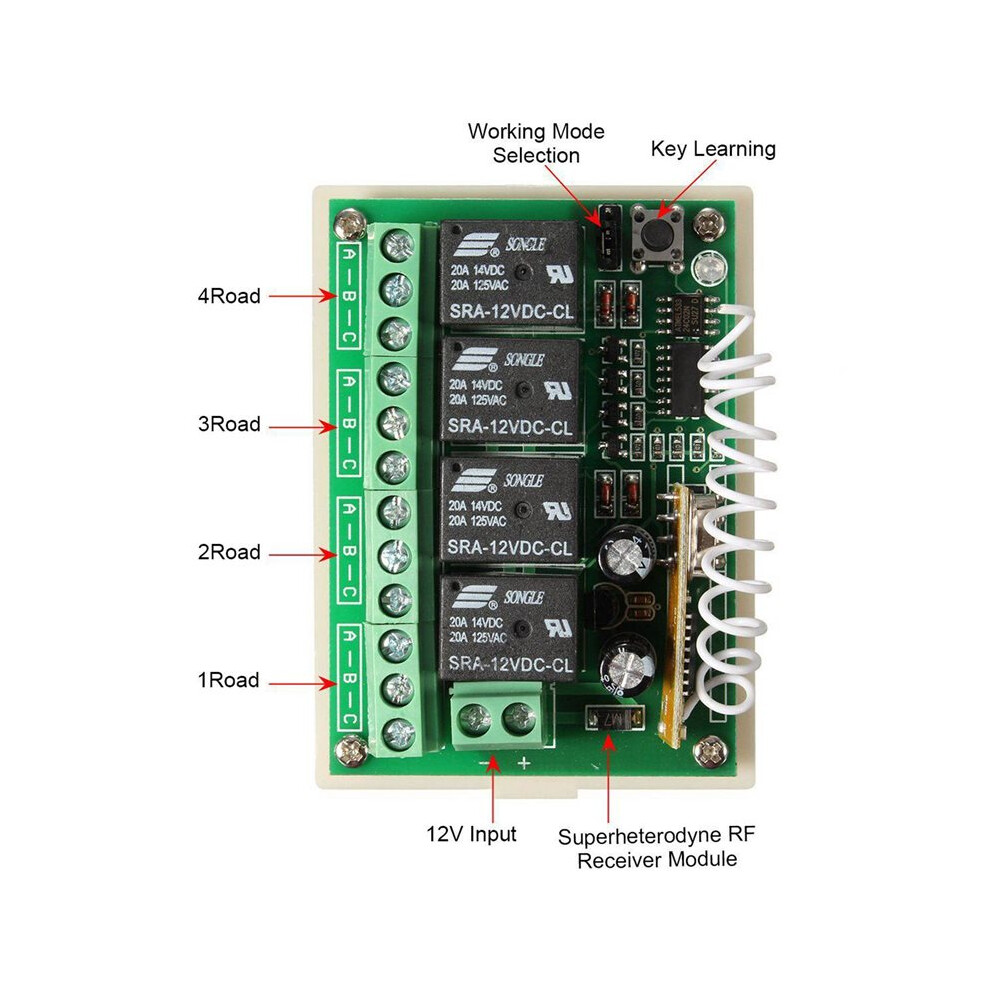

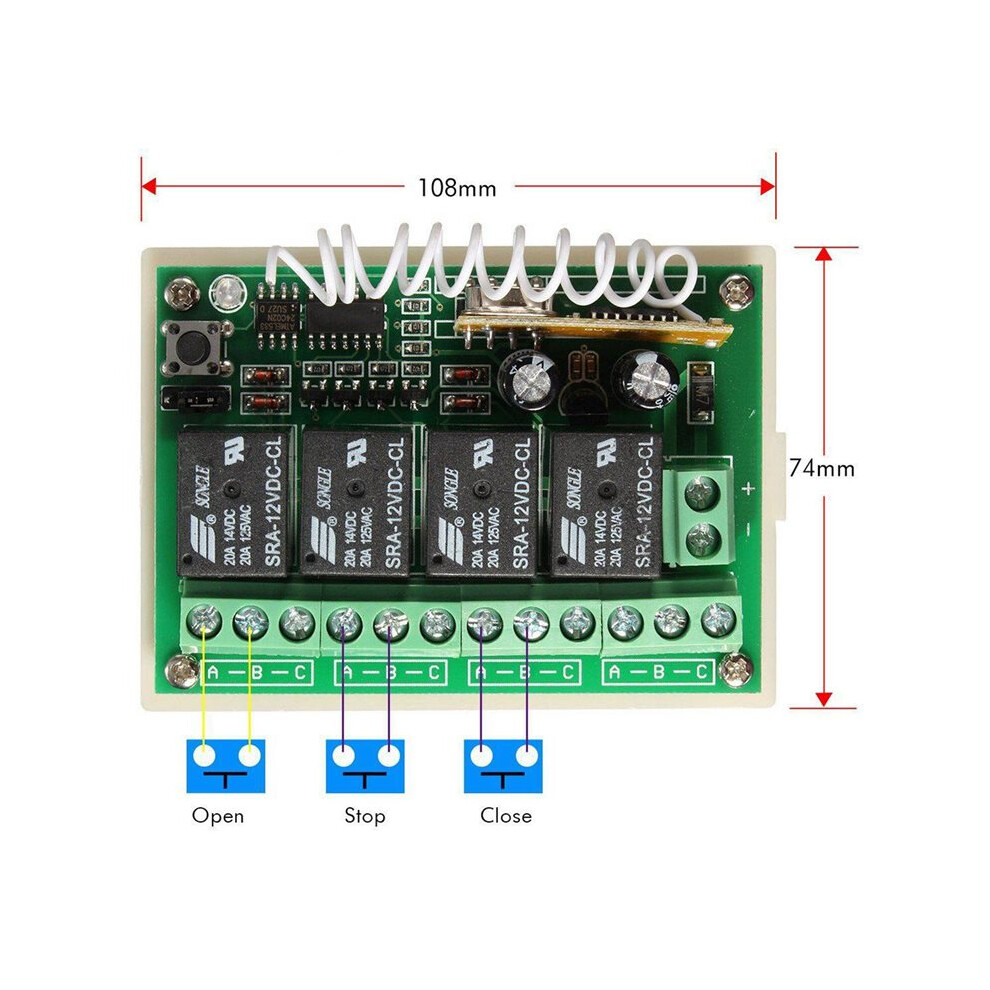

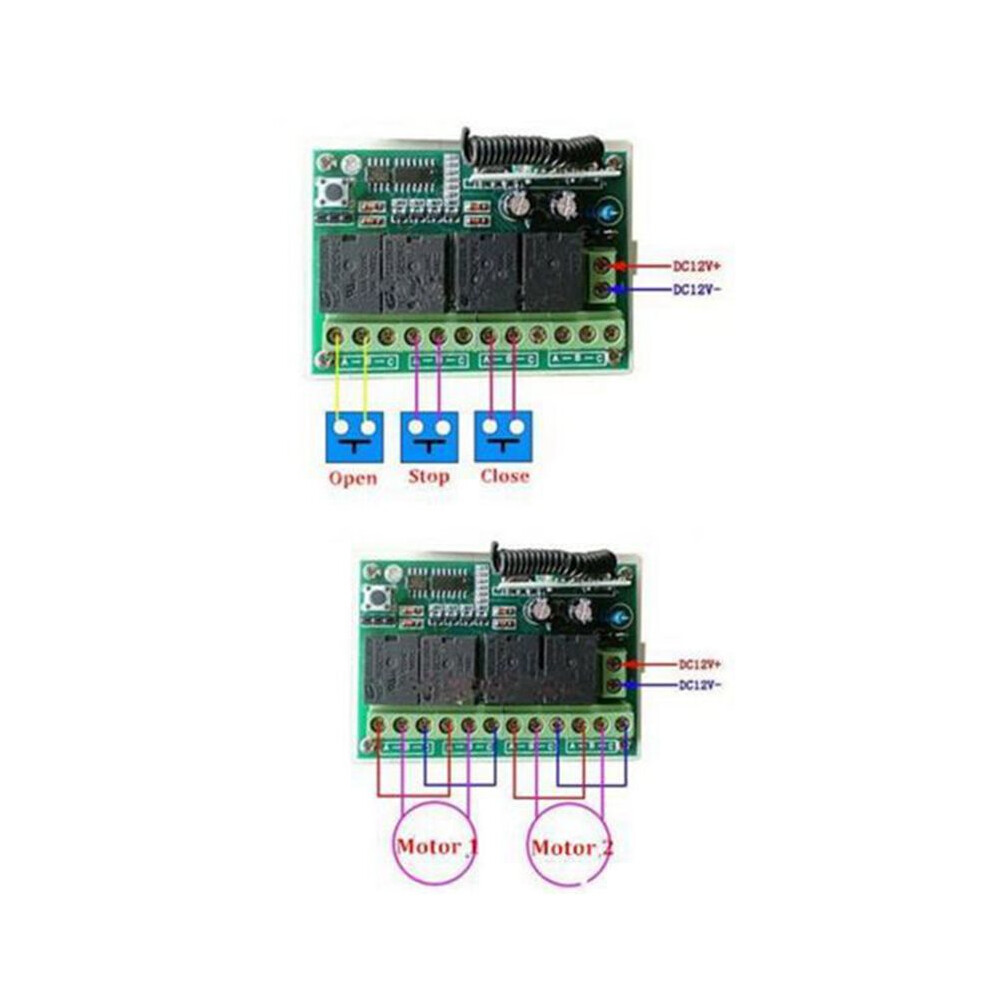

Output working way:
1. Self-lock: connect the JP1 with the cutting out cap.
2. Jog: the cutting-out cap is non-occupation, JP1 and JP2 do not connect either.
3. -lock: Connect the Jp2 with the Cutting out cap,
Jog: press one button is , loosen your finger the same button is OFF (need one channel and one buttons remote control).
Self -lock: press one button for one is , press the same button again is OFF (need one channel and one
