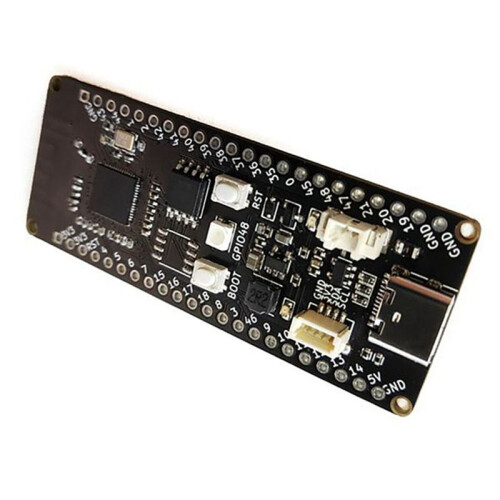

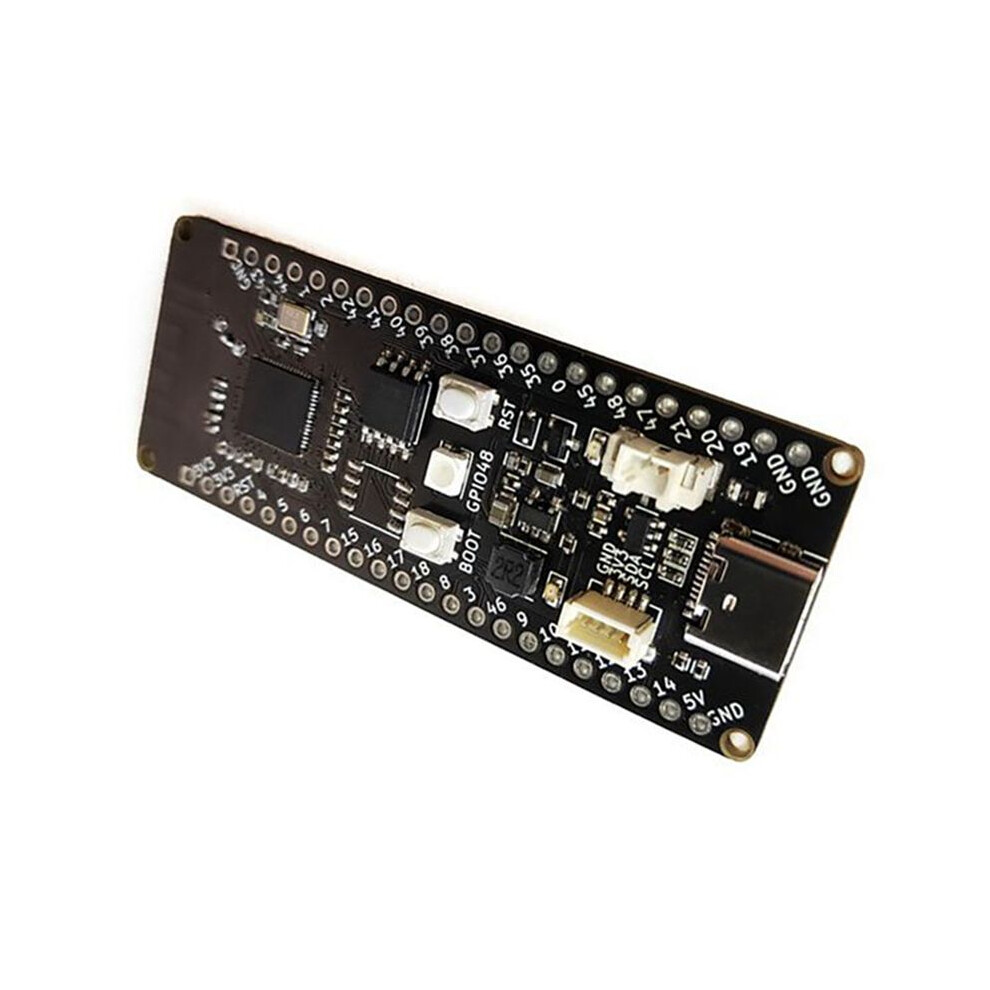

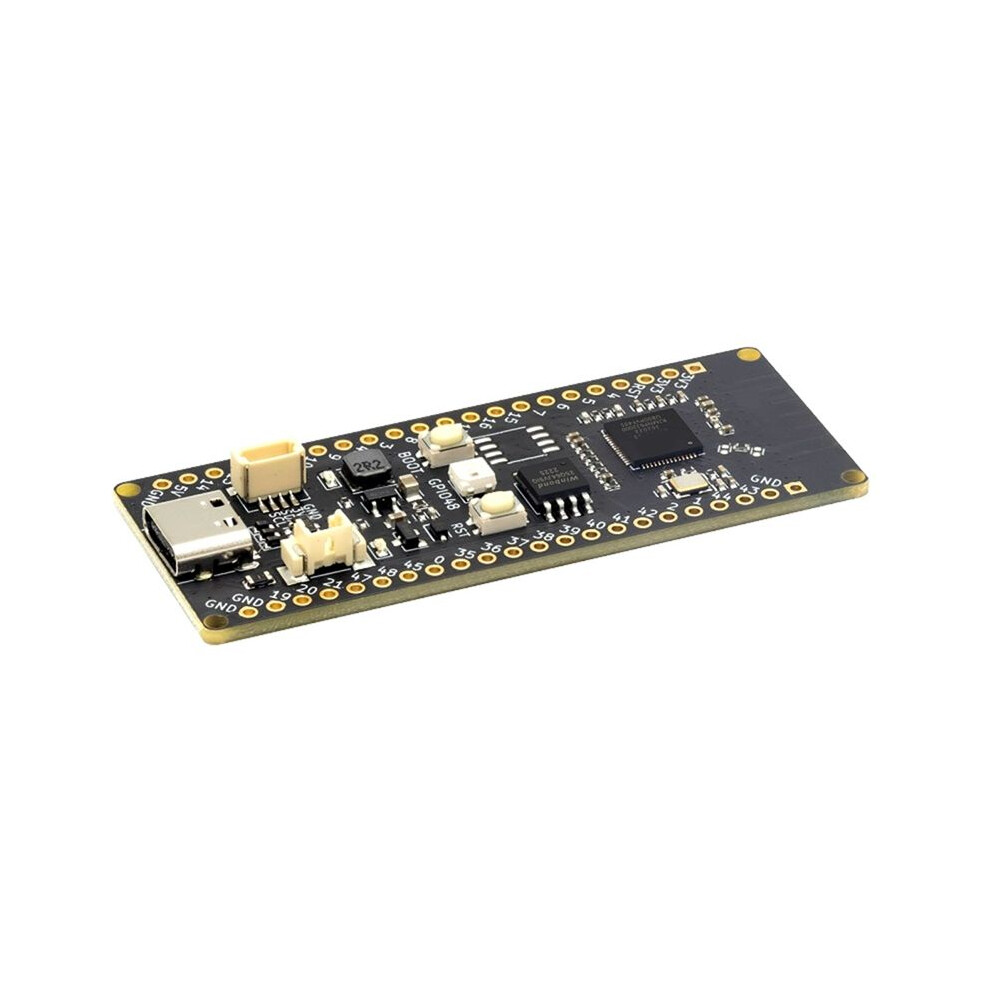

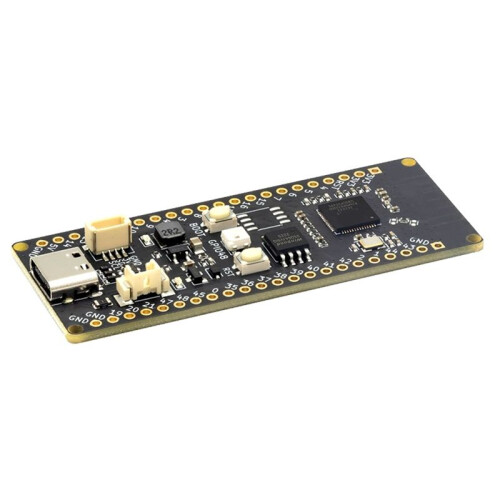

For Banana Pi BPI-Leaf ESP32 S3 Xtensa 32 Bit LX7 with WIFI BT PSRAM FLASH for I2C Run Micropython ESP-IDF CircuitPython

Opis produktu: For Banana Pi BPI-Leaf ESP32 S3 Xtensa 32 Bit LX7 with WIFI BT PSRAM FLASH for I2C Run Micropython ESP-IDF CircuitPython

The for Banana Pi Leaf is a series of low-powered microcontrollers designed for IoT development.
It supports 2.4 GHz Wi-Fi and LE dual-mode wireless communication, the peripheral is compatible with low-power hardware design, and the power consumption is only 10uA in deep sleep mode.
The main controller supports two power supply inputs: USB and external 3.7V lithium battery, both can be interchangable freely. The battery could also be charged while USB is plugged in. Compact size, various interface, easy to use, and can be directly applied to low-power IoT projects.
In terms of programming, the Leaf-S3 supports ESP-IDF, for , micropython and other methods.

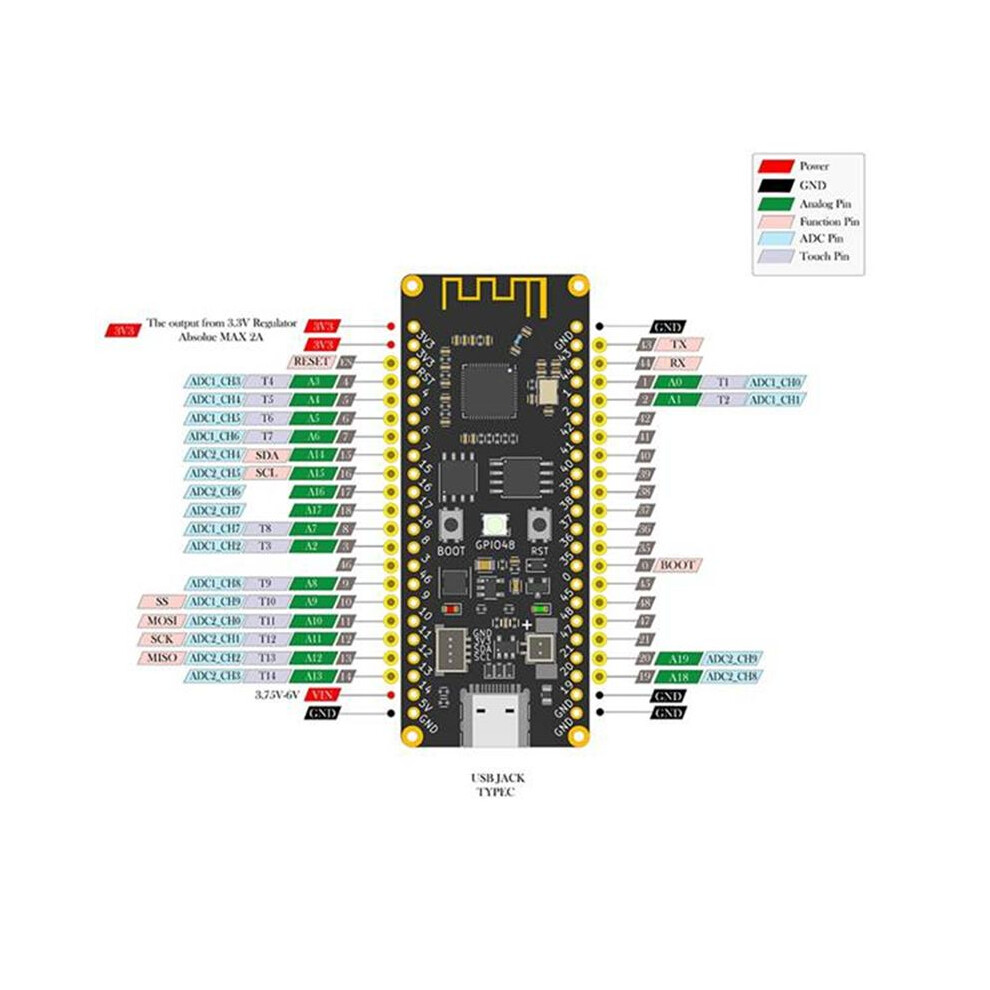

The IO pins BPI-Leaf-S3 are identical to the for ESP32-S3-DevKitC-1, developers can add peripherals that are supported by DevKitC-1 onto the BPI-Leaf-S3, and can also combine it onto a breadboard.

ESP32-S3,Xtensa 32 bit LX7
External PSRAM , FLASH
Ultra-low power 10uA
2.4G WIFI , 5 , mesh
GPIO , ADC , TOUCH , PWM , I2C , SPI , RMT , I2S , UART , LCD,CAMERA ,USB , JTAG
1 x 4pin I2C connector
1 x USB Type-C
1 x 2pin battery connector,support charging
1 x Neopixel LED
Color: As Shown
Material: PC

Package Contents:
1 x Development Board
