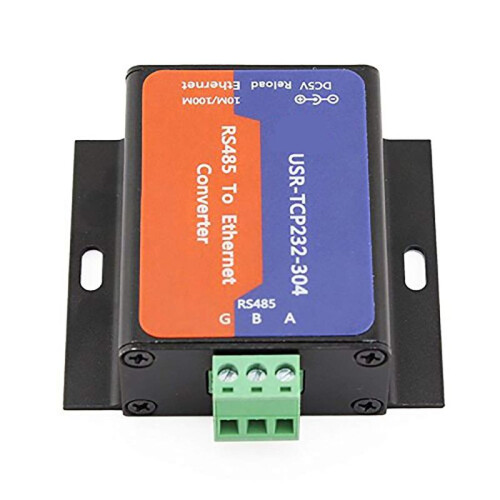

Modbus Serial Port RS485 to Ethernet Converter Server USR-TCP232-304 Data Transmission DHCP/DNS Supported EU PLUG

Opis produktu: Modbus Serial Port RS485 to Ethernet Converter Server USR-TCP232-304 Data Transmission DHCP/DNS Supported EU PLUG

Introduction of RS485 Ethernet Converter. USR-TCP232-304 is a low-cost serial RS485 Ethernet converter, which can realize bidirectional transparent transmission between RS485 and local Ethernet or Internet. It is integrated with TCP/IP protocol.
Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol. Support DNS function. Set parameters through webpage. Upgrade firmware via network. Auto-MDI/MDIX, RJ45 port with 10/100Mbps

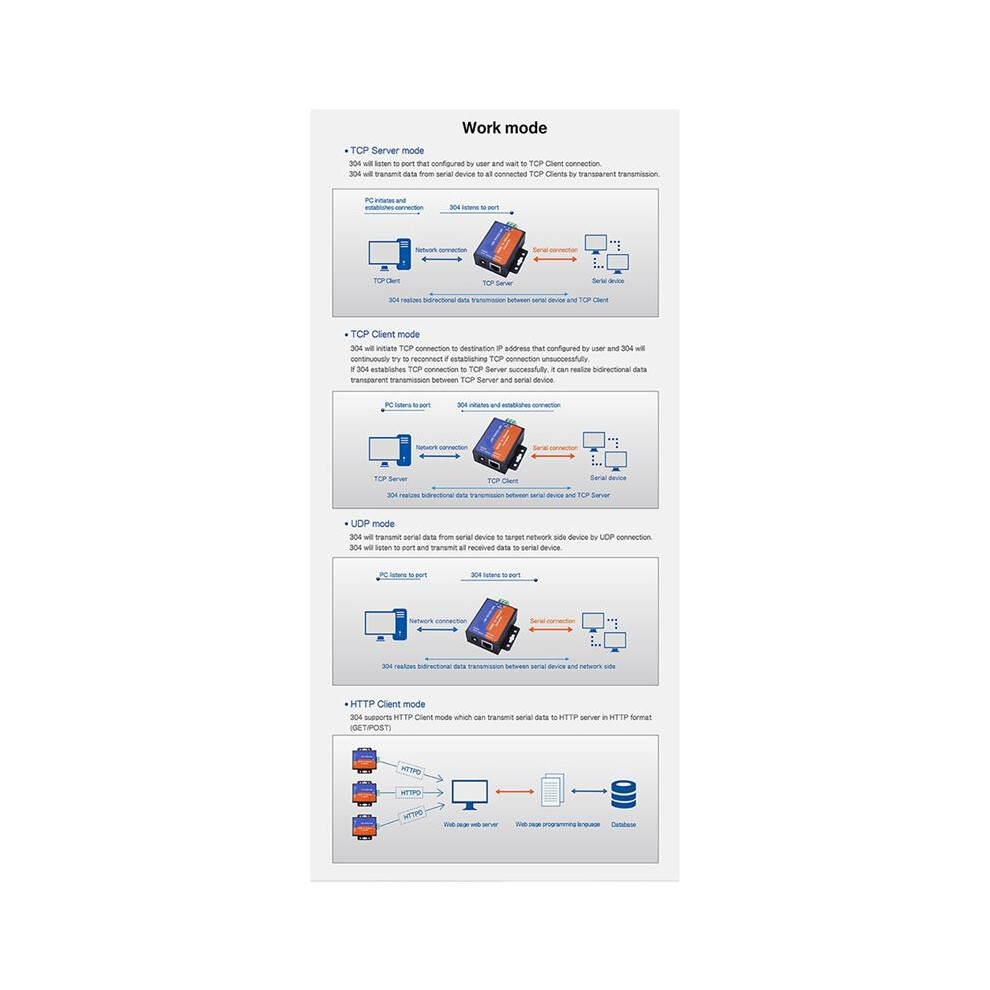

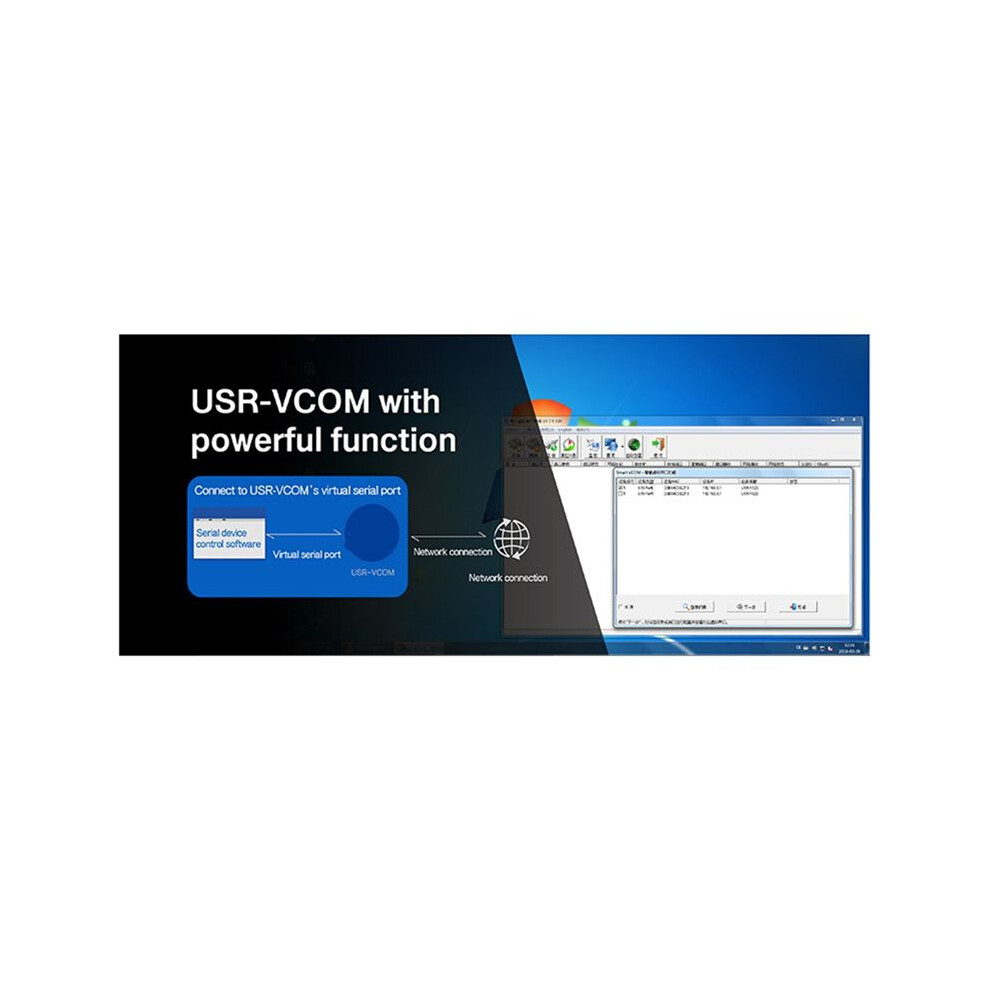

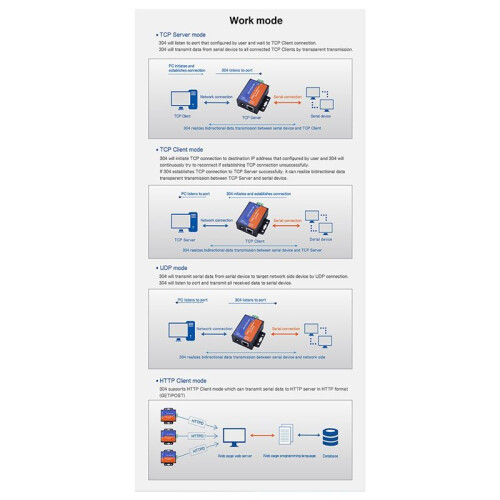

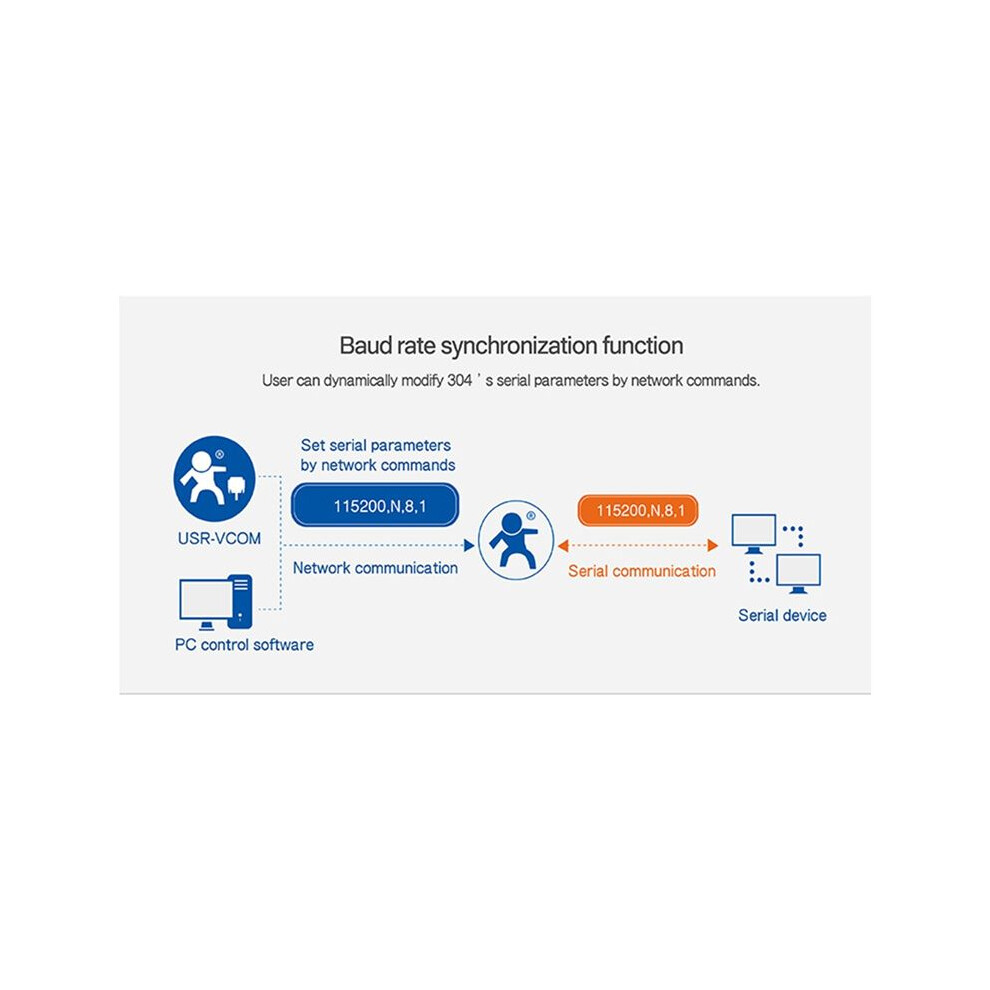

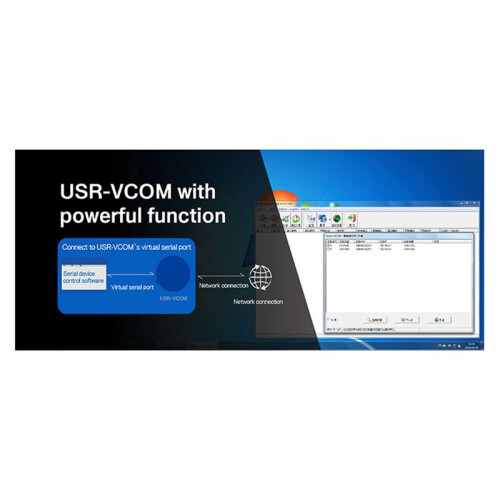

Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space; Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client. Support virtual serial port and provide corresponding software USR-VCOM

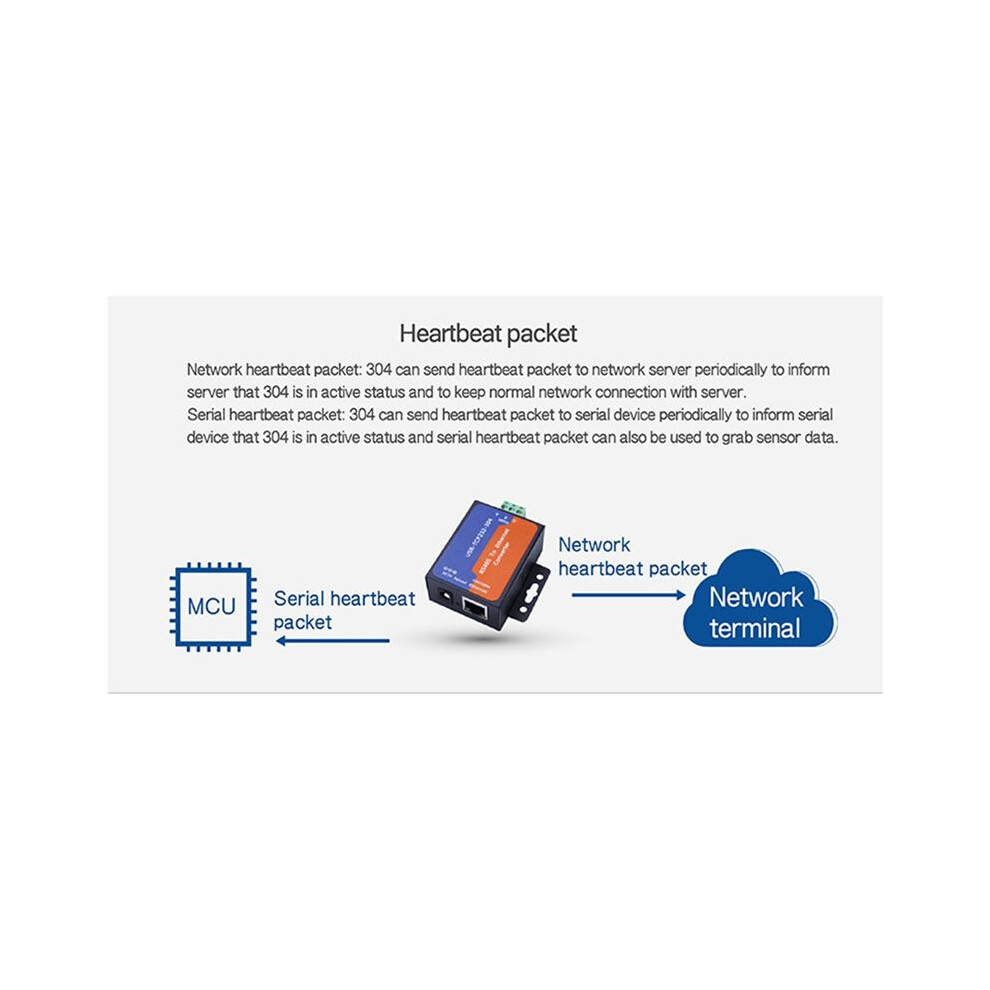

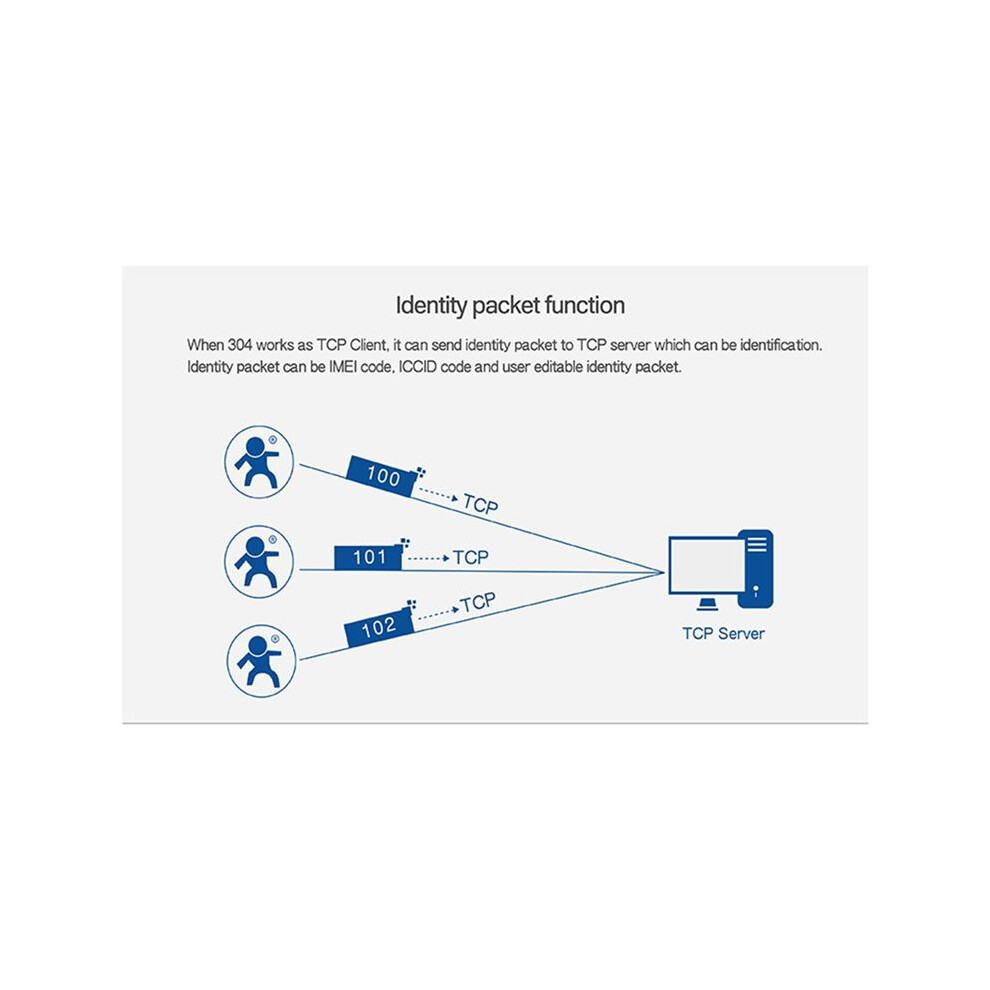

Heartbeat package mechanism to ensure connection is reliable, put an end to dead link. User-defined registration package mechanism, check connection status and use as custom packet header
Under TCP Server mode, Client number ranges from 1 to 16; default number is 4. The global unique address bought from IEEE, user can define address Restore factory default. Across the gateway, switches, routers

Can work in LAN, also can work in the Internet (external network)
Provide PC TCP/IP socket programming example such as VB,C++,,Android and IOS
Application Field of RS485 Ethernet Converter
Industrial data transmission, industrial automation
security and protection monitoring, public security
home, power control, environmental monitoring, intelligent agriculture
Door check work attendance system, POS system, rice selling system

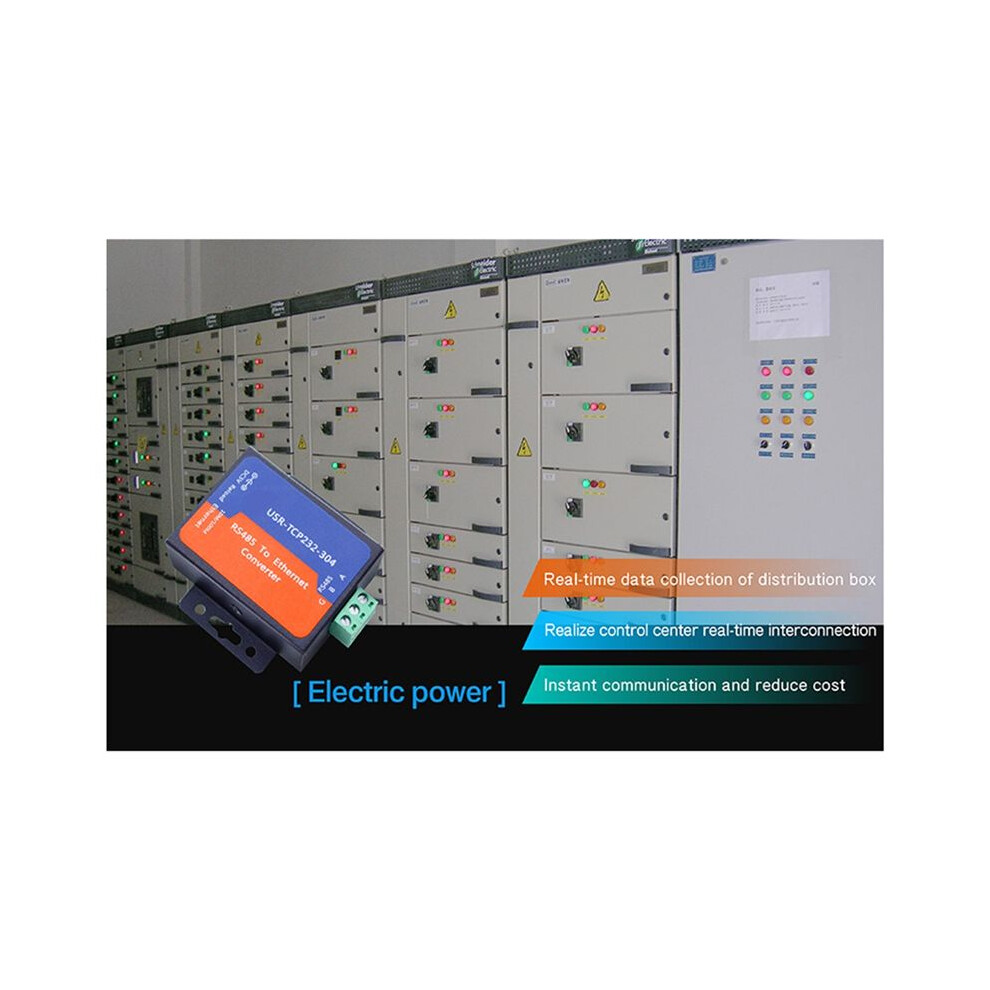

Building automation system, power monitoring, self-service banking system, telecom machine room monitoring

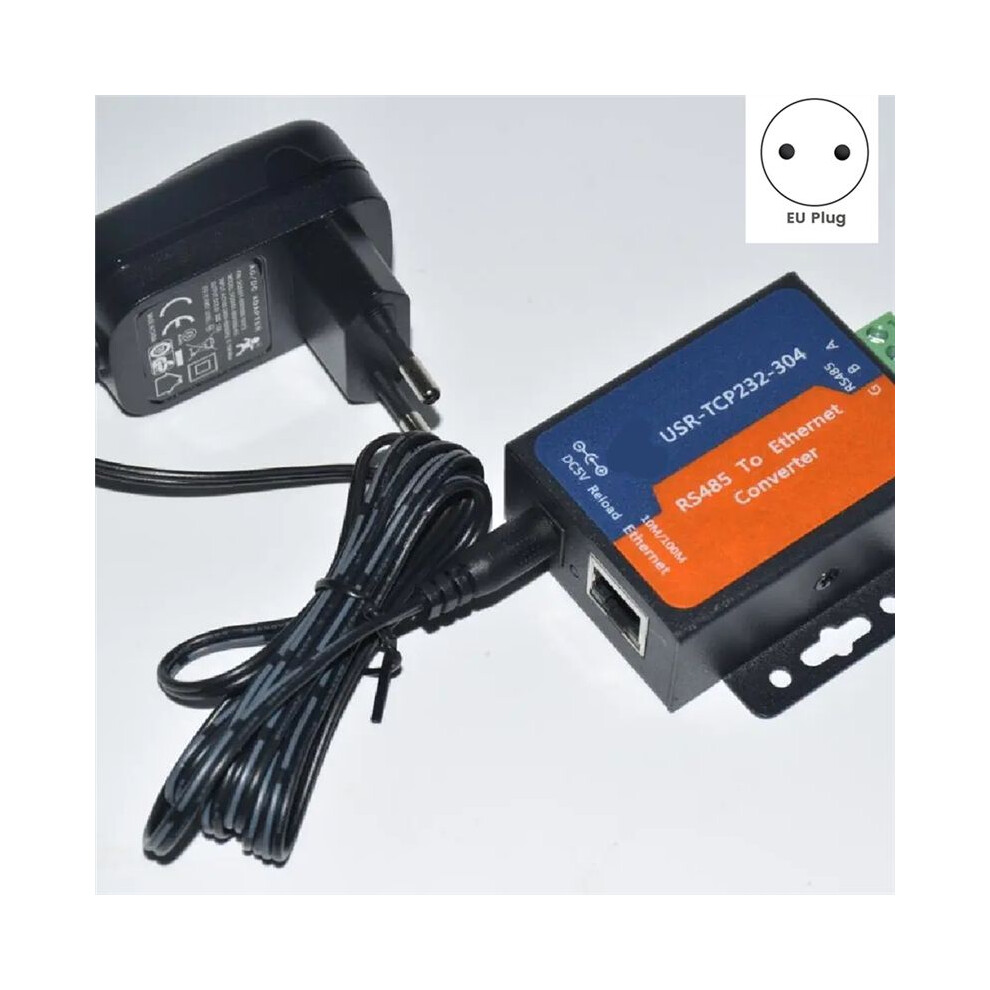

Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so
Voltage: AC220V
Colour: As Shown
Material: Plastic + Alum
