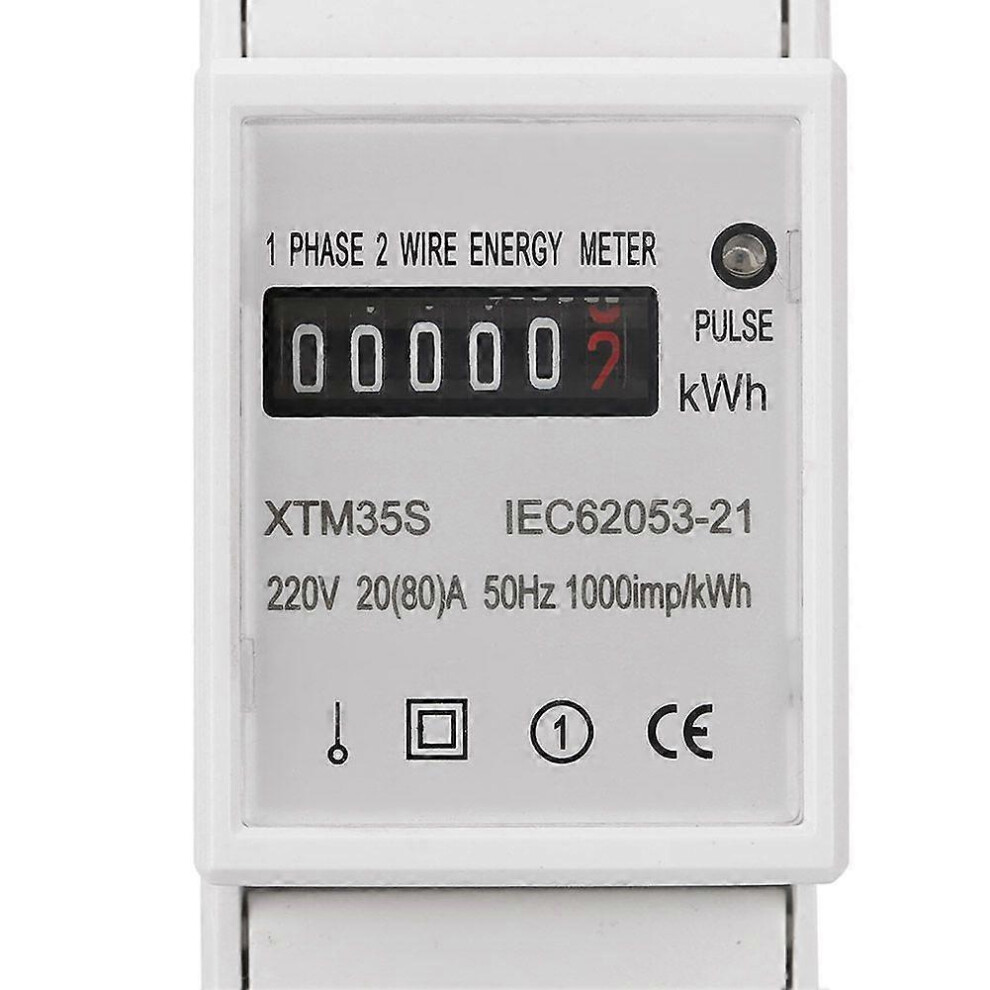

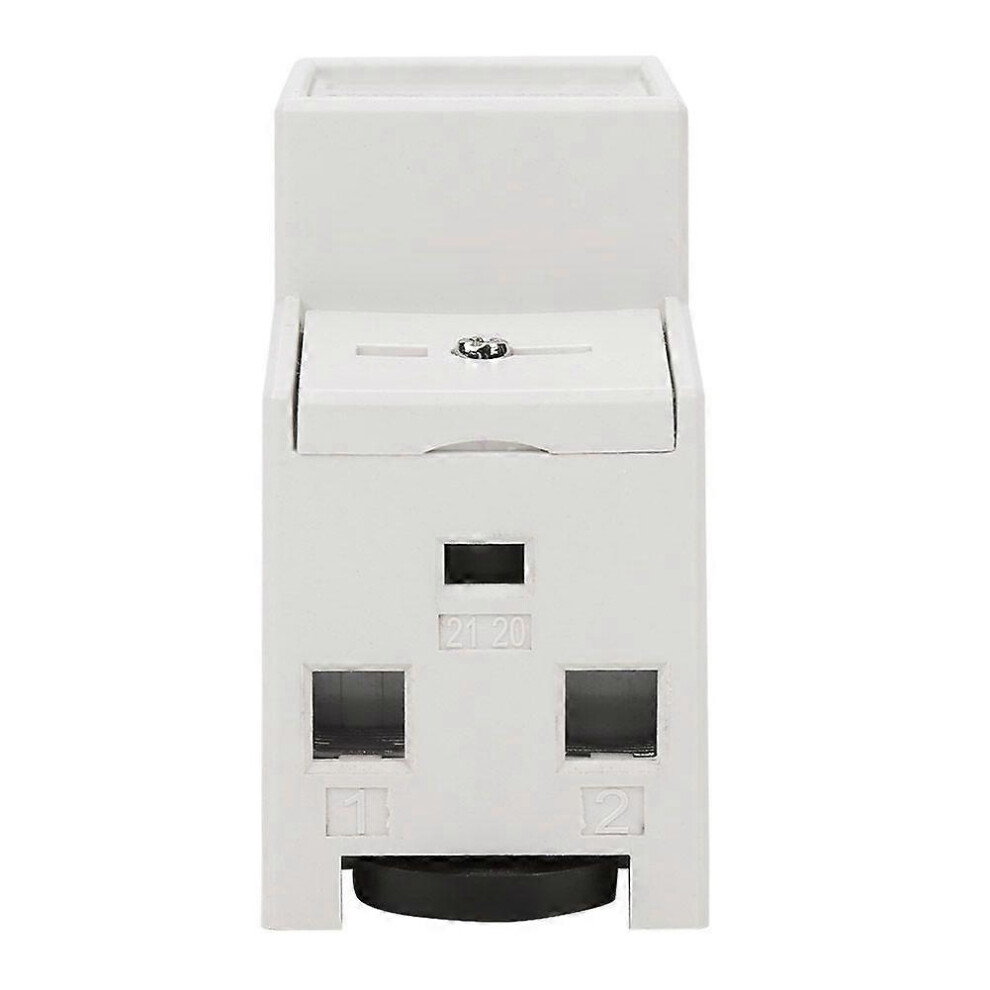

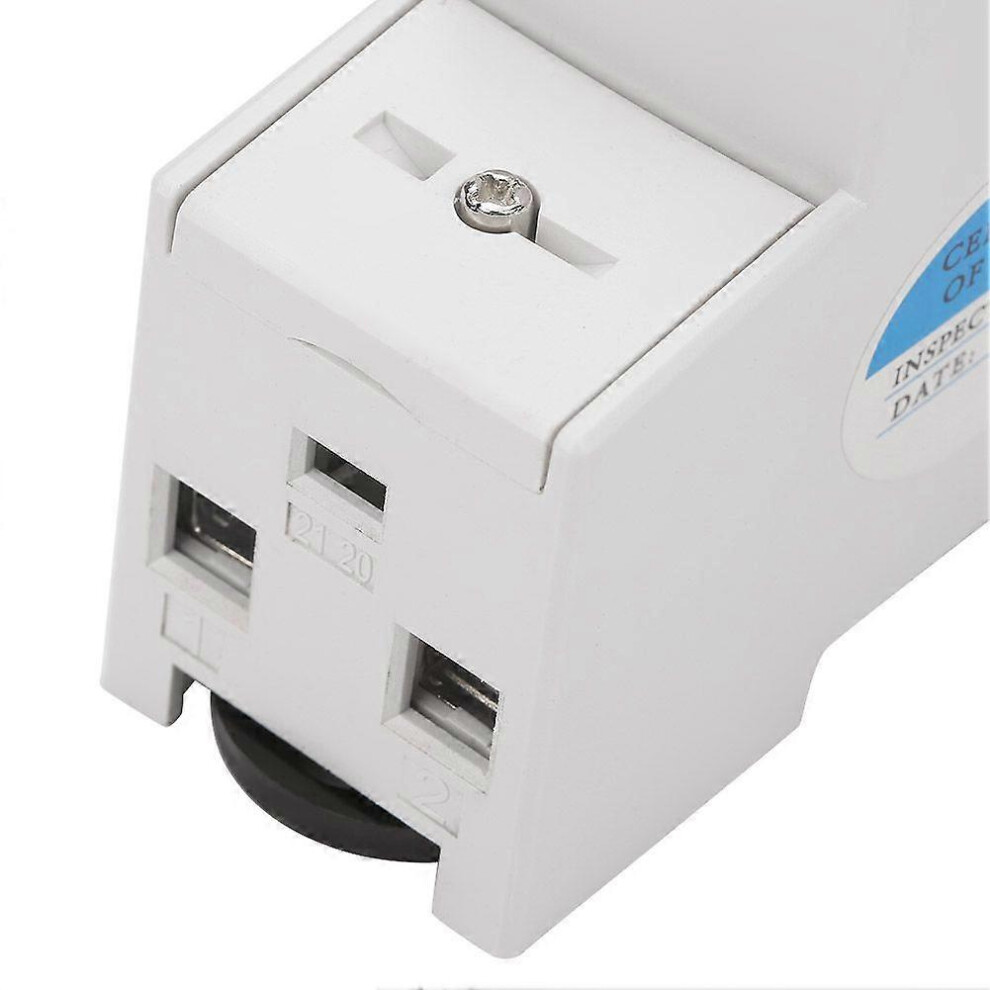

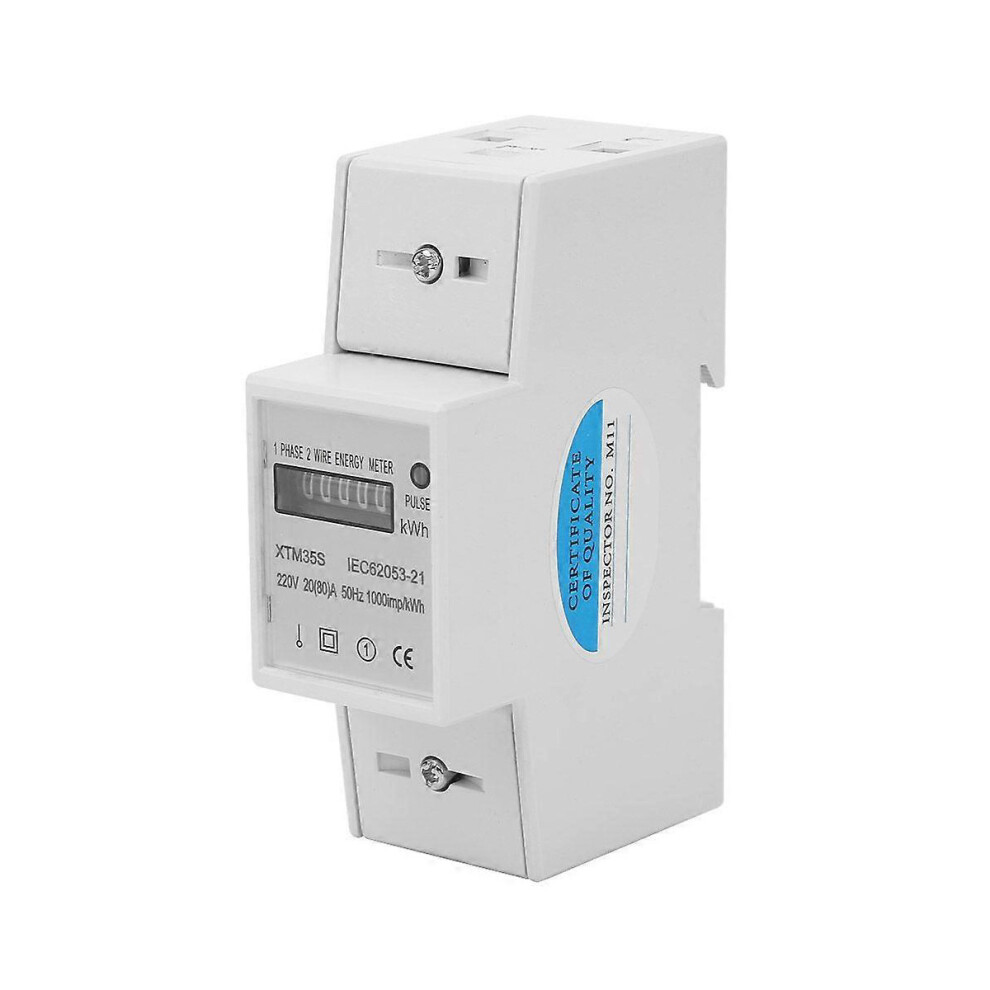

220V Digital Single Phase 2P DIN Rail Electricity Meter, Electronic Kilowatt Hour Meter 20(80)A

Descrição de 220V Digital Single Phase 2P DIN Rail Electricity Meter, Electronic Kilowatt Hour Meter 20(80)A

Features:35mm DIN standard rail mounted, conforming to Standards DIN EN 50022Bipolar width, complying with standard DIN43880.Can select the step motor impulse register of 5+1 digits (99999.1kWh) .Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.Two LEDs to indicate separately the power state and the energy impulse signalMeasurethe active energy consumption in one direction on single phase two wire, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21.Theshort terminal cover is made with the transparent PC, to reduce the installation space and is convenient for centralized installation.Specifications:Model: XTM35SAccuracy: Class 1Current: 20(80)ASize: 10*3.6*6.5cm\/3.9*1.4*2.6inWeight: Approx.160g\/5.6ozPackage included:1 x DIN-Rail Electric Meter1 x Manual
