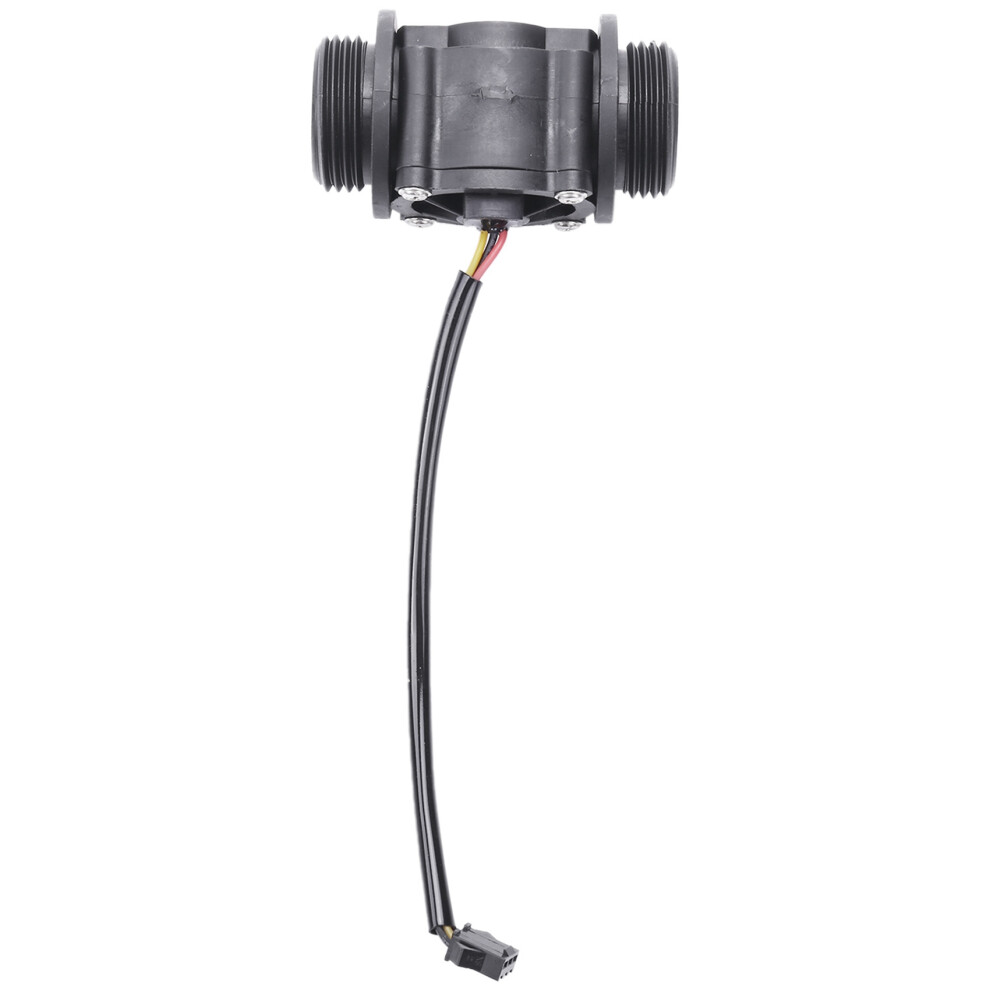

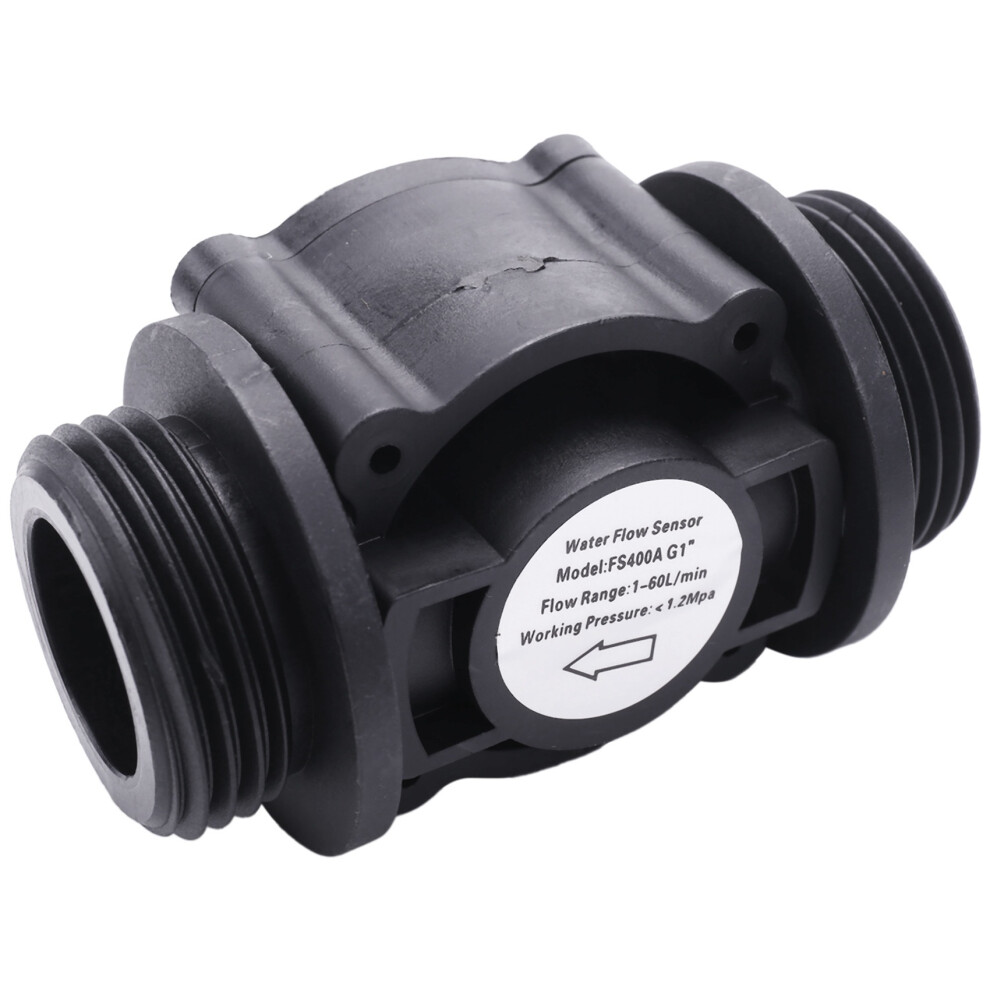

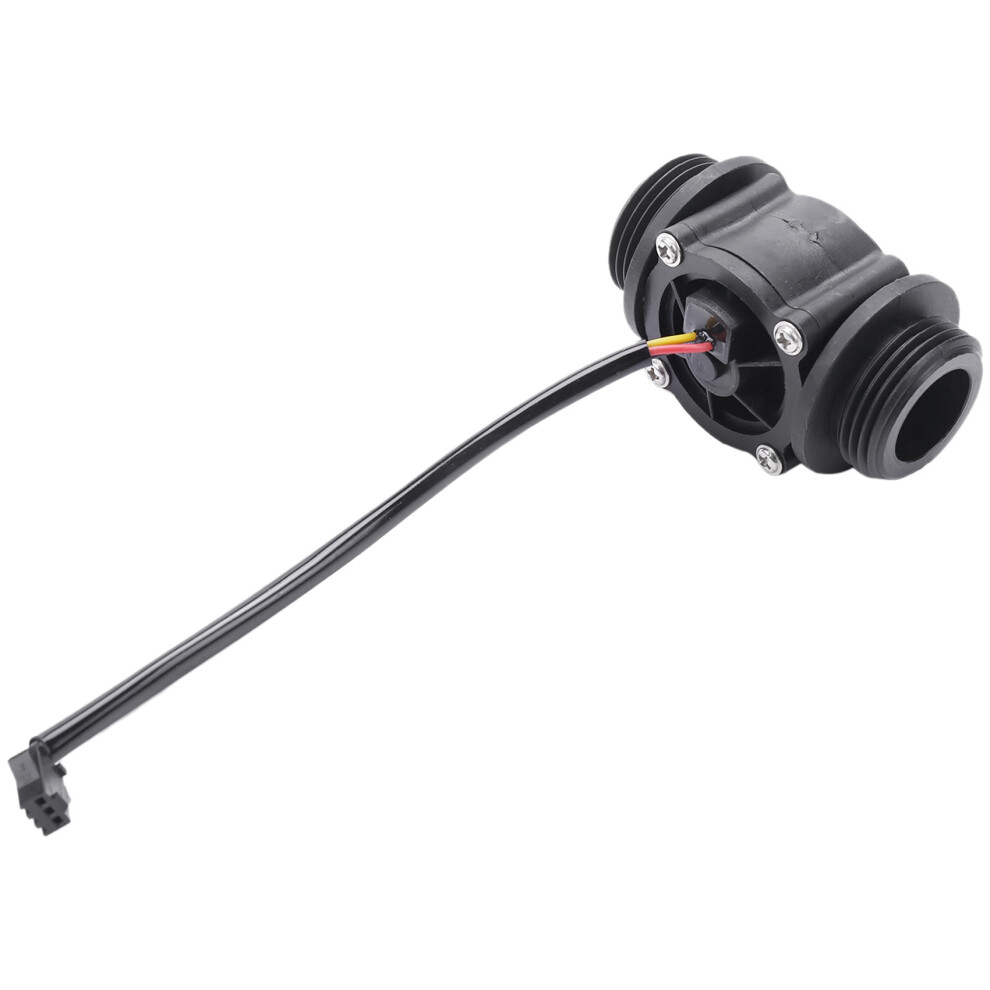

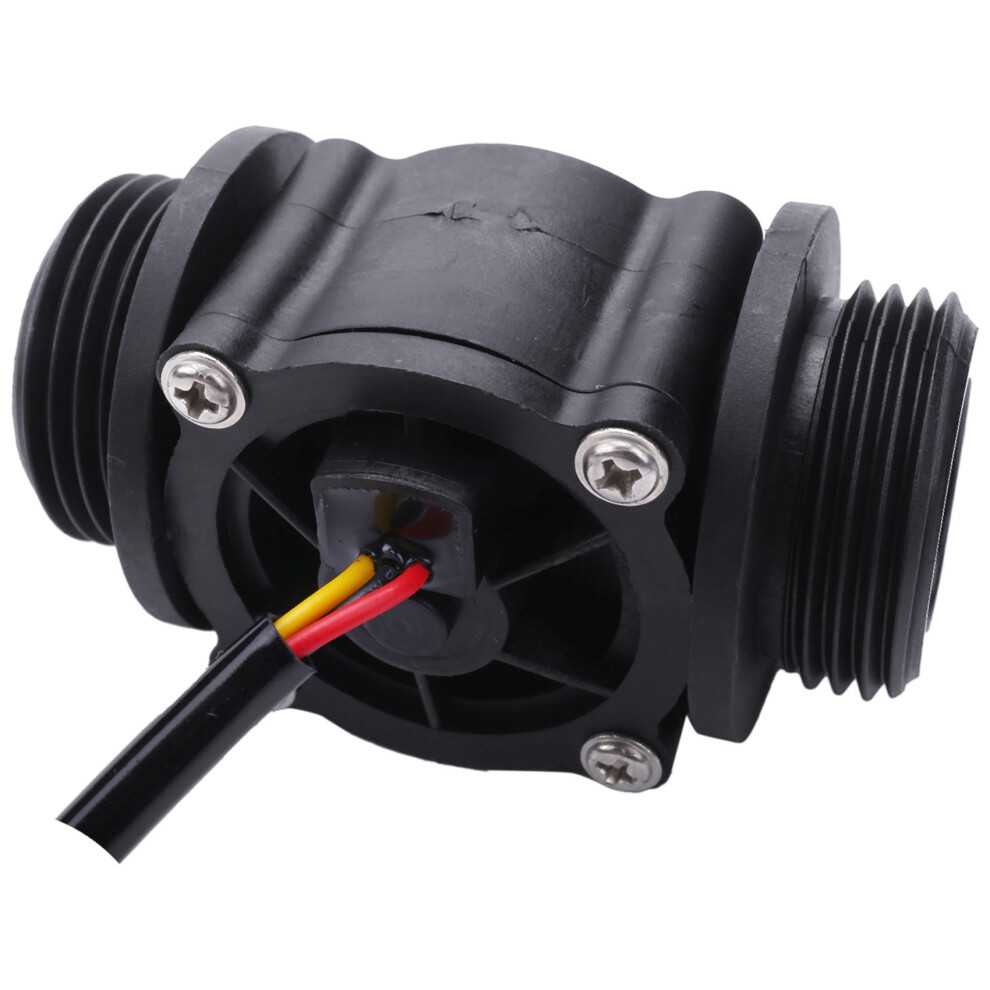

2PCS Water Flow Sensor Fuel Flow Meter Water Meter Sensor Flowmeter Water Sensor Counter Indicator FS400A G1 DN25 1-60L/Min

Descrição de 2PCS Water Flow Sensor Fuel Flow Meter Water Meter Sensor Flowmeter Water Sensor Counter Indicator FS400A G1 DN25 1-60L/Min

DIY Supplies:Plumbing
Model Number:FS400A
Note:The color of the item may vary slightly due to photography and your own computer
Impeller inlaid stainless steel beads,always wearable.
Flow range:1-60L/min
Interior diameter:0.81 inch
Minimum rated working voltage:DC4.5 5V-24V
Maximum current:15 mA( 5V)
Working voltage range: 5-18 V
Load capacity:10 mA( 5V)
Operating Temp:80C,Operating humidity:35%-90%RH
Allow compression:Water pressure 1.20 Mpa below
Storage Temperature:-25-+80C
Storage humidity:25%-95%RH
F=4.8 * units of flow(L/min)* (seconds).

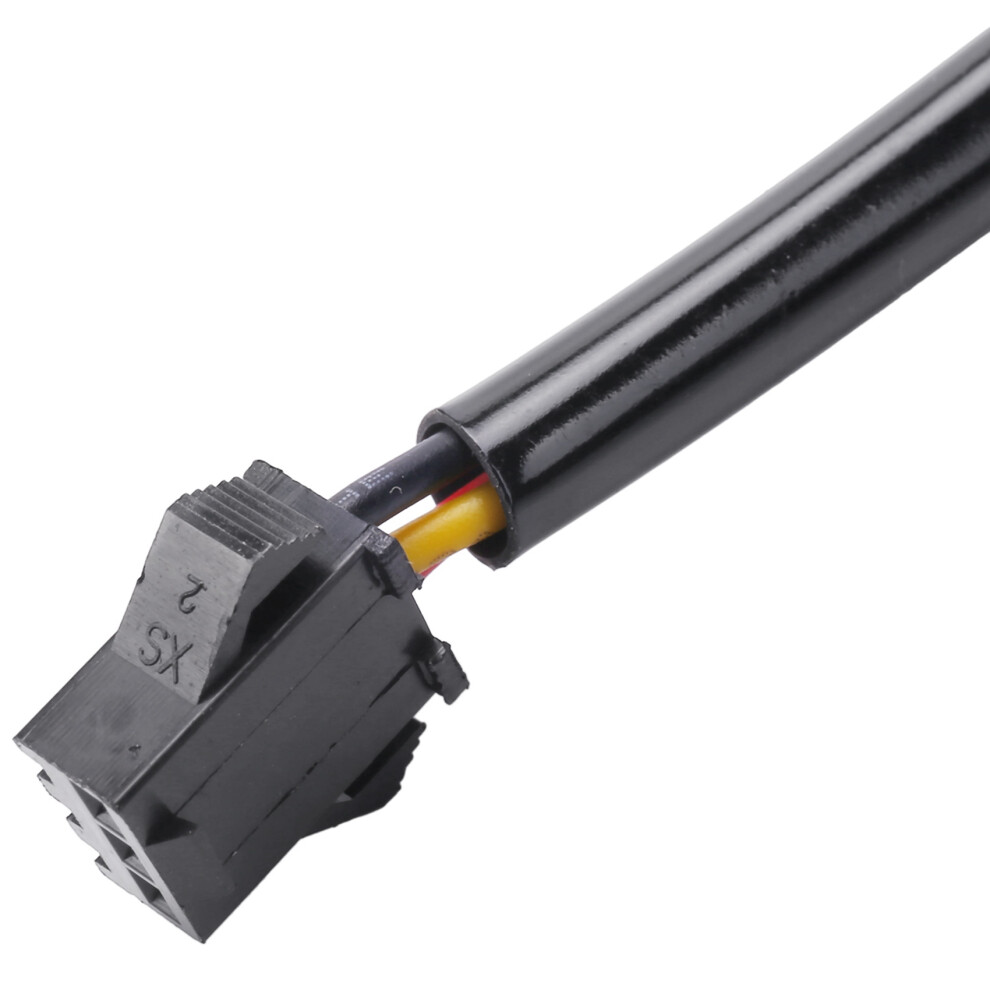

About the Wiring:
Red Connect Positive;
Yellow OUT Connect signal output;
Black GND Connect Negative.
SUitable for water purifier,water heaters,credit card machines,water vending machines,
coffee machines, card equipment,the boiler and and other flow measurement devices!
Caution:
Prohibite dramatic impact and chemical erosion.
Prohibite throw or hit.
Vertical installation,inclination is no more than 5 degrees.
Media temperature should not exceed 120 degree.
Colour:Black
material:plastic
Package Contents:

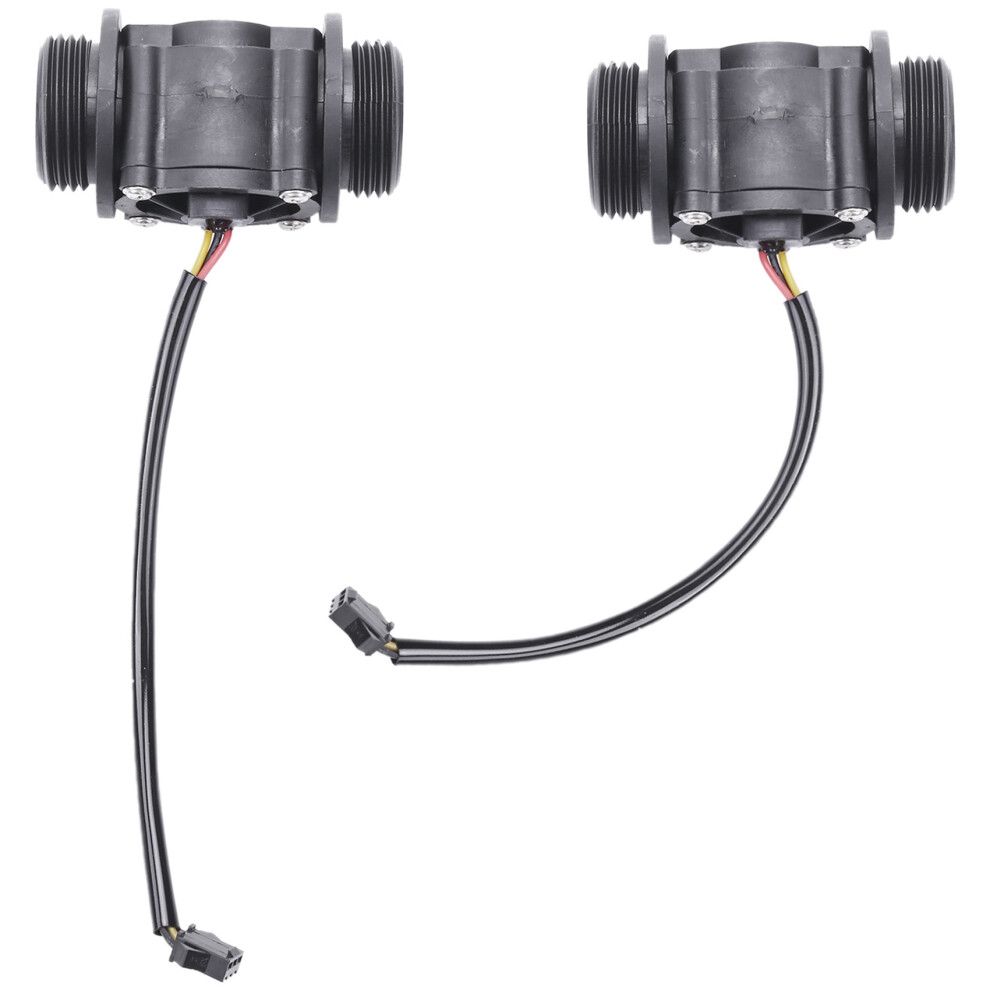

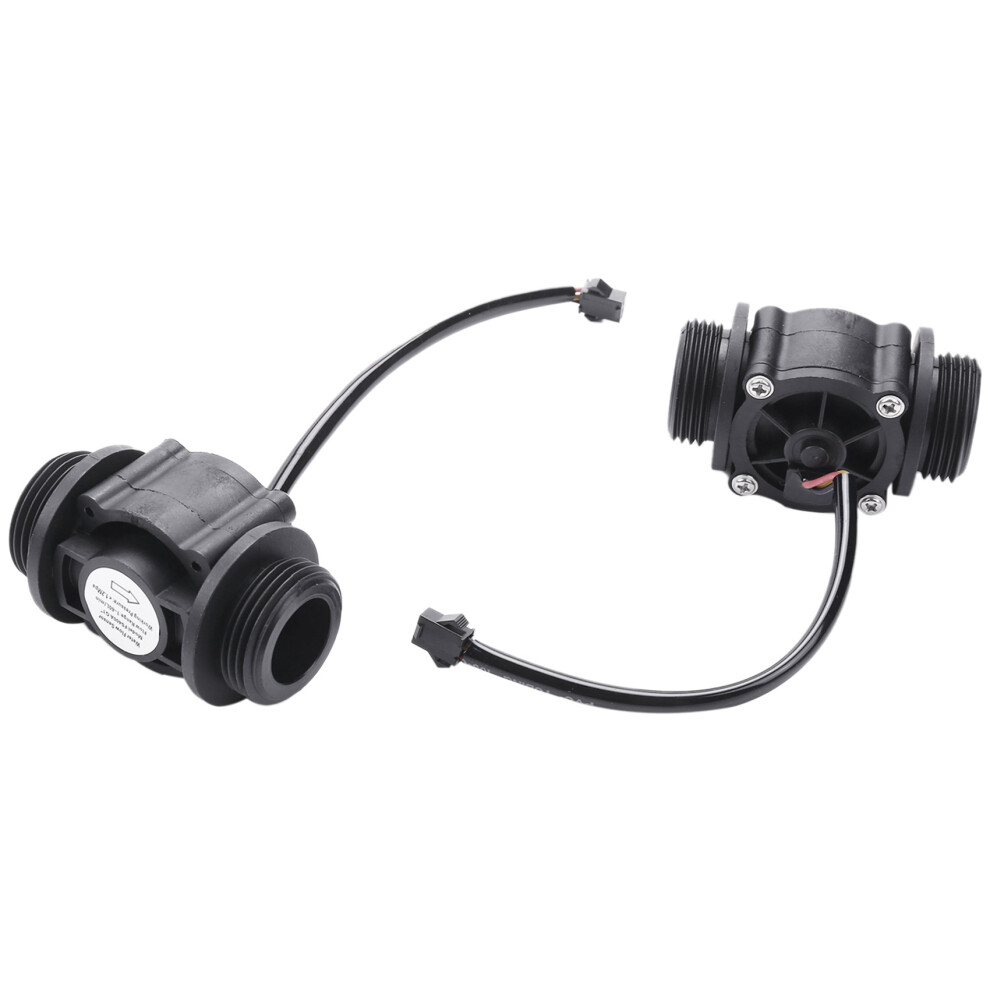

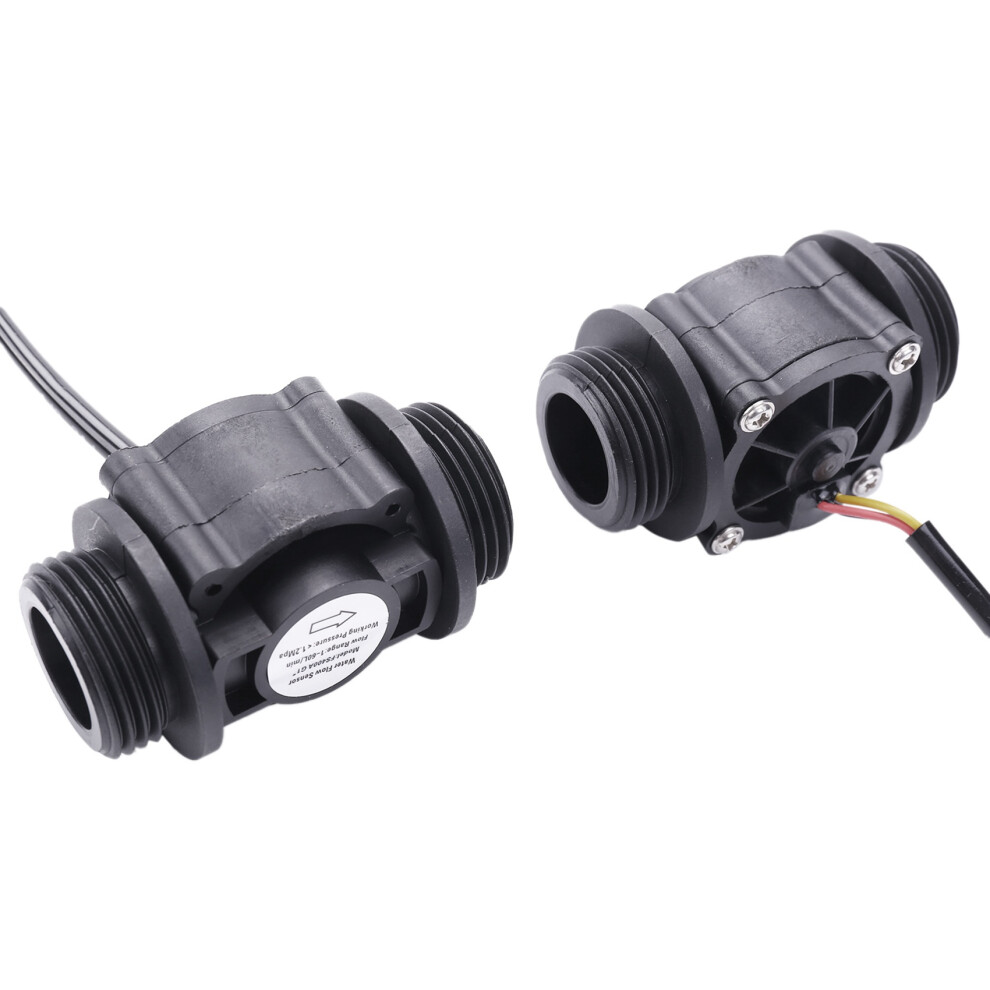

2* Water Flow Sensor
