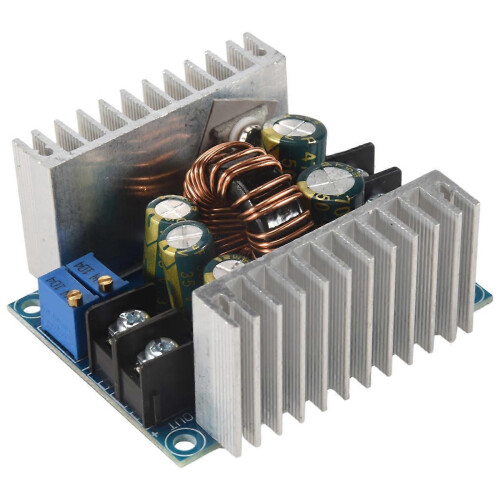

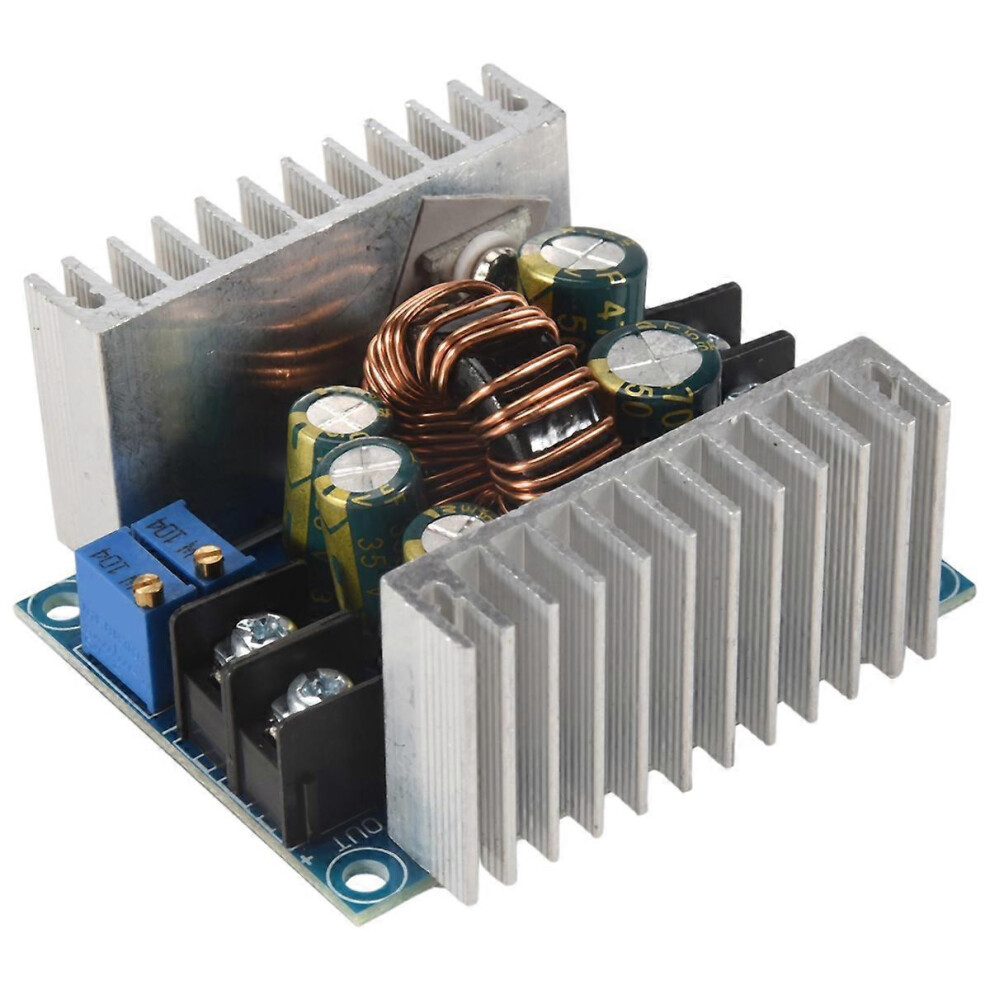

300W 20A DC-DC Adjustable Buck Converter Module Constant Current Voltage Regulator Power Supply Driv

Descrição de 300W 20A DC-DC Adjustable Buck Converter Module Constant Current Voltage Regulator Power Supply Driv

With a wide input voltage range from 6V to 40V, -down converter can accurately adjust output voltage and current.

The efficiency can be up to 96%, measured at 20A, converting 24V to 12V.

It is designed with 75V\/80A large current dual MOS tube.

Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output.

Wiring is convenient with these large current 30A screw terminals.

The buck module has 2 heat sink that could enhance heat dissipation.

When there is a between input and output voltage, please decrease power and current.

Input Voltage: 6V to 40V DC(10V to 40V is suggested)

Output Voltage: 1.2V to 36V DC

Output Current: 20A(max.), 15A(suggested)

Efficiency: 95%(24V to 12V, 20A)

Output Ripple: less than equal 50mV

Wiring Method: Terminal

Short Circuit Protection: Self-recovery (cannot short circuit for long time)

Size: 60 x 53 x 27mm \/ 2.36 x 2.08 x 1.06inch

VO+: Output positive

VO-: Output negative

+IN: Input positive

-IN: Input negative

CV: Output voltage adjustment

CC: Output current adjustment

EN: Enable, low voltage level shut off output; suspension, high voltage level is effective

When input and output is common grounded, no-load CV output constant voltage,CC output constant current

Colour:As shown

Material:PC+Metal

Package Contents:

1 x 300W 20A Buck Converter

Only the above package content, other products are not included.

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
