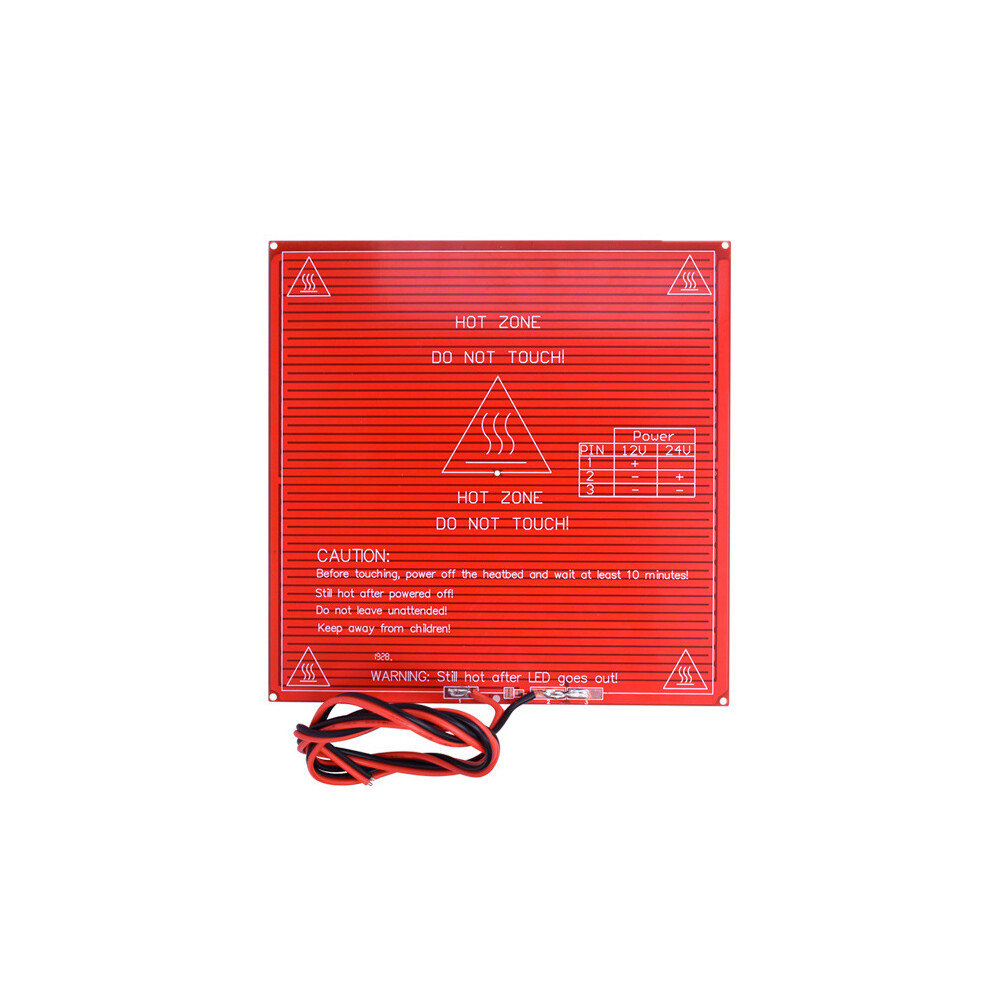

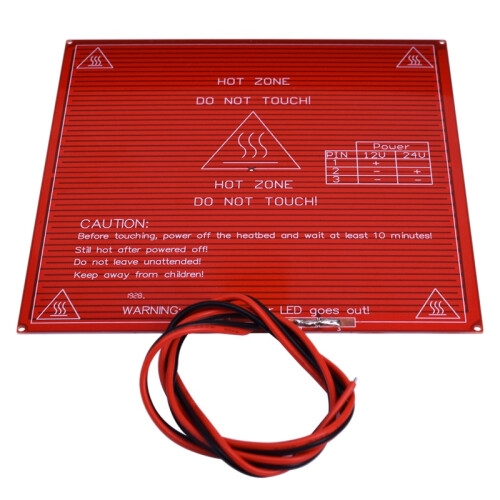

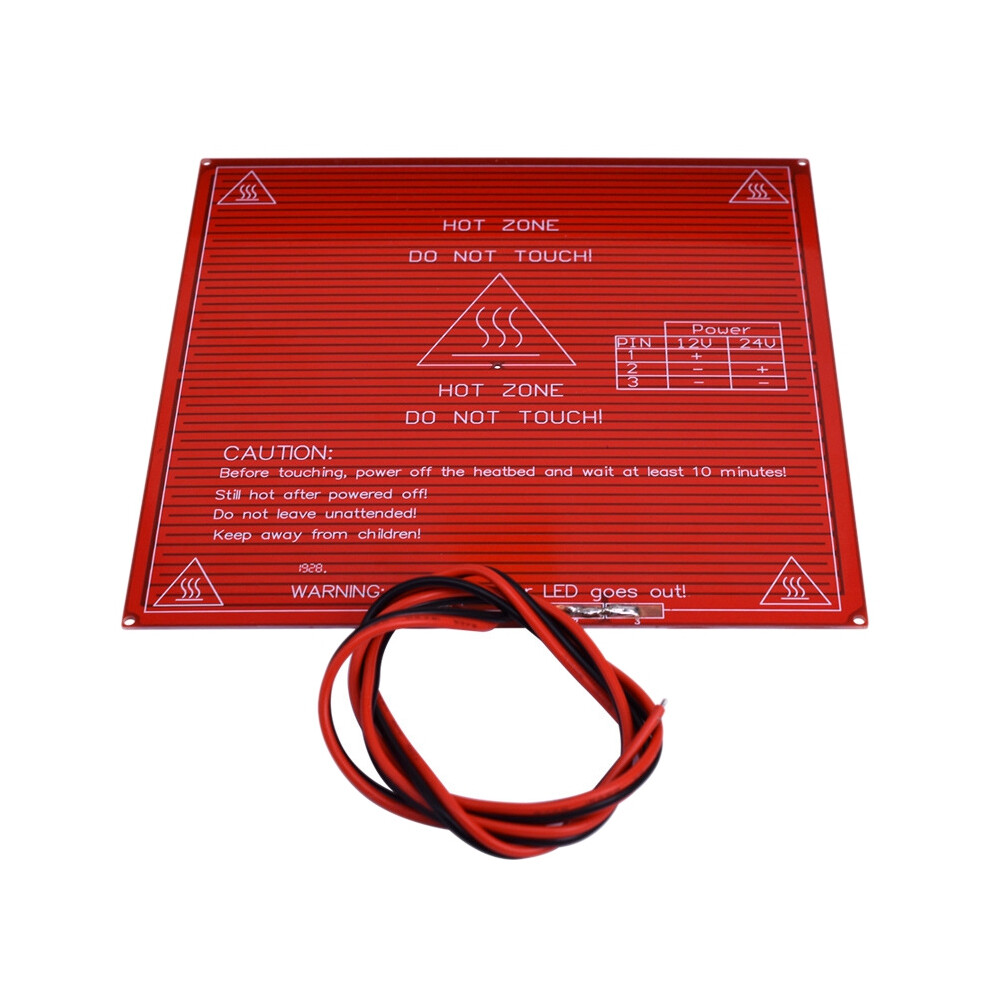

3D Printer Accessories with a Heated Bed Dual Voltage Circuit Board MK2B, Support 12V, 24V

Descrição de 3D Printer Accessories with a Heated Bed Dual Voltage Circuit Board MK2B, Support 12V, 24V

Condition: New
Supply Voltage: datasheet
Dissipation Power: datasheet
Operating Temperature: datasheet
Model Number: title & photo
Type: module
Application: datasheet
Types of: Other ICs
batch number: 3d printer
testing report:
Then 12V
Current 9.8A, with the temperature rise, the current dropped to 8.8A (physical knowledge: resistance increases with the temperature increases)
Then 24V
Theoretical maximum current is less than 5A
If you use 24V, this the current is very large, MOS tube heat serious, it is easy because of high temperature burned.
In addition, consider whether the power supply is sufficient, to 576W power supply is very expensive, if the power supply is insufficient, may affect the motor and other equipment to normal operation.

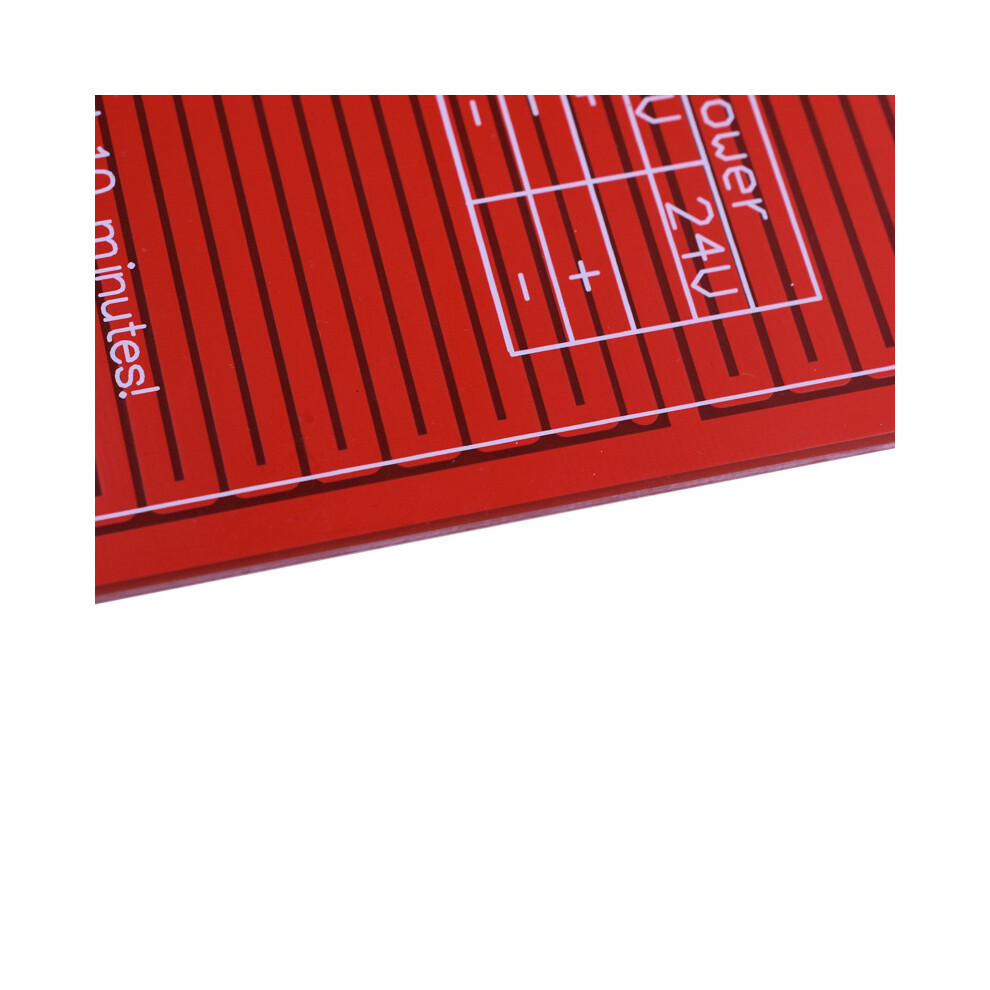

2 layer, 35m copper
Red Soldermask - both sides
White Silkscreen - both sides
Power Input: 12V or 24v
1.12V 24 power supply at will

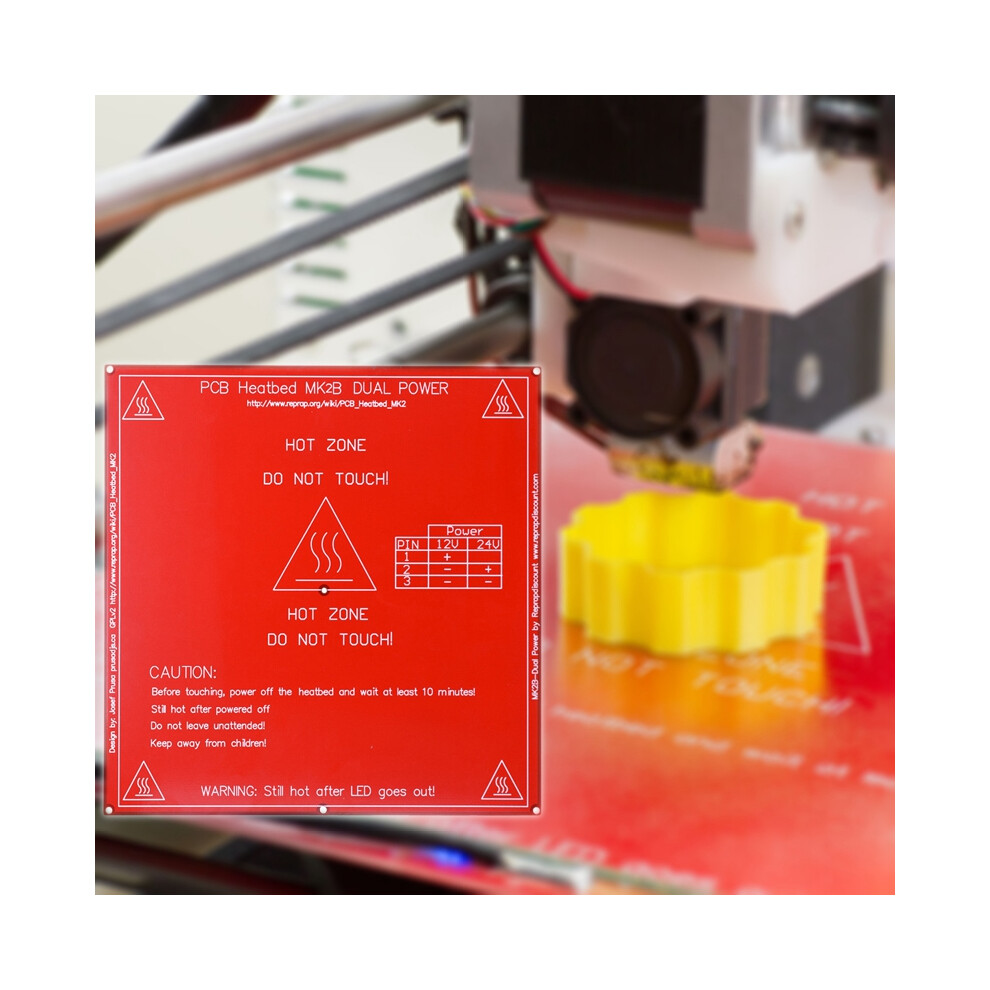

2.double-sided, the other side without wiring,Heating evenly,Print is smooth
3.wiring, regardless of positive and negative, free wiring

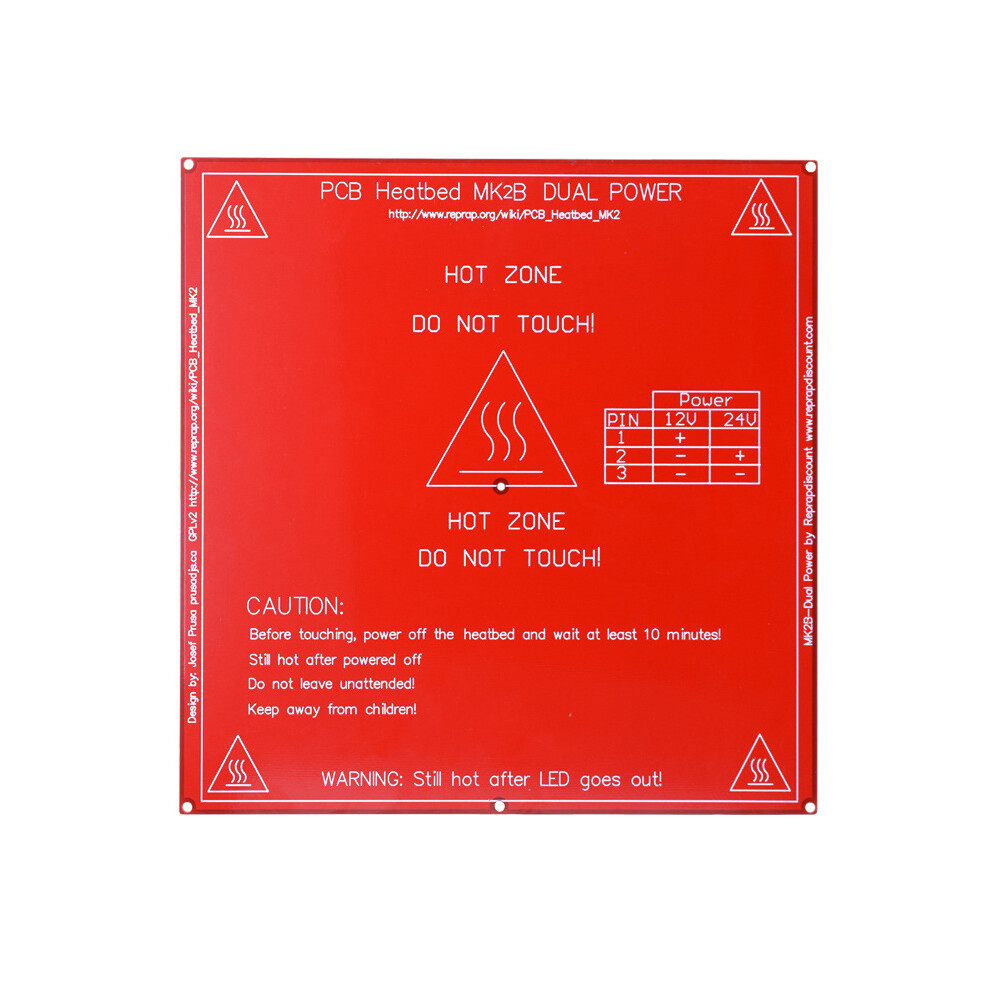

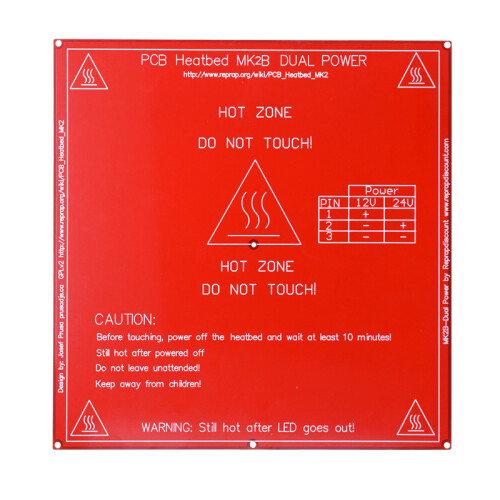

4.12V connection: a then 1, another at the same then 2,3
5.24V connection: a connected 2, another connected 3 (1 vacant not connected)
2 layer, 35m copper
Red Soldermask - both sides
White Silkscreen - both sides
Power Input: 12V or 24v

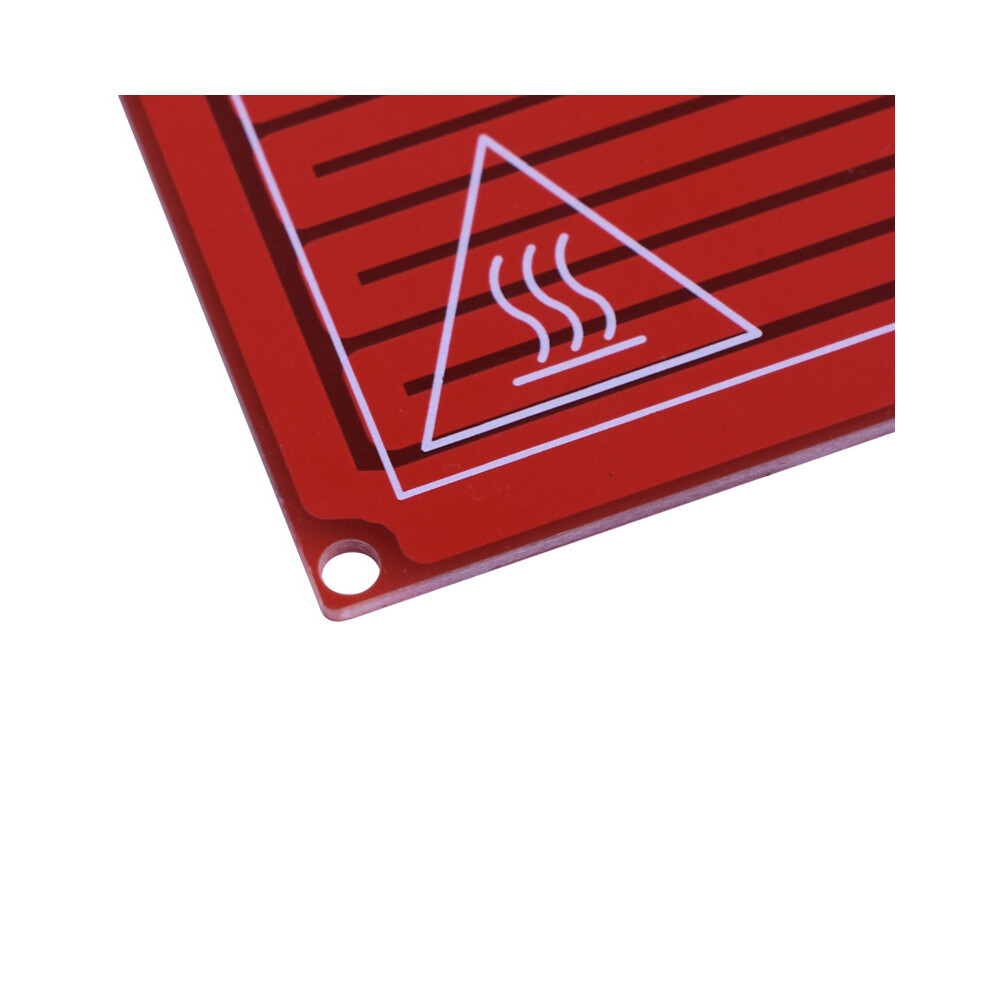

Copper plated holes
colour:red
Material:PCB board
size:Dimensions 214mmx 214mm
Laminate FR4 1.6 + -0.15mm

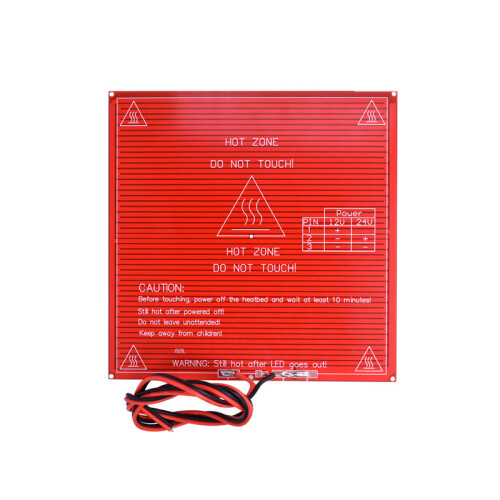

Package Contents:
1*set board MK2b
