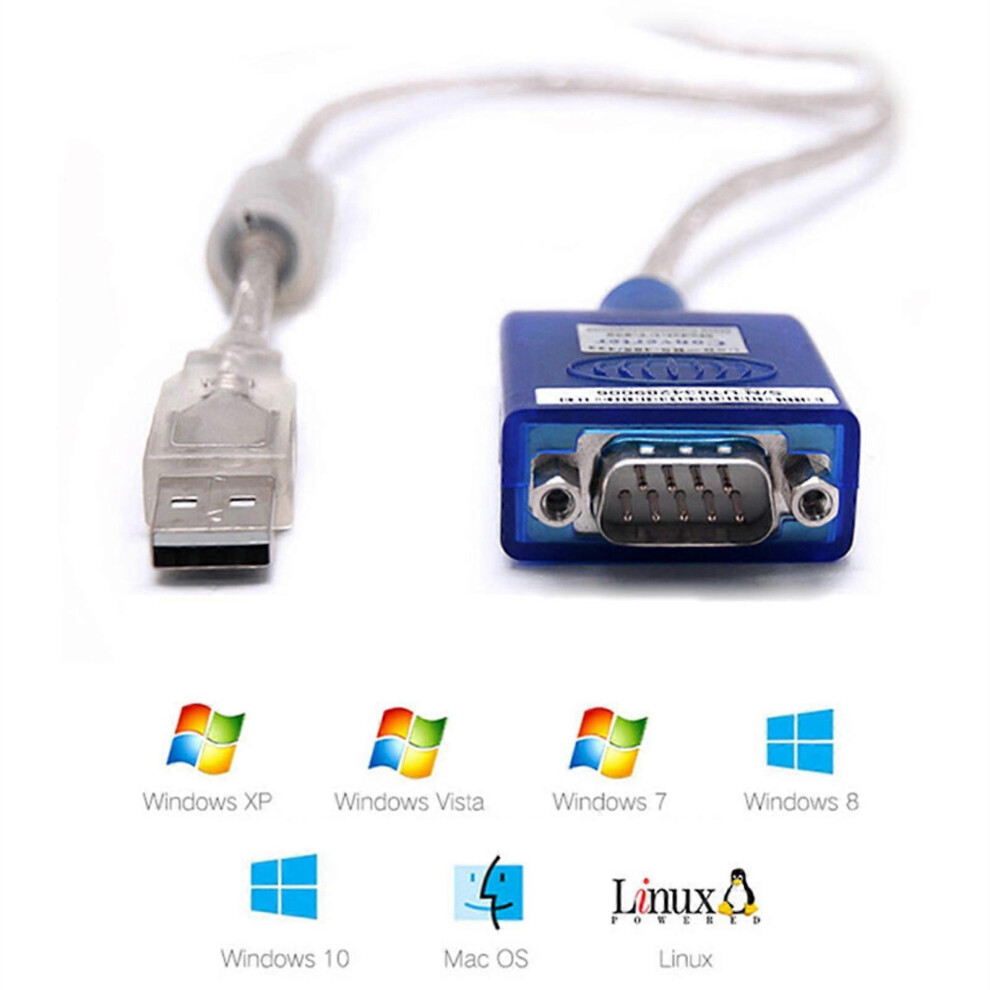

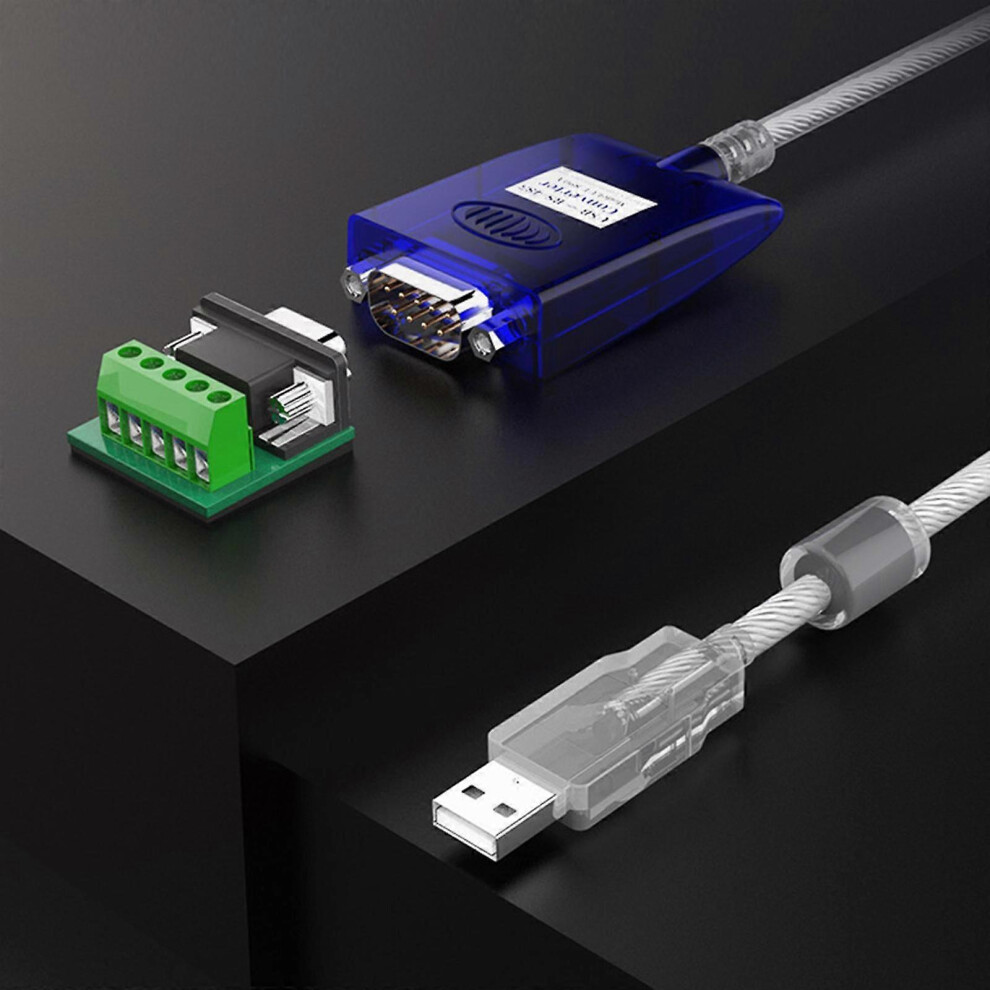

3M USB to RS-422/RS-485 Cable Adapter with ESD Protection for Reliable Communication in Various Systems

Descrição de 3M USB to RS-422/RS-485 Cable Adapter with ESD Protection for Reliable Communication in Various Systems

Features:

USB RS485 adapter cable devices with FTDI-FT232+SP213 chipset allows you to connect RS422 or RS485 serial devices to your computer via USB.

Support for Windows98/CE/2000/2003/2008/XP/Vista7/8/10Linux, for MacOSX system, USB interface can be hot plugged

Provide surge protection power for each line to avoid damage to the line due to surge voltage and transient voltage generated by the line, +/-15KV electrostatic protection to ensure high-speed transmission of RS485/422 interface

The converter has zero-delay automatic sending and receiving conversion inside, ensuring high-speed data transmission and providing a reliable connection for your communication

The direction of the data flow is automatically controlled through the I/O circuit, and no handshaking signals (such as RTS, DTR, etc.) are allowed to achieve mode conversion without jumper settings, ensuring compliance with existing communication software and interface hardware

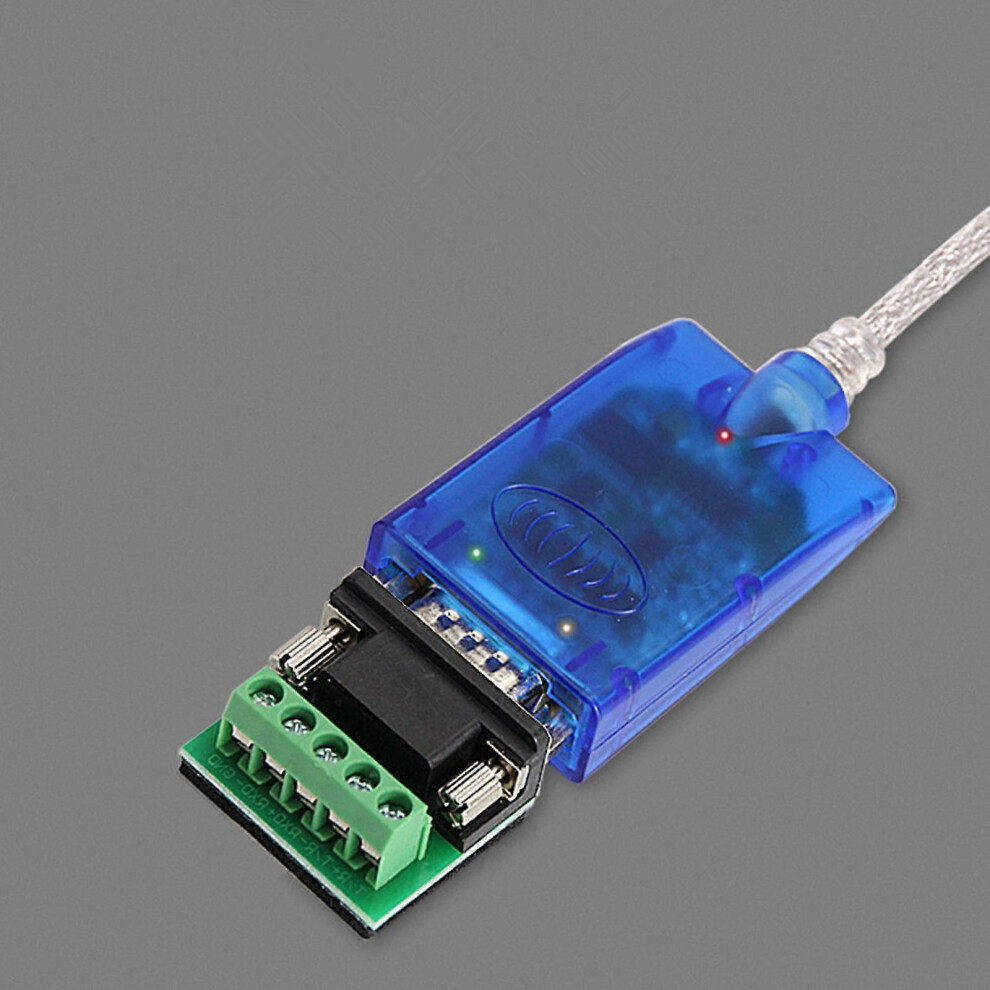

3 Signal light, red is power indicator light, green is send signal, orange is receive signal

With filter magnetic ring, it can reduce the interference of other equipment, and the signal transmission is more stable

Packing Include:

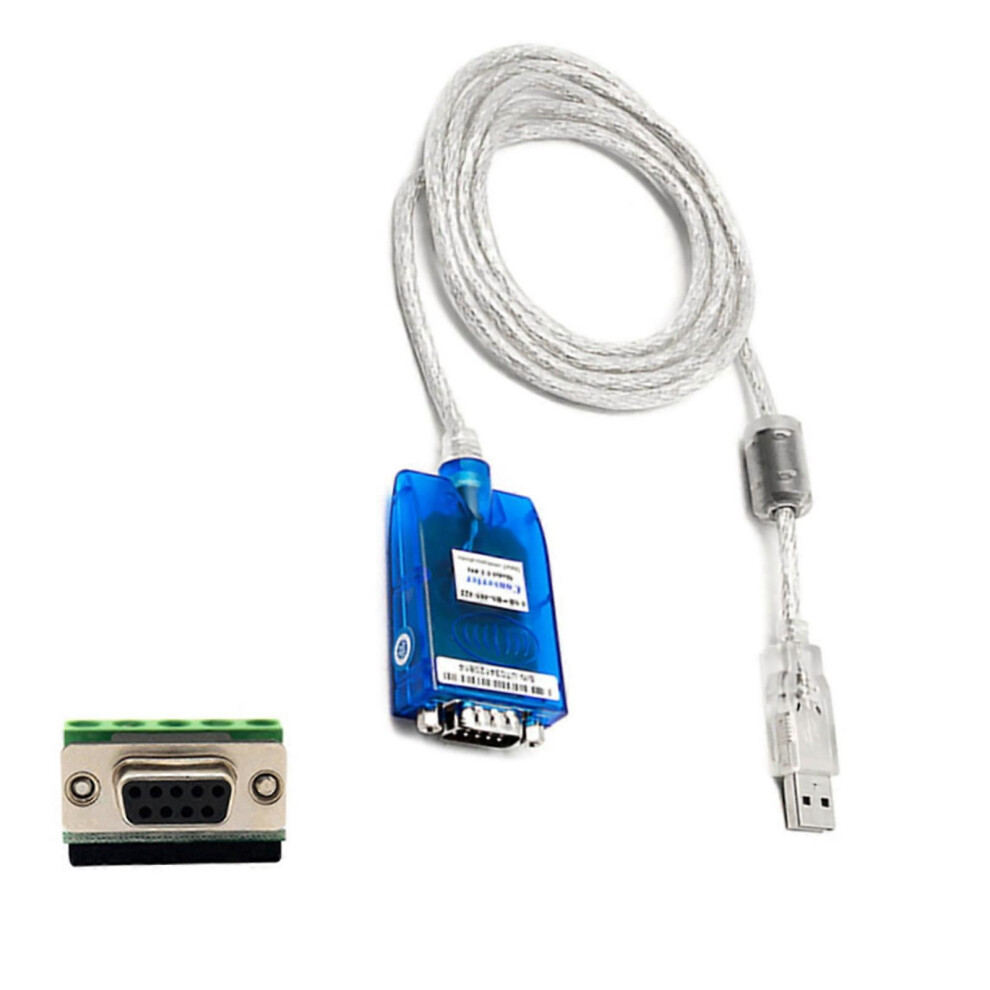

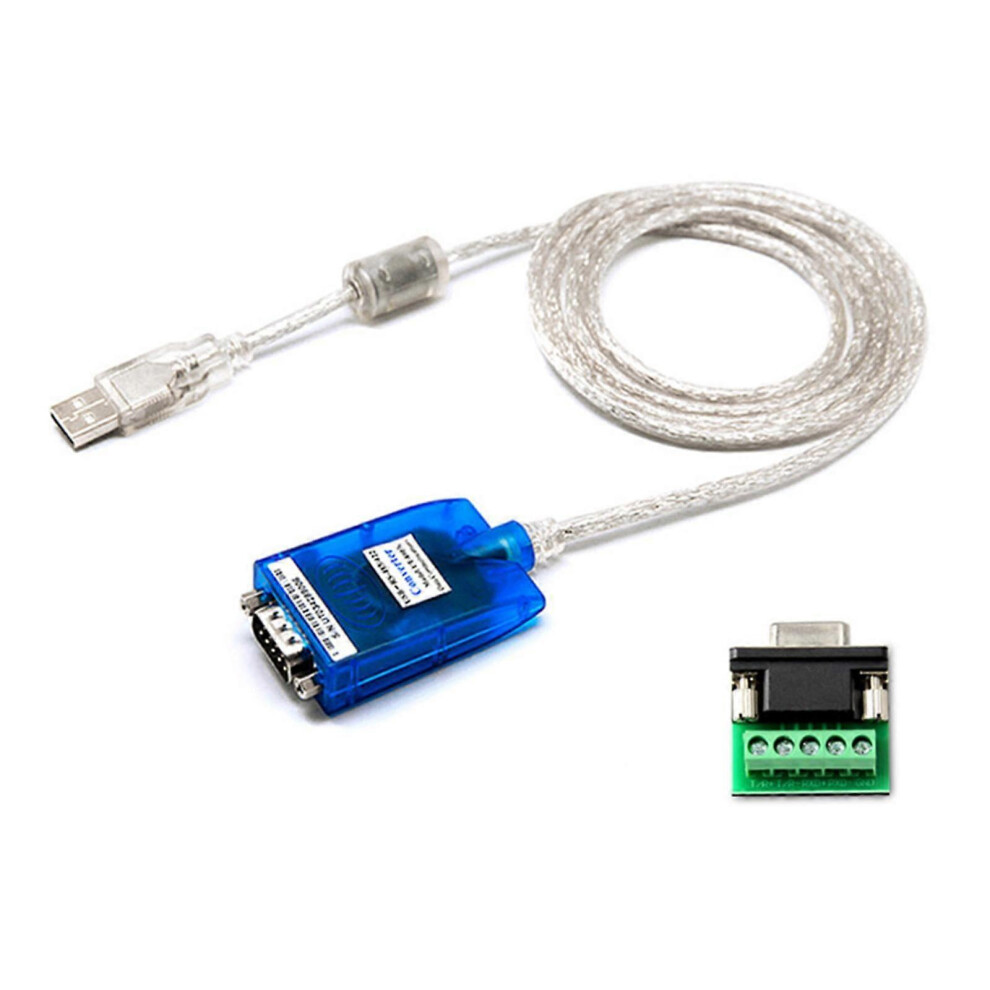

1 x USB to RS-422 RS-485 Adapter Cable(3M)
