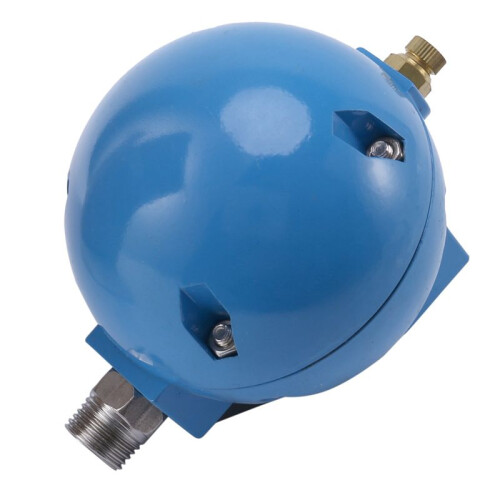

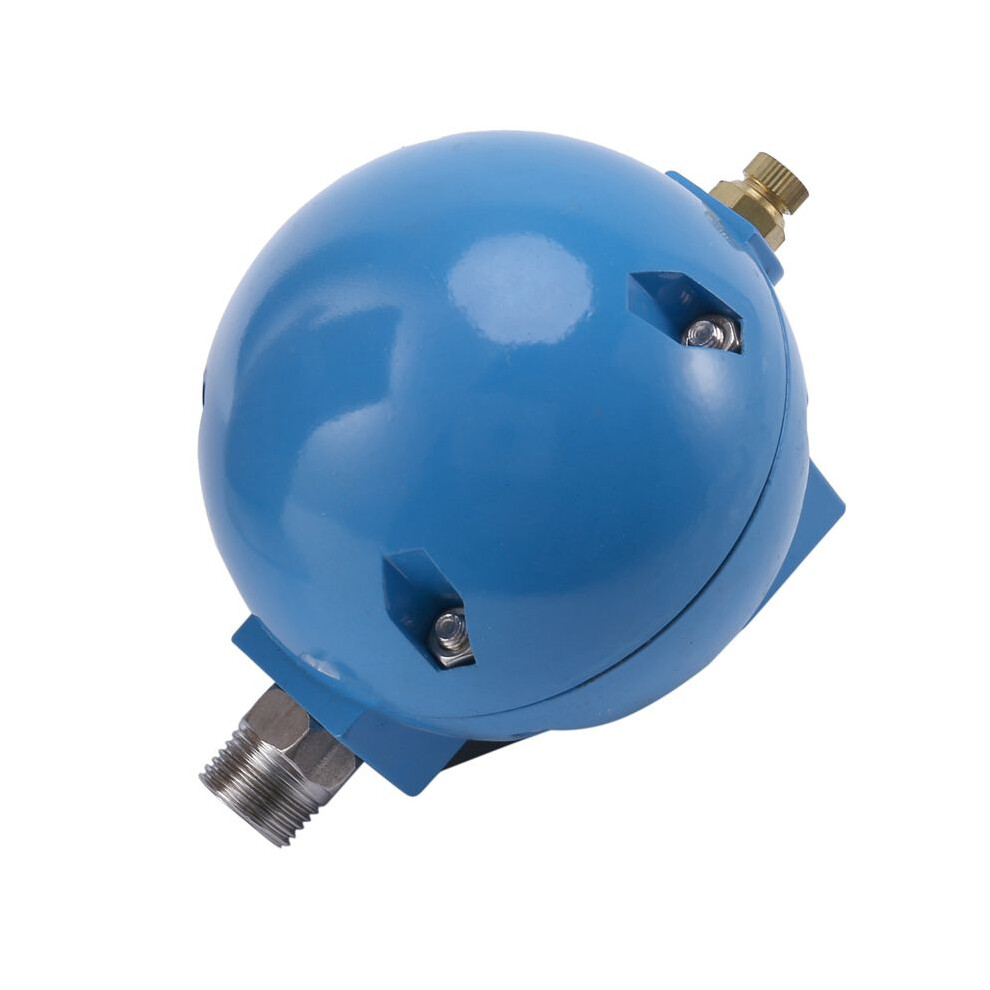

3X Had20B Spherical Drain Valve Automatic Drain Filter Air Compressor Automatic Drain Valve

Descrição de 3X Had20B Spherical Drain Valve Automatic Drain Filter Air Compressor Automatic Drain Valve

This compressed air condensate automatic drainer is a mechanical automatic drainer which has casting aluminum alloy shell and inside float drainage system.Drainer outlet is closed when drainage buoyancy is smaller than floating weight compressed air pressure; and it will open when buoyancy increases, in order to drain condensed liquid.
This compressed air condensate automatic drainer is significantly different from traditional mechanical automatic drainer, which is belong to continuous drops drain.
Metal powder coating surface, resistant to corrosion.
Automatic drainer is extremely reliable in operation, no electricity needed, no noise, no loss of compressed air.
Drainer has drainage outlet that is not easily blocked; it is a new generation and great choice of compressed air equipment drainer.

Temperature of Media:Normal Temperature
Media:Water
Power:Pneumatic
Model Number:Float Drain
Pressure:Medium Pressure
Structure:Control
Actuator Mode:Without Manual And Instruction
Thread Type:BSP
This is a quite stable drainer which has great performance and low failure rate.

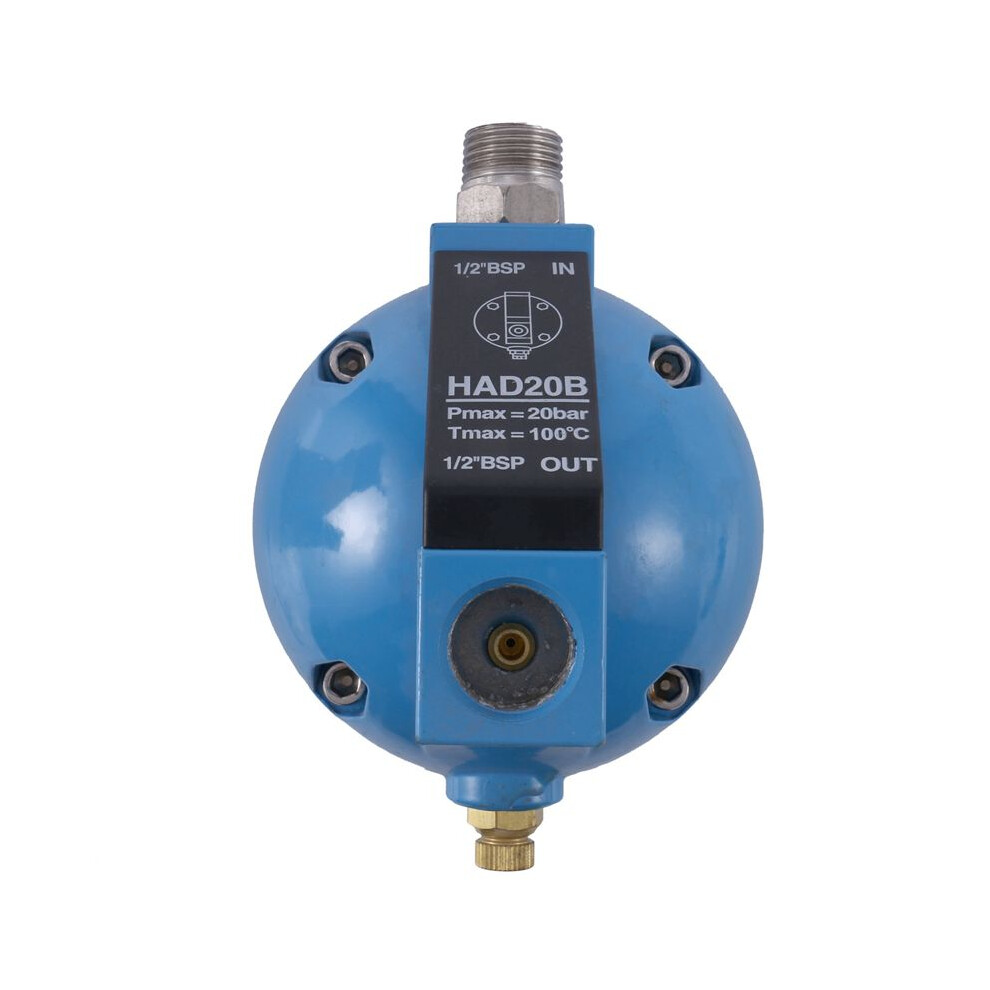

Model: HAD20B
Port Size: Inlet=Outlet=1/2BSP
Max. Pressure: 20bar
Max. Temperature: 100 Celsius
Max. Capacity: 400L/H
Weight: 602g(approx.)
Instruction:
Before installing this drainer, please use compressed air to remove impurities in the piping till it is completely clean.
Install this automatic drainer beneath the drainage device of equipment, otherwise condensate will be filled and affect drainage.
Maintenance
Inspect the drainer once a week.
Operation method: open manual drainer valve to drain water till compressed air in equipment enter the drainer, after a few seconds then closed valve.If drained water is more than 0.5 liters, there is a blockage anddrainer need to be cleaned completely.
Internal parts should be taken out and cleaned each year.Wh
