4K HDMI Extender over Cat6 LAN Adapter, 30m Range, Audio-Video Sync, Plug & Play

Descrição de 4K HDMI Extender over Cat6 LAN Adapter, 30m Range, Audio-Video Sync, Plug & Play

Product Specifications:

Single Gross Weight: 16.4g

Interface: RJ45 nickel-plated interface, HDMI gold-plated interface

Shell: PVC material

Parameters: Support 1080P, support 165MHz\/165Gbps, single channel (4.95Gbps all channels), broadband support 8bit single channel (24bit all channels), support uncompressed

Features:

This HDMI extender has many features that enable it to perform in a superior manner.among those features you will find.

1.One pair as a full functional module,no need of setting

2.CAT-5E\/6 cable can substitute HDMI cable to achieve long distance transmission

3.Follow the standard of IEEE-568B

4.Transmission distance can be up to 30 meters for 1080P using CAT-6 cable

5.Compact size

6.Signaling rater up to 2.5Gbps in support of 1080P display

7.No need for extra power supply

8. HDMI audio and video synchronization transmission technology, audio and video synchronization more shocking, instantly feel the cinema-level audio-visual feast

9. HDMI extender consists of transmitter (TX) and receiver (RX), through a CAT-5\/6 or more pure copper twisted pair cable can be HDMI signal transmission to a distance of 1-30 meters, high-fidelity real-time transmission, built-in anti-lightning anti-interference circuit

10. Widely used in: high-definition TV, set-top box, DVD, projection and the factory, data monitoring center, large conference and exhibition center with HDMI interface equipment

Connection and Operation:

1.Plug the fixed HDMI connector of the sender into the HDMI input source such as:HD-DVD,PS3,STB etc.

2.Connect single CAT-5E\/6 cable to both the output of the transmitter and input of the receiver

3.Plug the fixed HDMI connector of the receiver into the HDMI display(such as:HD-LCD,HD-DLP)

Packing:

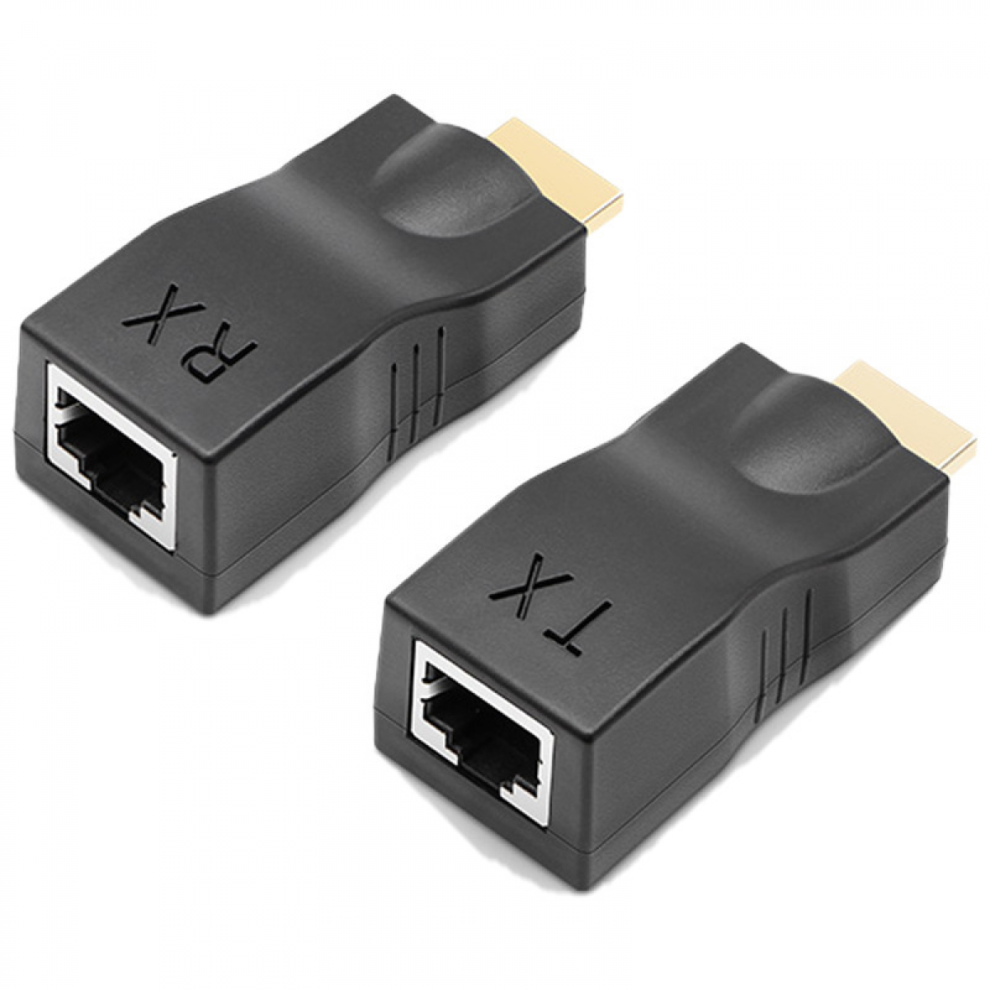

1x HDMI Signal TX Adapter

1x HDMI Signal RX Adapter
