5MP USB Camera Module 160 Degree Wide Angle OV5640 2592X1944 Fixed Focus Free Drive compatible Secur MSPHX

Descrição de 5MP USB Camera Module 160 Degree Wide Angle OV5640 2592X1944 Fixed Focus Free Drive compatible Secur MSPHX

Module Size: 60mm x 8.5mm x 12.8mm

Temperature (Operation): -20\u00B0C to 70\u00B0C

Temperature (Stable Image): 0\u00B0C to 50\u00B0C

Assembly technique: SMT (ROSH)

Object distance :30CM-200CM

Resolution: 600LW\/PH (Center)

PCB printing Link: black

interface: USB 2.0

Power: USB bus power

Power consumption:150mW (VGA); 200 mW (QSXGA);

Operating system request: Windows 2000\/ Windows XP\/Windows 7

Sensor Type: OV5640 (1\/4 inch )

Active Array Size: 2592*1944

Sensitivity: TBD

Pixel Size : 1.4\u00B5m x1.4\u00B5m

Maximum Image fer Rate: 15 fps for QSXGA;

S\/N Ratio: TBD

Dynamic Range: TBD

Lens Type

Lens Construction: 4G1P+IR

F\/No: 2.4

EFL: 1.6mm

BFL(Optical): 2.5mm

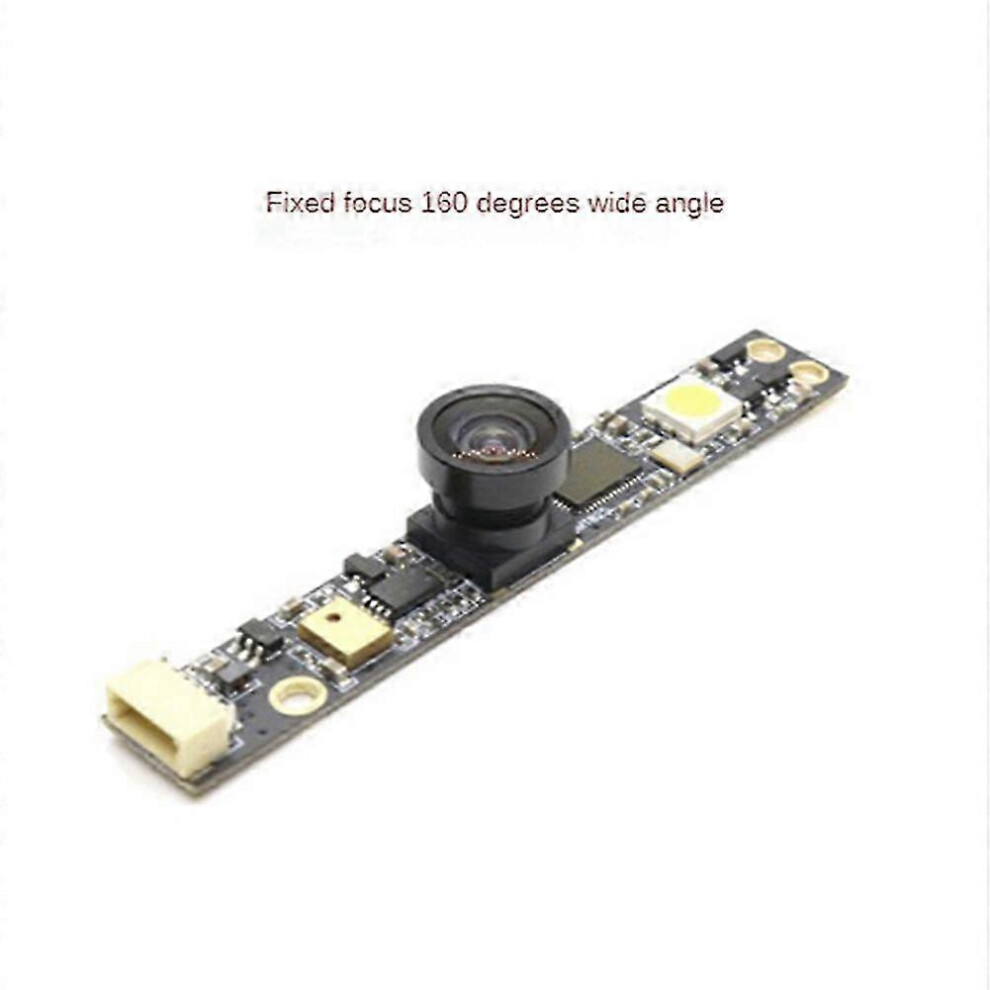

FOV: 160\u00B0

TV Distortion: Less than -35%

Relative Illumination (Sensor): 70%

IR Filter: 650\u00B110nm

DSP Type

AGC\/AEC\/Whiter balance: Auto

Output Formats: USB suspend out

Fixed Pattern Noise: Less than 0.03% of VPEAK-TO-PEAK

Material: PCB+Lens

colour: black

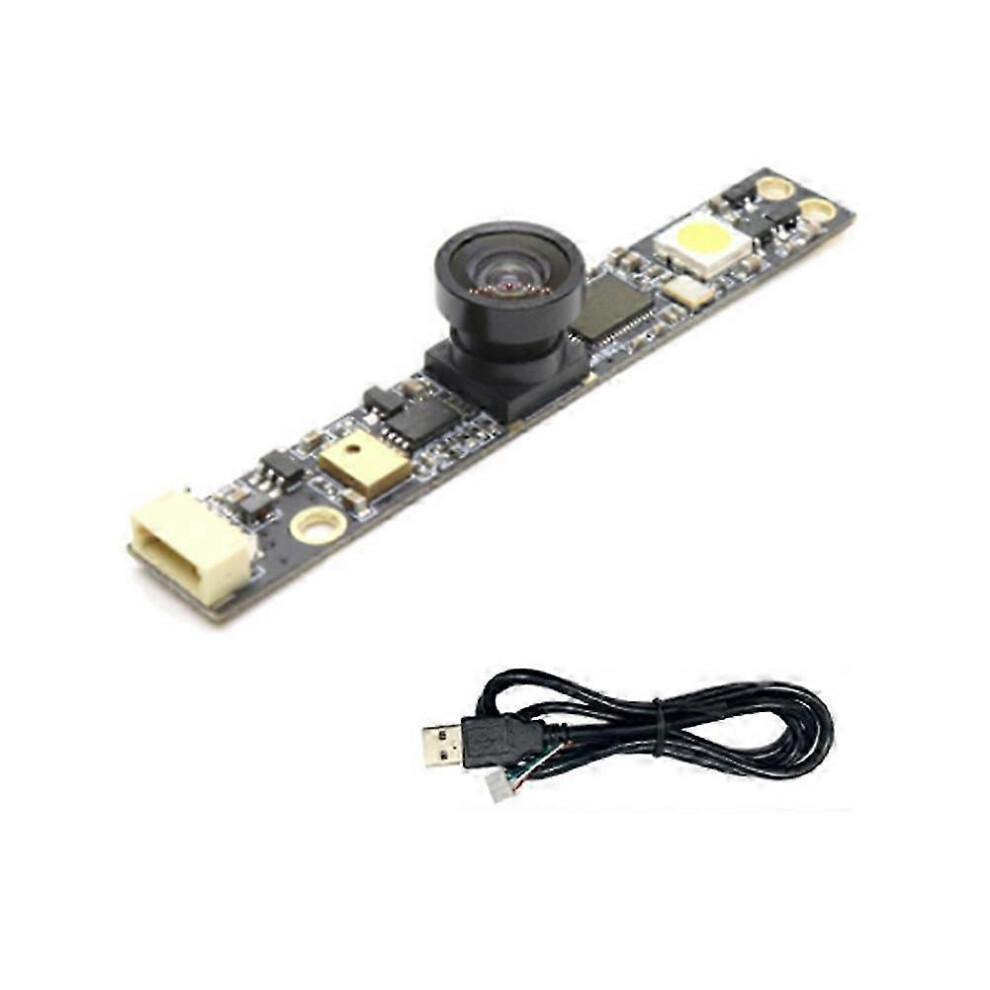

Package Contents:

1 x Camera Module

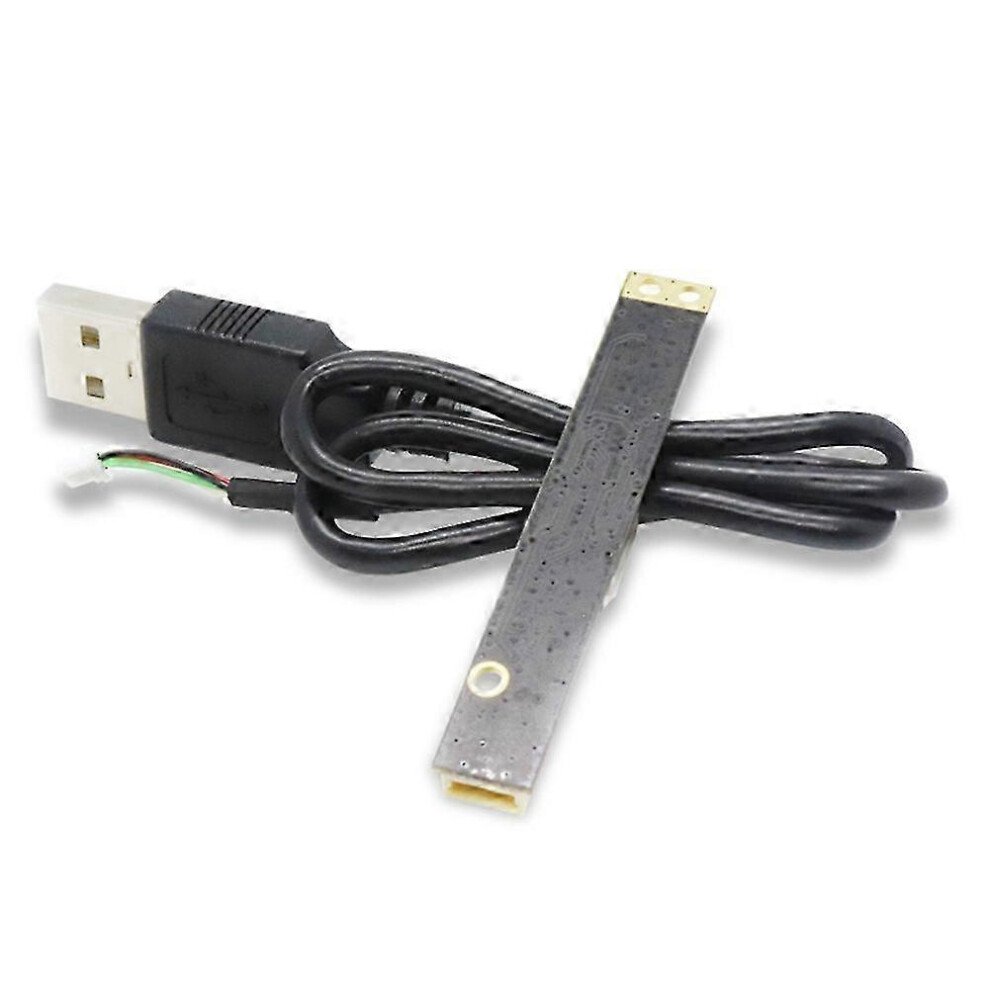

1 x USB cable

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
