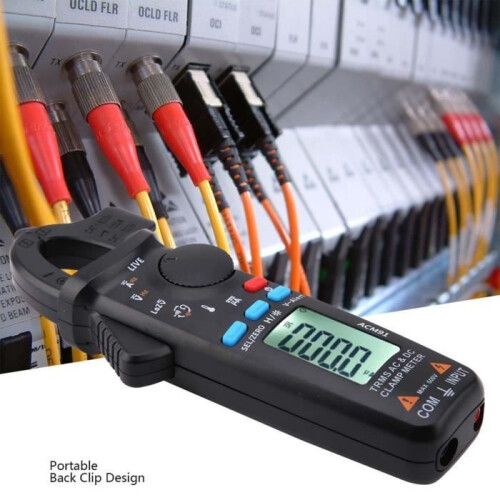

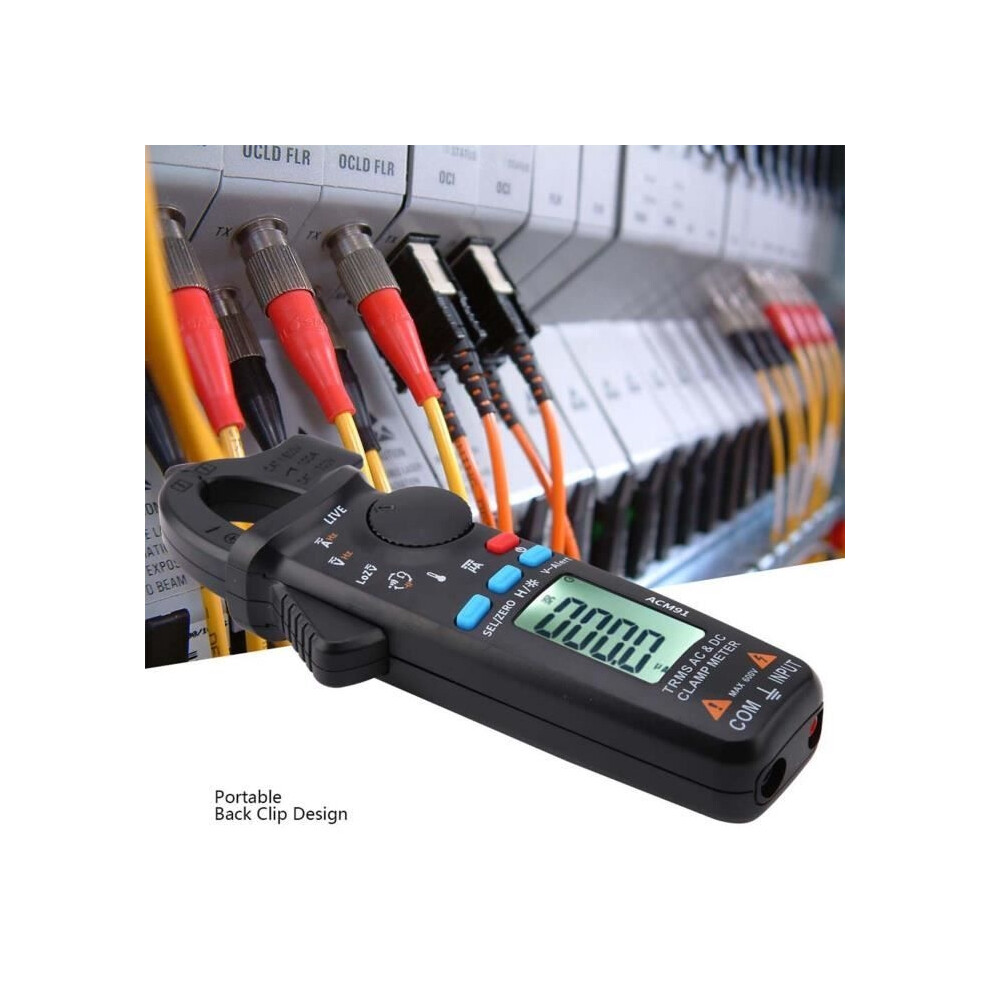

Clamp meter - SALUTUYA - ACM91 - Digital - 6000 counts - True RMS 1mA

Descrição de Clamp meter - SALUTUYA - ACM91 - Digital - 6000 counts - True RMS 1mA

Specification: Features: Low impedance (LoZ) mode to identify and eliminate phantom or stray voltages. The two-line display can show both AC voltage/current and frequency, or Celsius and Fahrenheit on the screen. Measures current (minimum 1mA per jaw). Measures microamps (μA) (minimum 0.1 μA per terminal). Measures voltage. V alert measurement, live wire check. Measures frequency, temperature, resistance, continuity, and capacitance. Low impedance voltage measurement. Clamp-on frequency function. Auto-ranging, auto-power-off, data hold, low battery indication with backlight. Complies with IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033. Surge protection class CAT III 300V, CAT II 600V, Pollution Degree II. Specifications: Model: ACM91 Color: Black Display: 6000 counts DC Current: 6A/60A/100A 0.001A/0.01A/0.1A (3.0% + 5 counts) DC Current (μA): 0-200μA 0.1μA (0.8% + 5 counts) AC Current: 6A/60A/100A 0.001A/0.01A/0.1A (2.5% + 5 counts) DC Voltage: 6V/60V/600V 0.001V/0.01V/0.1V (1.0% + 3 counts) AC Voltage: 6V/60V/600V 0.001V/0.01V/0.1V (1.0% + 3 points) Low impedance LOZ: Maximum resolution of 600V 0.1V Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ (1.0% + 3 points) 60MΩ 0.01MΩ (1.2% + 20 points) Capacitance: 600μF/6000μF 0.1μF/1μF (4.0% + 3 points) Frequency: 60Hz/1000Hz 0.1Hz/1Hz (1.0% + 5 points) Frequency (per Jaws): 60Hz/1000Hz 0.1Hz/1Hz (1.0% + 5 counts) Buzzer: If the resistance is less than 30Ω, the continuity beep sounds. Temperature: -20~500 1/2 (2.0% + 2 counts) Jaw Capacity: 20 mm Power Supply: 1.5V (AAA) x 2 (not included) Safety Certification: FCC, RoHS, LVD, WEEEP Weight: 355g / 12.5oz Package List: 1 * Digital Clamp Meter 1 * Probes 1 * Thermocouple 1 * Carrying Case 1 * Screwdriver 1 * User Manual Note: The actual color of the product may differ from the picture due to lighting. There may be a slight deviation in the product measurement. Please note that the new type and the old type of this Products will be sent randomly, so please make sure you don't mind this before ordering.
