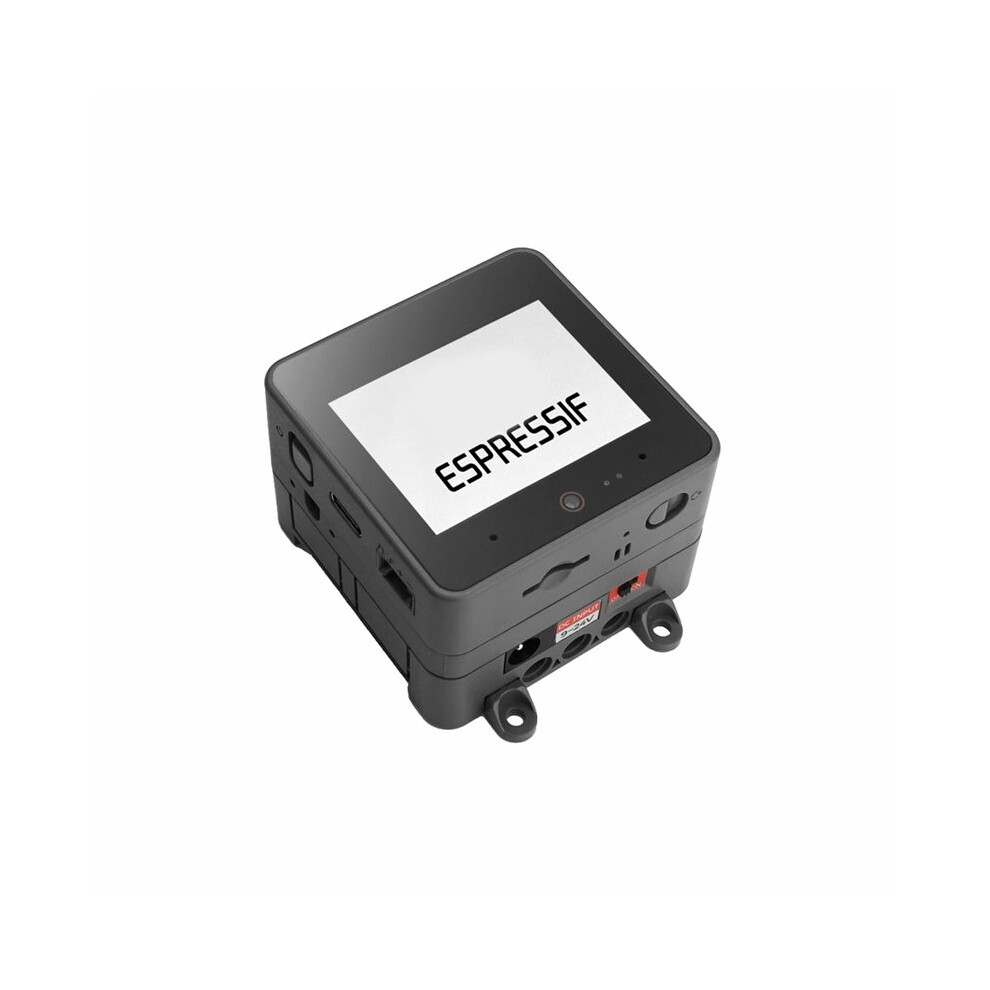

CoreS3 Thread BR Thread Gateway Thread Border Router CoreS3 Controller and the Module Gateway H2 Wireless Module

Descrição de CoreS3 Thread BR Thread Gateway Thread Border Router CoreS3 Controller and the Module Gateway H2 Wireless Module

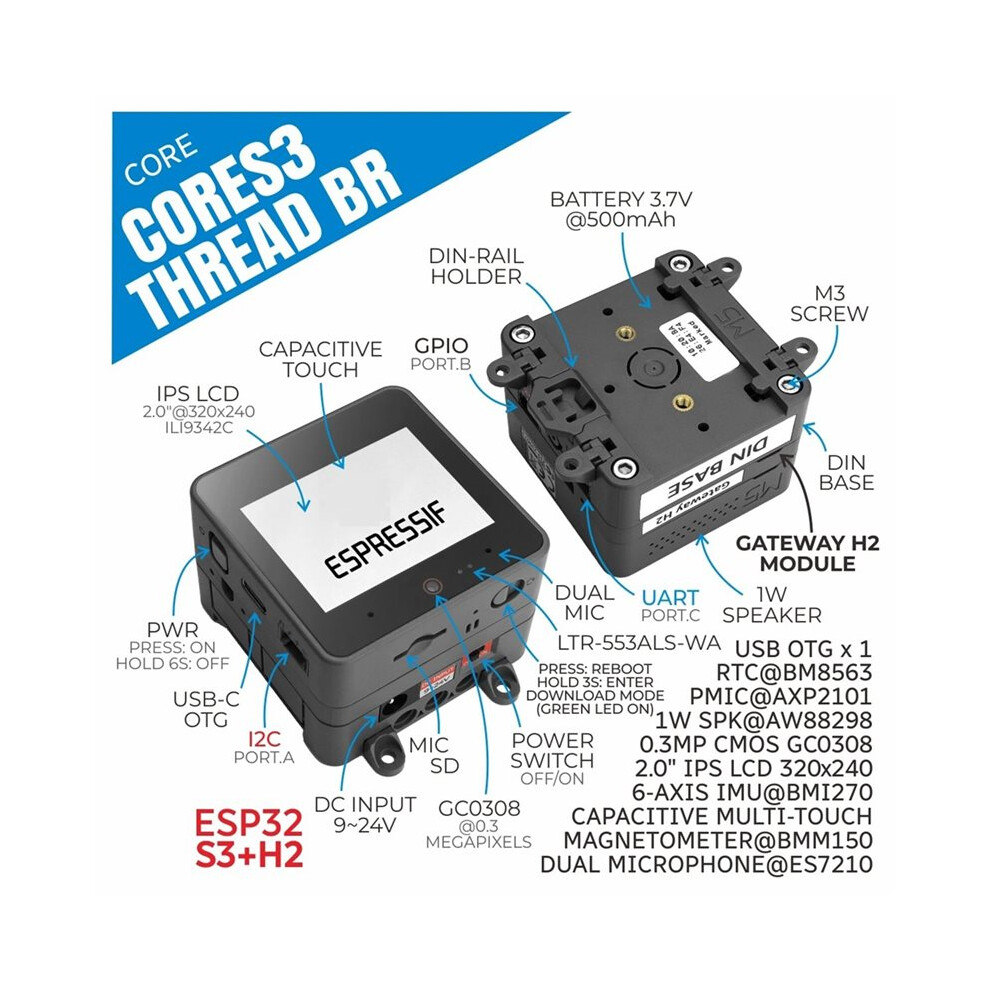

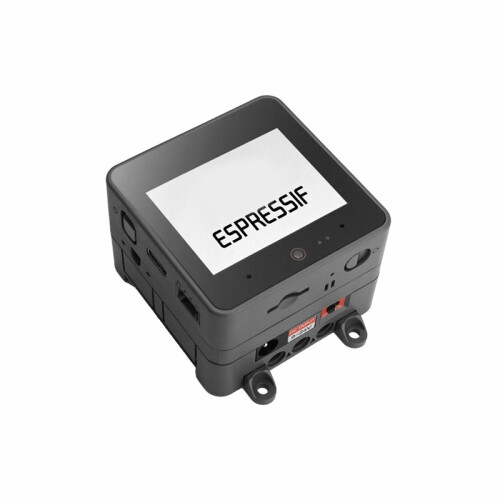

The CoreS3 Thread BR is a Thread gateway kit. The core components consist of the CoreS3 controller and the Module Gateway H2 wireless module. The CoreS3 acts as the control core of the gateway, running user applications and the OpenThread protocol stack.
The CoreS3 controller uses an ESP32-S3 SoC with 16MB of onboard Flash and 8MB of PSRAM memory. Supporting 2.4 GHz Wi-Fi, it integrates a 2.0" touchscreen LCD display, camera, microphone, speaker, RTC, six-axis attitude sensor, and other peripherals.
The Module Gateway H2 module incorporates the ESP32-H2--1 module, supporting IEEE 802.15.4 wireless communication. As an OpenThread Radio Coprocessor (RCP), it provides Thread packet forwarding functionality for the CoreS3 core controller.
The CoreS3 Thread BR is suitable for applications in homes, environmental monitoring sensor networks, and low-power wireless communication nodes, helping developers quickly prototype and develop products.
Specifications:

SoC: ESP32-53 @ Xtensa 32-bit LX7 dual-core processor, 240MHz

Flash: 16MB

PSRAM: 8MB

Wi-Fi: 2.4 GHz Wi-Fi

Touch IPS LCD Screen: 2.0" @ 320 x 240 1L193420

Camera: GC0308 @ 0.3MP

Proximity Sensor: LTR-553ALS-WASpecifications:

SoC: ESP32-53 @ Xtensa 32-bit LX7 dual-core processor, 240MHz

Flash: 16MB

PSRAM: 8MB

Wi-Fi: 2.4 GHz Wi-Fi

Touch IPS LCD Screen: 2.0" @ 320 x 240 1L193420

Camera: GC0308 @ 0.3MP

Proximity Sensor: LTR-553ALS-WA

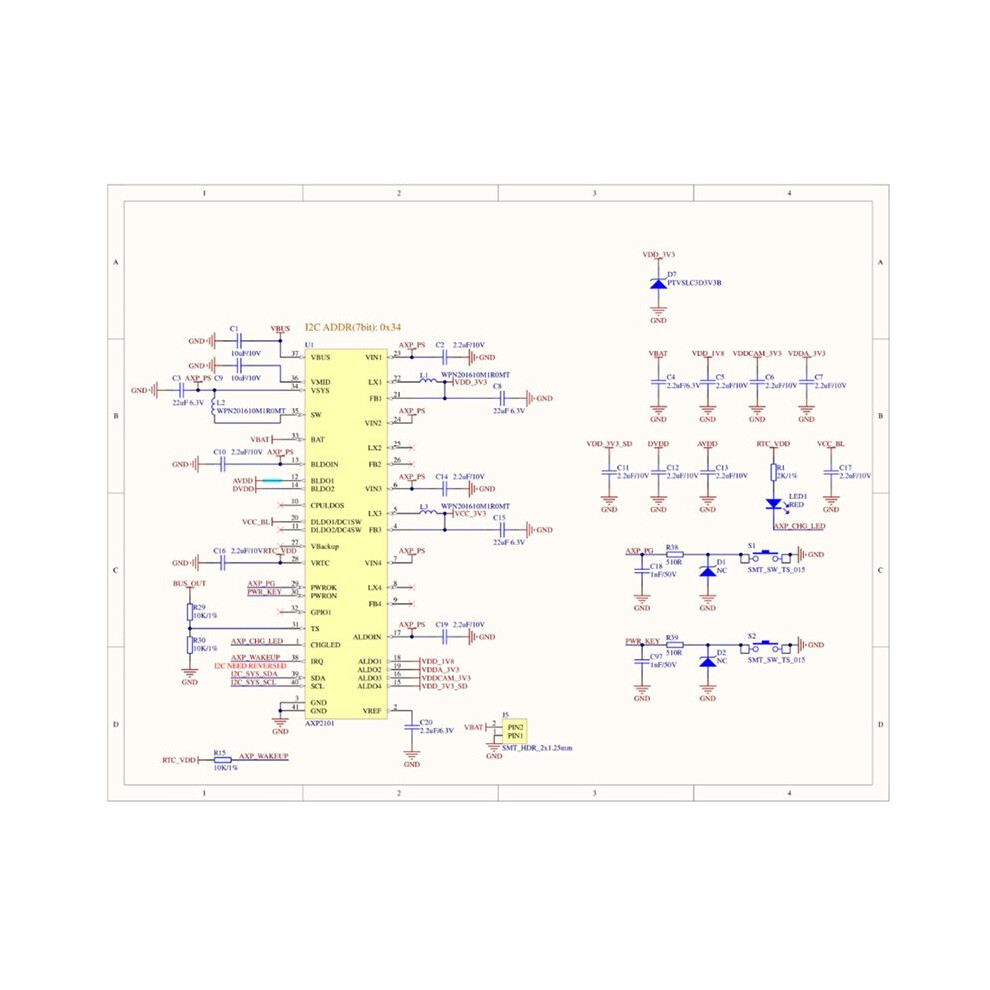

Power Management Chip: AXP2101

Six-Axis Attitude Sensor: BMI270

Three-Axis Magnetometer: BMM150

RTC: BM8563

Speaker: 16-bit-125 Amplifier Chip AW88298 @ 1W

Audio Encoding Chip: ES7210, Dual Microphone Input

RCP: ESP32-H2--1 @
