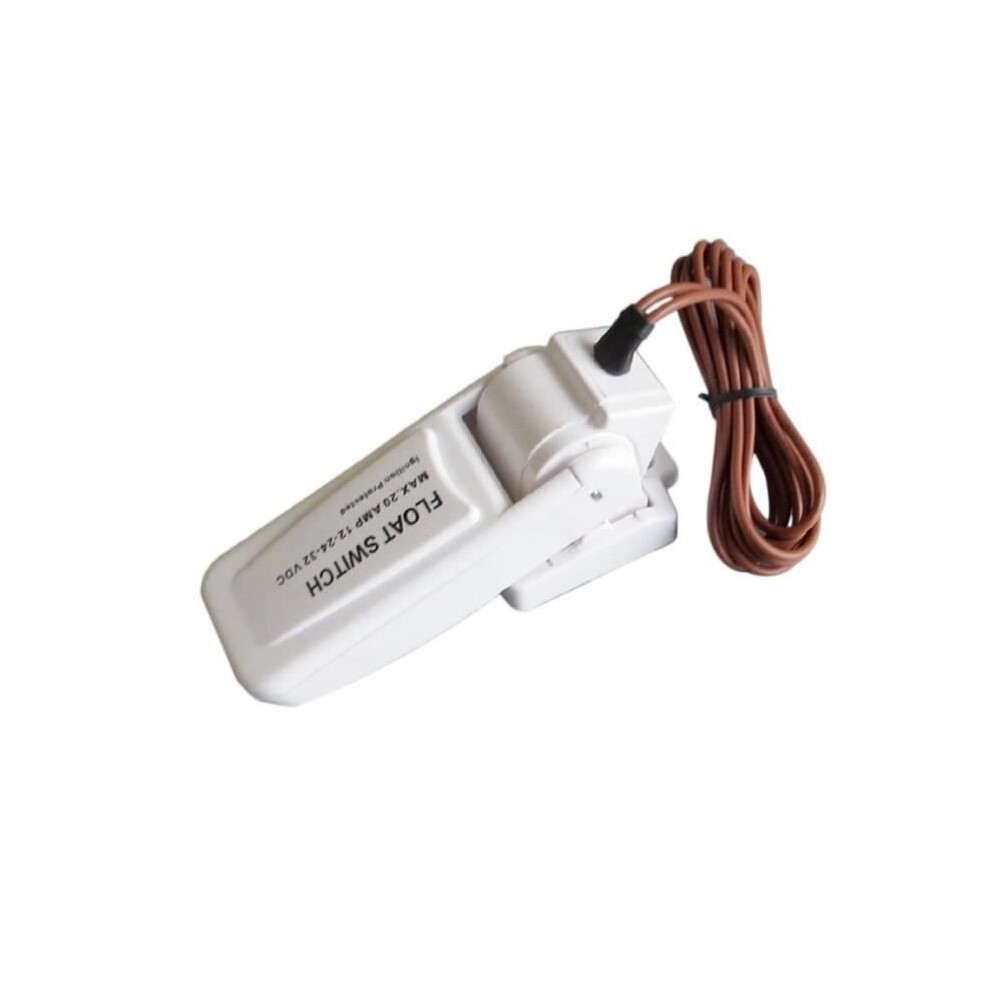

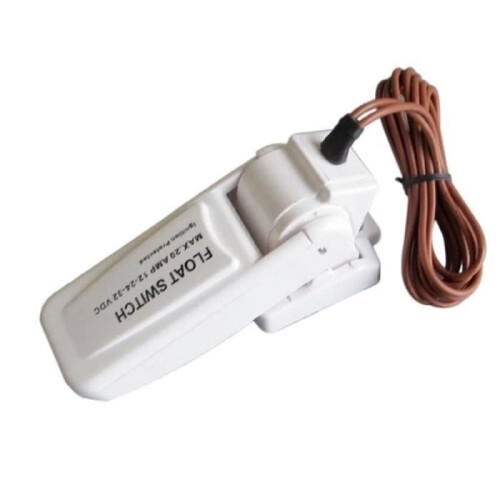

Float switch for 12-36V submersible bilge pump

Descrição de Float switch for 12-36V submersible bilge pump

This float switch for bilge pumps is a very practical accessory for automatically stopping a pump when the water level is low and then restarting it.

Placed at the bottom of the bilge in a boat, for example, it will automatically power the pump as soon as the water in the bilge reaches a certain level and then stop it when the float is at the low level. Completely waterproof, the switch is equipped with a 1-meter, 2-way power cable, which you can extend yourself, ensuring proper waterproofing, as needed.

The float switch will also be useful for other applications where it is necessary to control the automatic start and stop of the pump (when the water level is low), for example, in a tank. The float switch should be placed horizontally, usually like the pump, and preferably on a flat surface for optimal use.

Main features of the 12-36V submersible bilge pump float switch. Ref. POS402:

Submersible low level detector, Weight: 110 g.

Dimensions: see photo. Supplied with a 1-meter, 2-way cable, 1.5 mm² cross-section. Maximum switching power: 20 A at 12 V DC, 10 A at 24 V DC, 8 A at 32 V DC. Low and high switching levels: see photo.

..
