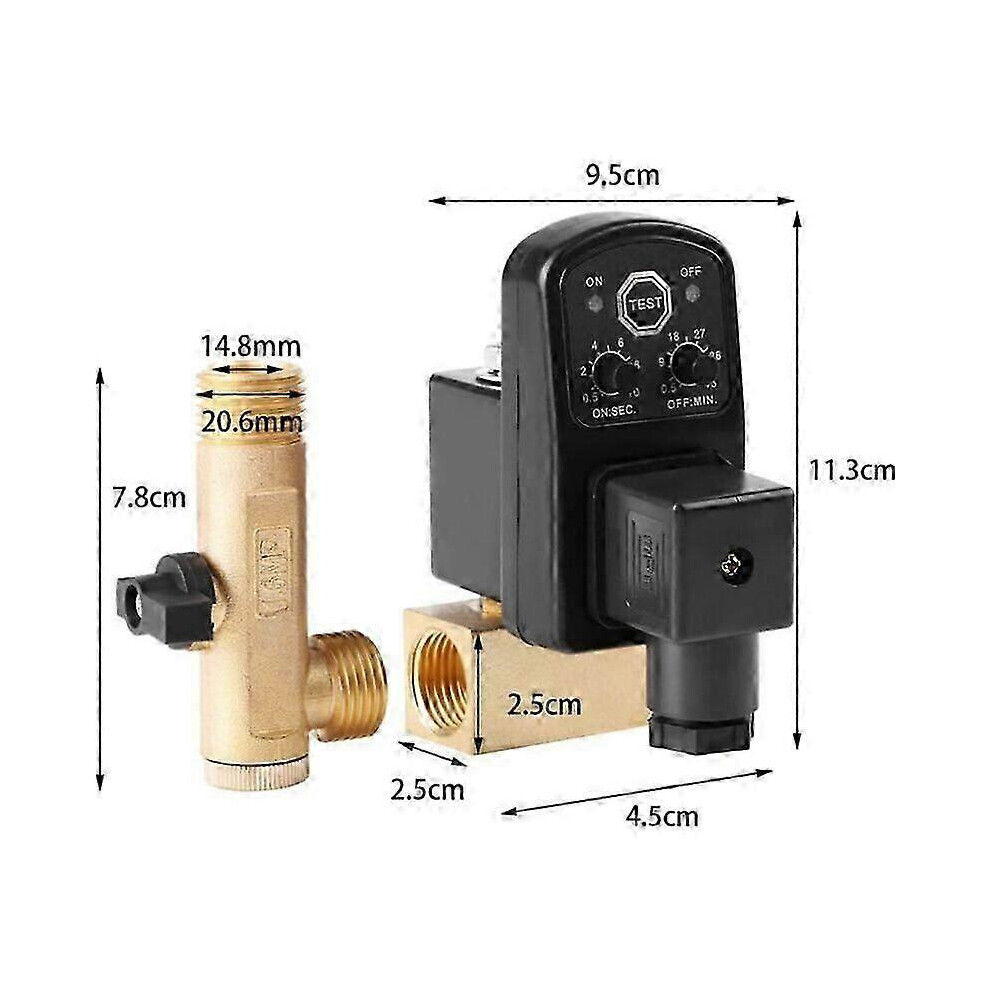

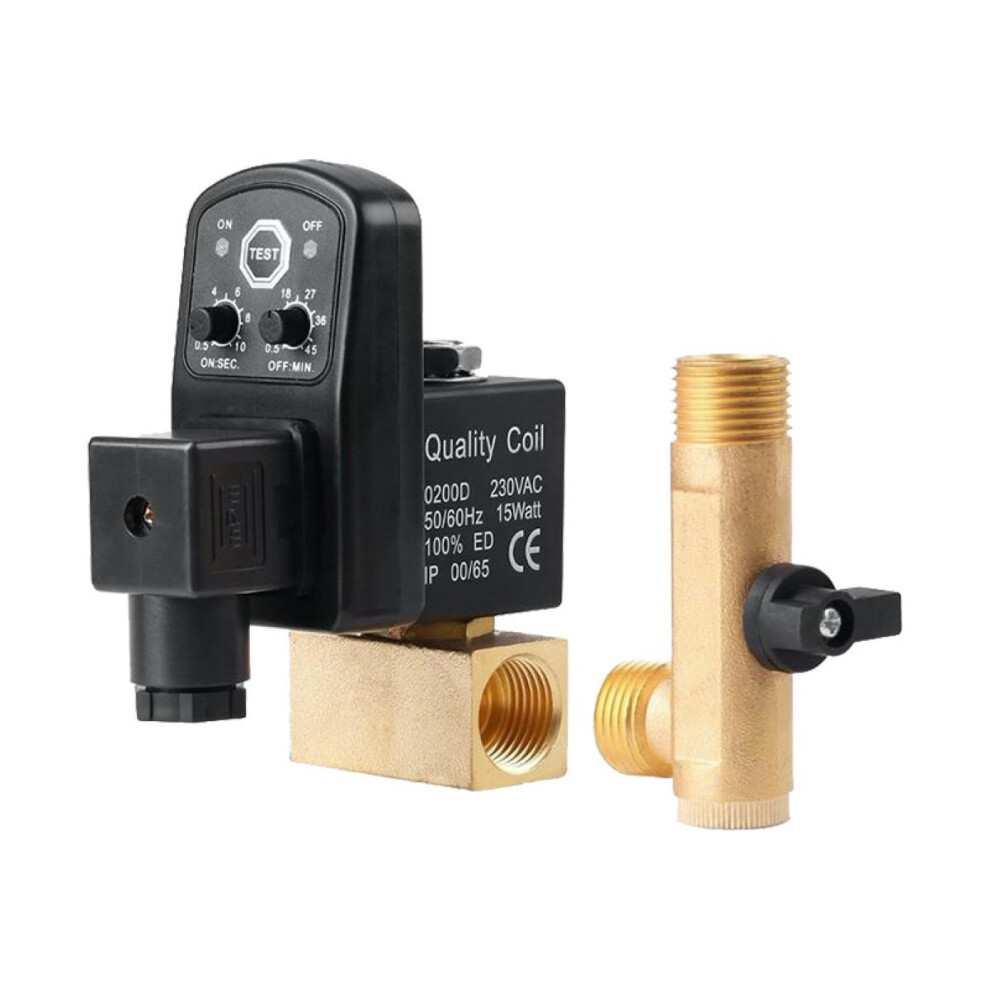

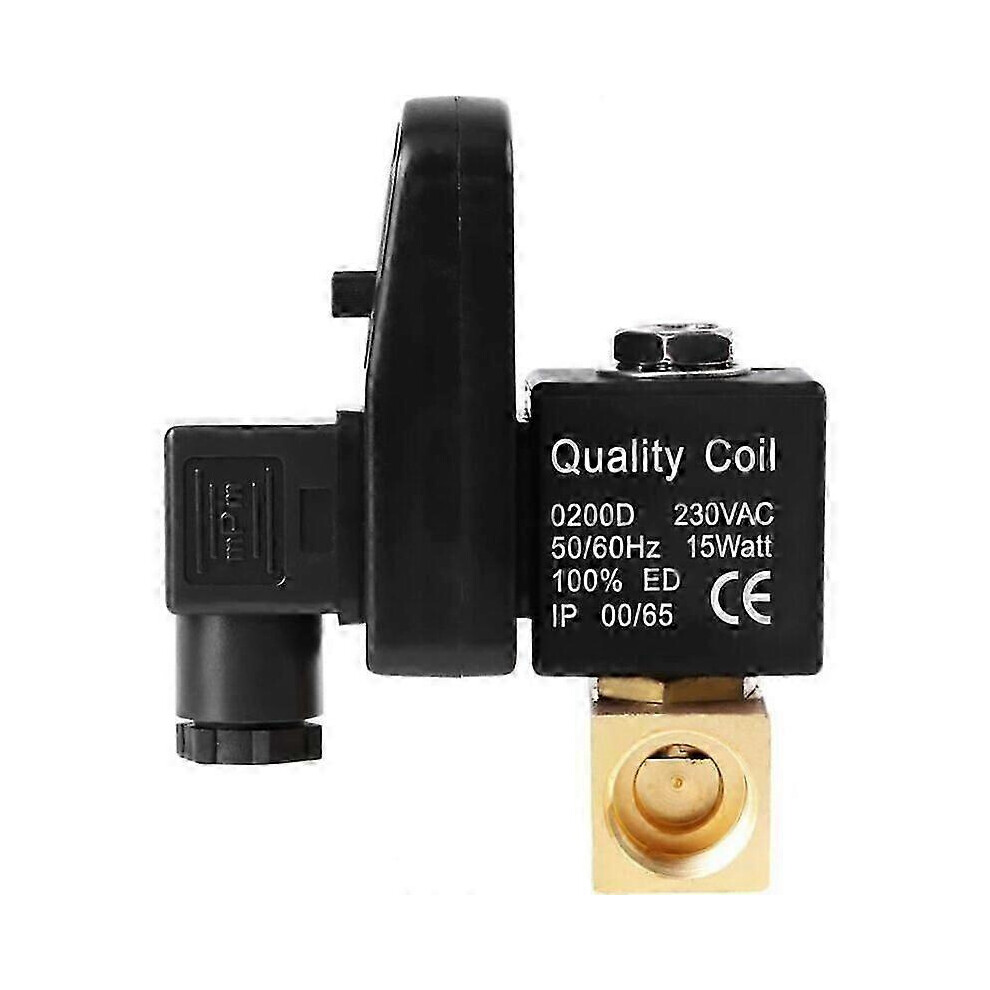

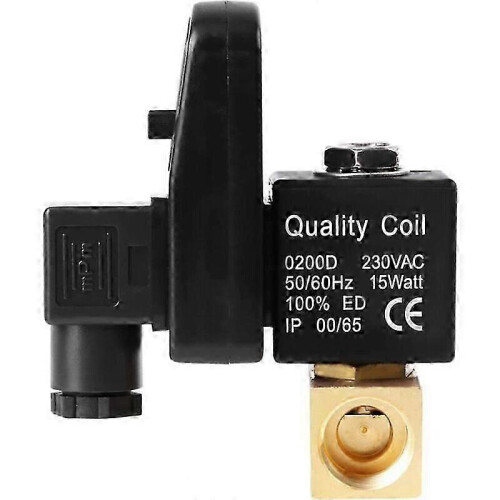

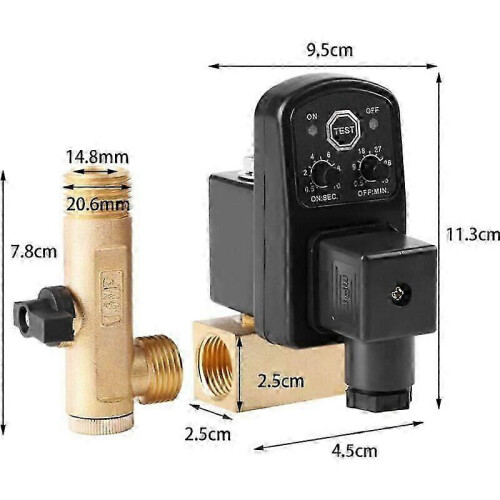

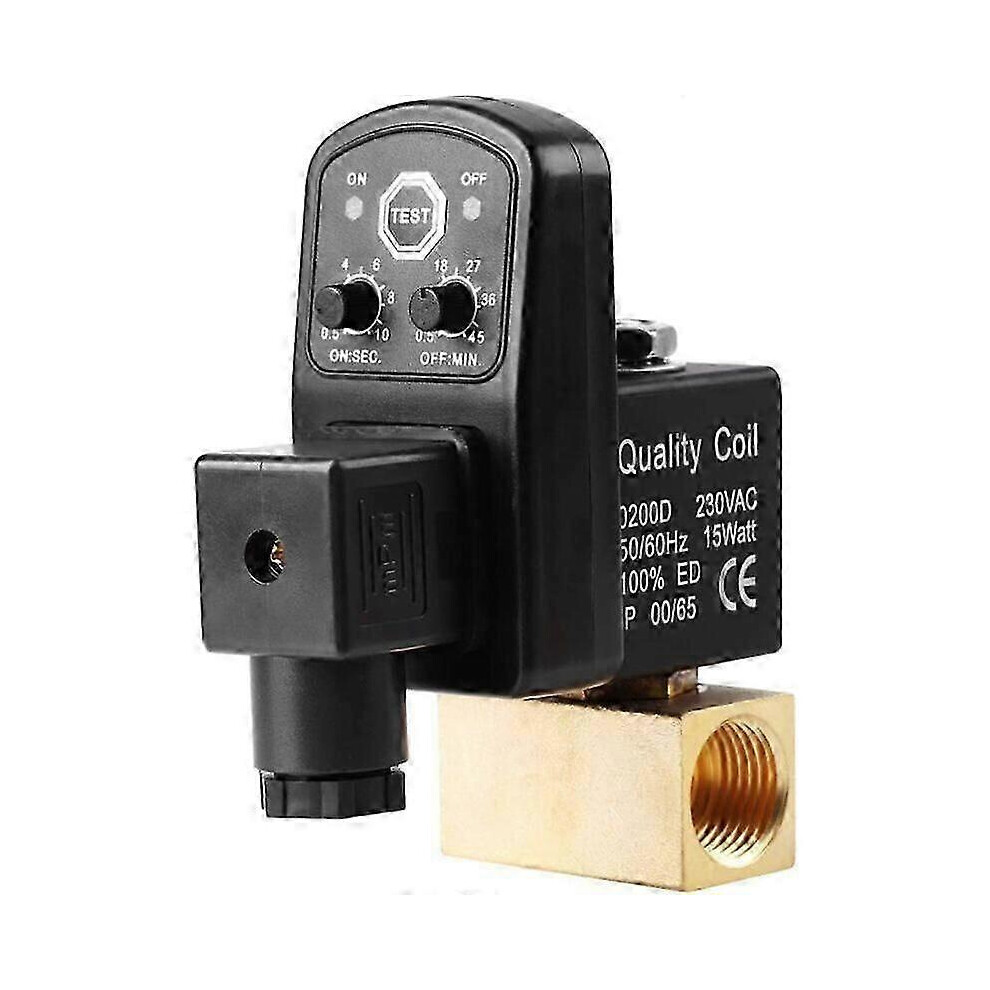

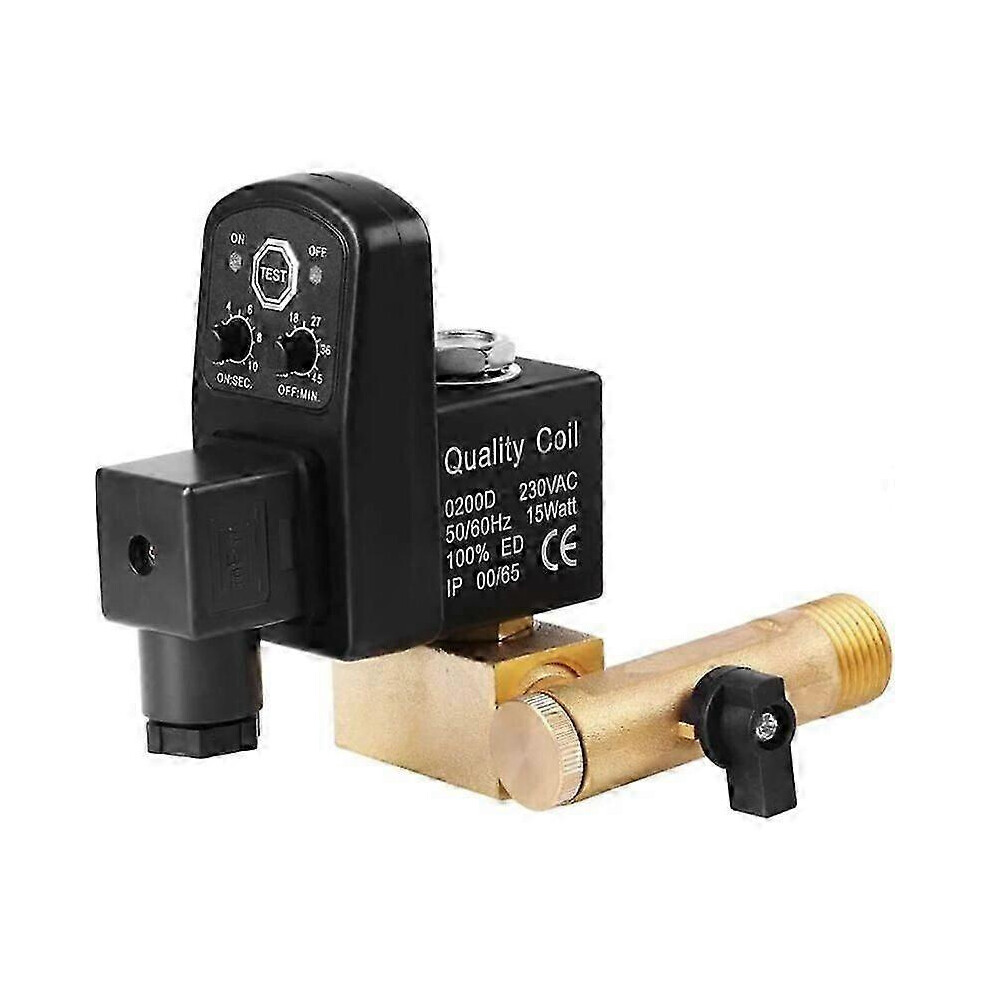

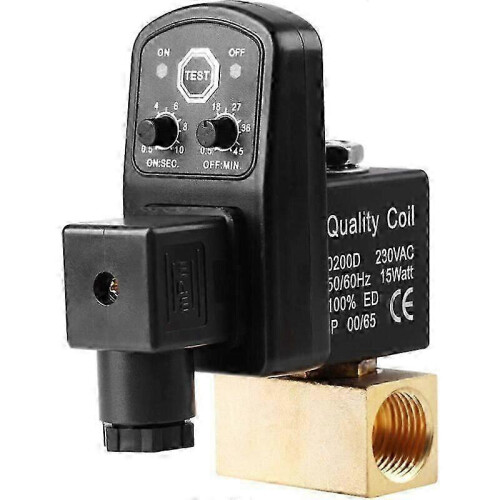

G1/2 DN15 automatic drain valve, air compressor condensate management, AC230V split electronic timing drain valve

Descrição de G1/2 DN15 automatic drain valve, air compressor condensate management, AC230V split electronic timing drain valve

This is a reliable, high-quality condensate drain valve that keeps compressed air handling equipment running at optimal performance Schedulable: The timed electric drain valve can be set to drain condensate at programmed intervals to match conditions Vacuum Valve Open Time and Close Time: The valve open time is adjustable from 0.5 to 10 seconds and the close time is 0.5 to 45 minutes Automatic Operation: It works automatically and wastes less compressed air when releasing condensate Wide Application: G1\/2 thread is widely used and suitable for most air compressors

Specifications: AC230V

Features:

This condensate drain valve is a reliable, high-quality device that keeps compressed air handling equipment running at optimal performance. The time-delay electric safety valve can be programmed to release condensate periodically to match conditions. The valve opening time is adjustable from 0.5 to 10 seconds, and the closing time is adjustable from 0.5 to 45 minutes. It works automatically and wastes less compressed air when releasing condensate. G1\/2 thread is the most commonly used and suitable for most air compressors.

Specifications:

Voltage: AC230V

Valve Material: Brass

Valve Type: Split Type

Valve Operation: Direct Acting

Flow Direction: One-way

Package Included:

1 Drain Valve
