HDMI Audio Extractor HDCP CEC + Optical TOSLINK SPDIF + 3.5mm RCA 2025 MSPHX

Descrição de HDMI Audio Extractor HDCP CEC + Optical TOSLINK SPDIF + 3.5mm RCA 2025 MSPHX

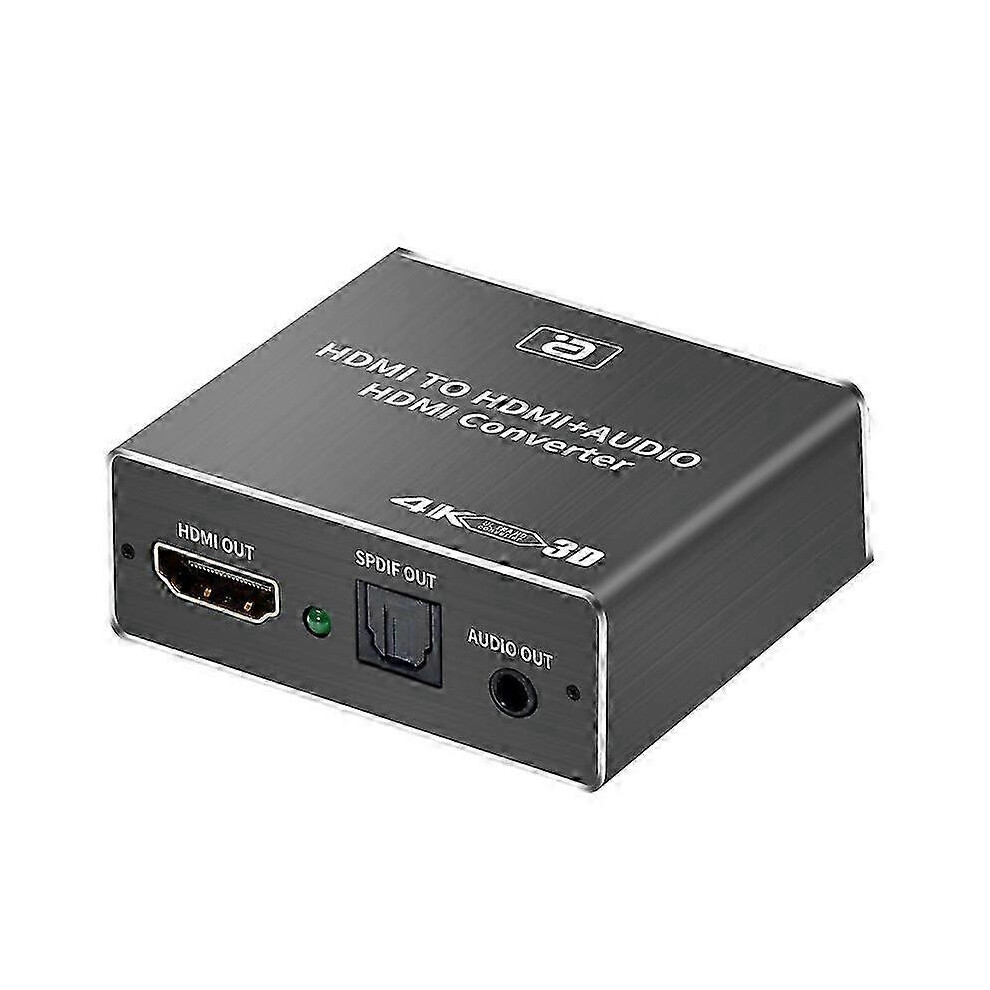

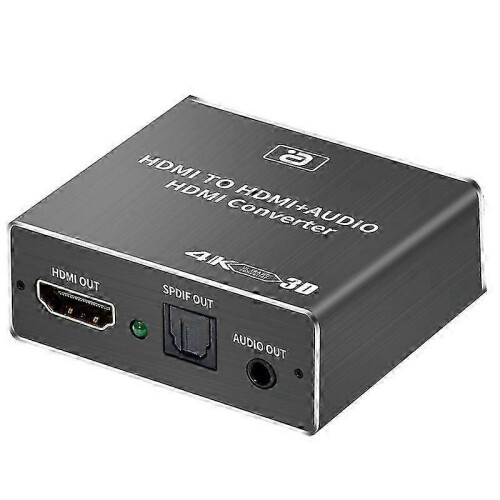

This hdmi audio converter can extract the audio signal embedded in HDMI sources and convert it to 3.5 mm analog audio output and SPDIF output at the same time.

The SPDIF out supports both 2 CH audio and 5.1 CH audio including Dolby Digital 5.1 CH and DTS 5.1 CH.

The HDMI out supports 7.1 CH audio including Dolby Digital 7.1 CH and DTS 7.1 CH.

Ultra long distance transmission up to 40 meters (input + output), no signal loss.

99% do not need external power supply, plug and play, more convenient, more environmentally friendly.

Input ports: 1 x HDMI, 1 x Micro-USB power port, 3 x EDID Audio (pass, 2 CH, 5.1 CH)

Output ports: 1 x HDMI, 1 x SPDIF (optical), 1 x 3.5 mm jack.

HDMI resolutions: 4K x 2K, 24\/50\/60\/1080P\/1080i\/720p\/576p\/576i\/480p\/480i

Supported color formats: 24 bit\/deep color 30 bit, 36 bit

Max bandwidth: 225 MHz

Max baud rate: 6.75 Gbps

Max working current: 190 mA

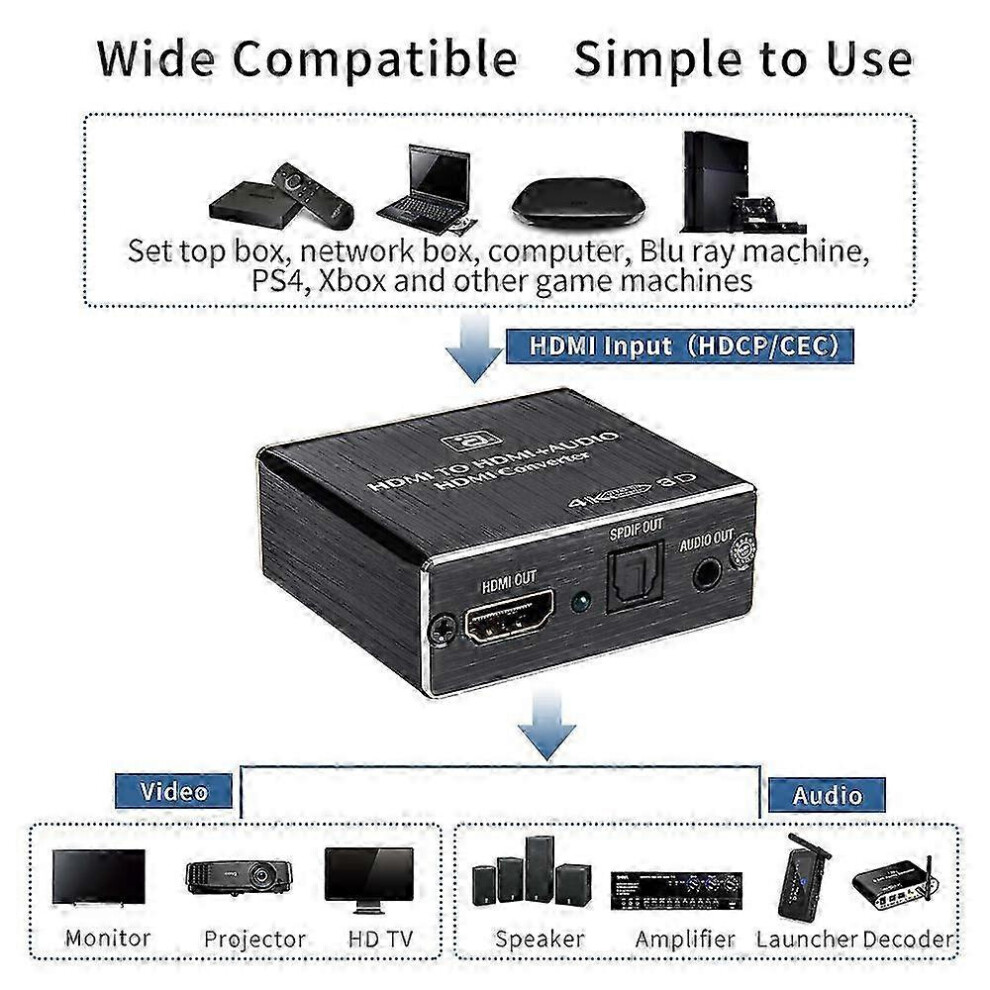

Audio and video can be converted from the HDMI output

Pass: support 7.1 channel output, device read the HDMI OUT audio signal directly

2CH: 2.1 stereo channel output

5.1CH: optical fiber 5.1 digital surround audio (DTS, Dolby, AC3) and other outputs;Support 24bit \/ 192Khz audio sampling rate

Name: audio extractor

Outputs: RCA

Outputs: 3.5 mm

PCM Word Length: 16-bit

Inputs: HDMI

Inputs: USB Type-B

PCM Word Length: 24-bit

Model Number: HD360

Input Format: DTS\/AC3\/5.\/7.1

D\/A Converter: EP

colour:Black

Material:metal

size:51 x 56 x 22mm

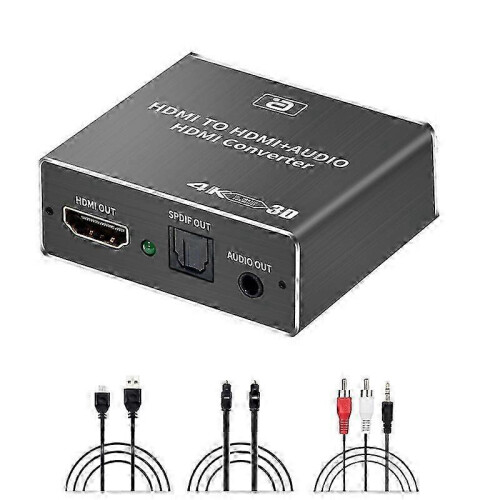

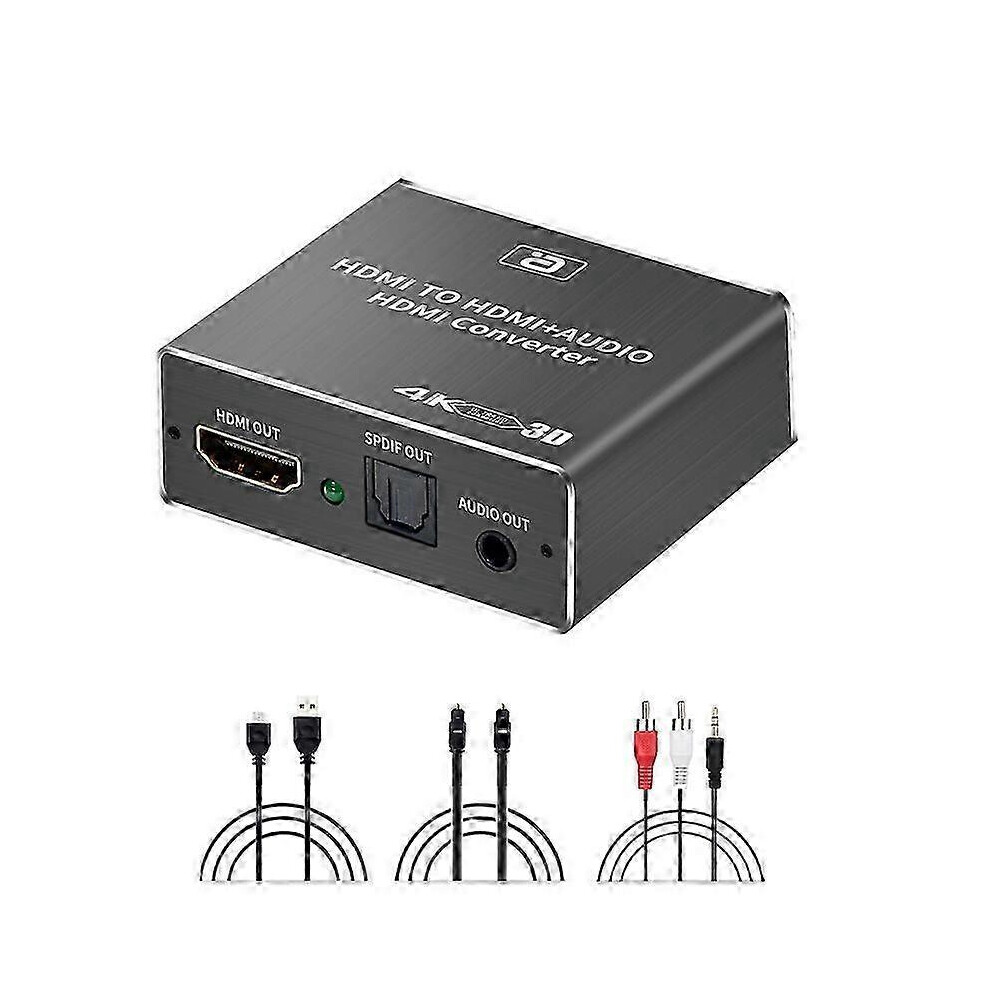

Package Contents:

1 x audio converter

1 x Optical audio Cable

1 x 3.5mm to RAC audio Cable

1 x micro-USB cable

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.

Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement. Sold by-YJL official store
