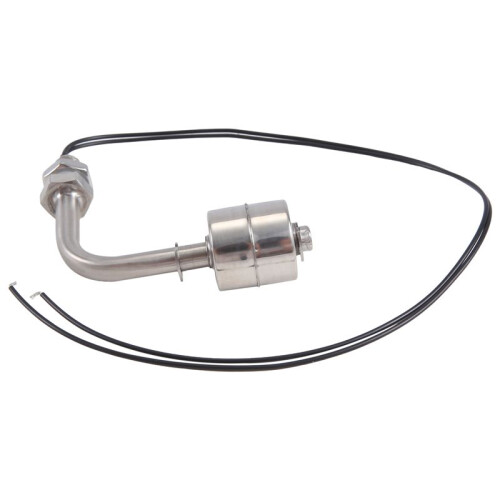

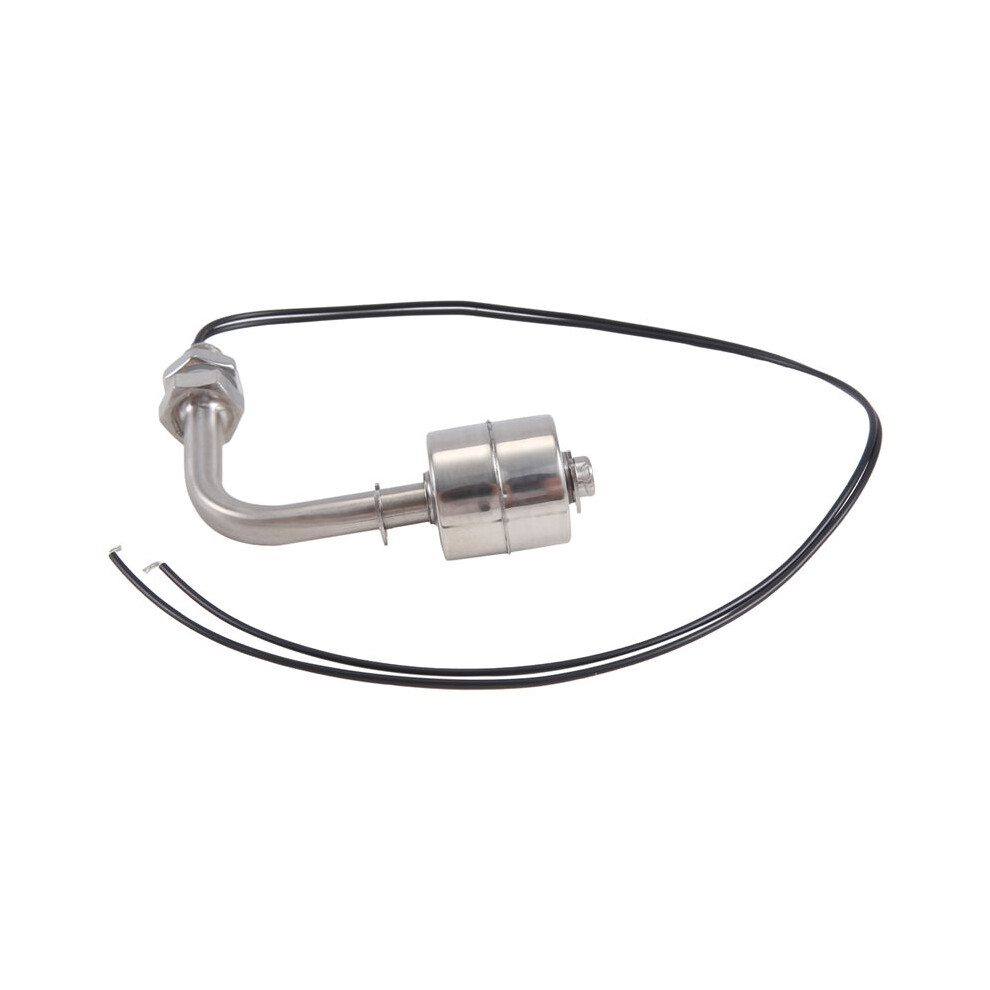

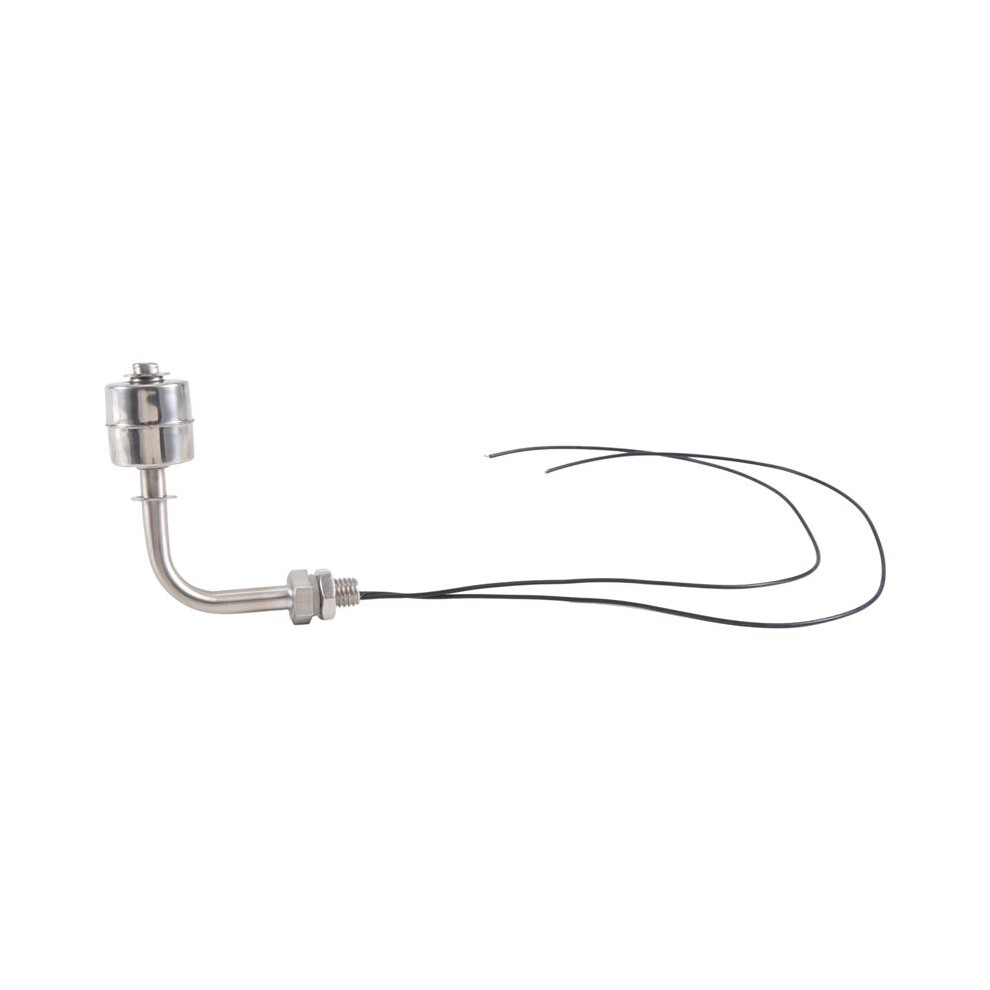

Liquid Water Level Stainless Steel Right Angle Floating for Aquarium

Descrição de Liquid Water Level Stainless Steel Right Angle Floating for Aquarium

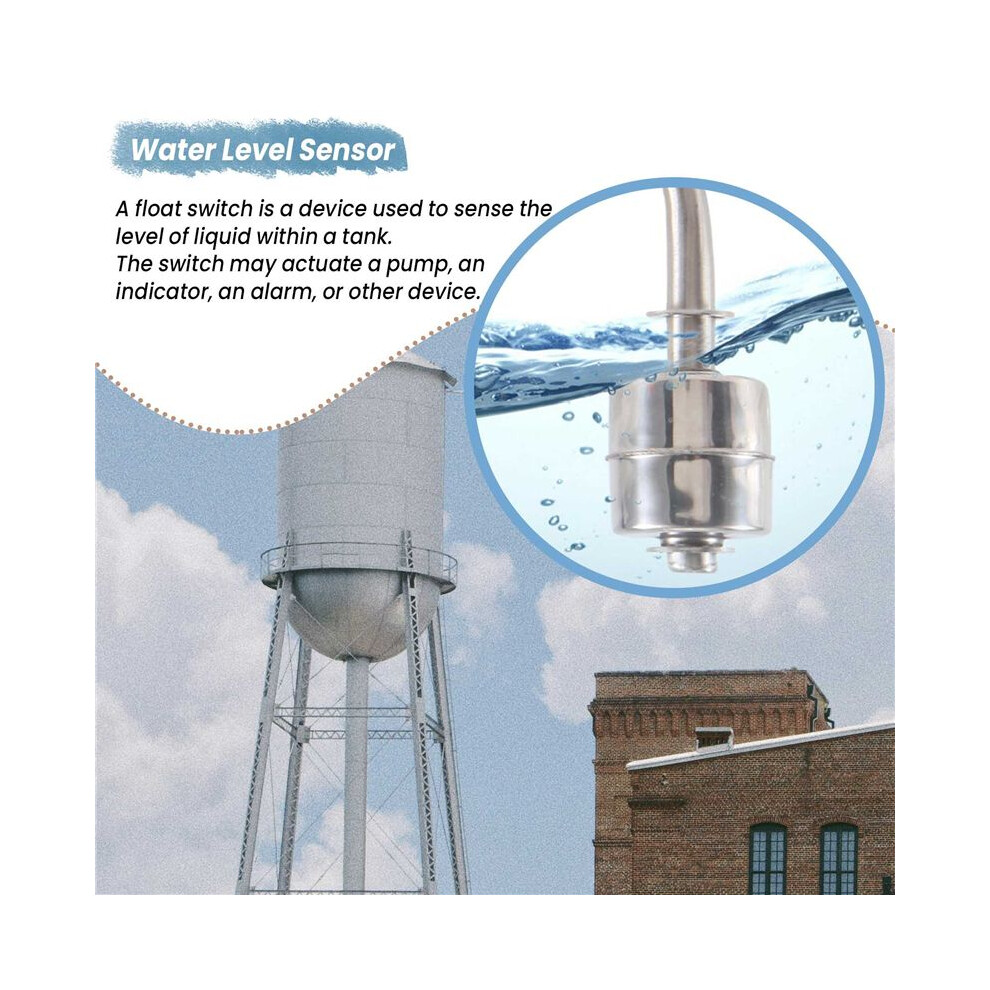

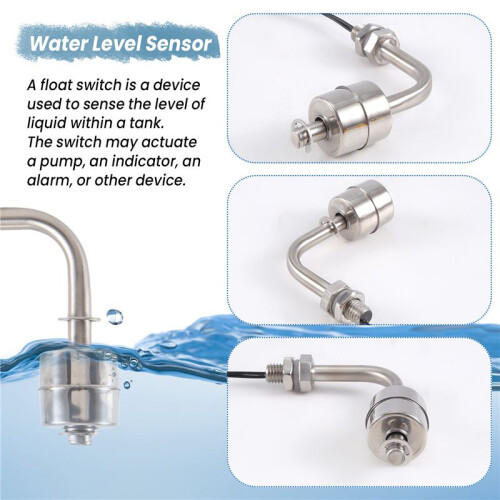

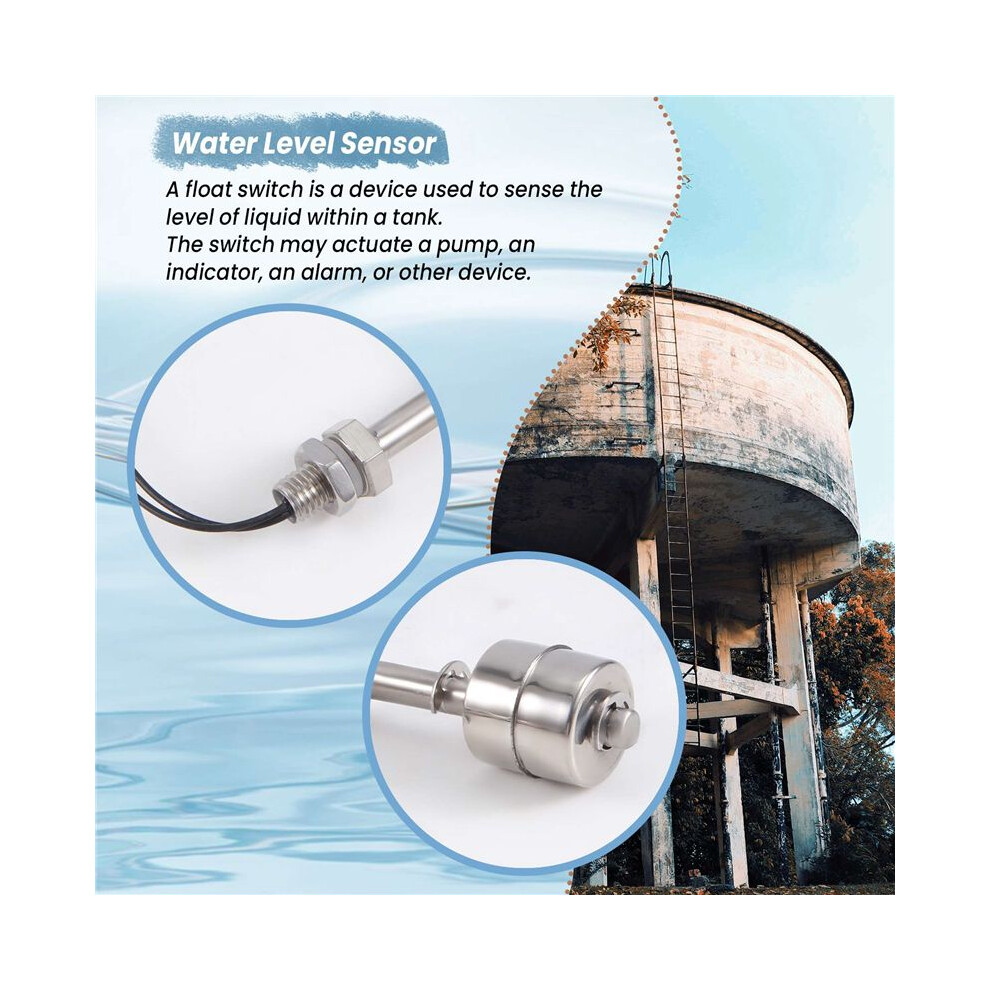

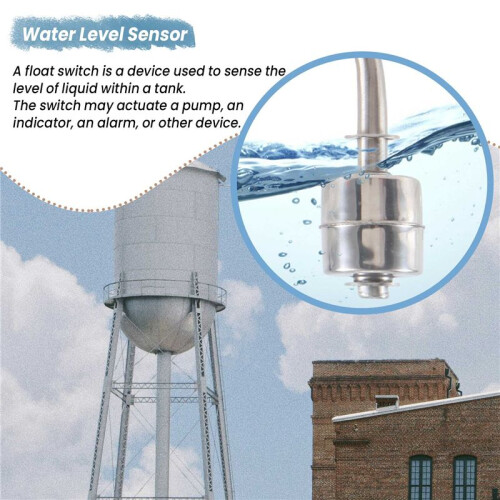

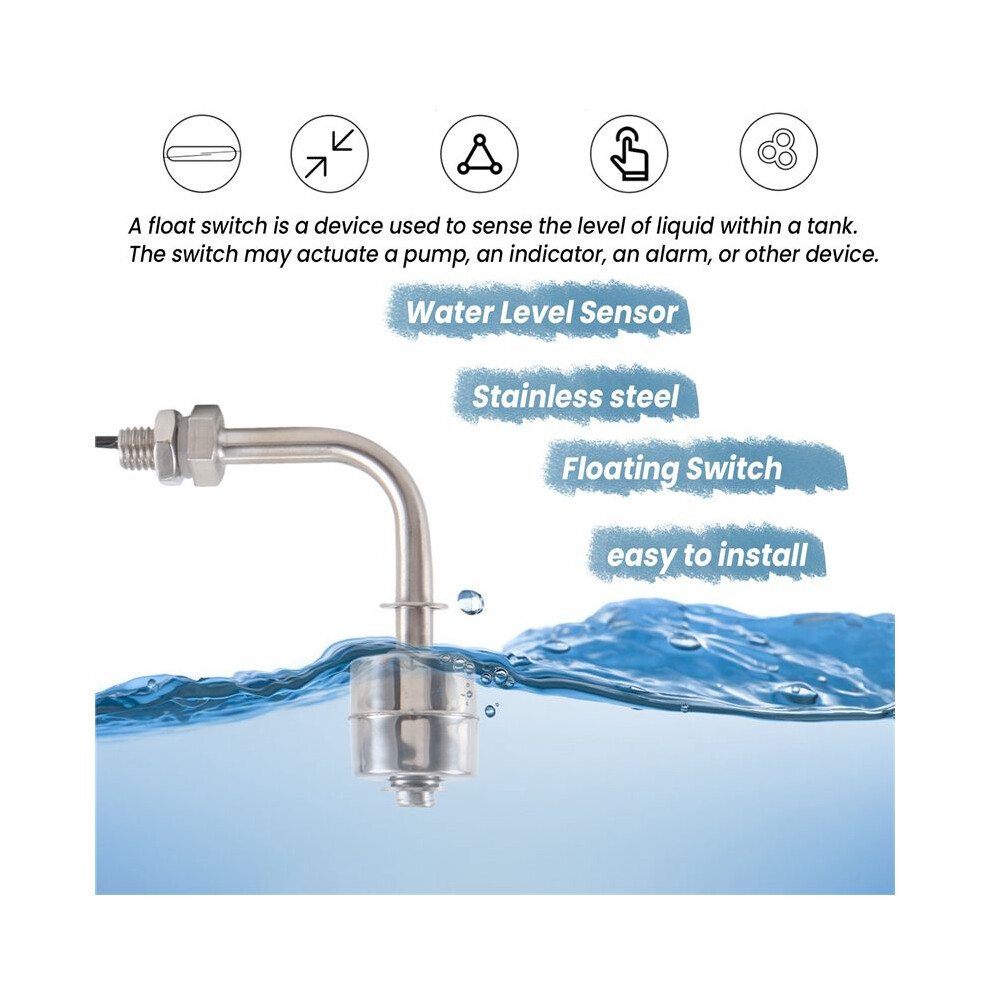

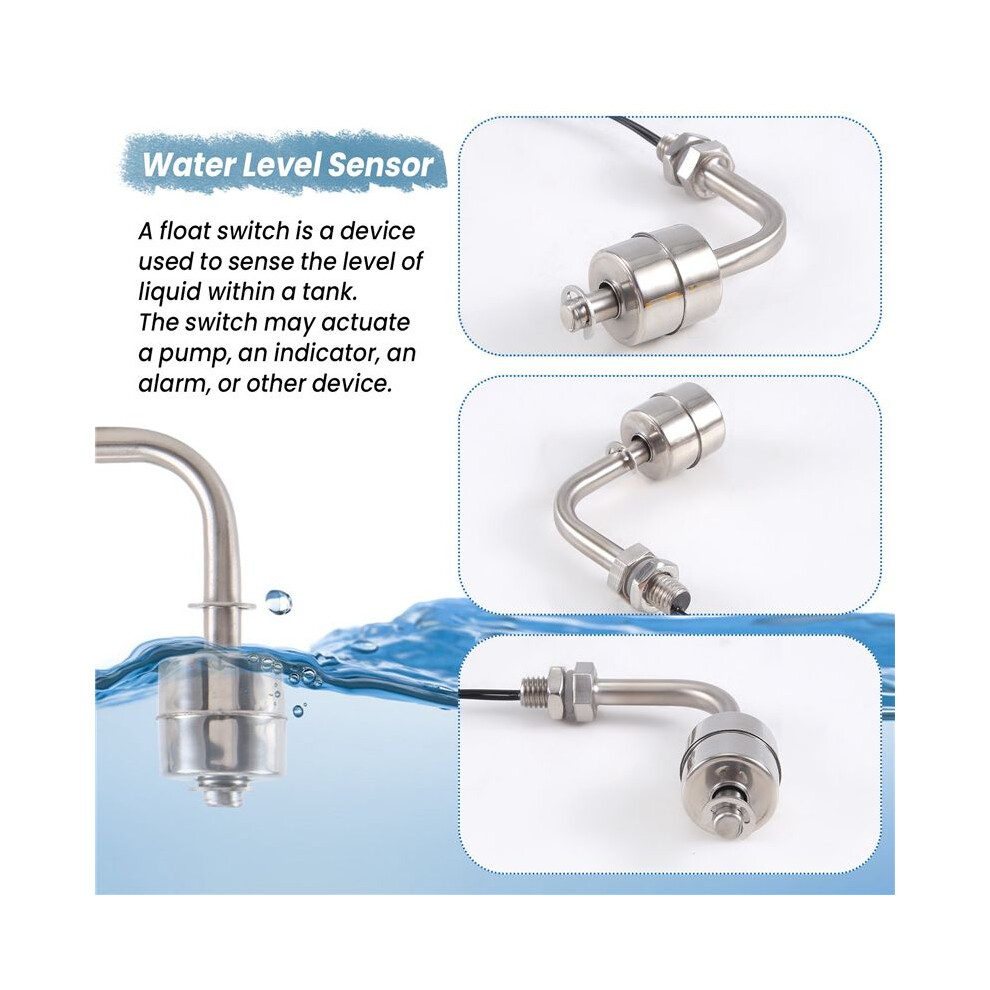

A float is a device used to sense the level of liquid within a tank.
The may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.
Note: because the current that the can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
Product Name : Water Level Sensor;
Contacts : NO+NC;
Max Contact Rating : 10W
Max Switching Voltage : 100V ;
Max Switching Current : 0.5A;
Max Breakdown Voltage : 220V ;
Max Carry Current : 1.0A
Max Contact Resistance : 100mÎ;
Temperature Rating : -30 - +125 ÂC;
Float Size(Approx) : 25 x 27mm / 1" x 1.1"(L*D);
Thread Dia(Approx) : 9.8mm / 0.386"
Hex Nut Size(Approx) : 19mm / 0.75";
Bottom Clip Dia(Approx) : 15mm / 0.6";
Body Total Length(Approx) : 81mm / 3.2";
Body Total Width(Approx) : 70mm / 2.8"
Cable Length : 31cm / 12.2";
Color : Silver Tone;
Material: Stainless steel
Net Weight : 47g;

Package content : 1 x Water Level Sensor
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
