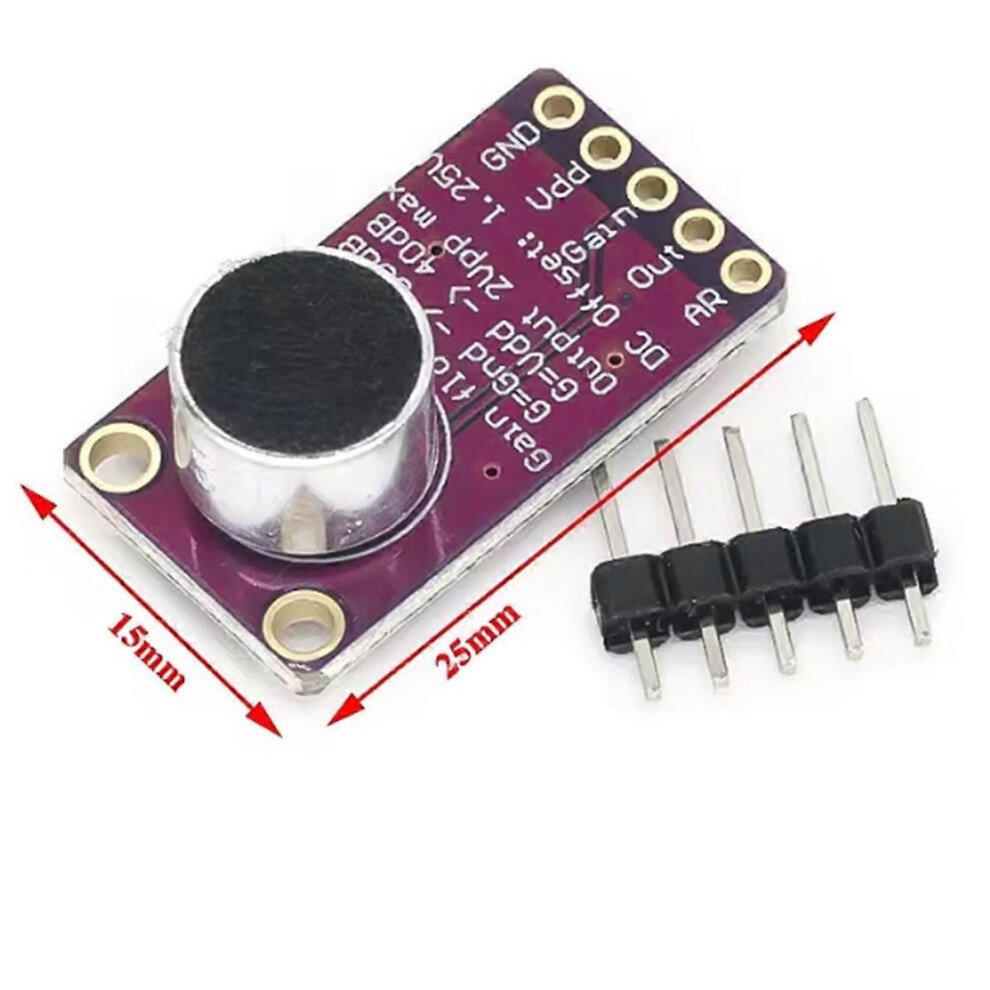

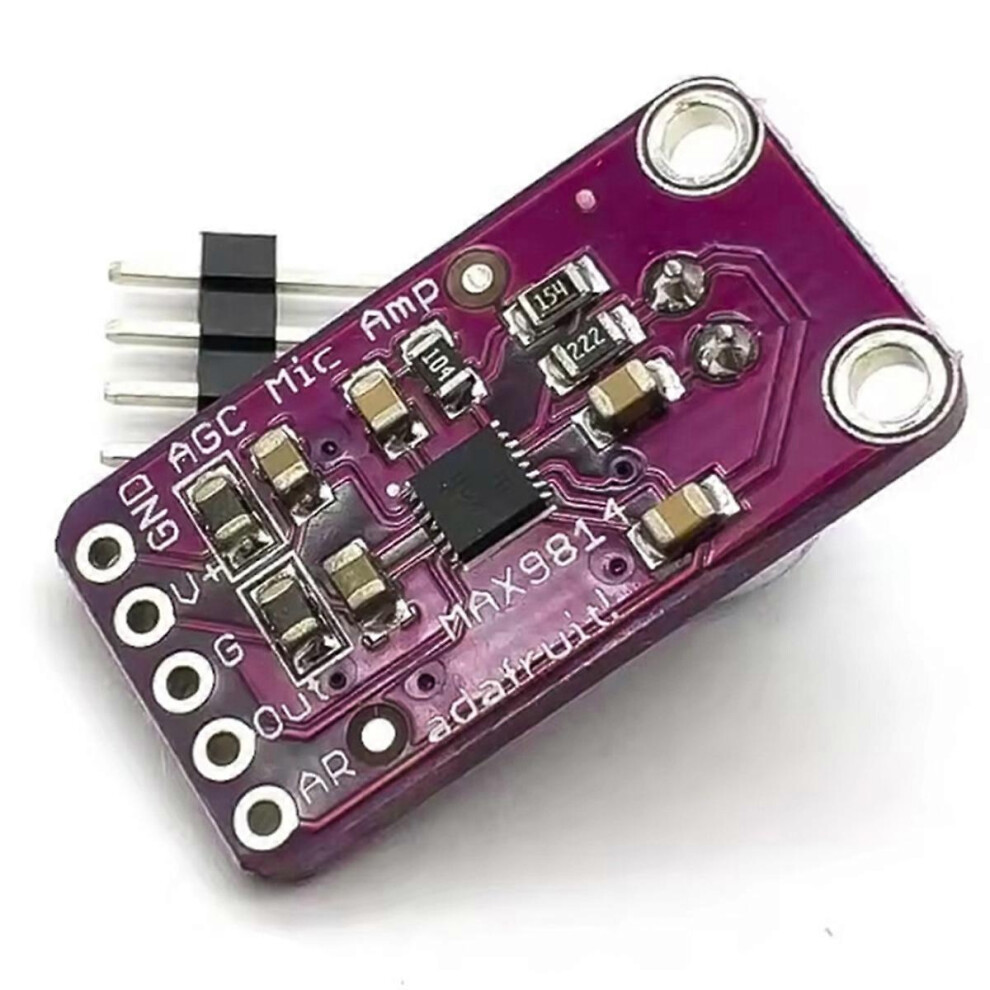

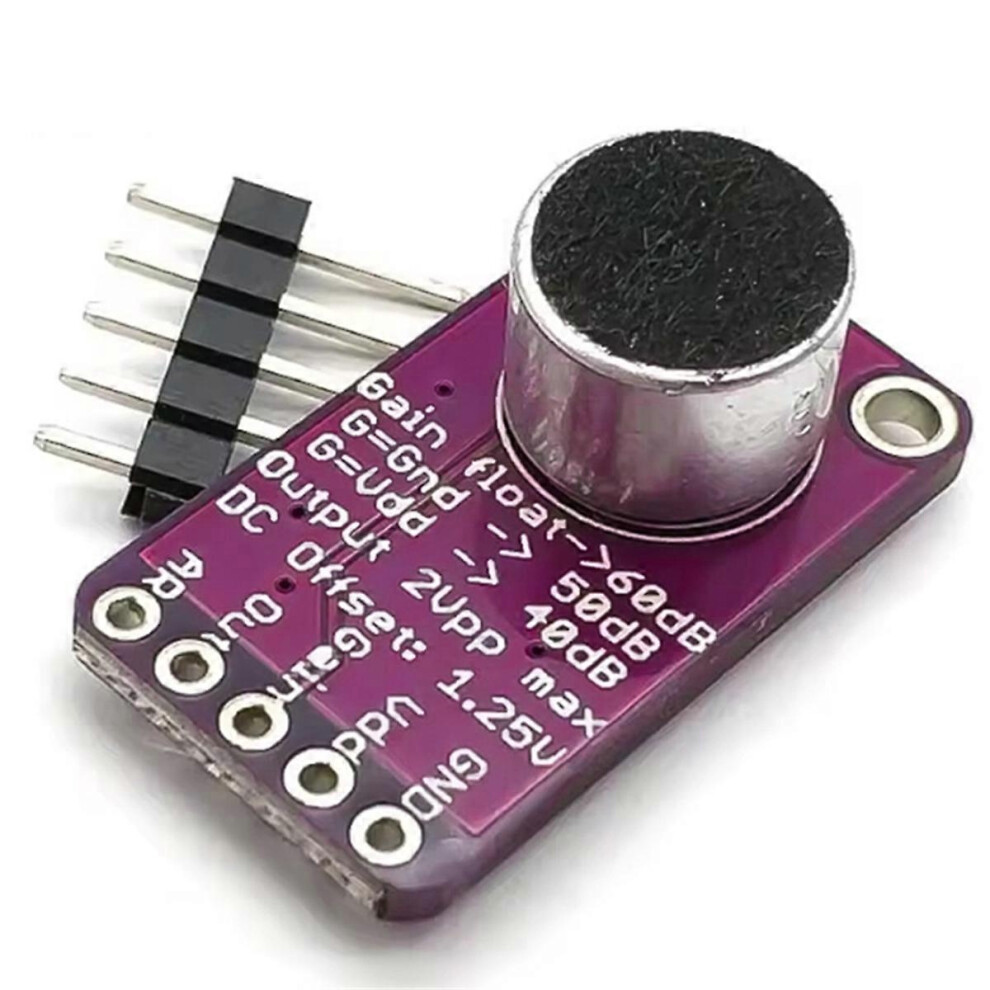

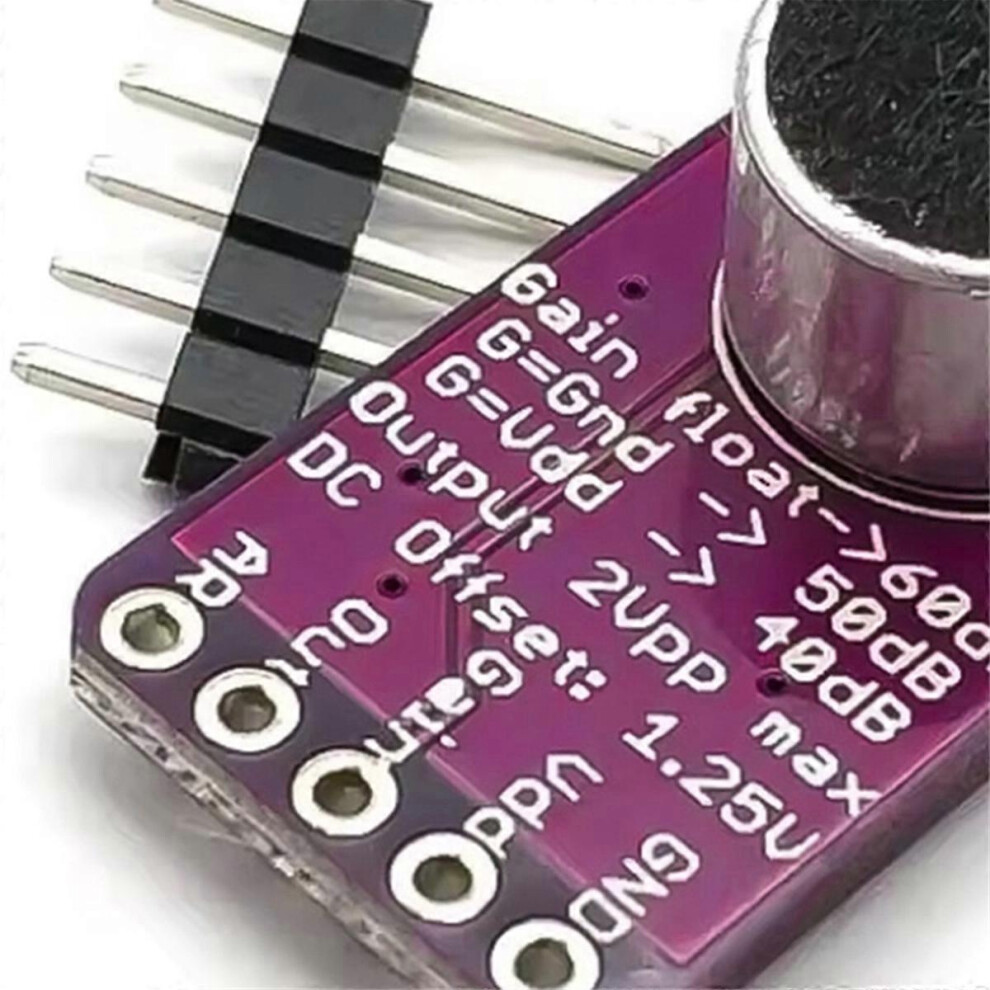

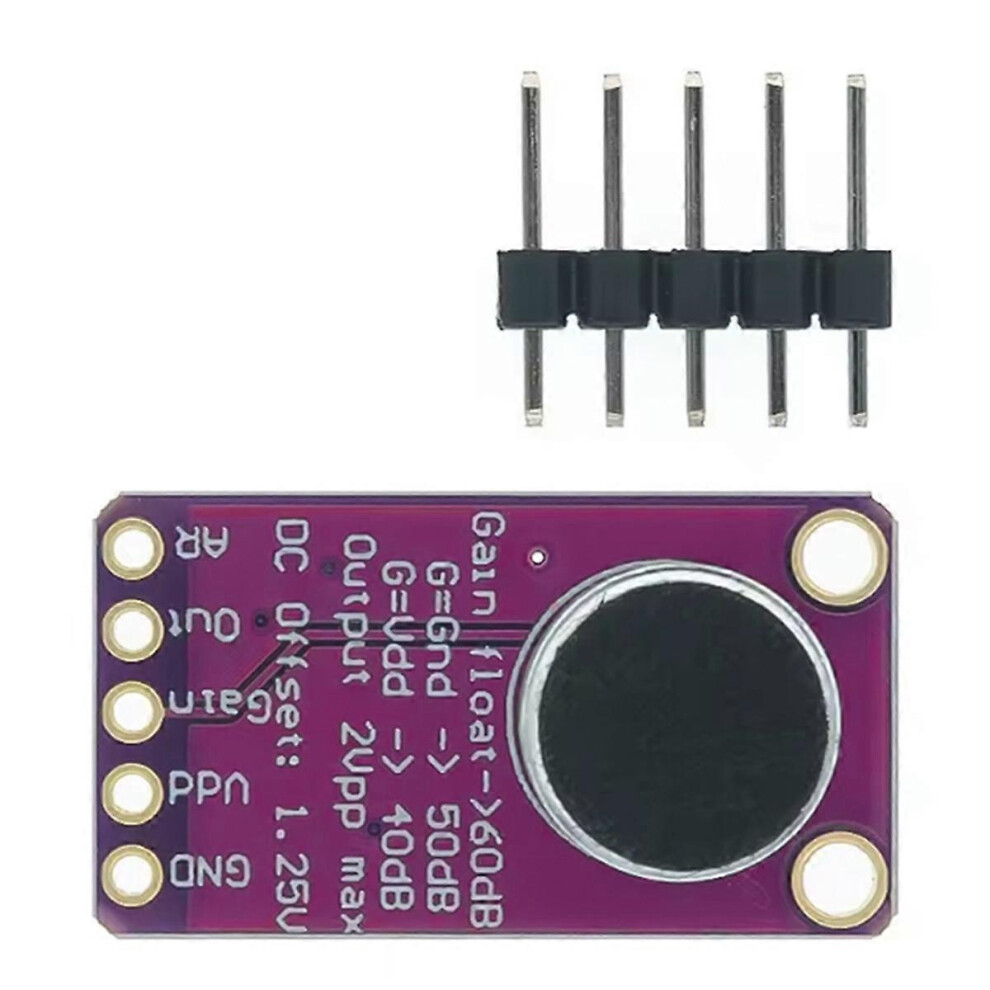

MAX9814 Microphone Amplifier Module MIC Microphone Sound Amplification for Audio Projects and Sound Systems MSPHX

Descrição de MAX9814 Microphone Amplifier Module MIC Microphone Sound Amplification for Audio Projects and Sound Systems MSPHX

Enhanced Sound Quality: Ensures clear audio capture with minimal distortion.

Versatile Applications: Ideal for DIY audio projects, interactive installations, and commercial sound systems.

User-Friendly: Easy to integrate and operate, suitable for both amateurs and professionals.

Design: Built to last with high-quality components that withstand rigorous use.

Upgrade your audio experience with our reliable and efficient microphone amplifier module, tailored to meet the needs of diverse audio environments.

Supply Voltage: 2.7v-5.5v @ 3mA current

Output: 2Vpp on 1.25V bias

Frequency Response: 20Hz - 20 KHz

Programmable Attack and Release Ratio

Automatic gain, selectable max from 40dB, 50dB or 60dB

Low Input-Referred Noise Density of 30nV\/

Low : 0.04% (typ)

Color: As Shown

Material: PCB

Package Contents:

1 * Microphone Amplifier Module

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
