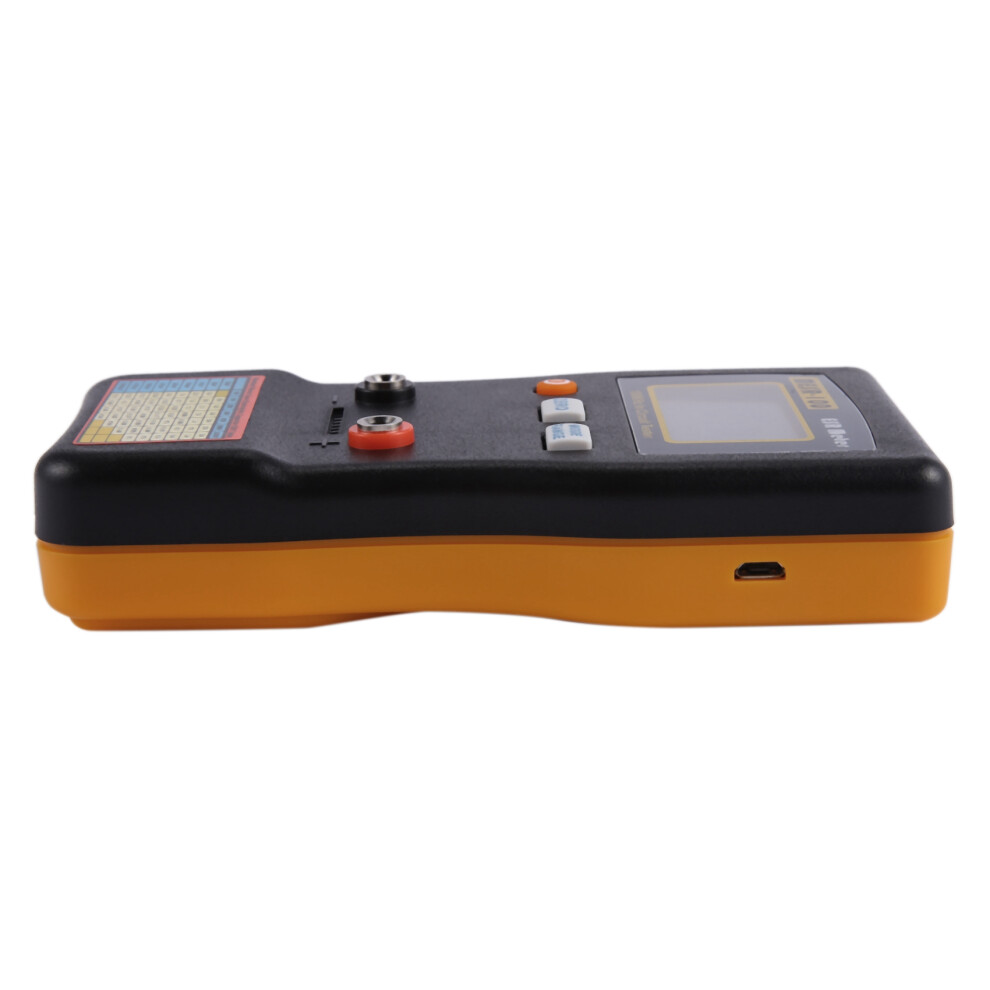

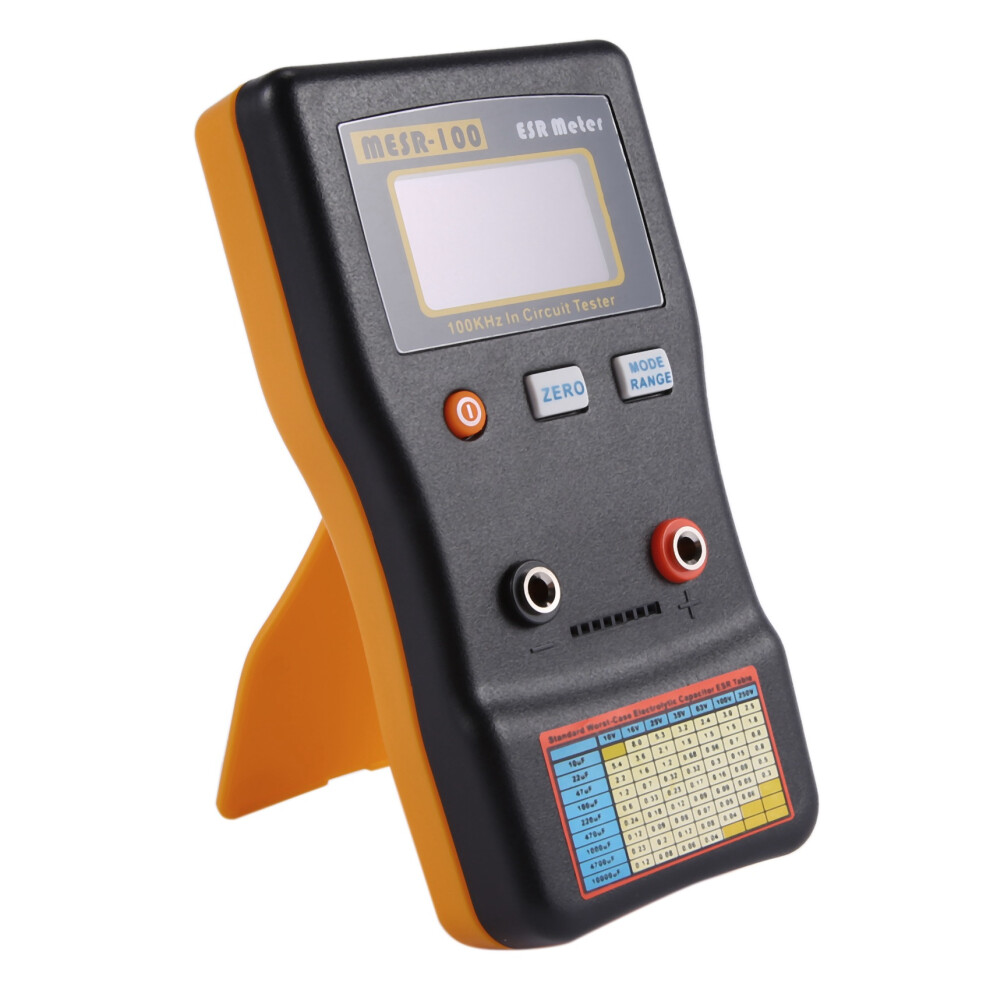

MESR-100 V2 Low Ohm Meter MESR-100 ESR Capacitance Ohm Meter Professional Measuring Capacitance Resistance Capacitor Circuit Tester

Descrição de MESR-100 V2 Low Ohm Meter MESR-100 ESR Capacitance Ohm Meter Professional Measuring Capacitance Resistance Capacitor Circuit Tester

1.It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
2.The impedance become small, and we can then measure the true series resistor value.,Using this , we can measure the capacitor is bad/ damaged or good in condition.
3.Our ESR meter only applies less than 15mV or to a good capacitor, as a result we can use it as in circuit test.
4.During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
5. Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.
Range Accuracy(After zero, Refresh (Manual Mode)
tested with 1,10,100R Auto mode take 0 to 2s, more
resistor) depends capacitance value.
0.000 to 1.000R 1%+2Digit -0.4s
1.000 to 10.00R 1%+1Digit -0.4s
10.00 to 100.0R 2%+1Digit -0.4s
Accuracy: to 1% (detail above table)
Wide Measurement Range: Greater than 1uF
High Resolution: 4 digit, or 0.001Ohm @ 1 Ω range
Measuring voltage: Less than -40mV RMS (TESTING VOLTAGE)
External Power: 5V USB
Operating Current: 0.02A
Battery: 2 * AA 1.5V Battery (not included)
Battery Life : Greater than 80 Hours
size:14.5 * 8 * 3cm
Material:ABS + electronic components
colour:black
Package Contents:
1 * Capacitance Meter

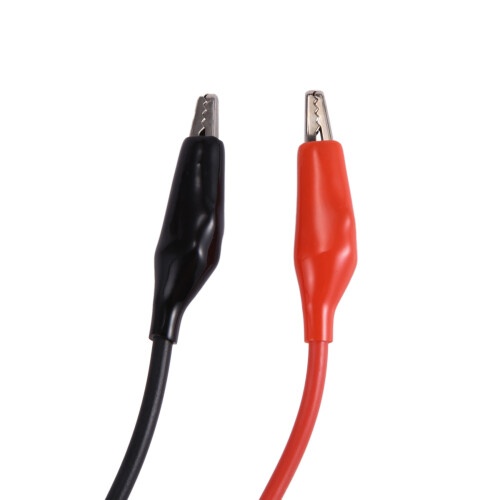

2 * Test Clips
1 * User Manual
