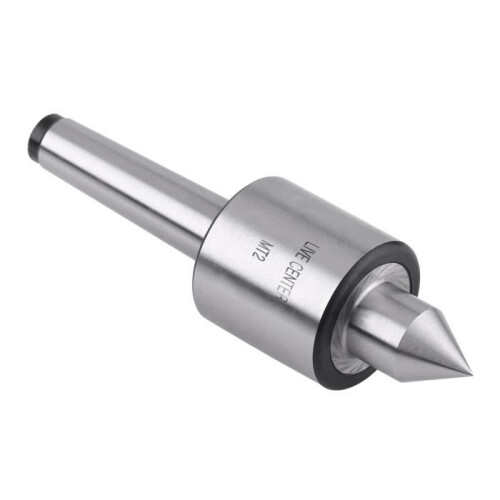

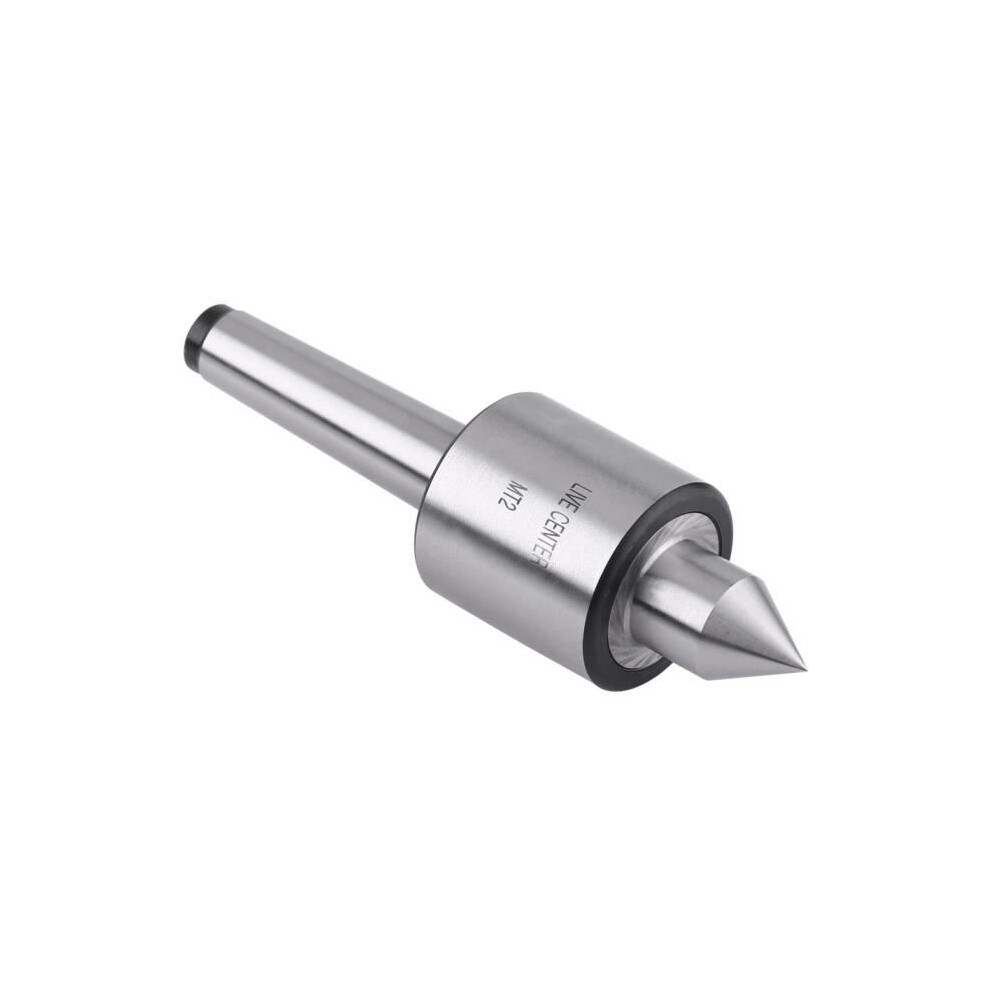

MT2 60 Conical Centering Point in Steel Turning Tool for Lathe Tailstock

Descrição de MT2 60 Conical Centering Point in Steel Turning Tool for Lathe Tailstock

Description:

A lathe center is a tool that has been ground to a specific point to precisely position a workpiece on an axis. It has an included angle of 60. The primary use of a center is to ensure concentric machining; this allows the workpiece to be transferred between machining operations without any loss of accuracy. A workpiece can be turned on a lathe, sent for hardening and tempering, and then ground between centers in a cylindrical grinder. A center is also used to support longer workpieces where cutting forces would excessively deflect the workpiece, thus reducing its finish and accuracy. Features: The tapered section is made of T10 steel, hardening hardness 55-60 HRC; the main body is made of 40Cr steel, hardening hardness 45-50 HRC. High-quality bearing design, utilizing a high-speed bearing for high accuracy. Dust seal prevents cutting dust from entering the bearing, thus extending service life. Designed for lathe use in medium-speed, medium-load environments. Well-balanced and smooth for efficient turning. Ideal for supporting your work at the tailstock end of your lathe.

Specifications:

Type: MT2

Material: Tool Steel (T10, 40Cr)

Accuracy: 0.01

Angle: 60

Weight: 557g (approx.)

Package Includes:

1 x MT2 Live Center

Note:

1. Please allow 1-3mm error due to manual measurement. Thank you for your understanding.

2. Monitors are not calibrated the same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
