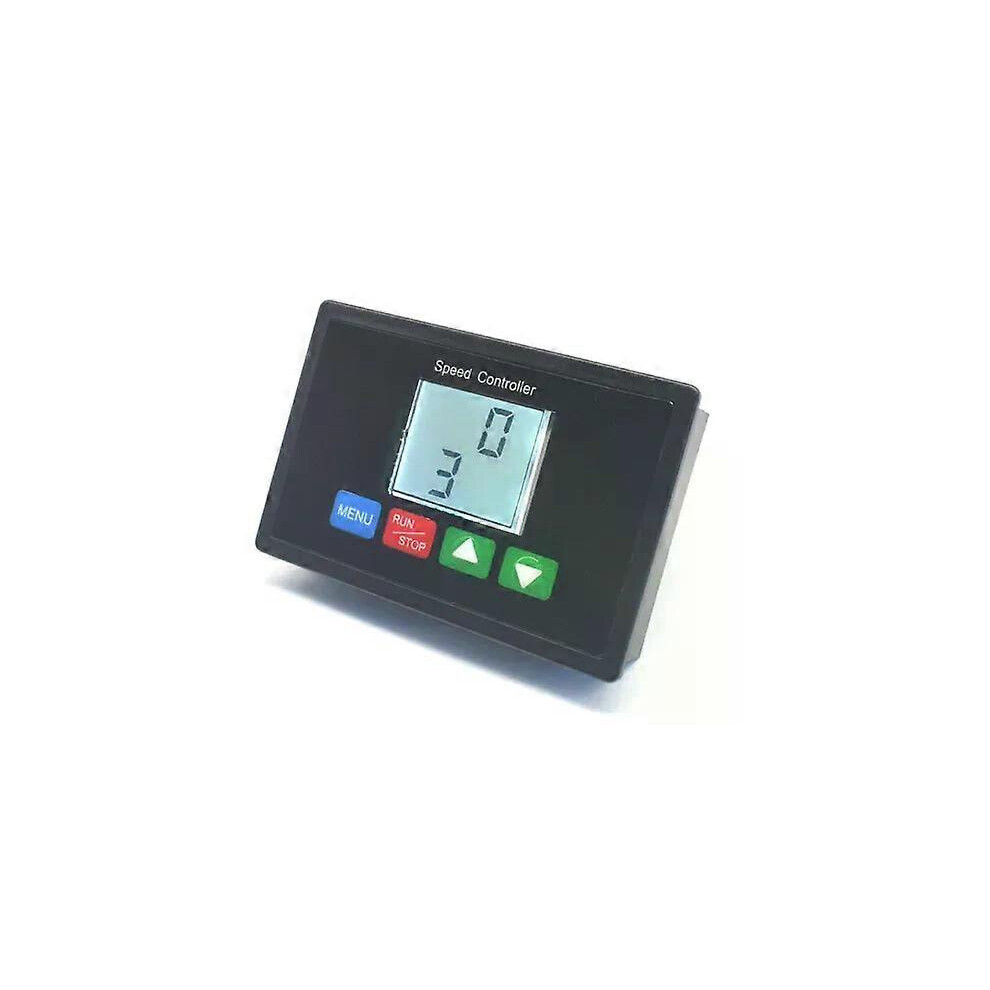

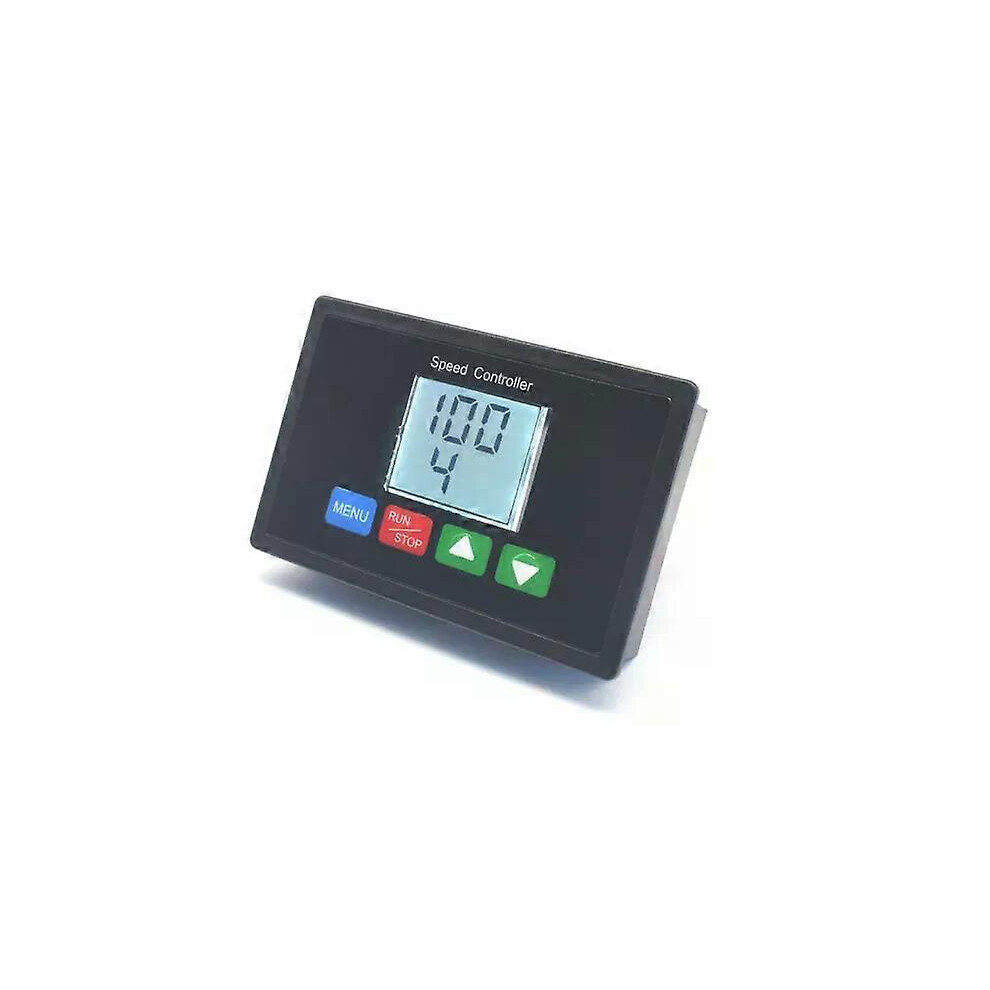

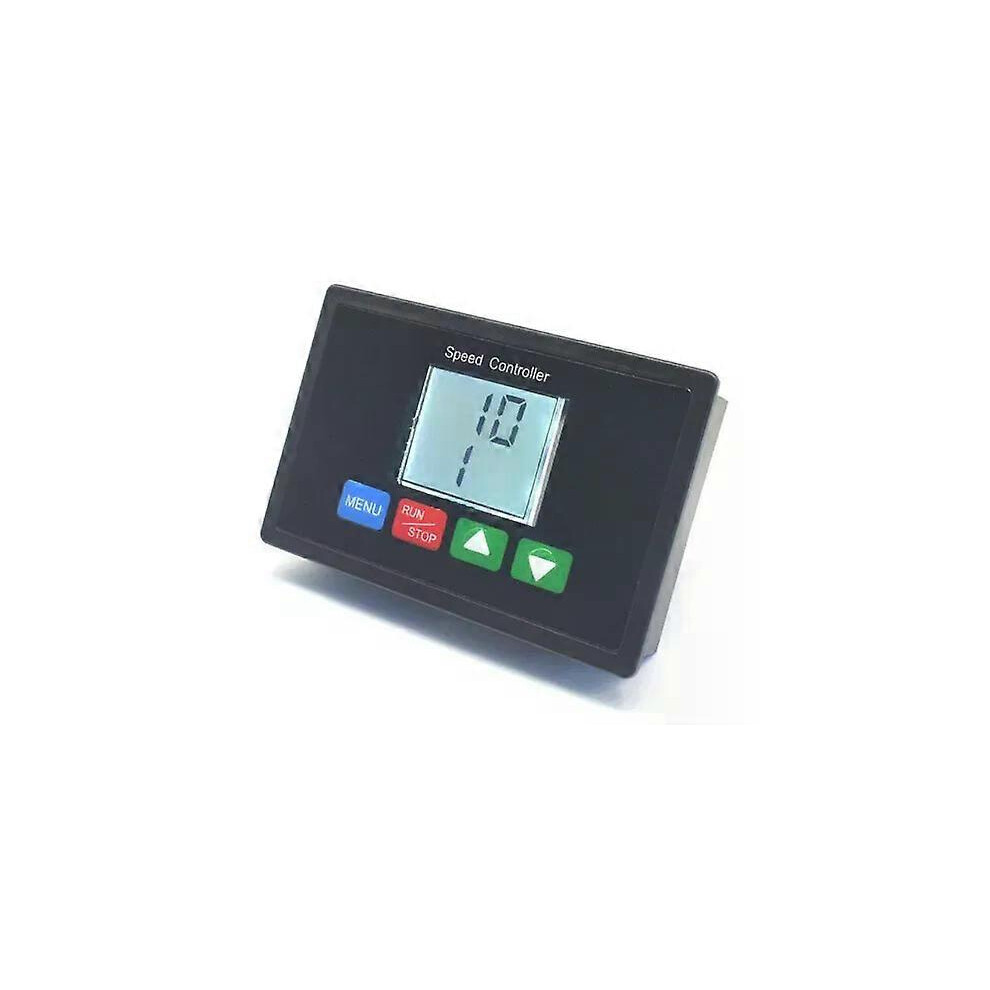

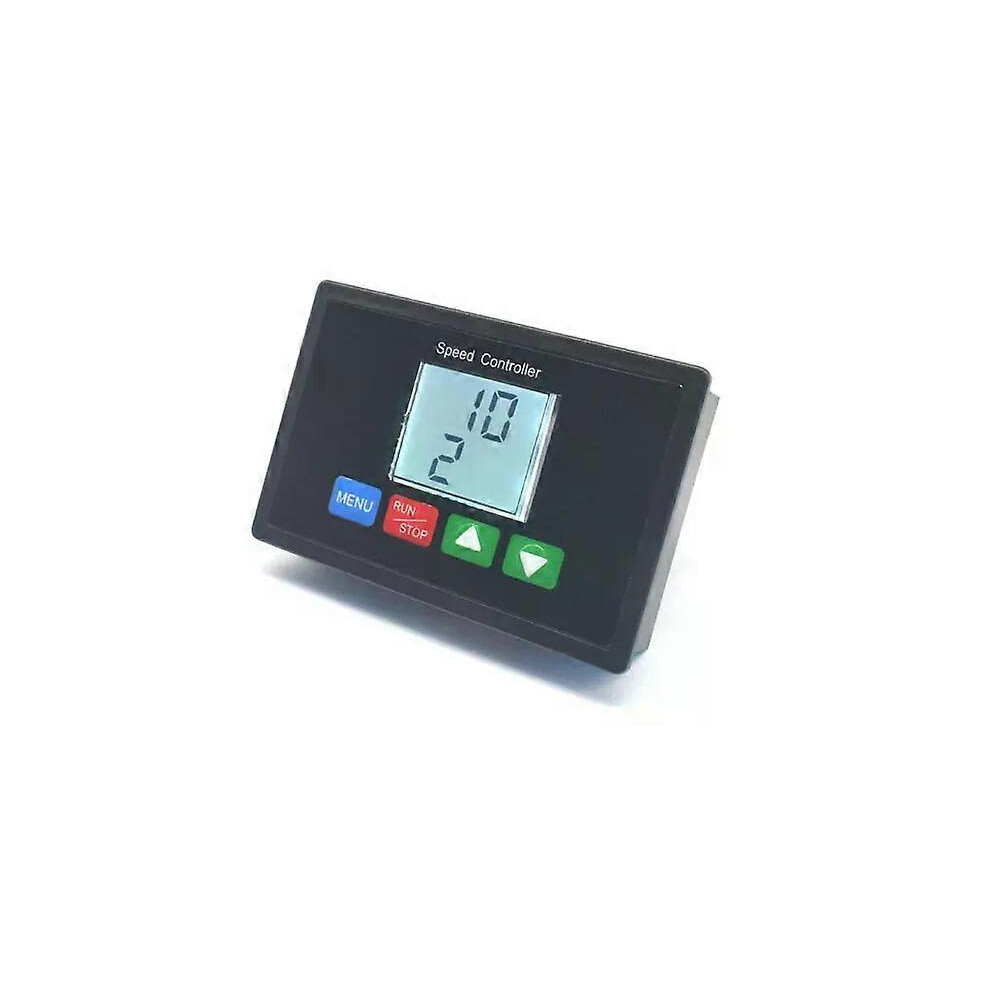

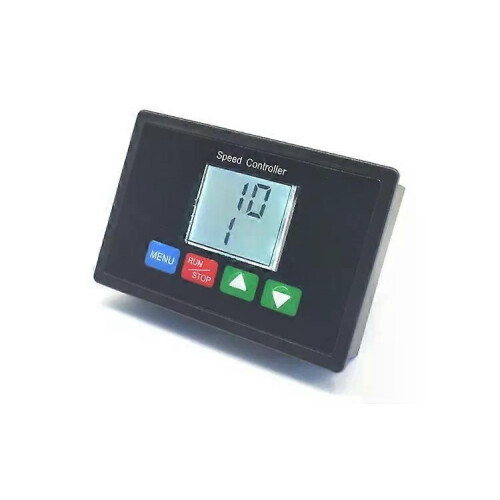

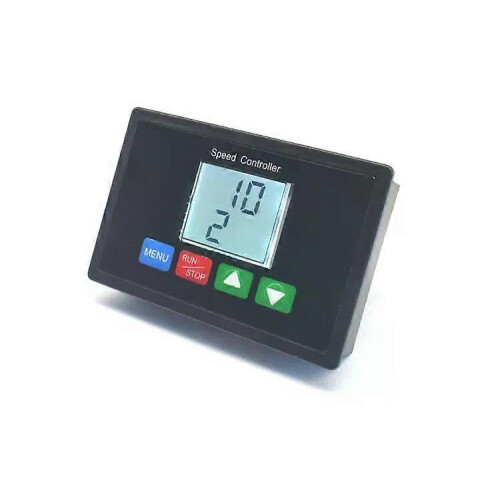

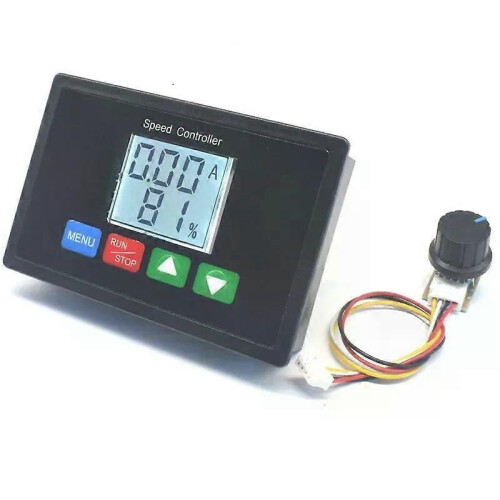

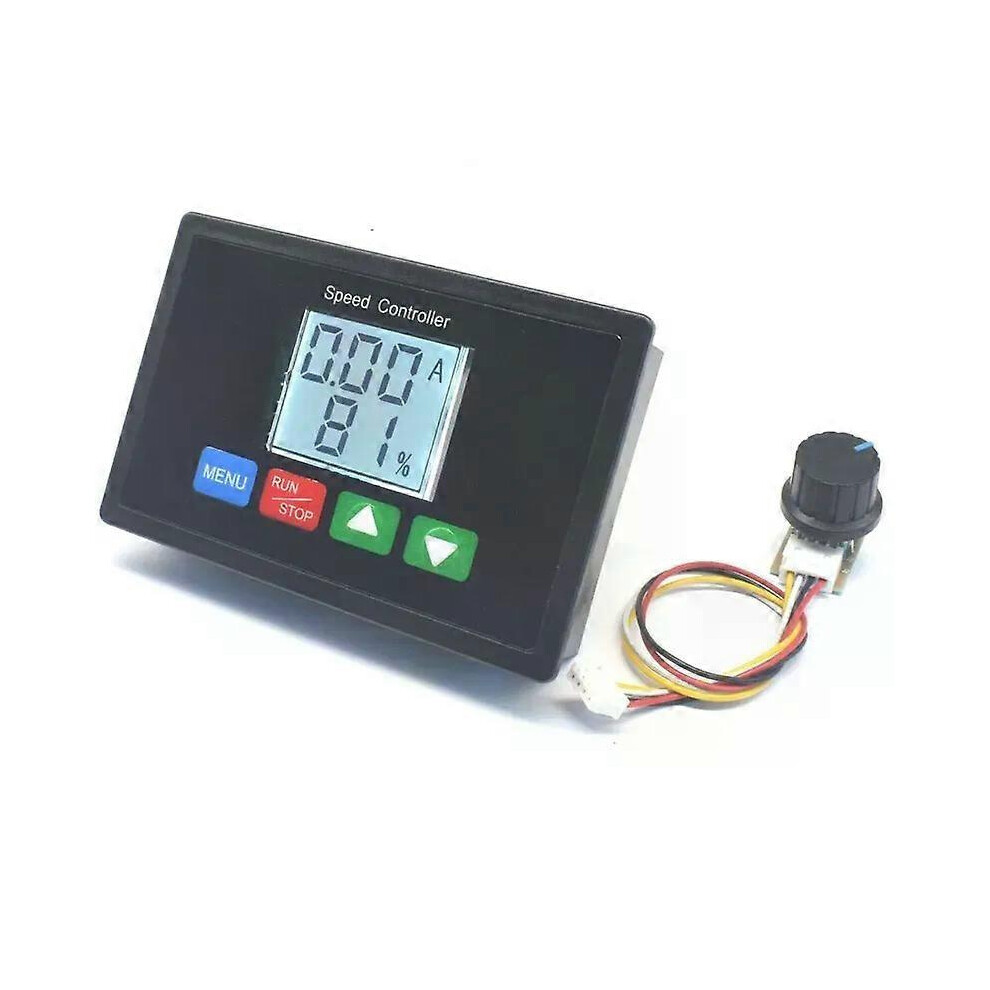

Multi-function 10-55v DC Brush Motor Encoder Governor DC Motor Controller Overload Protection 12v 24v 36v 48v Adjustable Speed MSPHX

Descrição de Multi-function 10-55v DC Brush Motor Encoder Governor DC Motor Controller Overload Protection 12v 24v 36v 48v Adjustable Speed MSPHX

Multi-function 10-55v DC Brush Motor Encoder Governor DC Motor Controller Overload Protection 12v 24v 36v 48v Adjustable Speed

Product features

LCD Liquid crystal with backlight, can measure input voltage, output current

Can set the slow start and stop time

The speed limit and speed limit can be set

Can set undervoltage power off protection with alarm function (backlight flashing)

Overload power protection with alarm function can be set (backlight flashing)

You can choose to run the motor directly after power-on or not automatically start after power-on

Panel touch switch control acceleration and deceleration can also share the encoder speed regulation start and stop

Product parameters

Input voltage: within DC10-55V (the specific voltage is equal to the rated voltage of the motor)

Measurement voltage: DC10-55V

Measurement current: 20A

starting current: 100ma

Current accuracy: 5%

Speed adjustment type: Current adjustment

Slow Start Slow stop: 0-10

seconds Upper limit Lower limit: 0-100%

Acceleration and deceleration :1%, 2%, 5%, 10%, 15%, 20%, 25%

Optional undervoltage protection: 0-55V can be set

Overcurrent protection mode: Mode 1 disables output, Mode 2 maintains settingCurrent

Overcurrent protection: 0-20A can be set

Power-on startup mode: Mode 1 does not start after power-on. Mode 2 Power-on self-start

motor: brush motor

Speed digital display: 0-100 percentage table (not actual motor speed)

Forward rotation Reverse: not supported

Output voltage: Linear speed

regulation mode under load: point + - encoder

Speed range: 0 -- 100%

Control frequency: 15KHZ

Net weight: 92 grams

Wiring type: fence type wiring terminal According to

mounting mode: embedded

Module size: Length * Height * depth 116mm*76mm*30mm

Panel opening: length * width 109mm*70mm

Note: The input voltage must be equal to the rated voltage of the motor (within 10-55V DC).

For example, rated voltage of the motor 12V input governor 12V Rated voltage of the motor 36V Input governor voltage 36V

Input 220V will burn

Key operation Instructions

Long press the MENU key to enter the setting

Short press MENU key to switch voltage and current

Long press the RUN\/STOP key to turn off the backlight

When the voltage and current are overloaded, press the start\/stop button to start again

9 Functions are described as follows

Function 1- Slow start time setting: 000-100 (0-10 seconds) slow start time adjustable, default 1 second;

Function 2- Slow down time setting: 000-100 (0-10 seconds) slow down time adjustable, default 1 second;

Function 3- speed limit setting: 000-080 (0-80%) adjustable, default 0;

Function 4- speed limit setting: 000-100 (0-100%) adjustable, default 100%;

Function 5- Add or subtract speed value setting: 1, 2, 5, 10, 15, 20, 25 The percentage of the corresponding change of the speed when the add or subtract key is pressed once,

1%, 2%, 5%, 10%, 15%, 20%, 25%, default 1 (1%);

Function 6- Setting of undervoltage protection value: 0-55V adjustable, setting 0V means no undervoltage protection function, continuous 200ms overlimit is regarded as effective;

Function 7- Setting of overcurrent protection value: 0-20A adjustable (starting at 0.5A, increasing at 0.5A), setting of 0A indicates no overcurrent protection function;

Function 8- Overcurrent protection mode setting: Mode 1 directly shut down the output when the current reaches the protection value of 200ms, mode 2 current reaches the protection

Value 200ms maintain the current limit set protection current value, default mode 1;

Function 9- Power-on startup mode: Mode 1 motor does not start after power-on, mode 2 motor starts after power-on, default mode 1;

9 The operations are described as follows

Slow start time setting Long press the MENU key to enter the function 1 Set the key surface press the add and subtract keys to set the time press RUN\/STOP to save and exit

000-100 (10 for 1 second and 100 for 10 seconds) The slow start time is adjustable, the default is 1 second

Setting slow STOP time Long press MENU key to enter setting key surface Short press to switch to function 2 key surface press add and subtract key to set time Press RUN\/STOP to save and exit

000-100 (10 for 1 second and 100 for 10 seconds) The slow down time is adjustable, the default is 1 second

To set the speed limit, long press the MENU key to enter the setting key surface, short press to switch to the function. 3 Press the add and subtract keys to set the size. Press RUN\/STOP to save and exit

000-080 (0-80%) adjustable, default 0

To set the speed limit, long press the MENU key to enter the setting key surface, short press to switch to the function. 4 Press the add and subtract keys to set the size and press RUN\/STOP to save and exit

000-100 (0-100%) adjustable, default 100%

Long press the MENU key to enter the setting key surface
