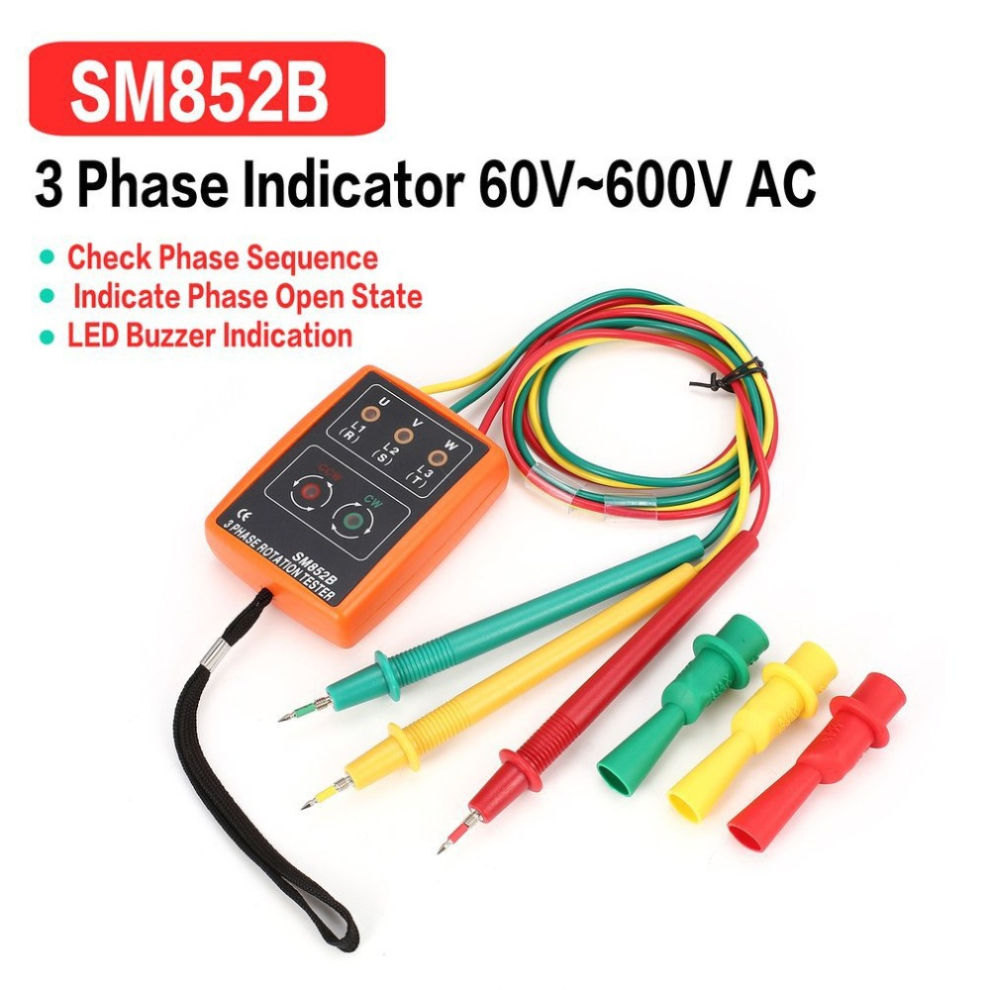

New 3 Phase Sequence Rotation Tester Indicator Detector Meter Led Buzzer With Portable Pouch Td-led02

Descrição de New 3 Phase Sequence Rotation Tester Indicator Detector Meter Led Buzzer With Portable Pouch Td-led02

: Electrical

Accuracy Class: 0.1

Designed to check the phase sequence.

With to show if the phase is open or not, Supports Buzzer indication.

Highly reliable, can check a of 60V to 600V AC three-phase.

With Alligator Clips, involve the terminals of the control panel, guaranteeing reliability and safety.

Small, light and portable, convenient for using.

Operation Voltage: 60V~600V AC, three phase

Limit Support Voltage: 2000V\/minute (Impulse voltage 4000V)

Operation Frequency Range: 20Hz~400Hz

Limit Time for Continuous Use:

60 minutes maximum at 200V AC

4 minutes maximum at 600V AC

Phase Sequence Indicator LED:

Green for correct phase sequence, Intermittent Beep

Red for reverse phase sequence, Continuous Beep

Test Leads:

Double insulation, . 80cm cable length

Yellow for U phase (L1. R)

Green for V Phase (L2. S)

Red for W phase (L3. T)

Net Weight: 136g

colour: Photo Color

Material: plastic

Size: 8 x 6 x 2.4cm

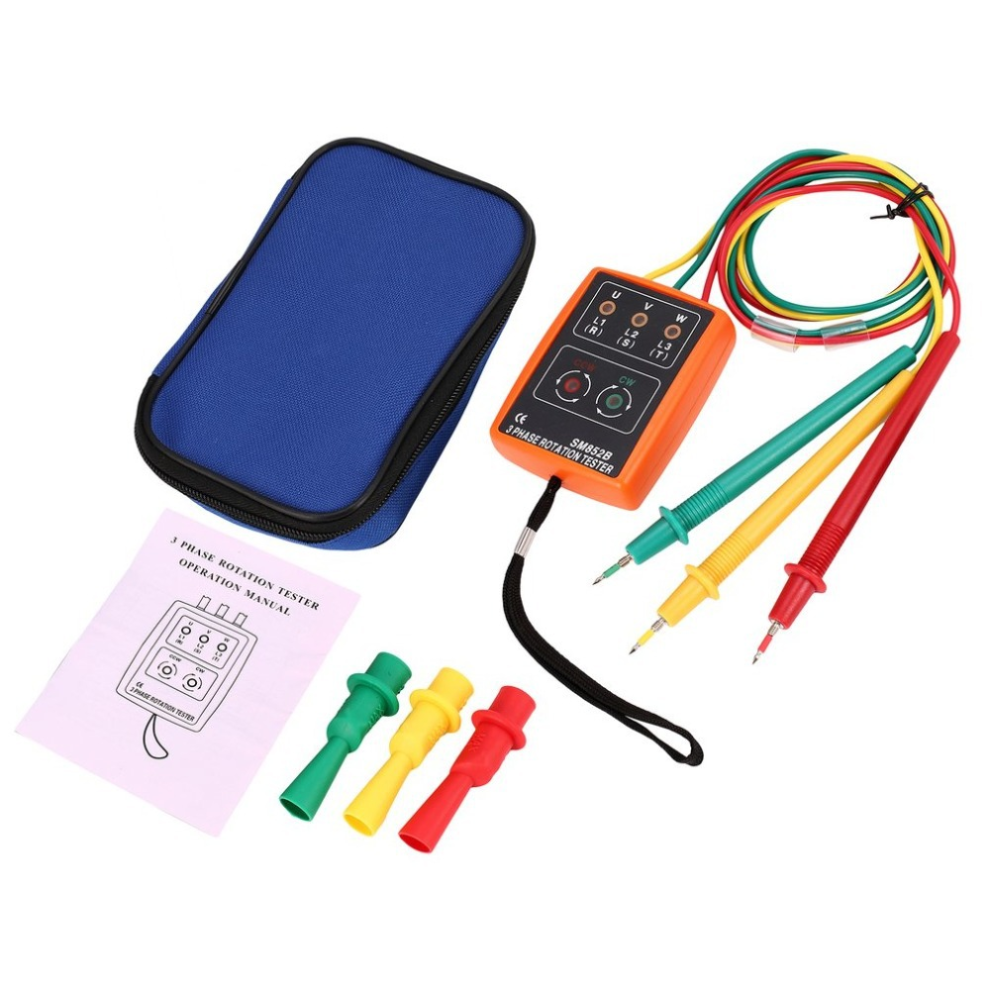

Package Contents:

1 x 3 Phase Sequence Tester

3 x Alligator Clips

1 x Pouch

1 x User Manual

Only the above package content, other products are not included.

Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
