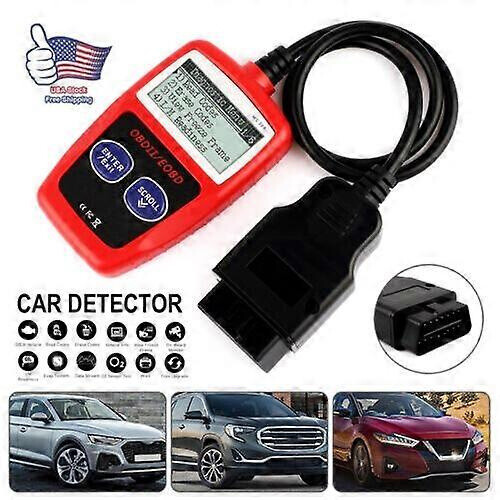

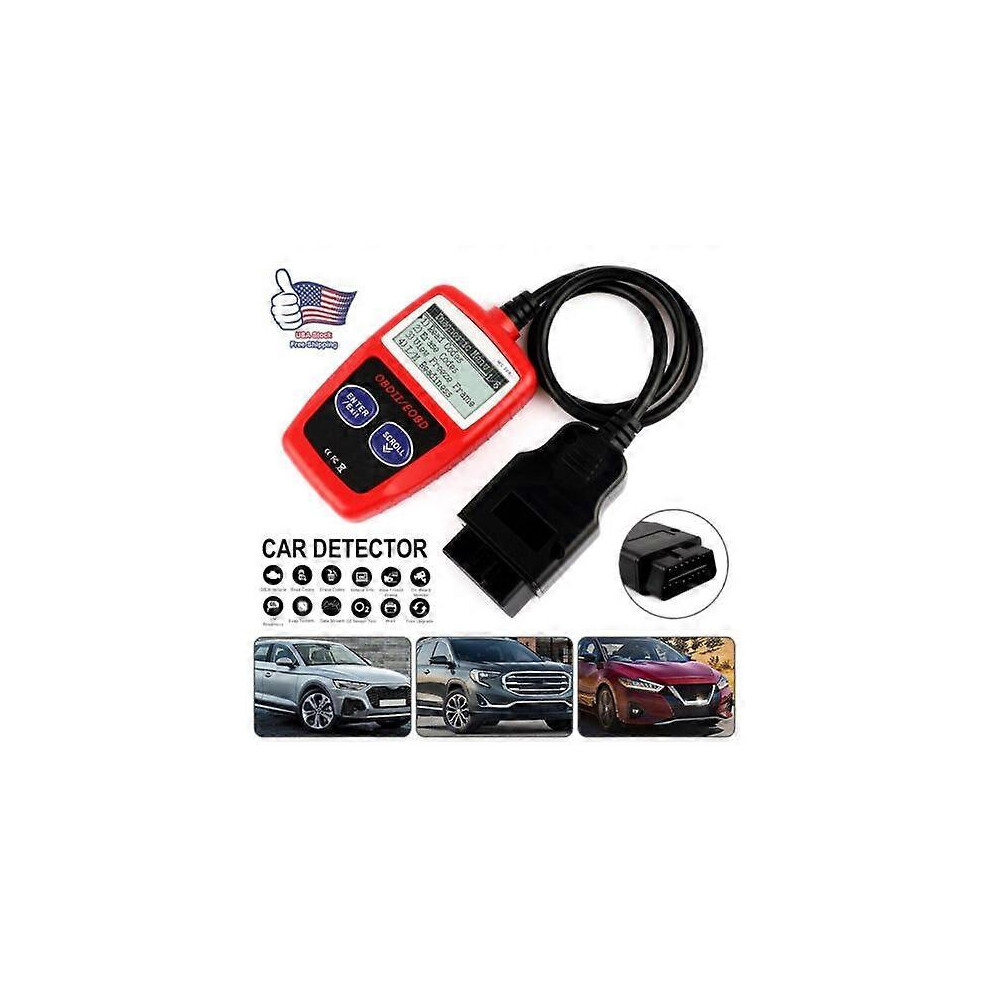

OBD2 Code Reader Automotive Diagnostic Scanner for Check Engine Fault Codes, Car Engine Light Diagnostic Tool

Descrição de OBD2 Code Reader Automotive Diagnostic Scanner for Check Engine Fault Codes, Car Engine Light Diagnostic Tool

Product Description

Automotive OBD Code Reader, OBD2 Scanner, Car Check Engine Fault Diagnostic Tool

This easy-to-use plug-and-play check engine code reader reads and clears codes, retrieves generic codes (P0, P2, P3, and U0), manufacturer-specific codes (P1, P3, and U1), and pending codes, and displays DTC definitions on the TFT colour screen. It helps check engine-related fault codes, identify what caused the check engine light to come on, and turn off the MIL (Malfunction Indicator Light).

Freeze frame data and I/M readiness are included to help you retrieve information recorded in the ECU under fault conditions, making it easier to understand why the check engine light is on and reducing the time needed for test-drive cycle verification. It also displays key engine parameters such as RPM, vehicle speed, mass airflow, engine load, fuel pressure, short-term and long-term fuel trim, engine coolant temperature, and more. The I/M Readiness function checks the operation of the emission system on OBD2-compliant vehicles and covers monitor items such as misfire monitor, fuel system monitor, comprehensive components monitor, O2 sensors, EVAP system, and more, making it a practical tool for preparing your vehicle for an annual smog check.

This compact pocket code reader supports all OBD2 protocols, including KWP2000, ISO2000, ISO9141, J1850 VPW, J1850 PWM, and CAN. It is compatible with all OBDII-compliant passenger cars and light trucks built after 1996 in the US, and after 2000 for EU-based and Asian cars. It also enables retrieval of vehicle identification information, including VIN, Calibration ID(s), and Calibration Verification Numbers (CVNs), which is especially useful when checking whether the ECU matches the car before buying a used vehicle. It includes lifetime free software updates.

Main features and specifications include support for CAN (Controller Area Network) and all other current OBD-II protocols, erasing codes and turning off the check engine light, helping determine the cause of the MIL, retrieving generic codes (P0, P2, P3, and U0), manufacturer-specific codes (P1, P3, and U1), and pending codes, resetting monitors, displaying DTC definitions on the unit screen, viewing freeze frame data, displaying monitor and I/M readiness status for emissions, and retrieving vehicle identification information such as VIN, CALID, and CVN. It also provides a multilingual menu and DTC definitions in English, Spanish, French, and German. Display: backlit 128 x 64 pixel display. Operating temperature: 0 to 60C (32 to 140F). Storage temperature: -20 to 70C (-4 to 158F). Power: 8 to 18 V supplied via the vehicle battery. Dimensions (L x W x H): 110.3 mm (4.34") x 69.5 mm (2.74") x 20.2 mm (0.80"). Weight: net weight 180 g (0.39 lb.); gross weight 210 g (0.46 lb.).

It is compatible with American, Asian, and European vehicles and trucks from 1996 and newer that are OBD2 (16-pin) compliant, including CAN, VPW, PWM, ISO, and KWP2000 protocols. A small number of 1994 and 1995 model year gasoline vehicles are OBDII compliant; please check the VECI label. Americas: OBD is only supported after 1996. Asia: OBD is only supported after 2009. European region: OBD is only supported after 2006. It supports all US vehicles from 1996 to the current year (OBD-2), all European petrol vehicles from 2001 to the current year (OBD-2), all European diesel vehicles from 2004 to the current year (OBD-2), and all new CAN protocol cars. Package included: 1 x scanner with 16-pin OBD2 cable, 1 x CD, 1 x English user manual.
