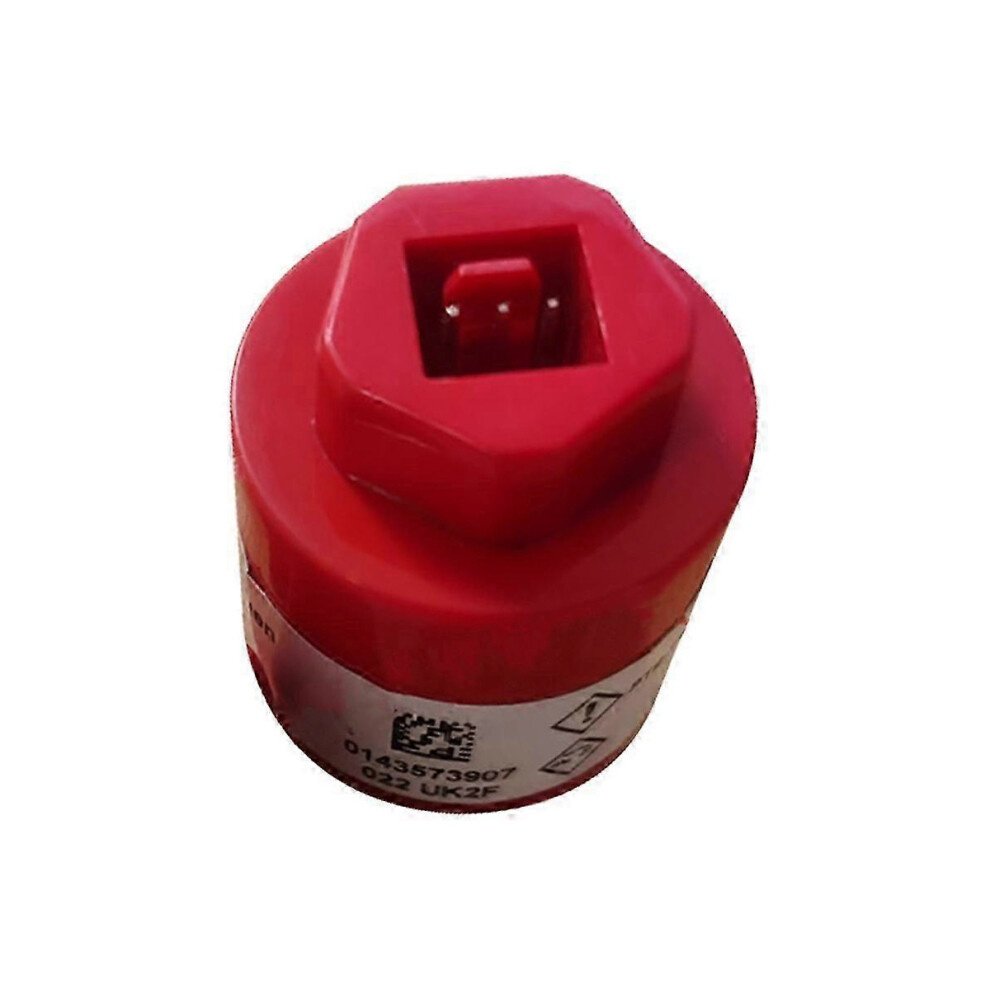

Oxygen Sensor AO-02 Gas Detector Compatible with AO2 AA428-210 AO2PTB-18.10 Durable Replacement Sensor

Descrição de Oxygen Sensor AO-02 Gas Detector Compatible with AO2 AA428-210 AO2PTB-18.10 Durable Replacement Sensor

The output of the AO2 sensor changes with temperature, but the thermistor is gradually integrated to compensate for these changes. The thermistor is used to give the AO2 a very stable output over a wide temperature range.

The AO2 PTB-18.10 oxygen sensor used in the oxygen index meter is a consumable item. When it comes into contact with air, a chemical reaction begins.

AO2 Product Parameters:

(1) Output:9-13mV in air

(2) Range:0-100%O2

(3) Accuracy:0.01%O2

(4) Expected service life:360,000%O2 hours at 20, 286,000%O2 hours at 40, or two years in air at STP

(5) T90 response time:Less than 5 seconds

(6) T99.5 response time:Less than 40 seconds

(7) 100% oxygen in signal:1001%

(8) Linearity:0-100%O2

(9) Zero offset:Less than 20V

(10) Temperature range:-20-+50

(11) Temperature compensation:Less than 2% variation 0 to 40(as shown)

(12) Differential pressure range:0-500mbar Max

(13) Absolute pressure range:500-2000mbar

(14) Relative humidity range:0-99% non-condensing

(15) Long-term output drift:Less than 10% signal loss\/year

(16) Recommended load resistance min:10kohm

Note:Due to different production batches, the product appearance slightly, which does not affect the use.

Colour:Red

Material:Plastic

Package Contents:

1 * Oxygen Sensor

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
