VL53L0X -of-Flight Distance Sensor GY-VL53L0XV2 Module for

Descrição de VL53L0X -of-Flight Distance Sensor GY-VL53L0XV2 Module for

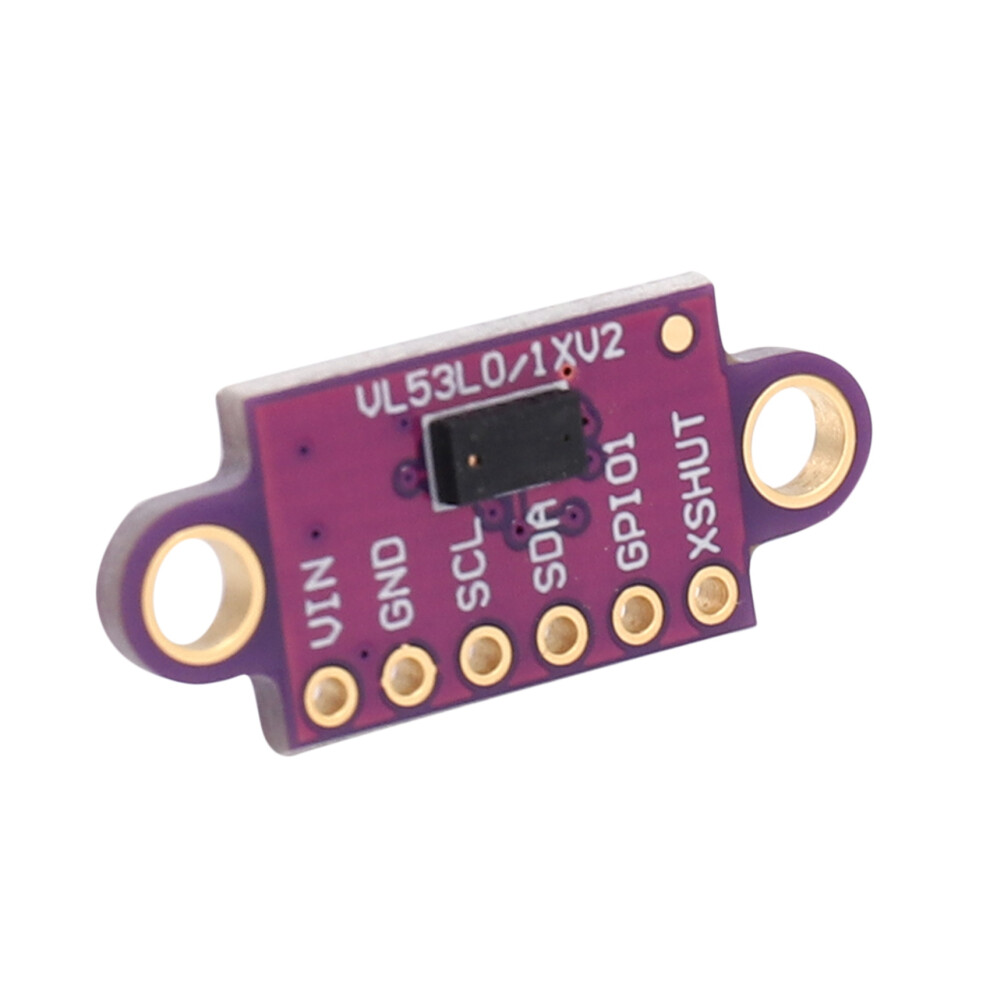

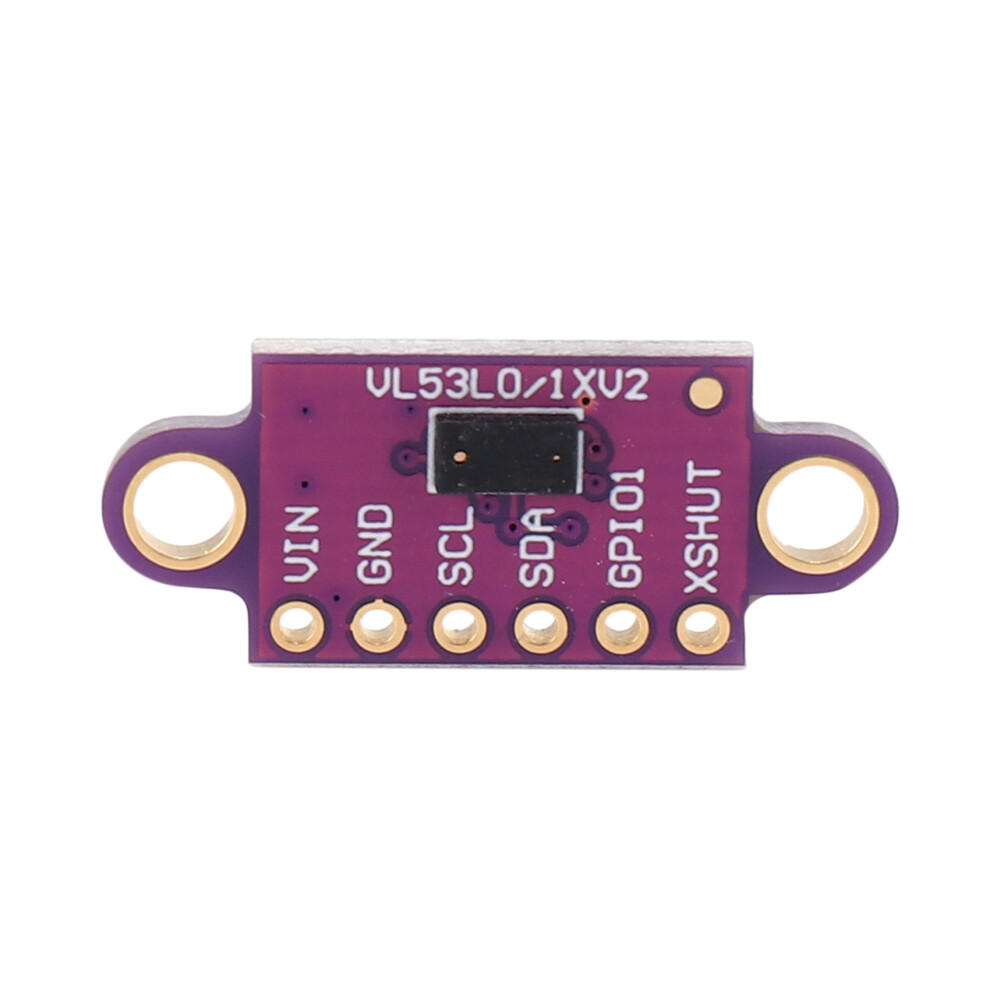

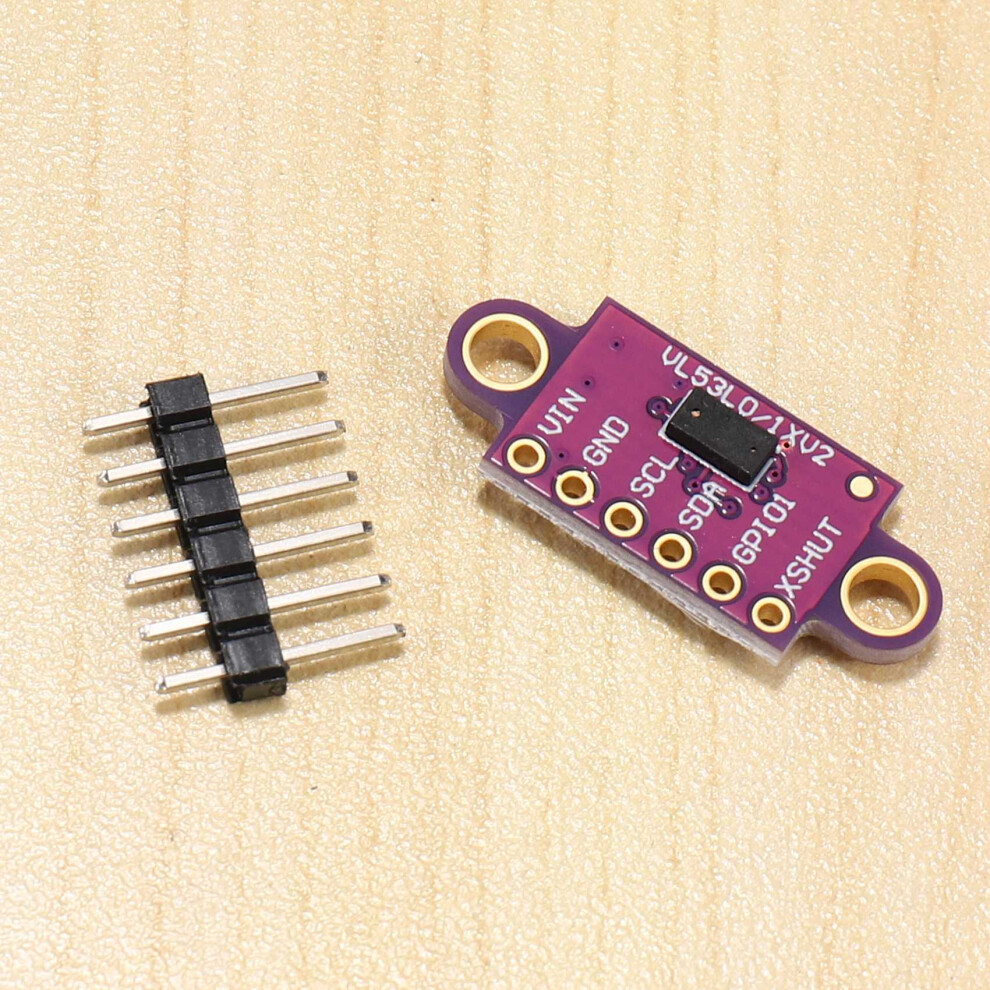

VL53L0X -of-Flight Distance Sensor Breakout GY-VL53L0XV2 Module for ; The VL53L0X is a -of-flight ranging system integrated into a compact module. This board is a carrier for the VL53L0X, so we recommend careful reading of the VL53L0X datasheet (1MB pdf) before using this product.
The VL53L0 uses technology to precisely measure how long it takes for emitted pulses of infrared laser-light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system. This -of-flight (TOF) measurement enables it to accurately determine the absolute distance to a target without the object's reflectance greatly influencing the measurement.
The sensor can report distances of to 2 m (6.6 ft) with 1 mm resolution, but its effective range and accuracy (noise) depend heavily ambient conditions and target characteristics like reflectance and size, as well as the sensor configuration. (The sensor's accuracy is specified to range from +/-3% at best to over +/-10% in less optimal conditions.)

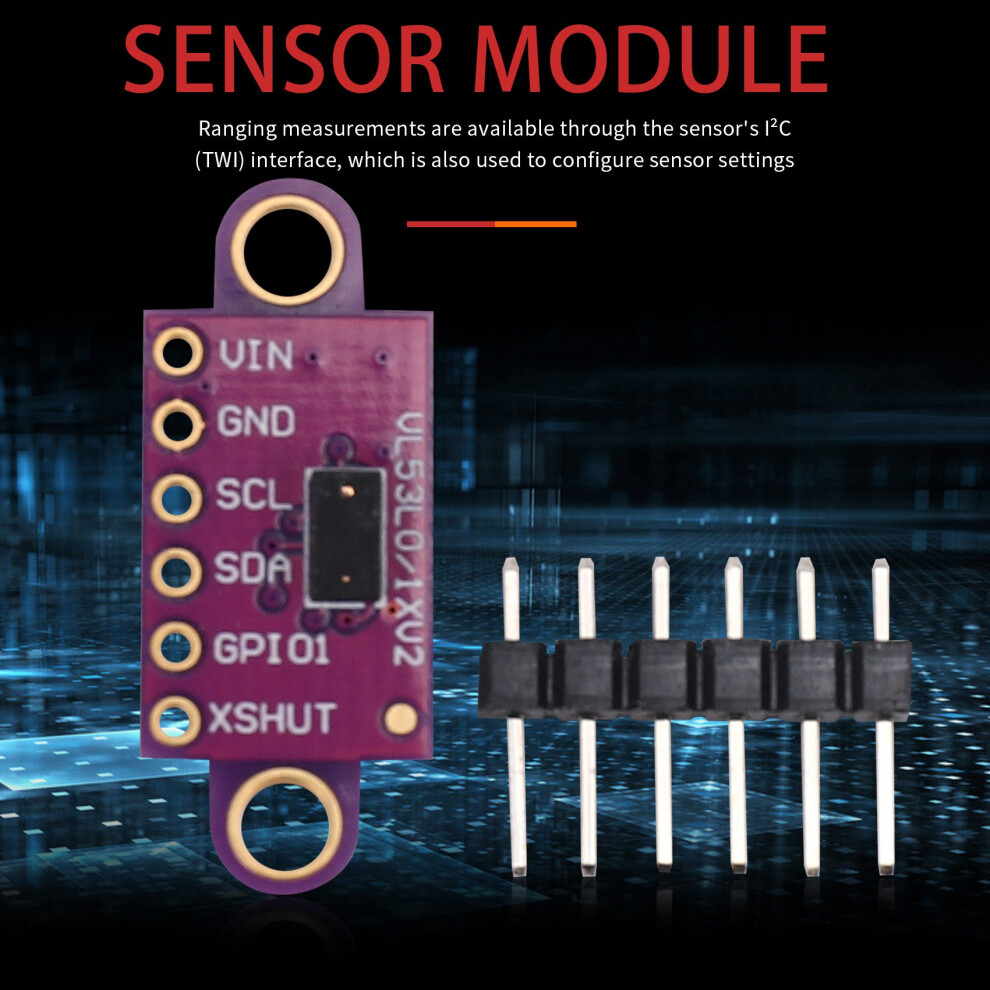

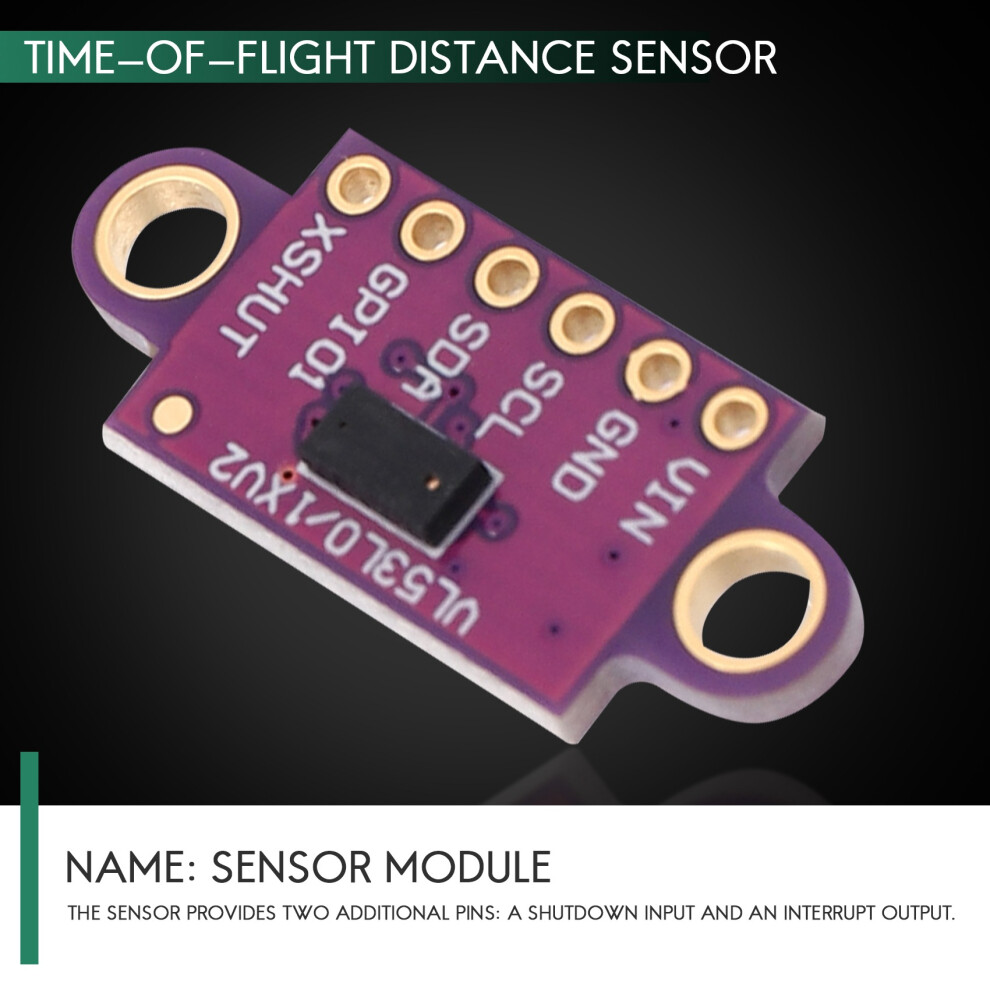

Ranging measurements are available through the sensor's I²C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output.

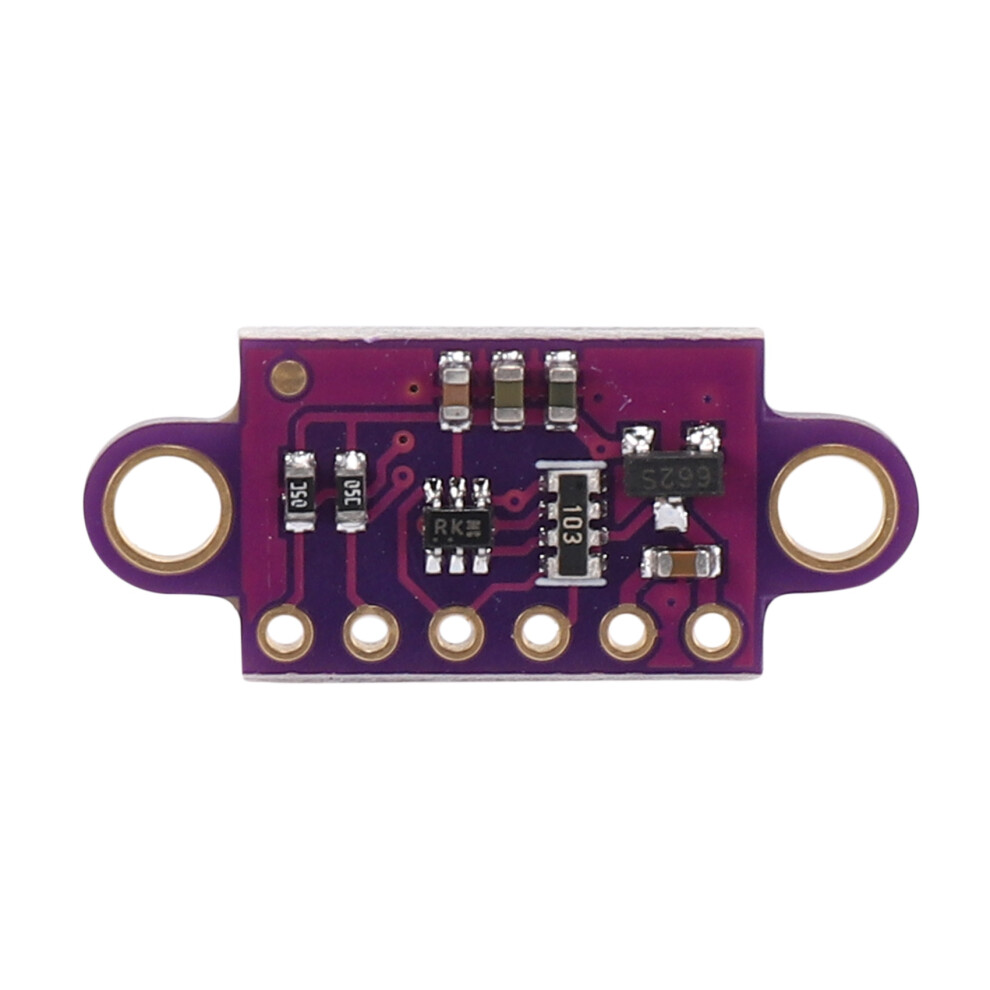

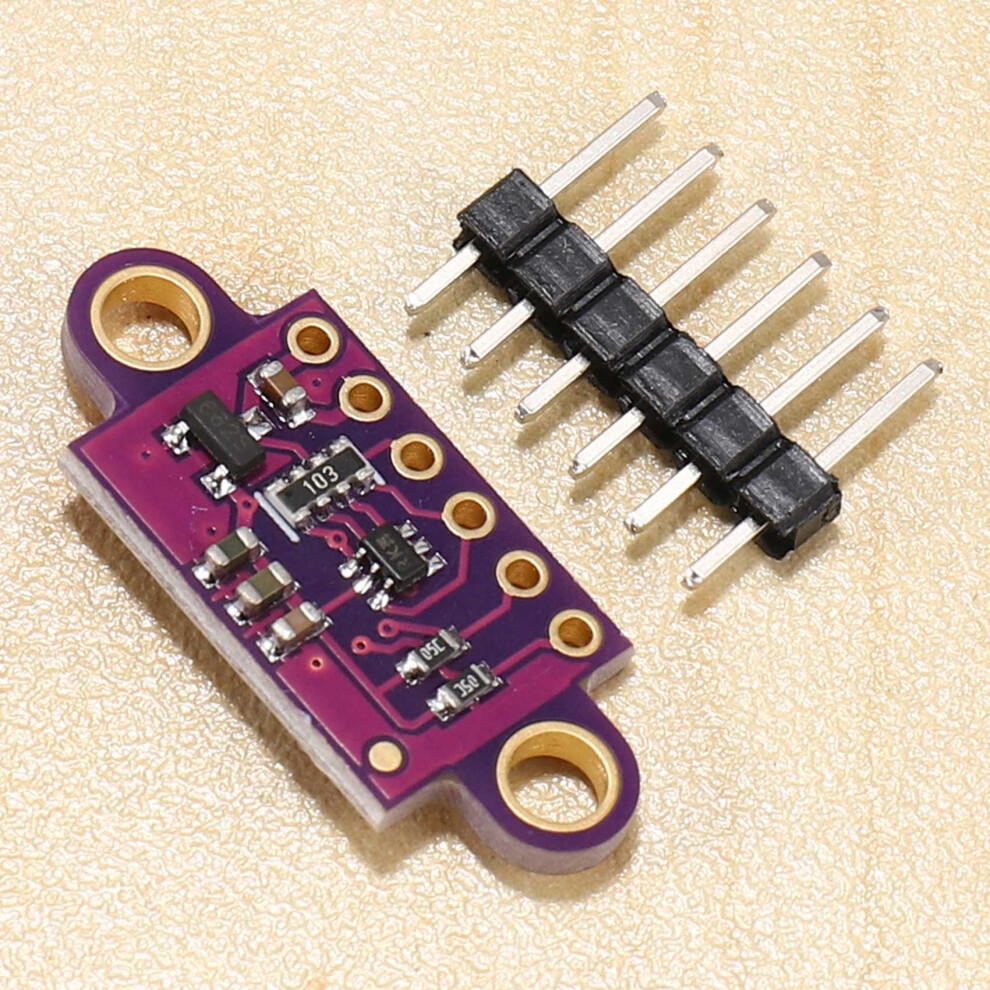

The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for Minicontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.

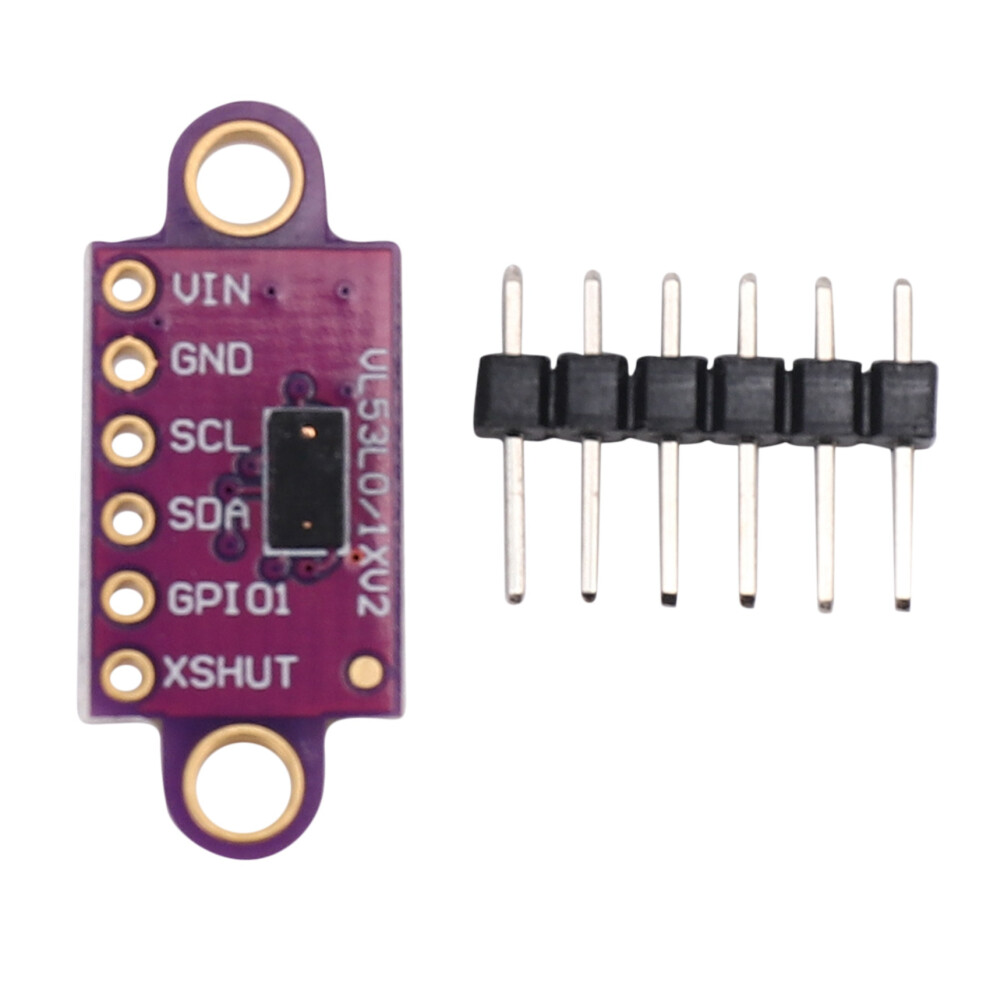

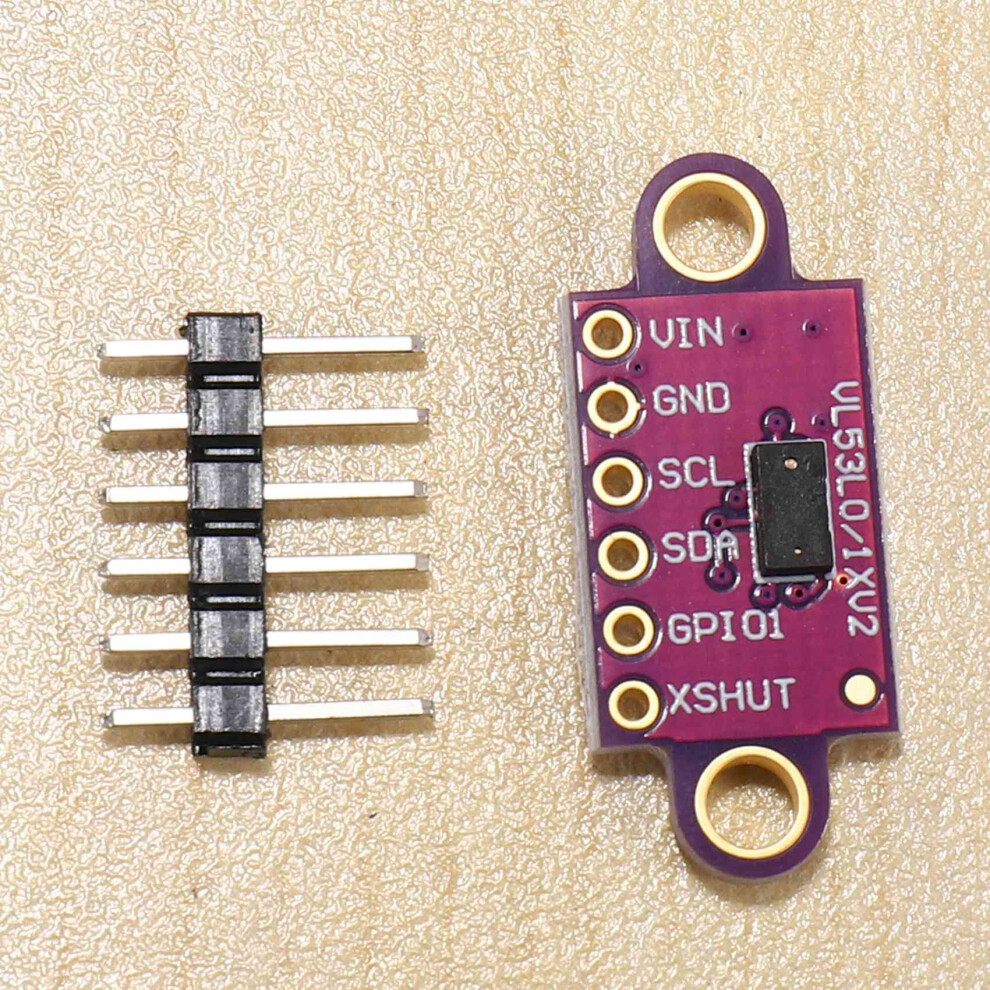

PIN Description
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connectio
