1 Set 35mm VU Meter Stereo Audio Amplifier Level Indicator Audio Meter Backlight Adjustable with Driver Board for AMP
Brand Torribaly
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 130,000 de recenzii cu evaluare “Excelent”
259,54 RON
337,06 RON
Reducere de 23%!
+21,21 RON livrare
1%
Câștigați 2,60 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (21,21 RON) | lun 10 - vin 14 aug.
Vândut de: JJBRDZ
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Curele de transmisie audio
Descriere & Detalii
Rezumat

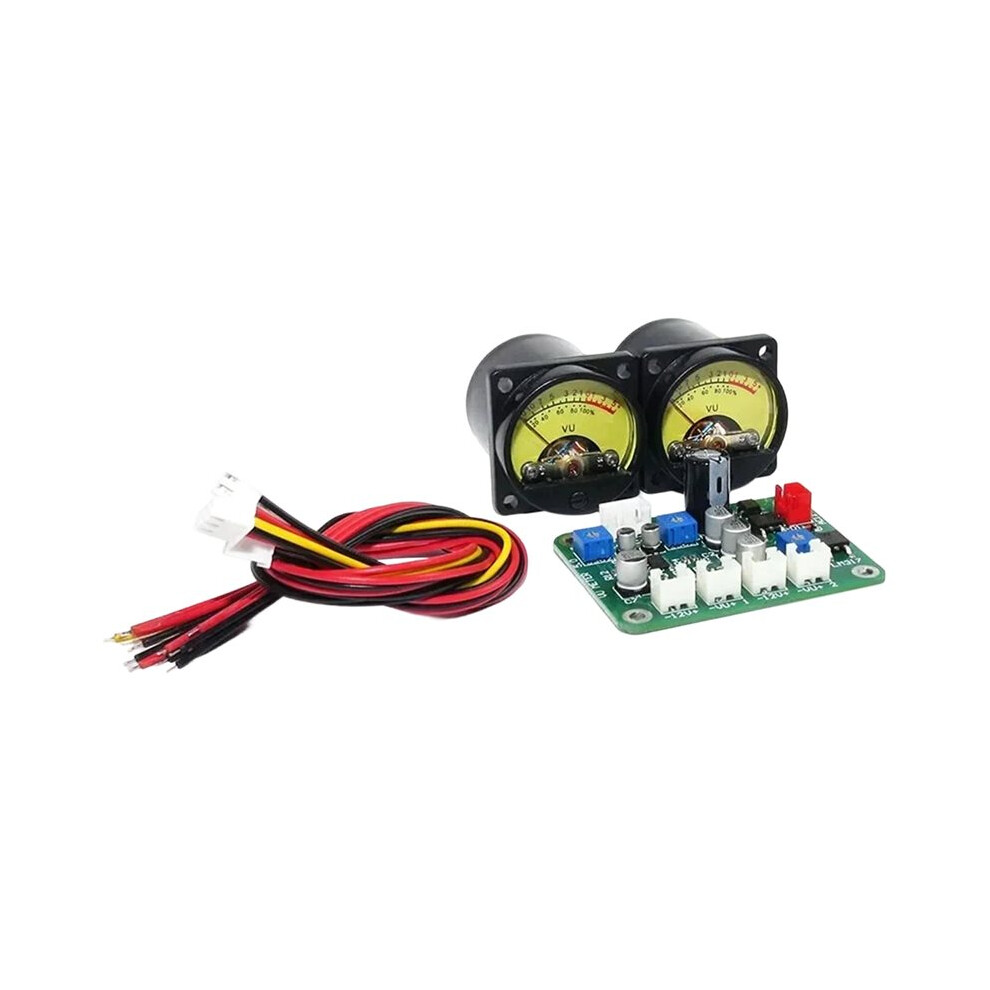

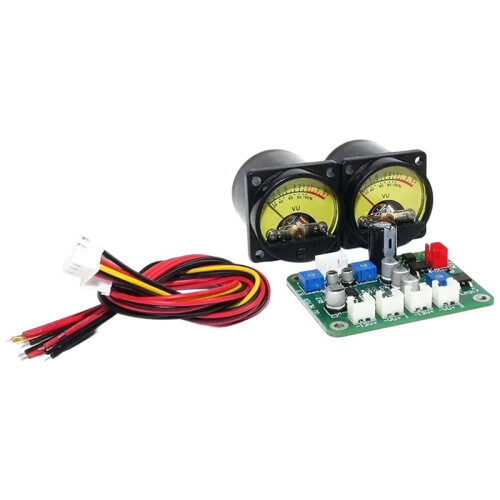

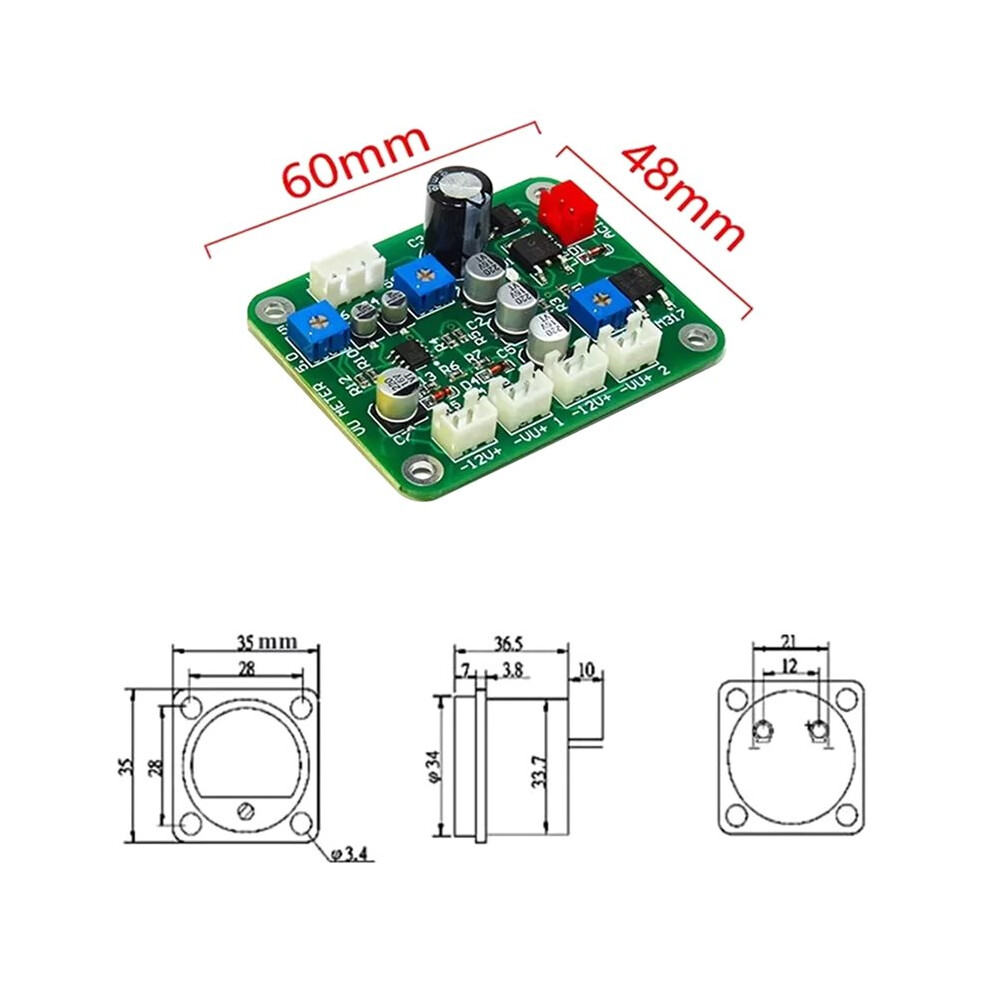

- This is a 35mm VU meters with drive boards Work for Phone ,Computer,Pre-amp, Mp3;Can't Connect to Amplifier Output;DC internal resistance: 650 ohm + -15%;Calibration position: +5; Accuracy: Level 5;DC current; 500uA +-15%;Backlight: LED*3; Working temperature: -22%-55 degrees Celsius;VU Meter Backlight voltage: AC6V-12V ;

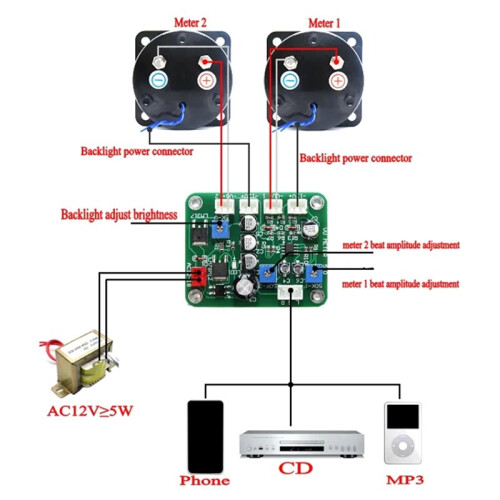

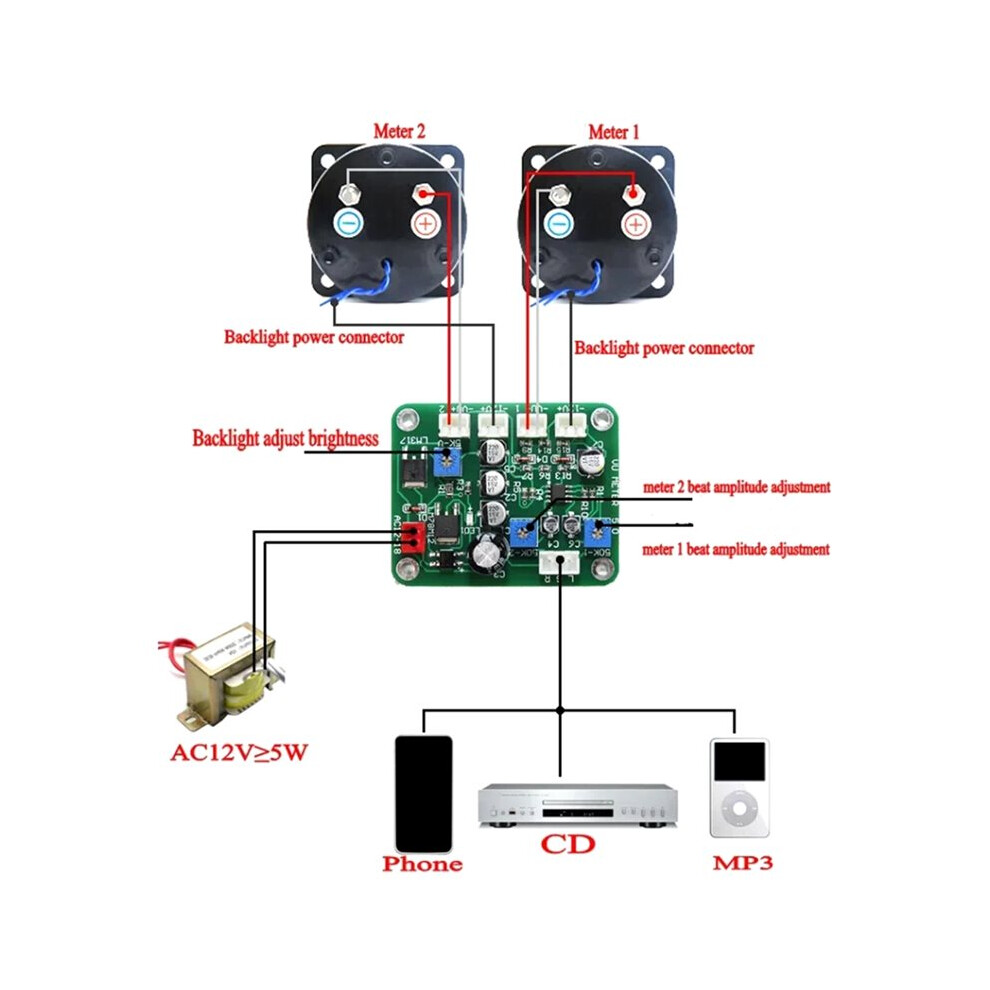

- L, G, R: This is the two-channel input terminal for low-level signal of the driver board, which is used to connect the audio of mobile phones, computer sound card pre-stage, and other audio source devices (the signal is the signal that the earphone can hear). L, GND, and R correspond to the left, ground, and right channels respectively
- AC12V is the power supply. (It is recommended to use an independent power transformer or independent winding power supply!)Note: Can't connect to the power amplifier output Can not connect to the output of the power amplifier. Can not connect to the output of the power amplifier. Including car CD player cannot be used

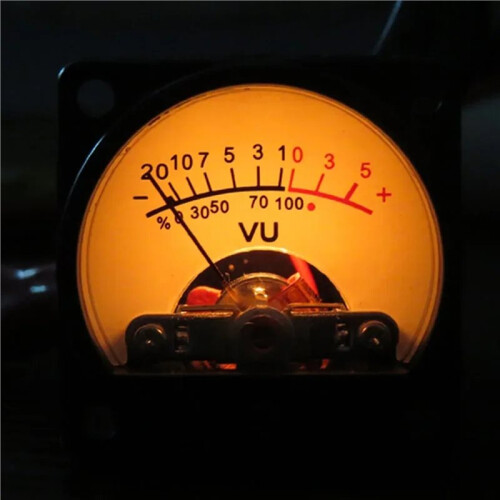

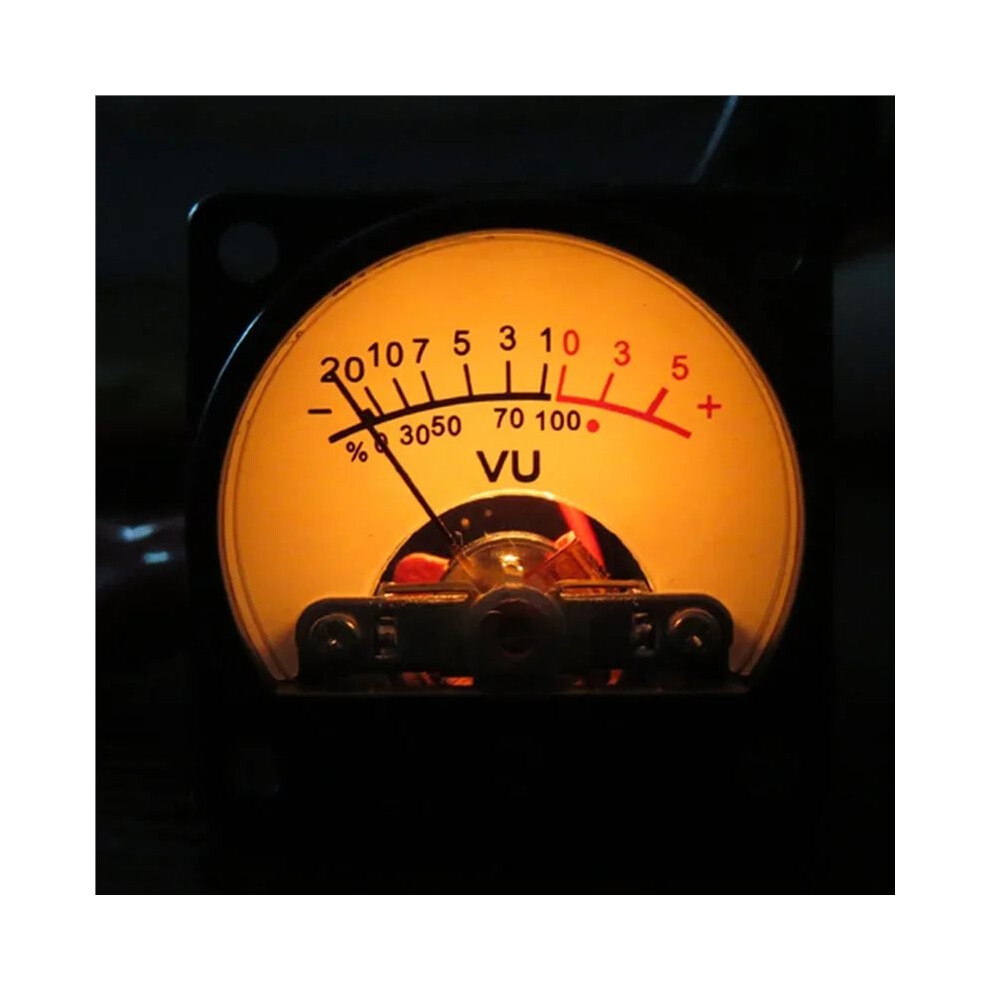

- Level meter debugging Find a signal generator to adjust the output frequency of 1KHz, the effective value of the signal is 0.775V, and then connect the signal input of the drive board, and the pointer of the meter head points to the 0DB of the instrument panel.
- (If you don't have a signal generator, you can download an APP signal generator with your mobile phone, and you can adjust it according to the previous method)
Descriere 1 Set 35mm VU Meter Stereo Audio Amplifier Level Indicator Audio Meter Backlight Adjustable with Driver Board for AMP
This is a 35mm VU meters with drive boards Work for Phone ,Computer,Pre-amp, Mp3;Can't Connect to Amplifier Output; internal resistance: 650 ohm + -15%;Calibration position: +5; Accuracy: Level 5; current; 500uA +-15%;Backlight: LED*3; Working temperature: -22%-55 degrees Celsius;VU Meter Backlight voltage: AC6V-12V ;
L, G, R: This is the two-channel input terminal for low-level signal of the driver board, which is used to connect the audio of mobile phones, computer sound card pre-stage, and other audio source devices (the signal is the signal that the earphone can hear). L, GND, and R correspond to the left, ground, and right channels respectively
AC12V is the power supply. (It is recommended to use an independent power transformer or independent winding power supply!)Note: Can't connect to the power amplifier output Can not connect to the output of the power amplifier. Can not connect to the output of the power amplifier. Including car CD player cannot be used
Level meter debugging Find a signal generator to adjust the output frequency of 1KHz, the effective value of the signal is 0.775V, and then connect the signal input of the drive board, and the pointer of the meter points to the 0DB of the instrument panel.
(If you don't have a signal generator, you can download an APP signal generator with your mobile phone, and you can adjust it according to the previous method)
The debugging of the VU meter, the adjustment of the VU meter is much simpler, the driver board is connected to the audio signal, and the driver board can be adjusted.
Adjust the resistance to synchronize the loudness and rhythm of the ear to the sound with the poin
Detalii
| OPC | PX2NTCQ |
|---|---|
| Brand | Torribaly |
| Coduri | 6032396493979 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 10cm |
|---|---|
| Width | 15cm |
| Length | 20cm |
| Weight | 0.1kg |
| Colour | Yellow |
| Material | Plastic |
