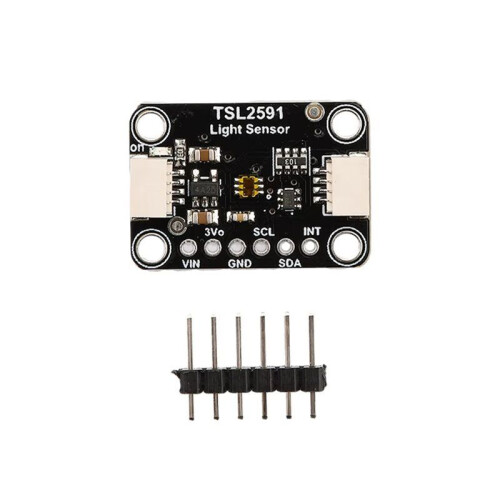

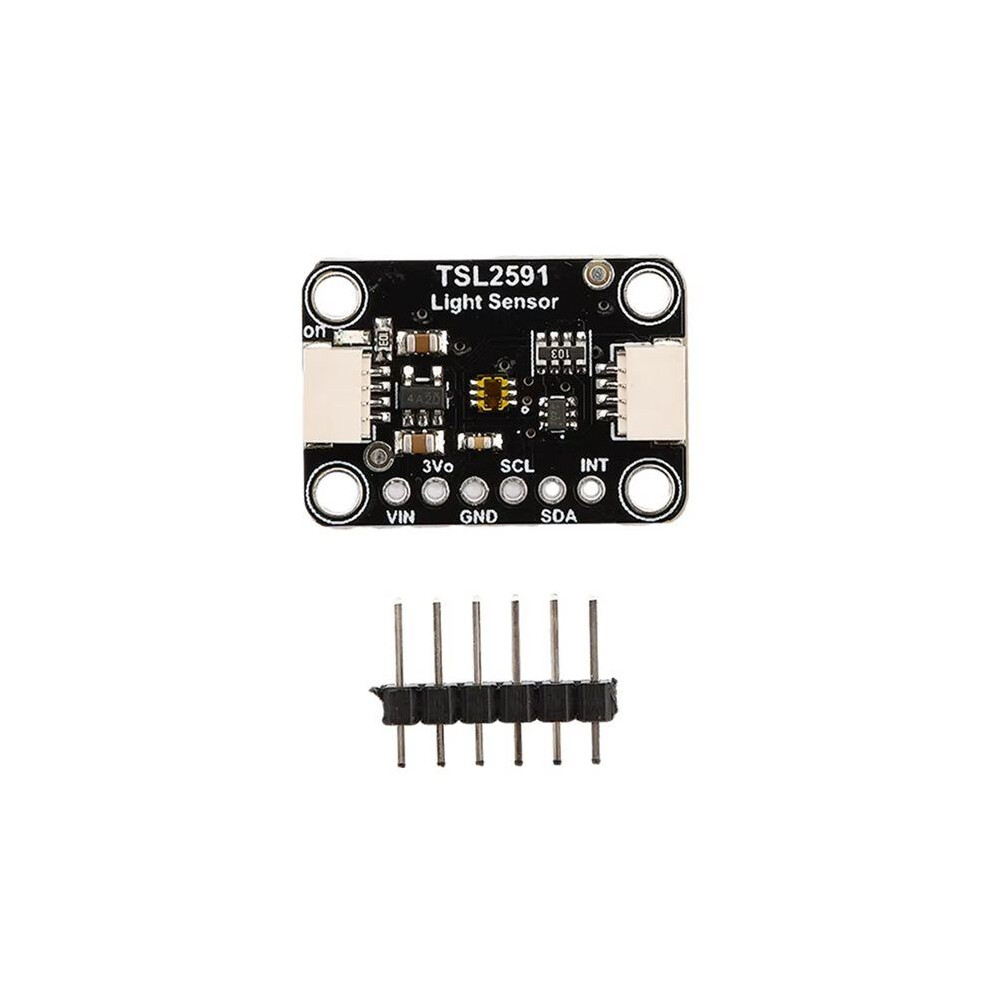

1980 TSL2591 High Dynamic Range Digital Light Sensor - STEMMA QT
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | joi 18 - mar 23 iun.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Amplificatoare auto
Rezumat
- When the future is dazzlingly-bright, this ultra-high-range luminosity sensor will help you measure it. The TSL2591 luminosity sensor is an advanced digital light sensor, ideal for use in a wide range of light situations. Compared to low cost CdS cells, this sensor is more precise, allowing for exact lux calculations and can be configured for different gain/timing ranges to detect light ranges from 188 uLux up to 88,000 Lux on the fly.
- The best part of this sensor is that it contains both infrared and full spectrum diodes! That means you can separately measure infrared, full-spectrum or human-visible light. Most sensors can only detect one or the other, which does not accurately represent what human eyes see (since we cannot perceive the IR light that is detected by most photo diodes)
- This sensor is much like the TSL2561 but with a wider range (and the interface code is different). This sensor has a massive 600,000,000:1 dynamic range! Unlike the TSL2561 you cannot change the I2C address, so keep that in mind. The built-in ADC means you can use this with any controller, even if it doesn't have analog inputs.
- The current draw is extremely low, so it's great for low power data-logging systems. about 0.4mA when actively sensing, and less than 5 uA when in power-down mode. As if that weren't enough, we've also added SparkFun qwiic compatible for STEMMA QT connectors for the I2C bus so you don't even need to solder. Just wire up to your favorite with a plug-and-play cable to get data ASAP.
- For a no-solder experience, just wire up to your favorite using a for STEMMA QT adapter cable. The for Stemma QT connectors also mean the TSL2591 can be used with our various assoc iated accessories. QT Cable is not included.
Descriere 1980 TSL2591 High Dynamic Range Digital Light Sensor - STEMMA QT
When the future is dazzlingly-bright, this ultra-high-range luminosity sensor will help you measure it. The TSL2591 luminosity sensor is an advanced digital light sensor, ideal for use in a wide range of light situations. Compared to low cost CdS cells, this sensor is more precise, allowing for exact lux calculations and can be configured for different gain/timing ranges to detect light ranges from 188 uLux to 88,000 Lux the fly.
The best part of this sensor is that it contains both infrared and full spectrum diodes! That means you can separately measure infrared, full-spectrum or human-visible light. Most sensors can only detect one or the other, which does not accurately what human eyes see (since we cannot perceive the IR light that is detected by most photo diodes)
This sensor is much like the TSL2561 but with a wider range (and the interface code is different). This sensor has a massive 600,000,000:1 dynamic range! Unlike the TSL2561 you cannot change the I2C address, so keep that in mind. The built-in ADC means you can use this with any controller, even if it doesn't have analog inputs.
The current draw is extremely low, so it's great for low power data-logging systems. about 0.4mA when actively sensing, and less than 5 uA when in power-down mode. As if that weren't enough, we've also added SparkFun qwiic compatible for STEMMA QT connectors for the I2C bus so you don't even need to solder. Just wire to your favorite with a plug-and- cable to get data ASAP.
For a no-solder experience, just wire to your favorite using a for STEMMA QT adapter cable. The for Stemma QT connectors also mean the TSL2591 can be used with our various assoc iated accessories. QT Cable is not included.
Color:Black
Material:PCB
Package Contents:
1 * module
Detalii
| OPC | PPVH8VD |
|---|---|
| Brand | ISTOVO |
| Coduri | 6032338599714 (EAN) |
Date despre produs
| Height | 1cm |
|---|---|
| Width | 4cm |
| Length | 5cm |
| Weight | 0.003kg |
| Colour | Black |
| Material | PCB |
