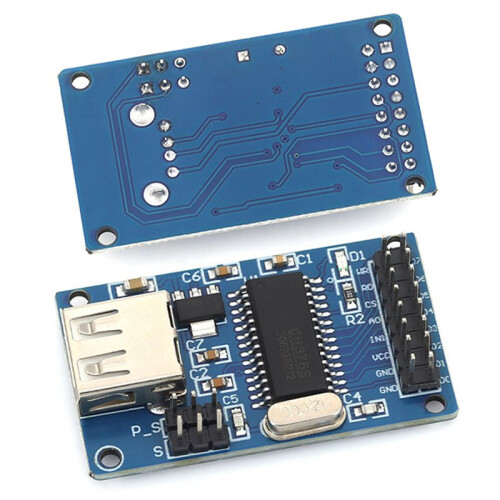

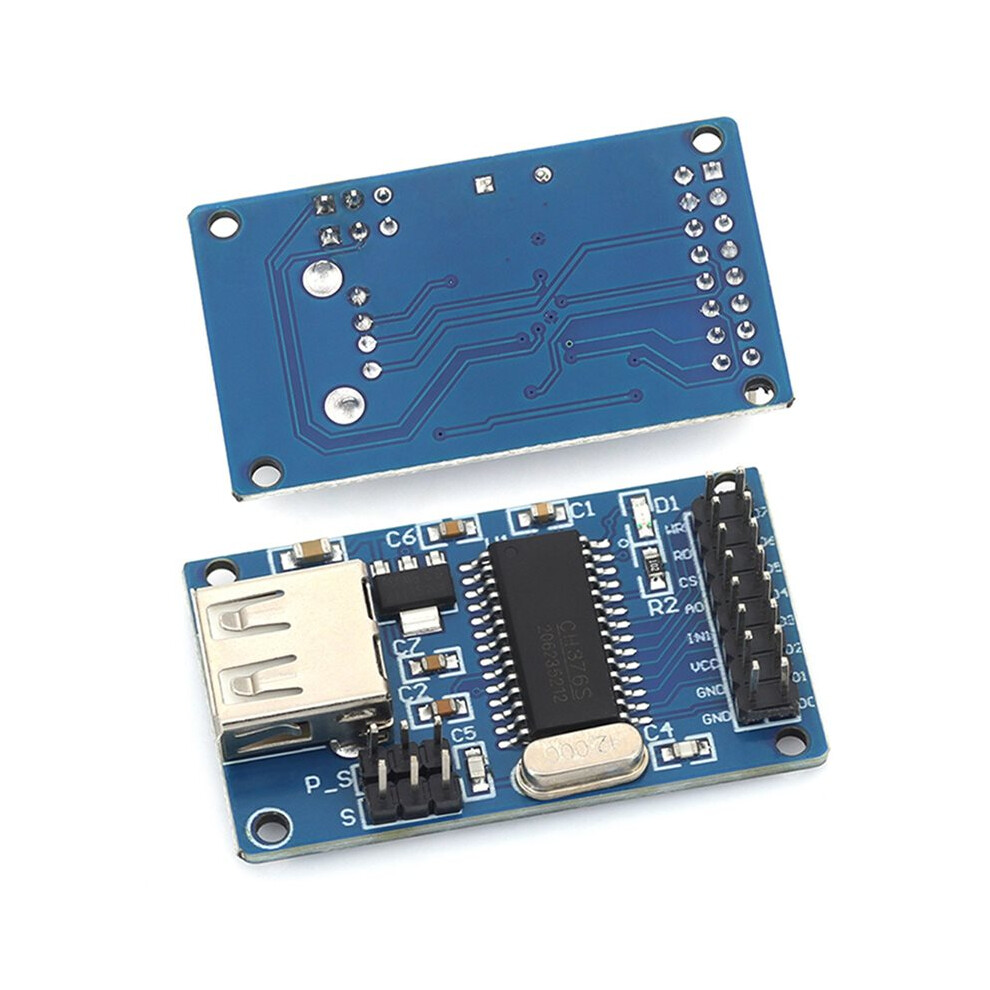

2pcs CH376S USB Module USB Disk Read/Write Module USB Main Interface Module USB Flash Drive Module Host Interface Module

Descriere 2pcs CH376S USB Module USB Disk Read/Write Module USB Main Interface Module USB Flash Drive Module Host Interface Module

the internal curing FAT file system of CH376 chip makes the file operation simple and fast
support USB storage devices including USB flash disk, USB hard disk, USB flash disk and USB card reader
support multiple communication interfaces: 8-bit parallel port, SPI interface and asynchronous serial port
compatibility: The device mode is compatible with CH372, and the host mode is compatible with CH37

1.CH376 is a universal interface chip for USB bus, with 8-bit data bus, read, write, chip select control lines, and interrupt output, which can be easily connected to the system bus of microcontrollers/DSP/MCU/MCU and other controllers. In USB host mode, CH376 also provides serial communication mode, connecting with microcontrollers/DSP/MCU/MCU through serial input, serial output, and interrupt output.
2.2X8 connector, convenient for hanging with MCU
3. According to the jumper selection, it can work in parallel or serial mode
4. USB status indicator light
5.Onboard 3.3V LDO 1117, providing a maximum current of 800MA
6. The 5V power supply is supplied by the target board
7.12MHz crystal oscillator
Color:
Material: plastic

Package Contents:
2pcs CH376S USB Module
