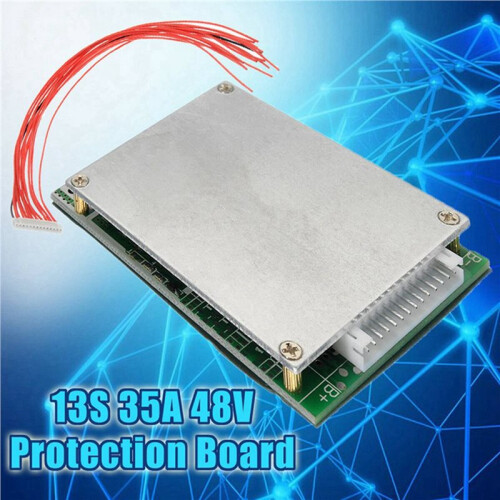

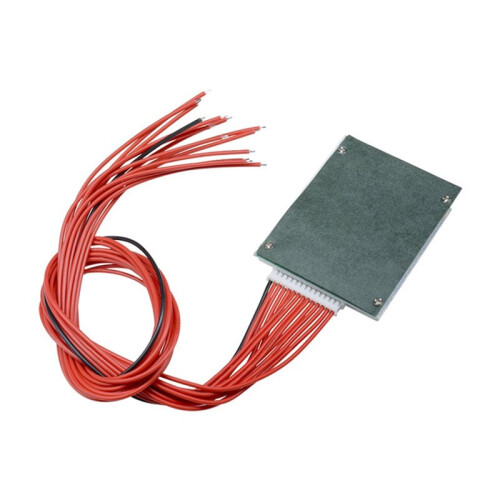

2X 13S 48V 35A Lithium-Ion Battery Charging BMS Protection Board Split with Equalizing Electric Vehicle

Descriere 2X 13S 48V 35A Lithium-Ion Battery Charging BMS Protection Board Split with Equalizing Electric Vehicle

Name: lithium battery charging and discharging protection plate
Specification: 13S 48V
Description: 13 series of 48V lithium battery protection board, battery protection board, 3 split , with equalization
Continuous discharge current: 35A (MAX)
Instantaneous discharge current: 100A

Charging voltage: 54.6V
Charging current: 8A (MAX)
Overcharge detection voltage: 4.28 0.05V
Overcharge protection delay: 100mS
Electricity balance detection voltage: 4.2 0.025V
Discharge voltage of electricity balance: 4.2 0.05V
Electricity balance current: 60 5mA
Overdischarge detection voltage: 2.55 0.08V
Overdischarge detection delay: 50mS
Overdischarge release voltage: 3.0 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 15mS
Overcurrent protection current: 120 5A
Overcurrent protection release condition: load disconnection
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Conditions for removing short circuit protection: disconnect the negative
Temperature protection:/, , settable
Internal resistance of main circuit conduction: less than equal 15m ohm
Working current: less than equal 50uA
Sleep current (when the battery is over discharged): less than equal 10uA
Temperature range: - 30/+80
Size: 69x 51 x 8mm with heat sink
Colour:silver
Material:PCB+metal

Package Contents:
2 x battery protection board
2 x flat cable
