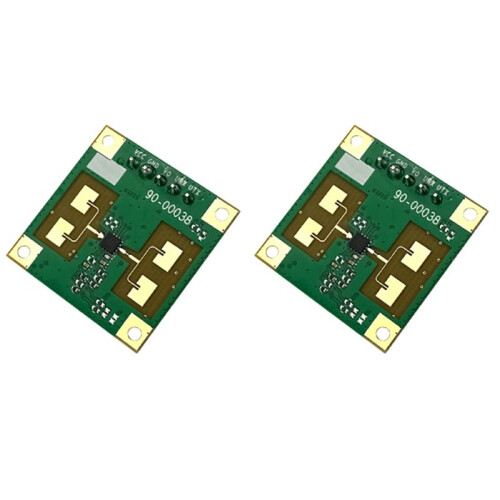

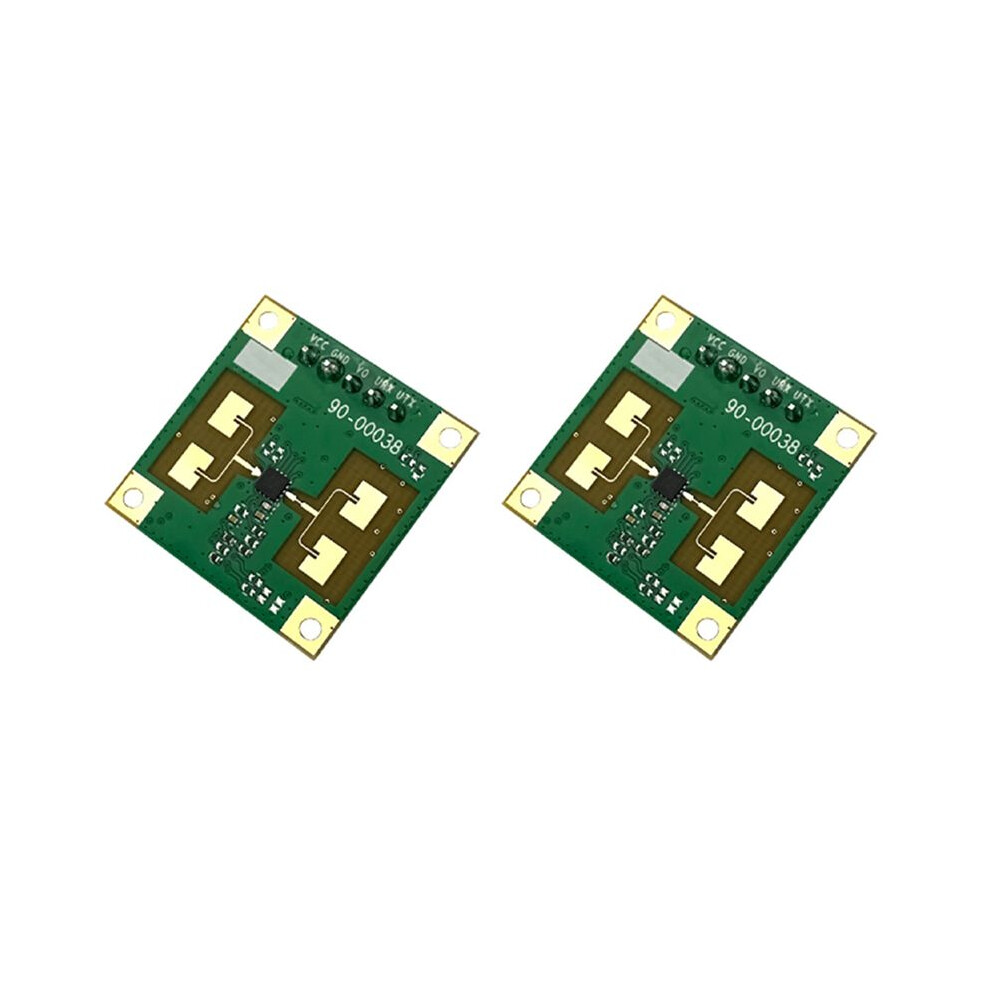

2X 24Ghz Human Presence Sensor Module TTL Serial Communication LD1115H Micro-Motion Detection
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 127,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | lun 29 iun. - vin 3 iul.
Vândut de: Papishop
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Rezumat
- Introduction
- HLK-LD1115H is a high sensitivity 24GHz millimeter wave human presence detection radar module. The main feature of this module is that on the basis of the function of the traditional human body induction radar, it also has the function of judging the existence of the human body by detecting and accumulating small movements such as human breathing.
- Therefore, the presence detection within a certain range has higher accuracy and is not easy to miss.
- LD1115H
- micro-motion detection
Descriere 2X 24Ghz Human Presence Sensor Module TTL Serial Communication LD1115H Micro-Motion Detection
Introduction
HLK-LD1115H is a high sensitivity 24GHz millimeter wave human presence detection module. The main feature of this module is that the basis of the function of the traditional human body induction , it also has the function of judging the existence of the human body by detecting and accumulating small movements such as human breathing.
Therefore, the presence detection within a certain range has higher accuracy and is not easy to miss.
Color as shown
material:PC+Metal
Specifications
Frequency 24G-24.5GHz
Modulation method CW
Detection distance Greater than 4m static human presence detection, Greater than 16m motion detection
Range hanging height , static body detection coverage radius 2m, mobile detection radiusGreater than 5m
Power supply 3.6-5V
Current 70mA
Output serial level 3.3V
Detection cycle adaptive
Antenna half power angle horizontal 57, vertical 24 (see the figure below for the definition of antenna horizontal/vertical direction)
Data format Serial port ASCII output/high and low level
Startup about 15 seconds
Package Contents:
2pc 24GHz millimeter wave human presence detection module
Detalii
| OPC | PTRH8XH |
|---|---|
| Brand | Typecat |
| Coduri | 4714120365128 (EAN) |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 3cm |
| Length | 3cm |
| Weight | 0.004kg |
| Colour | as shown |
| Material | PC+Metal |
