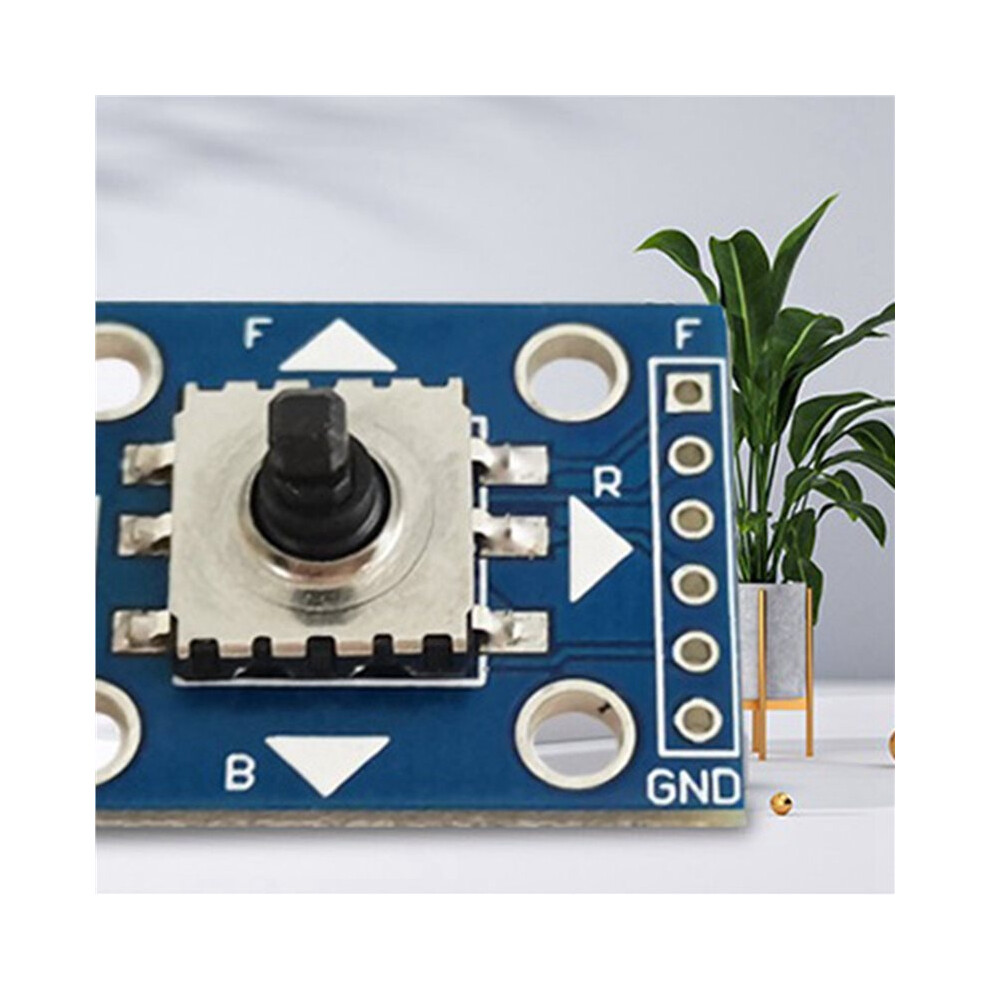

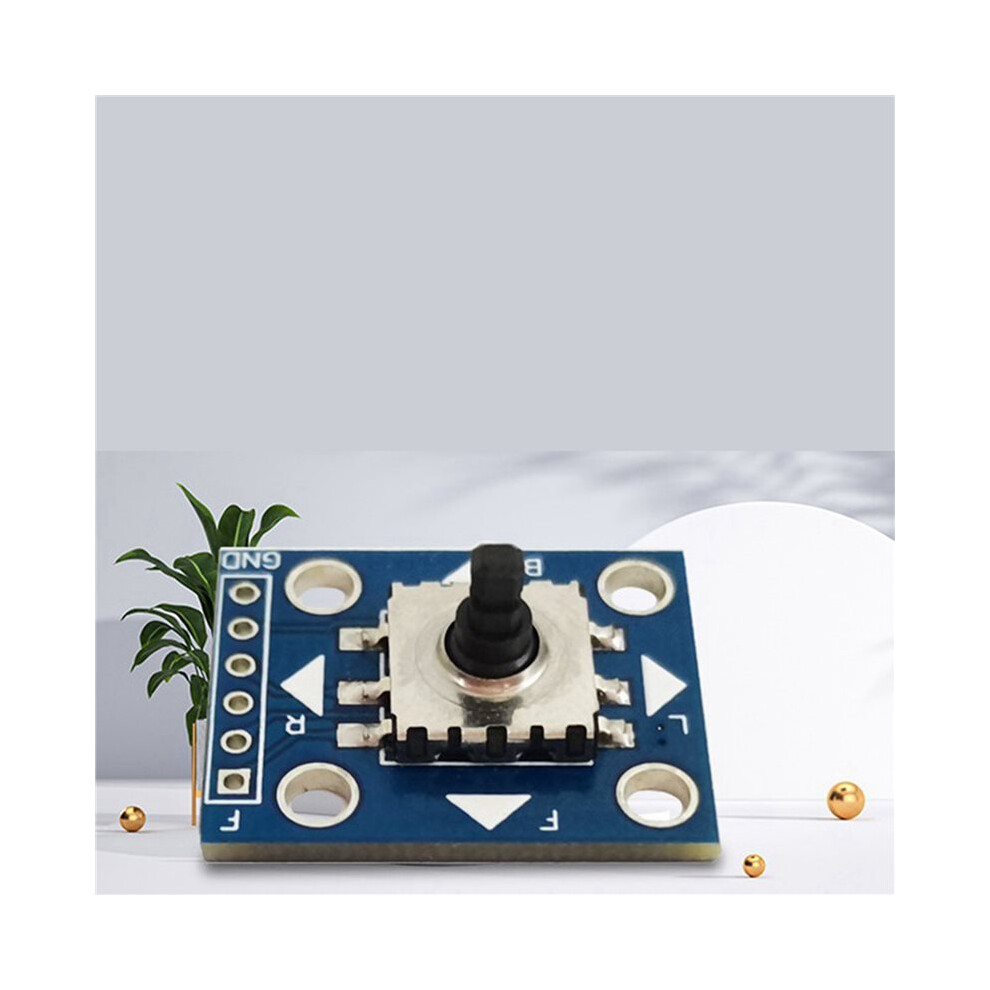

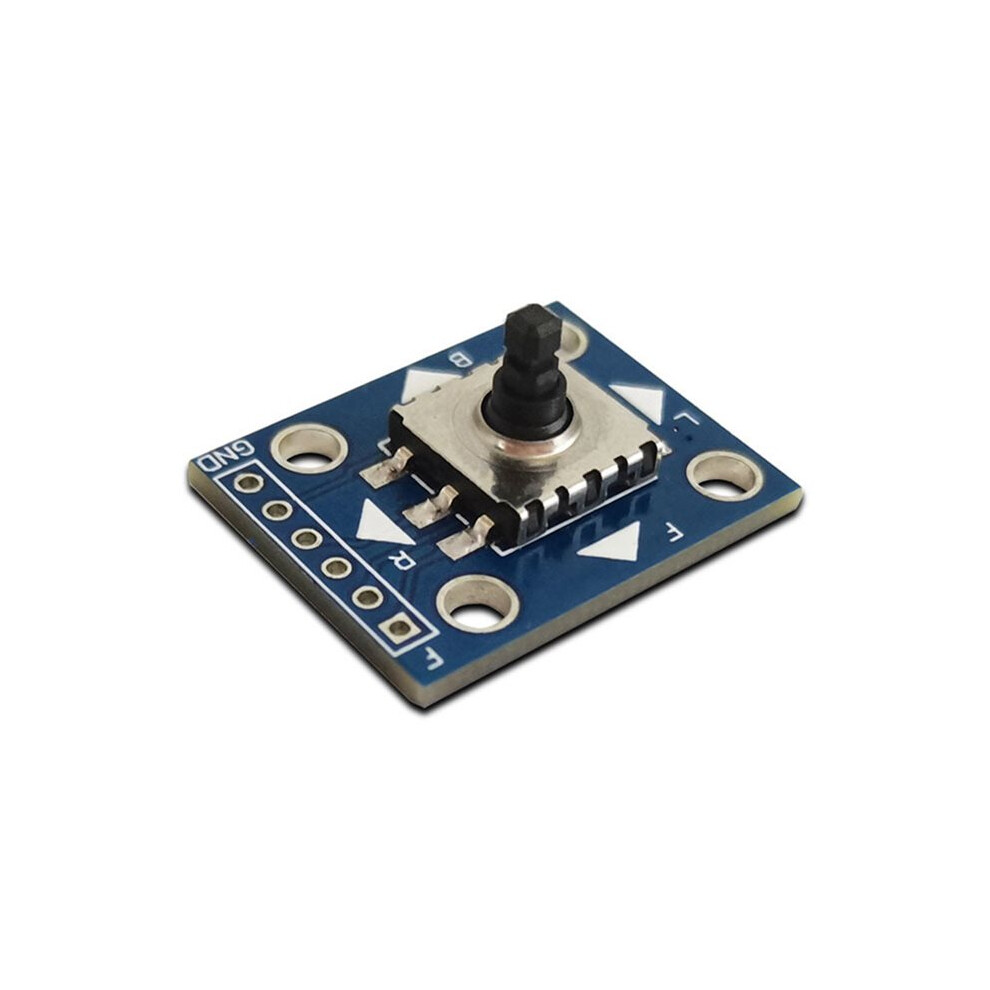

2X 5-Way Navigation Key Module 5D Rocker Microcontroller Multi-Function Portable Convenient Keyboard Module

Descriere 2X 5-Way Navigation Key Module 5D Rocker Microcontroller Multi-Function Portable Convenient Keyboard Module

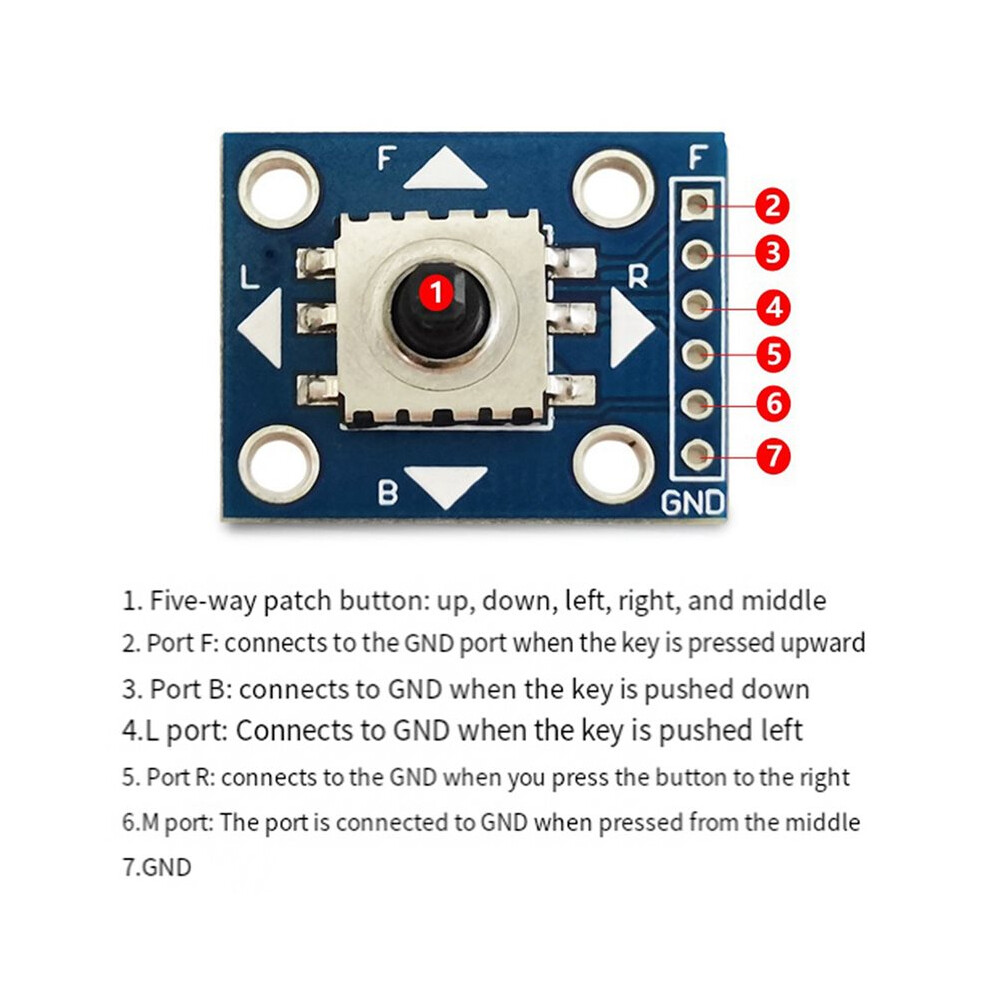

Features: 1. The Module Is Equivalent To 5 Independent Key Switches
2. Set The Pin Header And Connect It To The Io Port Of The Microcontroller Through The Pin Header.
3. The Five-Way Module Can Control The Five Io Of The Microcontroller By Moving , Down, Left, Right, And In The Middle. It Has The Advantages Of Simple Operation And Stable Function.

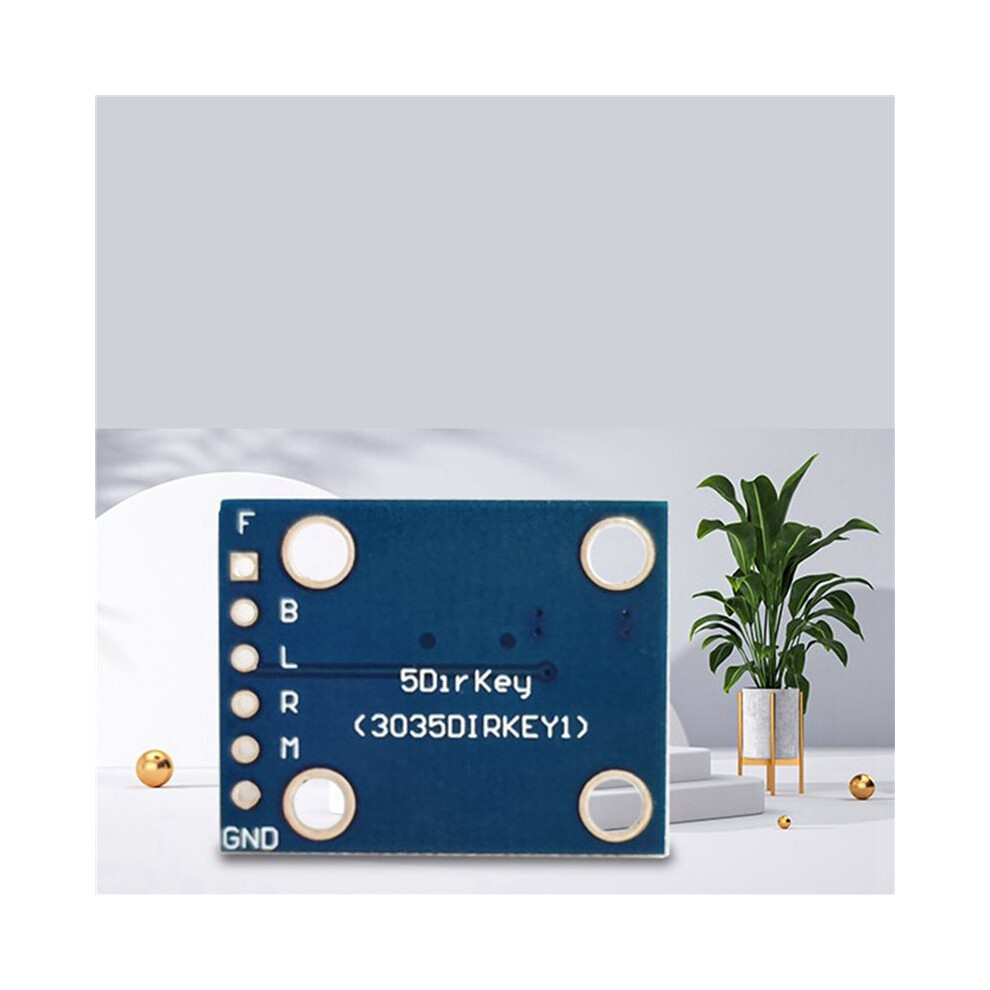

4. Solder The Pin Header And Use for Dupont Wire To Connect The Gnd Port To The Gnd Of The Microcontroller Or Other Modules; Connect The Pins In The Five Directions To The Corresponding Io Port Pins Of The Microcontroller;
5. When The Button Is Toggled, The Corresponding Io Port Will Be Short-Circuited With Gnd To Set The Level Status Of The Io Port To 0. Therefore, The Microcontroller Is Set To The Bidirectional 1o Port Mode. When The Button Is Pressed, The Level Status Is 0. The Level State Is 1 When Pressed.

Description:
Product Model: Five-Way Module
Product Name: Module
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
size: About 24 x 20mm
Material: PCB
colour: As shown

Package Contents:

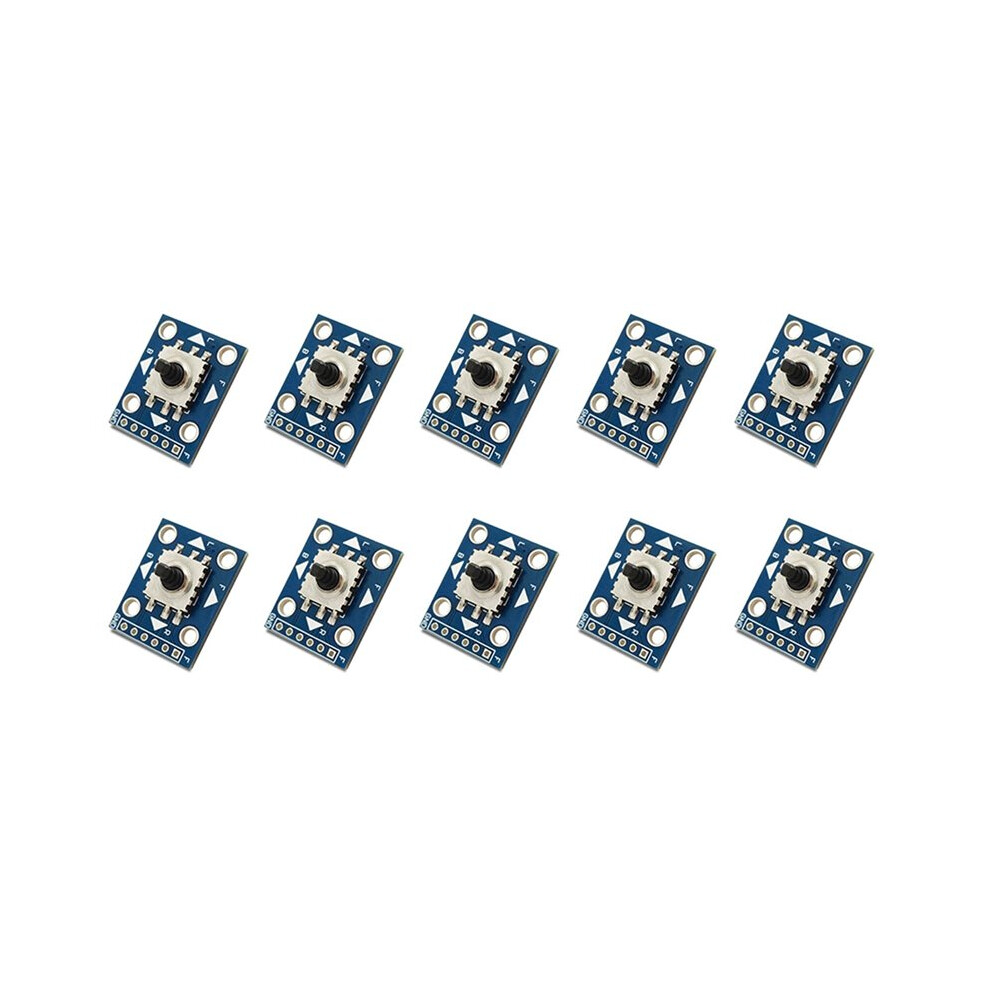

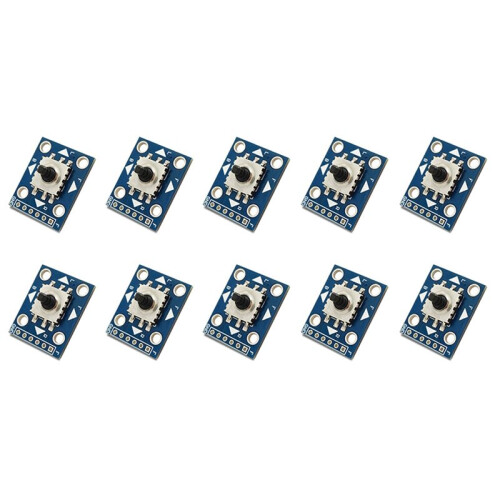

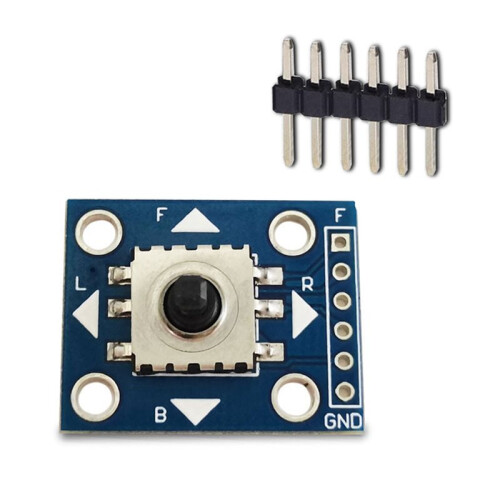

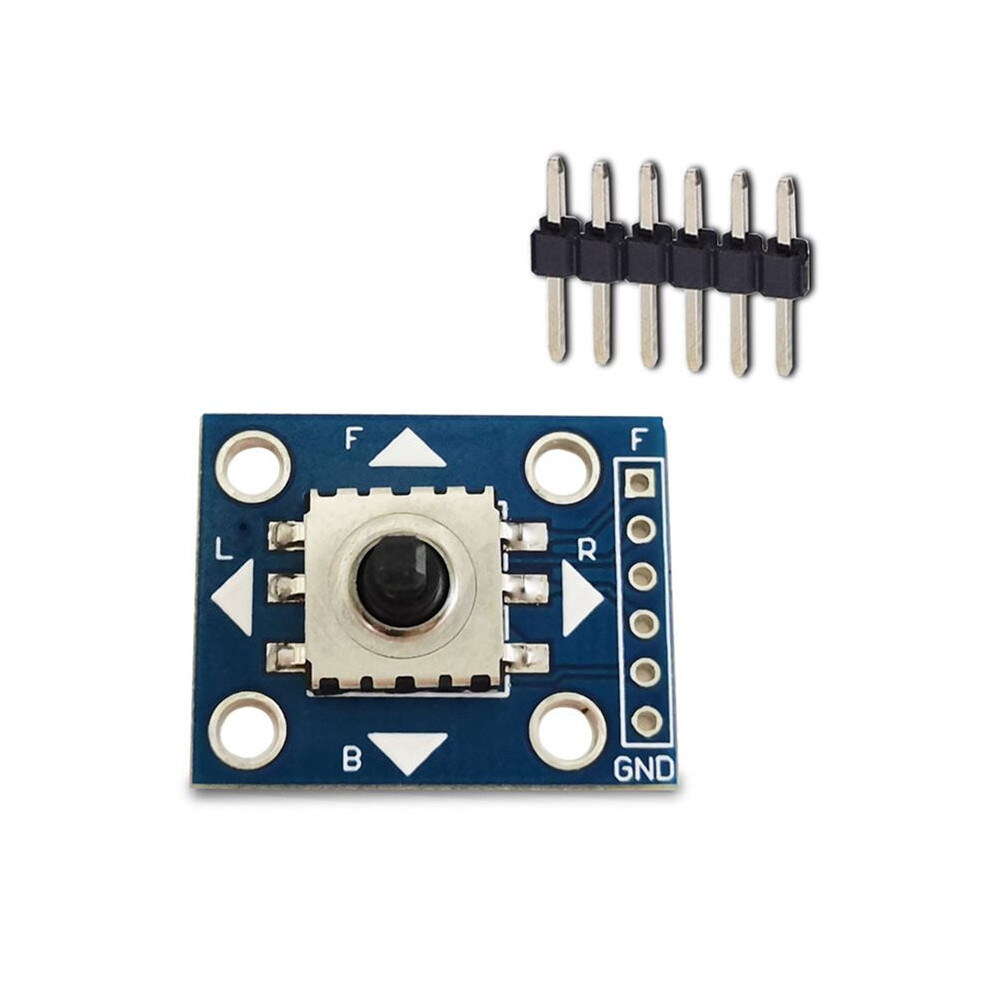

20 x 5-Way Module
20 x Single Row Of Pins 6pin
