2X Controller Card ST38 PCIe X1 CH382L DB-25 Pin Industrial for LTP Print Terminal Multi-Function

Descriere 2X Controller Card ST38 PCIe X1 CH382L DB-25 Pin Industrial for LTP Print Terminal Multi-Function

CH382 Is A Dual Serial Port And Printing Port Chip For Pci-Express Bus,Include 2 Asynchronous Serial Port Compatible for 16C550/16C750 And An EPP/ECP Enhanced Bidirectional Parallel Port.Asynchronous Serial Port Provides An Independent 256-Byte Fifo Buffer For Sending And Receiving,Supports A Communication Baud Rate Of 8mbps,Can Be Used For RS232 Serial Port Expansion Of The PCI-E Bus,Pci-E High-Speed Serial Port With Auto Hardware Rate Control,Serial Port Networking,And RS485 Communication,Etc
The Same Chip Can Be Configured As Dual Serial , Single Parallel Port/Printing Port, Or Dual Serial Parallel Port/Printing Port Of The PCI-E Bus.
Provides A Two-Wire Serial Host Interface, Which Can Be Connected To A Serial Eeprom Device Similar To 24c0x For Storing Non-Volatile Data.
The Device Identification (Vendor Id, Device Id, Class Code, Etc.) Of The Pcie Board Can Be Set In The Eeprom Device.
3.3V Power Supply Voltage, Main I/O Pins Support 5V Withstand Voltage, And Support Serial Port Low-Power Sleep Mode.

Description:
Parallel port:
Supports for SPP, Nibble, Byte, PS/2, EPP, ECP and other IEEE1284 parallel port/printing port working modes.
Supports two-way data transmission, supporting transmission speeds to 1M bytes/second.
Operating system:
for Windows 98SE/ME/NT 4.0/2000/XP/Vista/Server2003/Win 7, Linux
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Material: PCB
colour: As Shown

Package Contents:

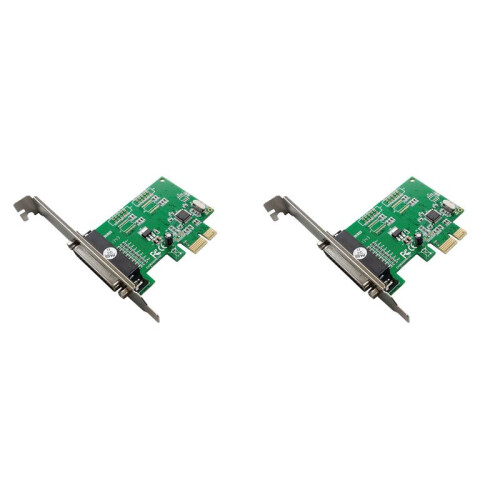

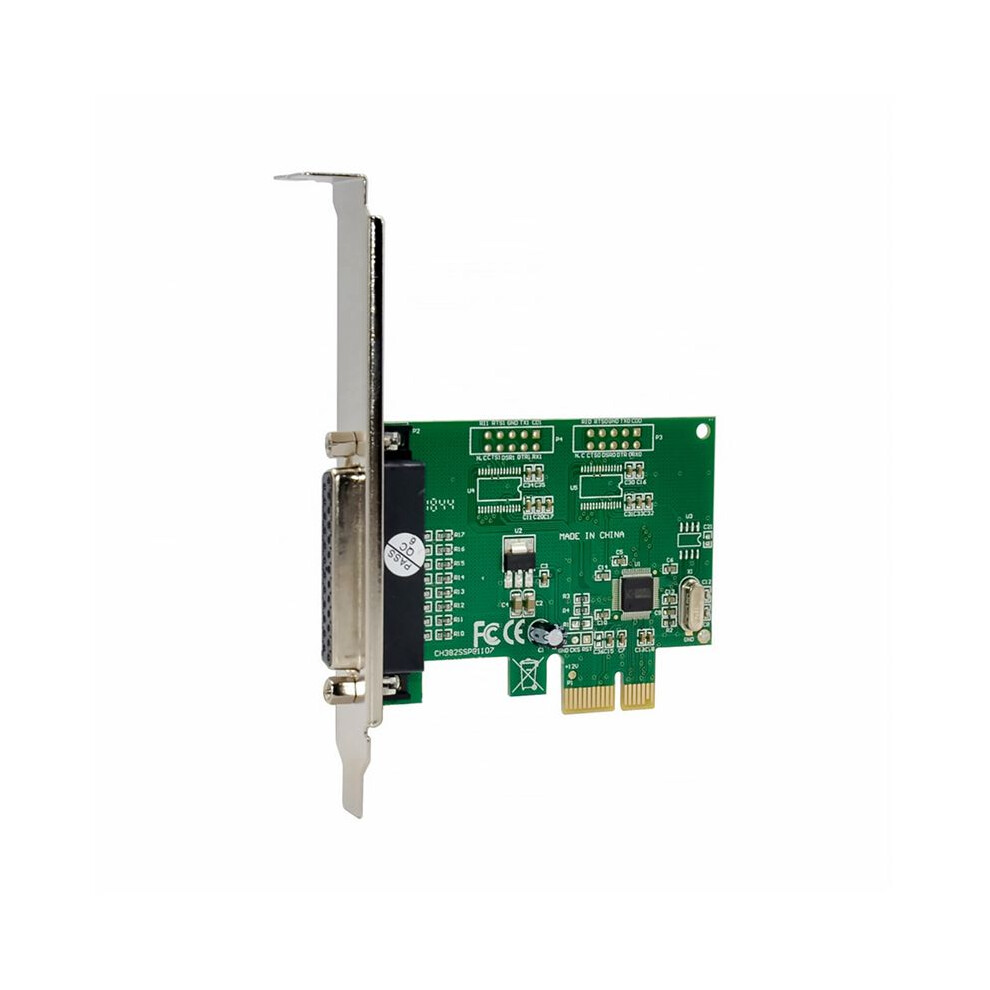

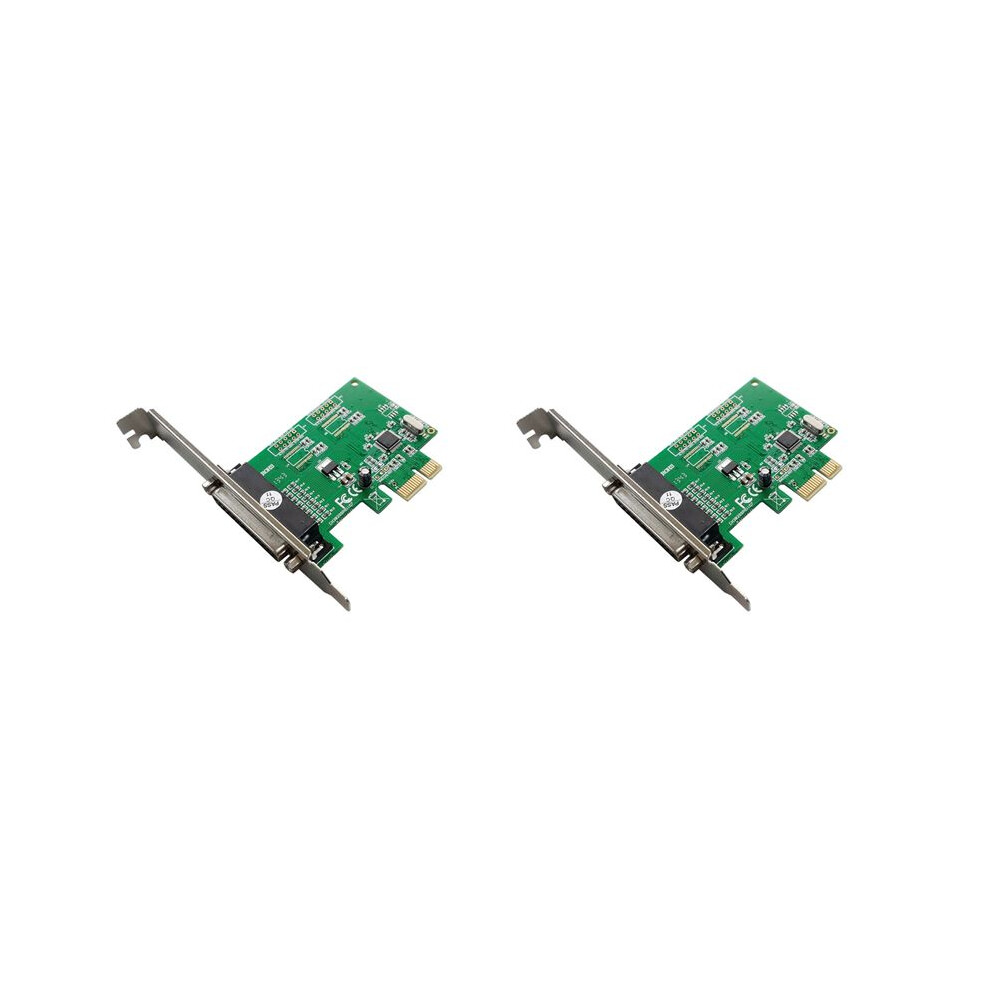

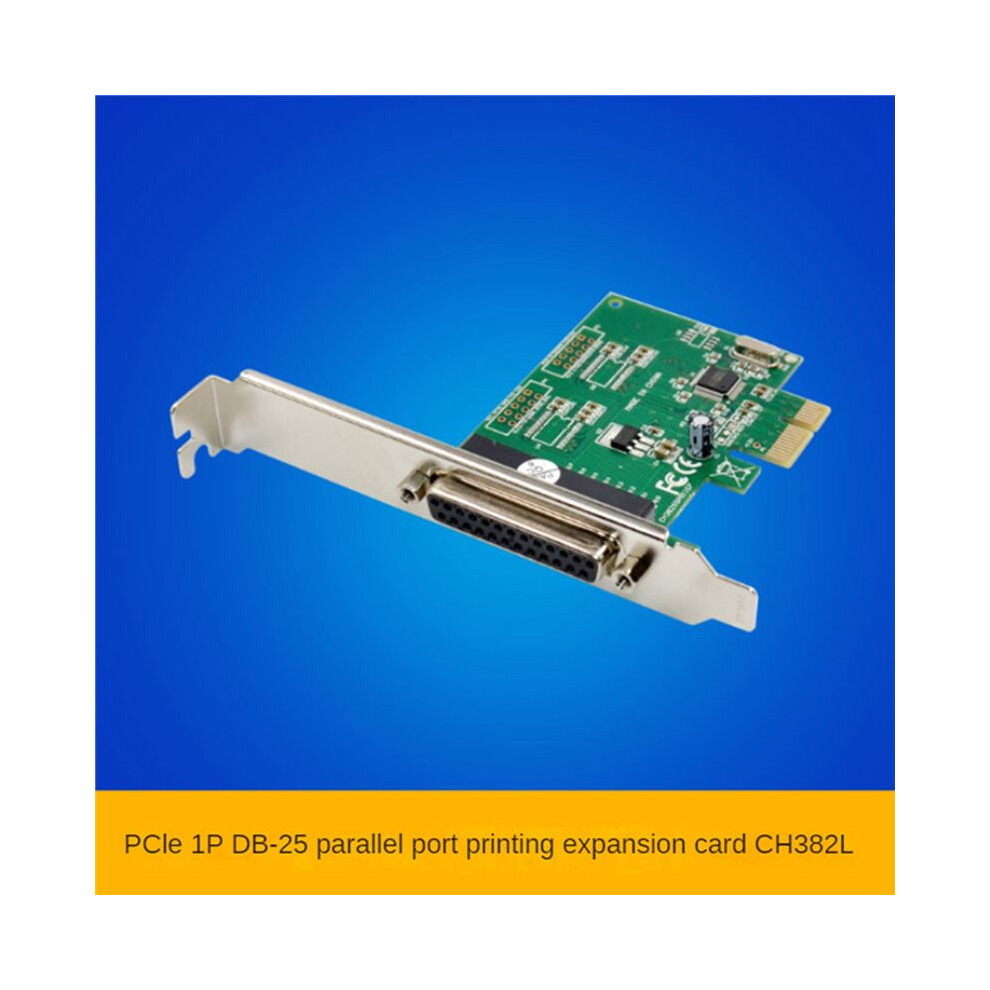

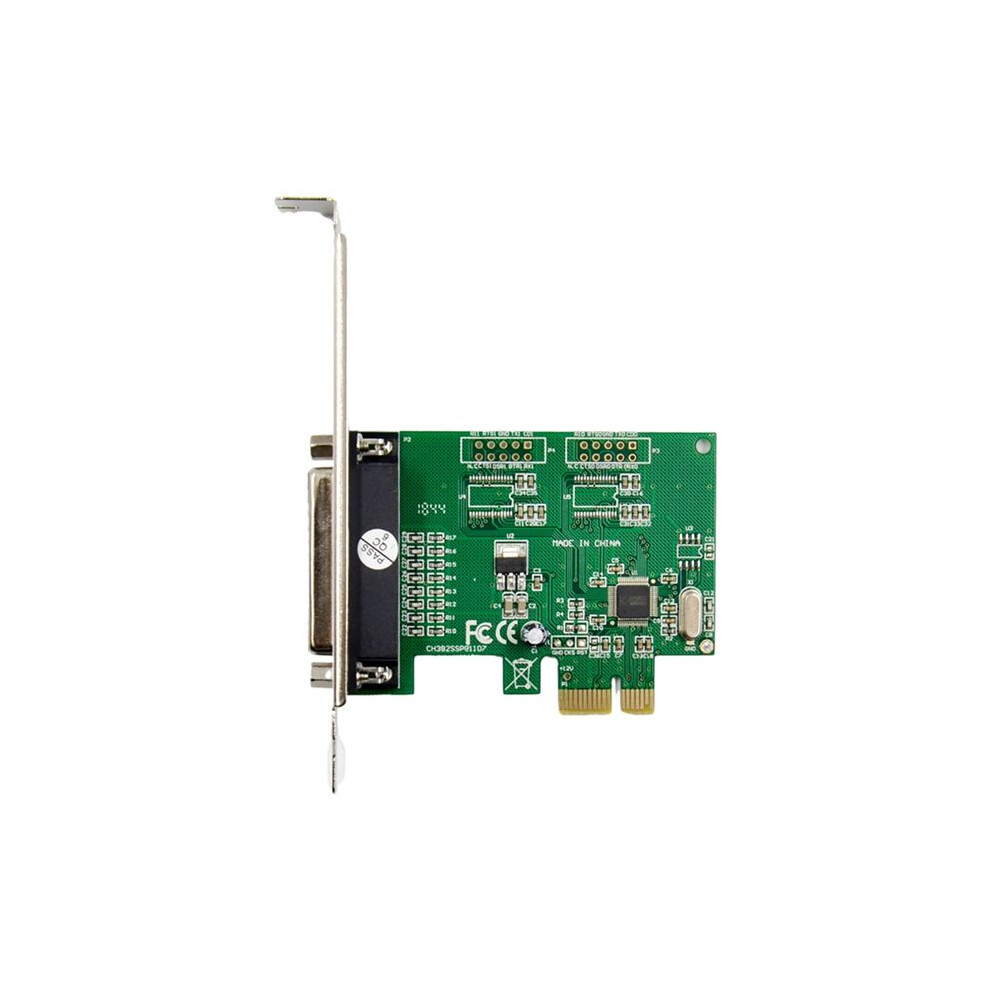

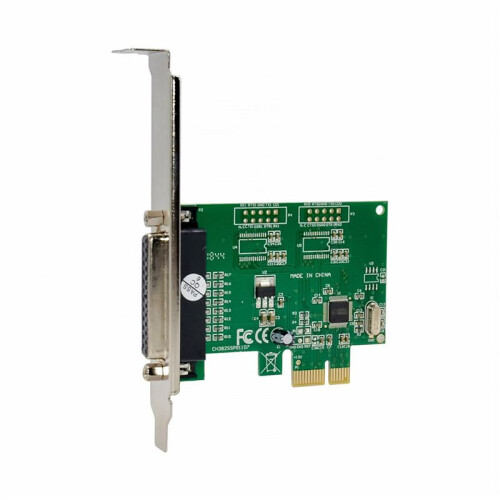

2 x CH382L PCI-E Parallel Port Card
2 x Short Iron Piece
2 x CD-Driver
