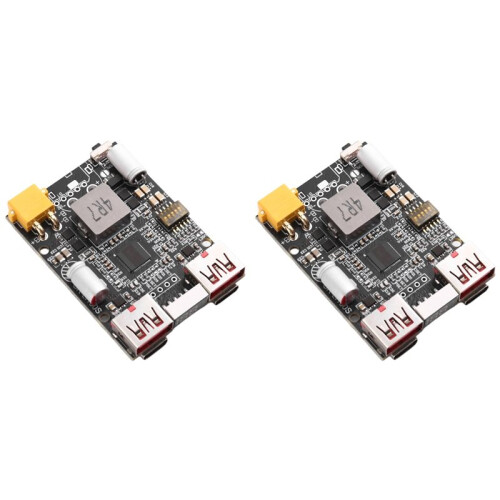

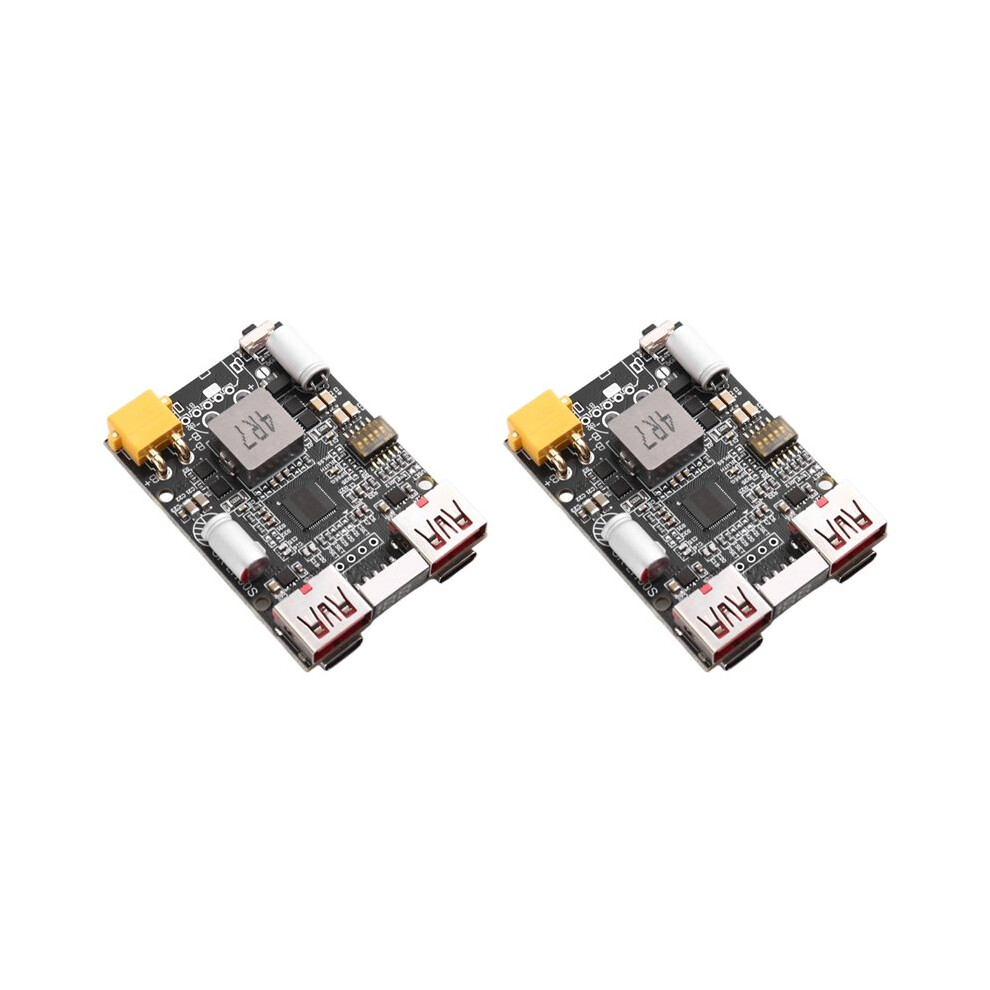

2X DC5-20V 2-7S 100W Charging Module FastCharging Mobile Power Motherboard Support Lithium Battery,A

Descriere 2X DC5-20V 2-7S 100W Charging Module FastCharging Mobile Power Motherboard Support Lithium Battery,A

1. Support 2-7S lithium batteries, strong applicability, to meet the needs of a variety of battery combinations
2. 100W high power output, fast charging speed, save waiting
3. Main uses: outdoor power supply, storage equipment, backup power, mobile power DIY, etc.
4. Compatible with lithium batteries and lithium iron phosphate batteries, support for lifting voltage charging and discharging.
5. High-efficiency conversion rate, low heat generation design, enhance the use of safety and life expectancy

Parameter:
Input voltage: 5-20V (lift voltage type)
Maximum 100W charging and discharging
Supports 2-6S lithium batteries
Supports 2-7S lithium iron phosphate
Battery standby power consumption: 80μA
Module interface:
B+: connect to the positive pole of the battery protection board
B-: connect to the negative pole of the battery protection board
TYPE-C port: input and output bi-directional port
USB: with protocol output interface
Digital display for the coulometer display, the beginning of the inadmissible, calibration needs to be discharged to the battery can not be discharged, and then full of the battery to can not be recharged, the calibration is completed once.
Support protocols:
Support UFCS, VOOC, WARP, for 2.4, AFC 9V/12V, PD2.0/3.0/3.1
PPS, FCP, QC2.0/3.0/3.0+, SCP, and other protocols Most models support fast charging.
Other niche brands can also be supported if they support PD, QC common protocols.
Specification:A:Basic
Color:As Shown
Material:PC

Package Contents:
2 x Module
