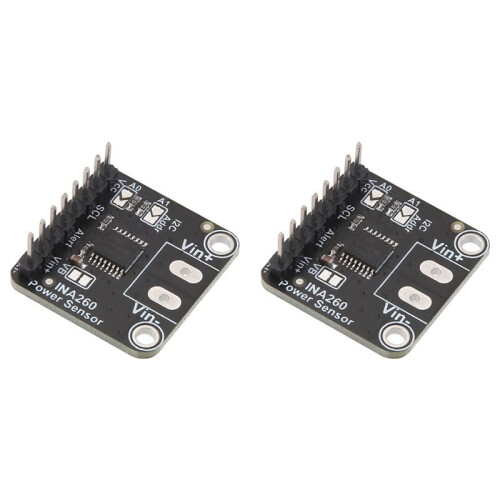

2X INA260 Detection Sensor Module High or Low Side Voltage Current Power Sensor Portable Module
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 132,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (47,64 RON) | vin 4 - joi 10 sept.
Vândut de: Zemaoxia
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Rezumat
- 1. Not Only Can It Do The Work Of Two Multimeters, But It Can Do It With Amazing Accuracy And Flexibility. With It You Can Measure High Or Low Side Dc Current, Bus Voltage And Have It Automatically Calculate The Power. It Does This With Better Than 1% Accuracy Over An Impressive Voltage, Current, And Temperature Range, While Transmitting Data In An Easy-To-Use Format Over I2c.
- 2. Works Perfectly With for Any Circuitpython Or for Arduino Compatible Microcontroller As Well As Single Board Computers Such As for Raspberry Pi. It Is Compatible With 3v Or 5v Logic And Can Measure Bus Voltages Up To +36vdc. Not Suitable For Ac Voltage.
- 3. The Voltage Across The Integrated 2 Milliohm (0.002 Ohm!), 0.1% Shunt Resistor Is Measured By An Internal 16-Bit Adc, Allowing An Impressive Current Range To Be Measured With 1.5 Ma Resolution. (The Resistance Of The Resistor Is So Low That Some Multimeters Will Register It As A Short Circuit!)
- 4. In High-Side Configuration, The Bus Voltage Measurement And Power Calculation Can Be Retrieved Accurately, But Advanced Hackers Who Want To Measure The Bus Voltage In Low-Side Configuration Need To Cut The Jumper Connecting V+ And Vbus And Connect The Vbus Pin To The Voltage Bus.
- Power Sensor Module

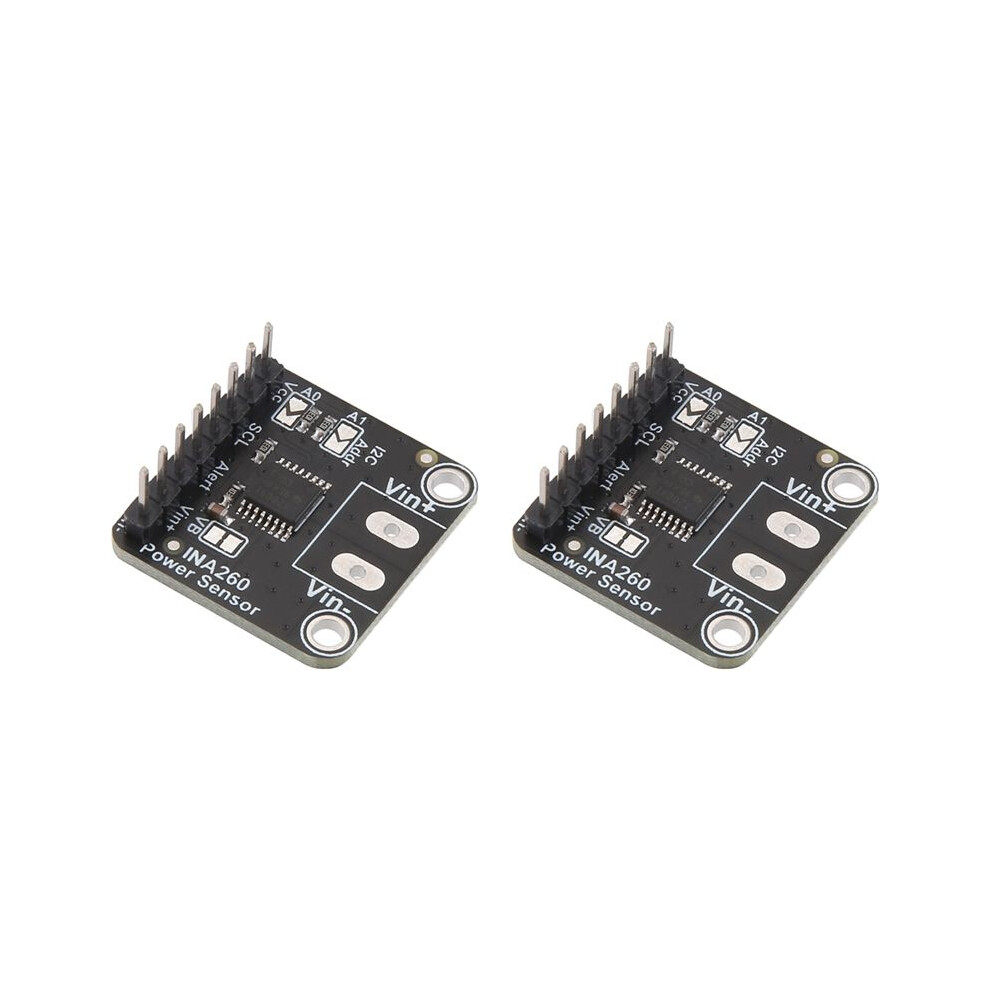

Descriere 2X INA260 Detection Sensor Module High or Low Side Voltage Current Power Sensor Portable Module
1. Not Only Can It Do The Work Of Two Multimeters, But It Can Do It With Amazing Accuracy And Flexibility. With It You Can Measure High Or Low Side Current, Bus Voltage And Have It Automatically Calculate The Power. It Does This With Better Than 1% Accuracy Over An Impressive Voltage, Current, And Temperature Range, While Transmitting Data In An Easy-To-Use Format Over I2c.
2. Works Perfectly With for Any Circuitpython Or for Compatible Microcontroller As Well As Single Board Computers Such As for Raspberry Pi. It Is Compatible With 3v Or 5v Logic And Can Measure Bus Voltages To +36vdc. Not Suitable For Ac Voltage.
3. The Voltage Across The Integrated 2 Milliohm (0.002 Ohm!), 0.1% Shunt Resistor Is Measured By An Internal 16-Bit Adc, Allowing An Impressive Current Range To Be Measured With 1.5 Ma Resolution. (The Resistance Of The Resistor Is So Low That Some Multimeters Will Register It As A Short Circuit!)
4. In High-Side Configuration, The Bus Voltage Measurement And Power Calculation Can Be Retrieved Accurately, But Advanced Hackers Who Want To Measure The Bus Voltage In Low-Side Configuration Need To Cut The Jumper Connecting V+ And Vbus And Connect The Vbus Pin To The Voltage Bus.
Most Current Measuring Devices Operate With Some Significant Limitations That Limit Their Usefulness. Many Are Low Side Only, Which Can Cause Problems When The Ground Reference Changes With Current Flow. Other Devices, Such As Its Sister Ina219b, Avoid This By Measuring The High Side, But Require Changing Their Shunt Resistor To Measure A Different Current Range. The Ina260 Avoids These Limitations And With Its Integrated Precision Shunt Resistor It Can Be Used To Continuously Measure Currents To 15A At +36V The High Or Low Side.
Type:Detection Sensor
Note:Different Batches May Have Differences In Product Appearance, Color, And Pr
Detalii
| OPC | PXPS9BM |
|---|---|
| Coduri | 4713302208659 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 4cm |
| Length | 5cm |
| Weight | 0.004kg |
| Colour | As Shown |
| Material | FR-4 |
