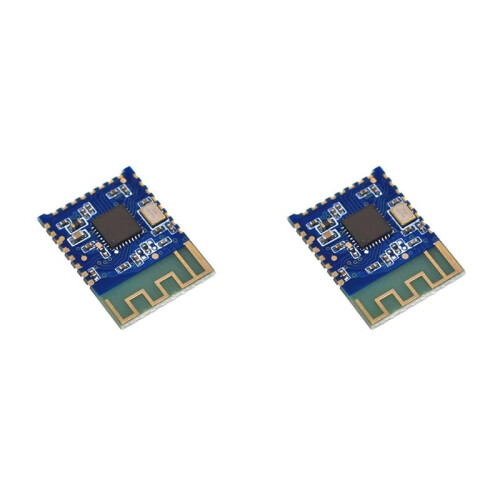

2X JDY-25M Module MESH Zigbee Bluetooth5.0 Master-Slave Transparent Transmission UART 1.9-3.6V 80M Distance

Descriere 2X JDY-25M Module MESH Zigbee Bluetooth5.0 Master-Slave Transparent Transmission UART 1.9-3.6V 80M Distance

JDY-25M function supports master-slave transparent transmission, for iBeacon, BLE probe, for iBeacon detection, MESH networking, and the maximum number of MESH networking supports 65280 device networking, adopts multi-wireless anti-collision technology, and the networking communication speed supports 50mS transmission 12-byte data,
a single module supports router nodes and terminal nodes, router nodes support data relay (low power consumption is not supported), terminal nodes support low power consumption (automatic sleep after key-press wake- sending data).
Support the transparent transmission of APP data with mobile phones (for IOS, ANDROID) (working current is about 1mA)
Support module and module master-slave high-speed transparent transmission
Support for iBeacon function (ultra low power consumption)

Support for iBeacon probe function
Support BLE probe function
Support multi-connected slave mode, multi-connected slaves can be connected with multiple mobile phones, and transparent transmission at the same
Support MESH (network serial data communication, output IO control, input button control) networking
MESH network sending data supports response and no response communication
Networking remote control
Multi-connected master-slave hybrid connection (the master is connected to the slave at the same , and the slave is connected to the mobile phone at the same , working at the same )
Working voltage: 1.9-3.6V
Working temperature: -40-85C
Maximum transmit power: +4dbm
Communication distance: 80m
-compatible version: BLE5.0
Antenna: PCB onboard antenna
Antenna gain: -3dbi
Receiving sensitivity: -96dbm
Communication interface: UART
Color:
Material: PCB

Package Contents:
2 x Blu
