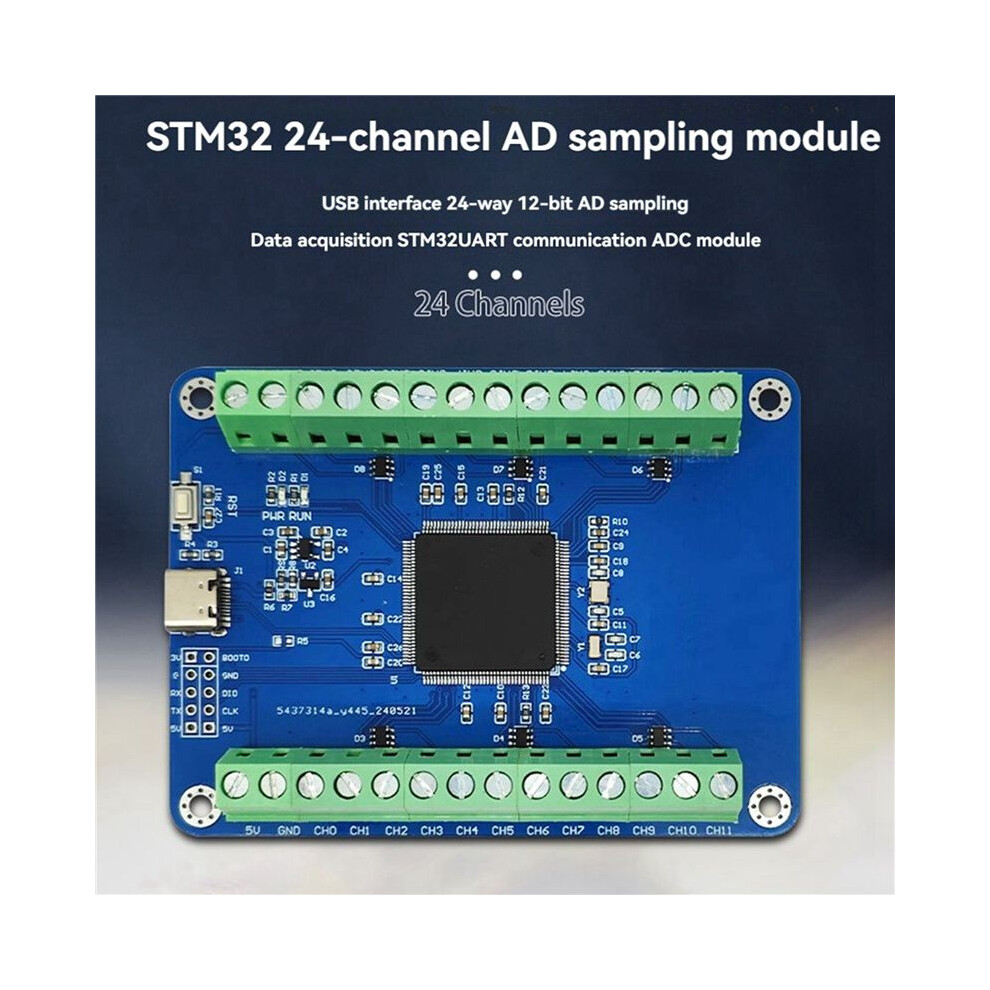

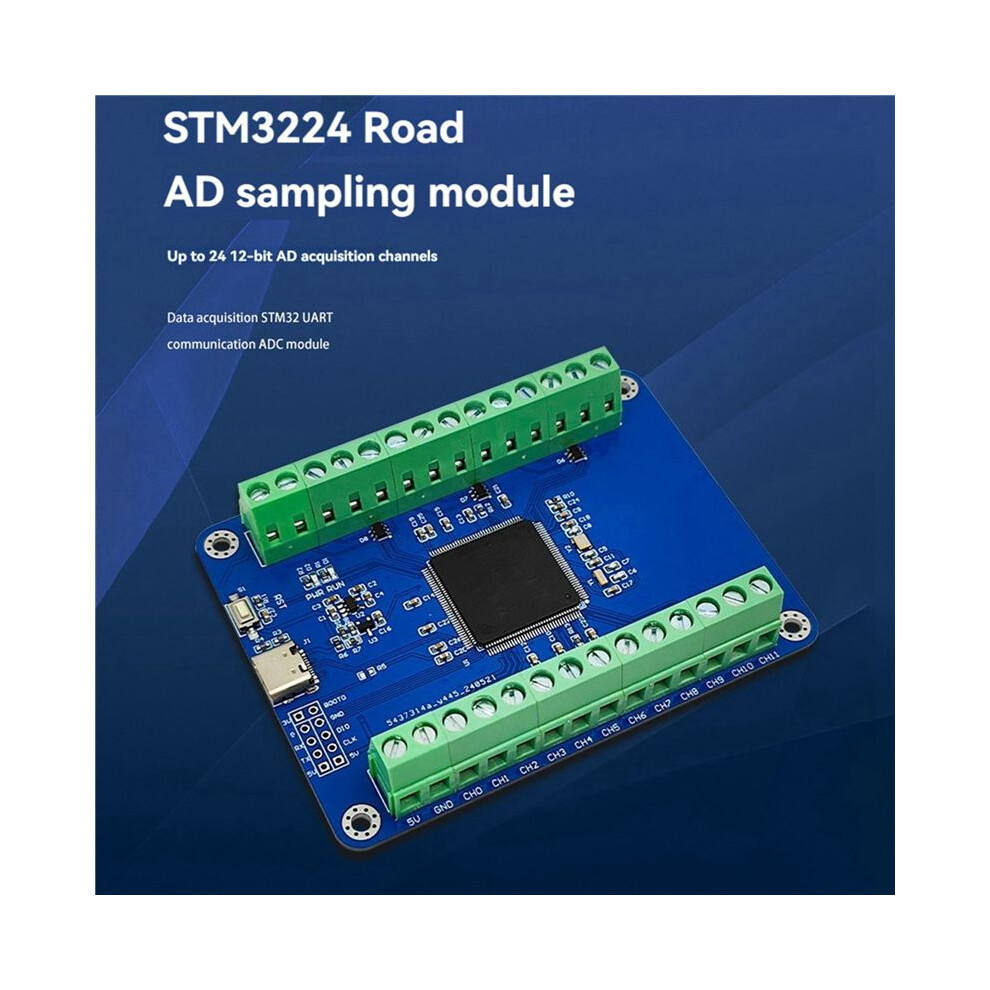

2X Sampling Module STM32F407ZET6 24-Channel 12Bit AD Sampling Module Data Acquisition Type-C Interface Module

Descriere 2X Sampling Module STM32F407ZET6 24-Channel 12Bit AD Sampling Module Data Acquisition Type-C Interface Module

1. Supports 24 channels of simultaneous measurement of ADC values, the input voltage is 0~3V, and each ADC port has added TVS protection. The measurement speed can be changed through AT commands, with a maximum upload speed of 10K times per second. Cooperate with Vofa+ host computer to display the voltage waveform in real .
2. The main control chip uses STM32F407ZET6 as the main control chip. The measurement input voltage range is 0~3V and cannot be used with overvoltage. Multiple upload rates can be set, to 10K times. Works with Vofa+ host computer to display voltage waveforms in real .

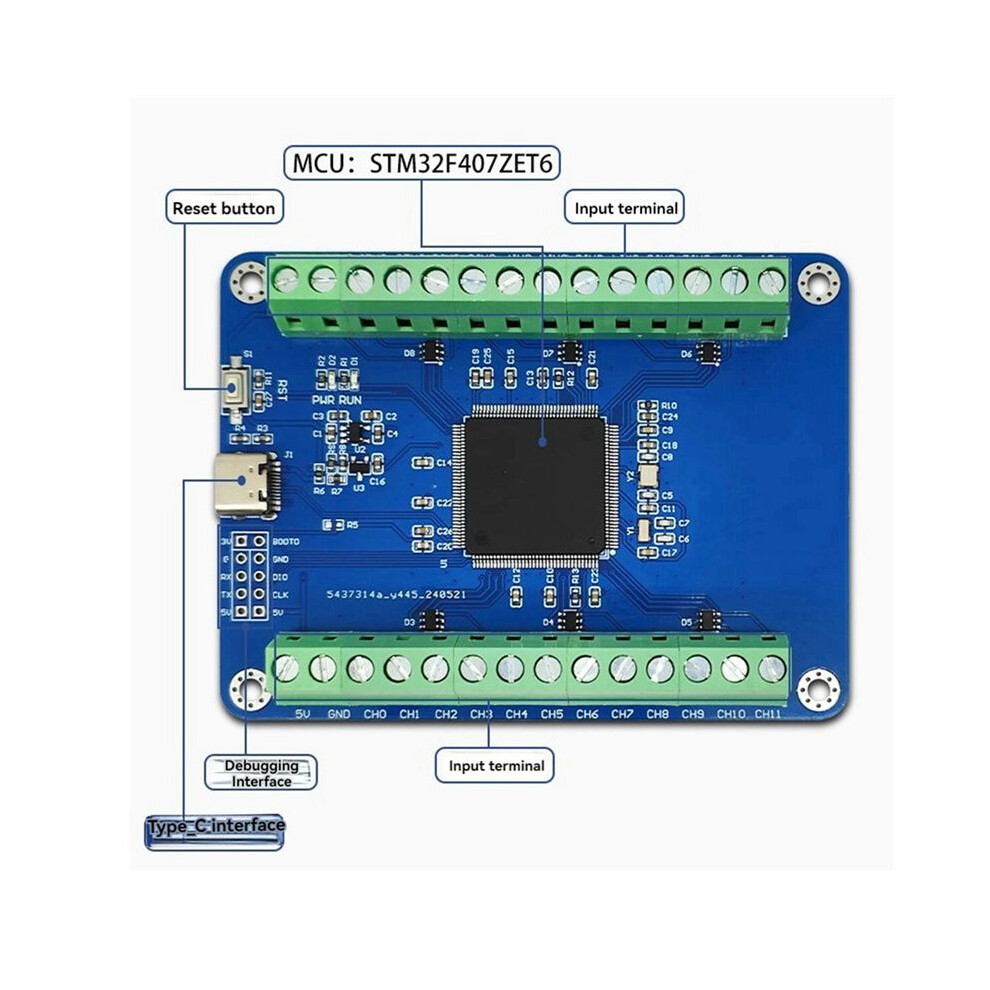

3. Debugging interface, 24 channels of simultaneous measurement lead to the microcontroller debugging interface. You can develop your own firmware. Type-C interface for power supply and data transmission. The Type-C interface uploads the calculated voltage value and the serial port uploads the ADC value. Onboard red power light, running Indicator light, reset button

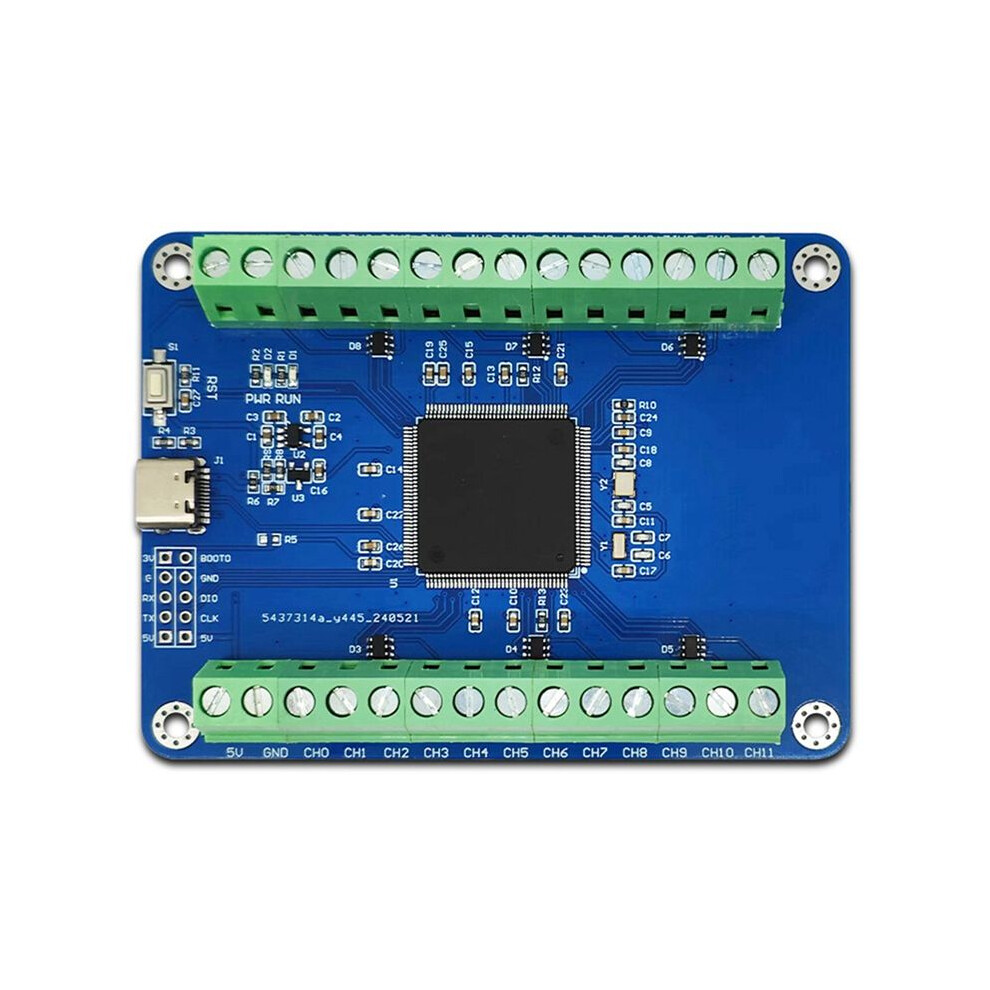

4. STM32F407ZET6 24 channels; 12Bit AD sampling module
5. Data acquisition Type-C interface module

1. Product name: STM32 24-channel AD sampling module
2. Product size: About 68x90mm
3. Product interface: Type-C Interface Power Supply
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Colour:As Shown
Material:FR-4

Package Contents:

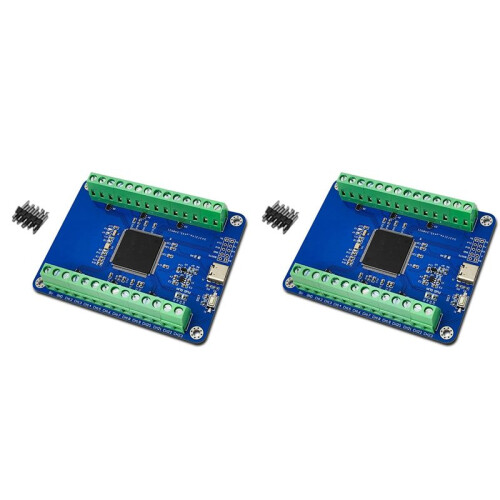

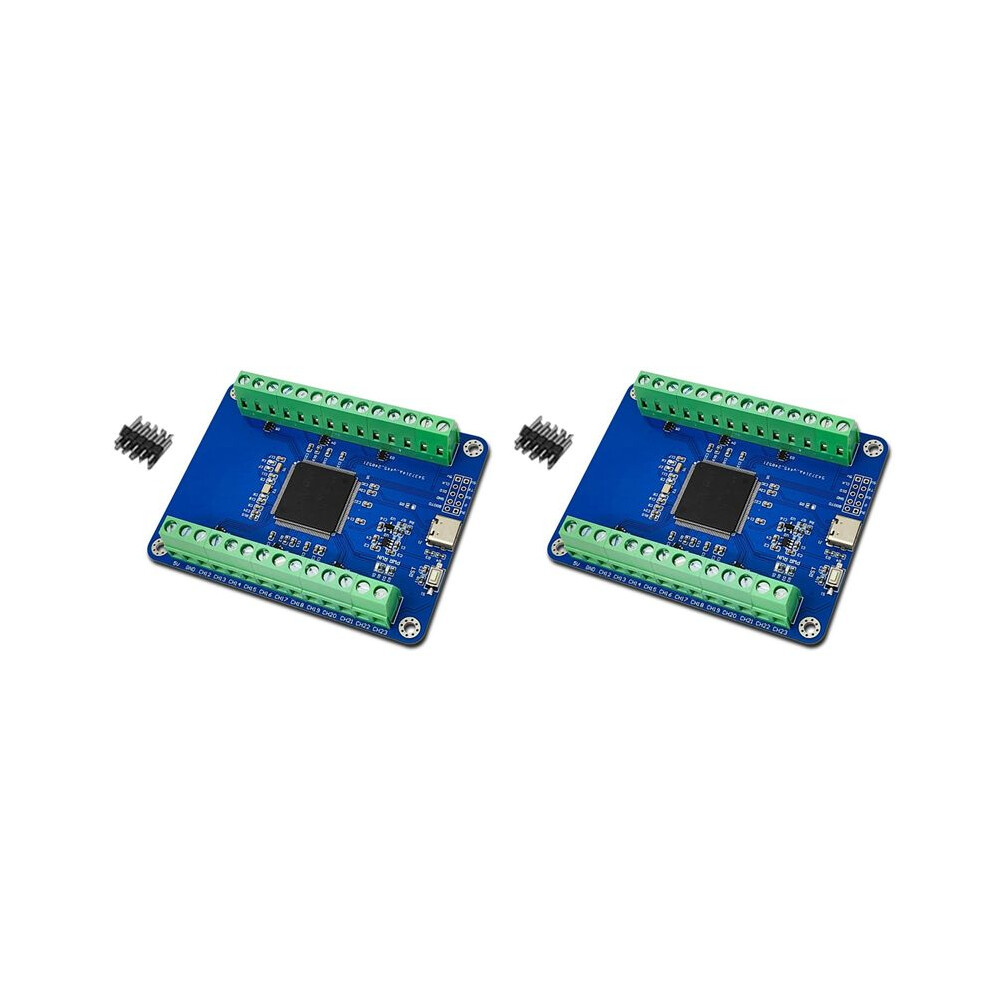

2 x STM3224 AD Sampling Module
2 x 5P Double Row Pin
