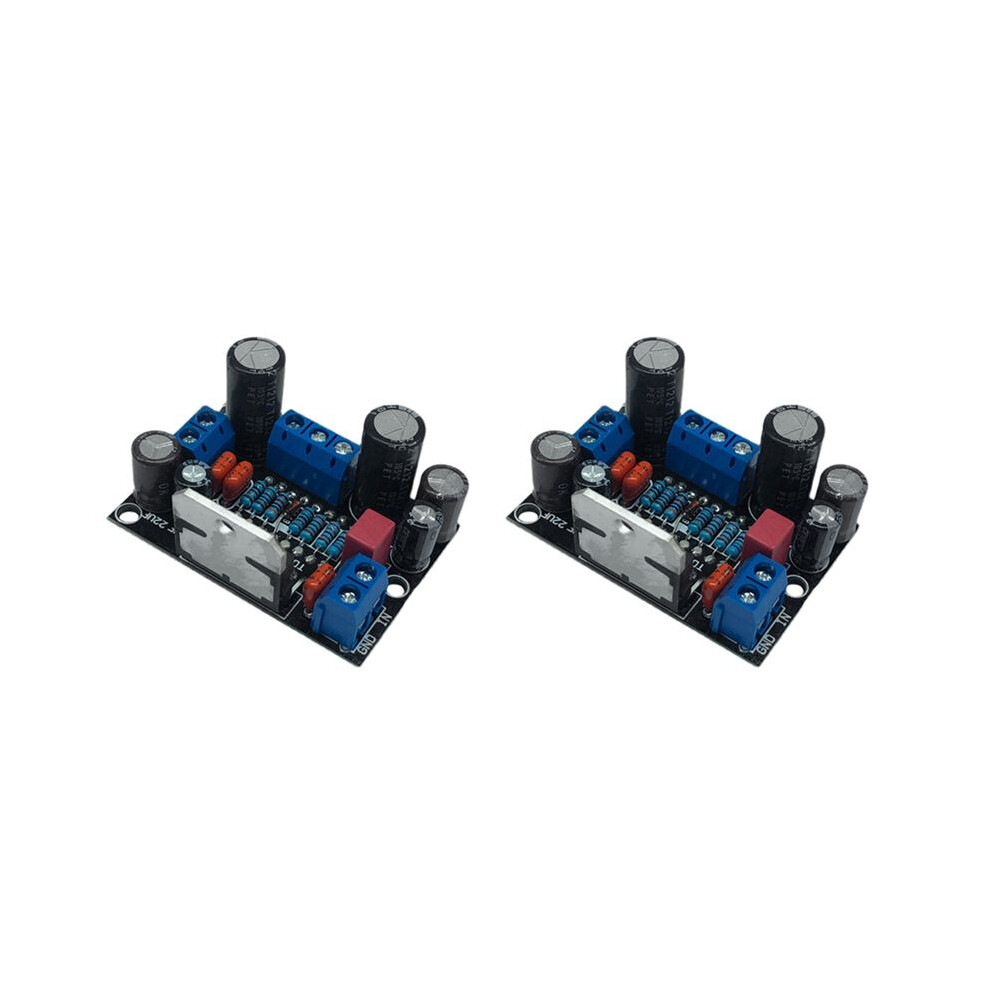

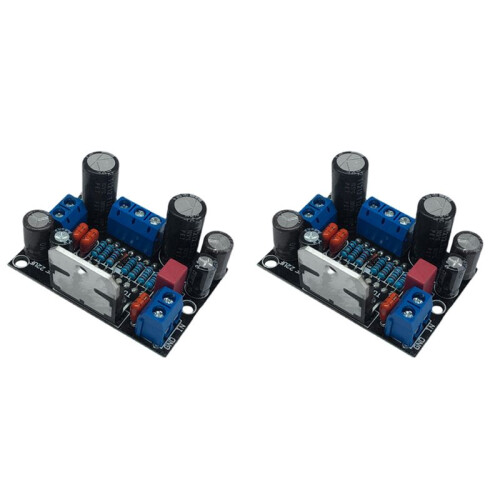

2X TDA7294 Mono 100W Power Amplifier Board Finished Board
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 128,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (16,00 RON) | vin 10 - lun 13 iul.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Adaptoare telefonice
Rezumat
- 1. The noise of the switch is small and will not have too much impact on the speaker. It is recommended to add a horn protection circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier switch machine, but also avoid the output DC burning the horn when the power amplifier is damaged.
- 2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the output zero drift voltage will generally not exceed 50mv, and is relatively stable.
- 3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging, beginners also have a very high success rate.
- TDA7294 Finished board
- Amplifier board
Descriere 2X TDA7294 Mono 100W Power Amplifier Board Finished Board
1. The noise of the is small and will not have too much impact the speaker. It is recommended to add a horn protection circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier machine, but also avoid the output burning the horn when the power amplifier is damaged.
2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the output zero drift voltage will generally not exceed 50mv, and is relatively stable.
3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging, beginners also have a very high success rate.
Note:
1.2SC5200 + ZSA1943 are disassemble parts,but in good condition.
2.The PCB board has change to black, but the function is same.
Operating voltage: Dual 10 - 45V recommended Dual 35V
Rated output power: 100W(4 Ohm 35V)
Maximum output power: 150W (4 Ohm 45V) enormous heat, is not recommended
PCB size: 30 x 50 x 35mm
Pitch: 5.08mm
Hole distance between two power tube: 47mm
color:As shown
Material:PCB
Package Contents:
2 x Amplifier board
Detalii
| OPC | PTRFYWM |
|---|---|
| Brand | Semoic |
| Coduri | 4712562009679 (EAN) |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 8cm |
| Length | 10cm |
| Weight | 0.057kg |
| Colour | As shown |
| Material | PCB |
