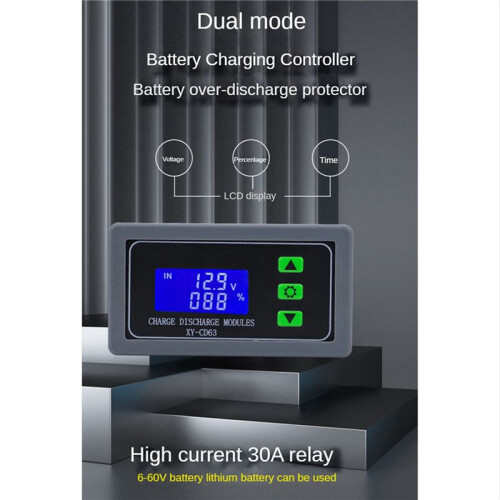

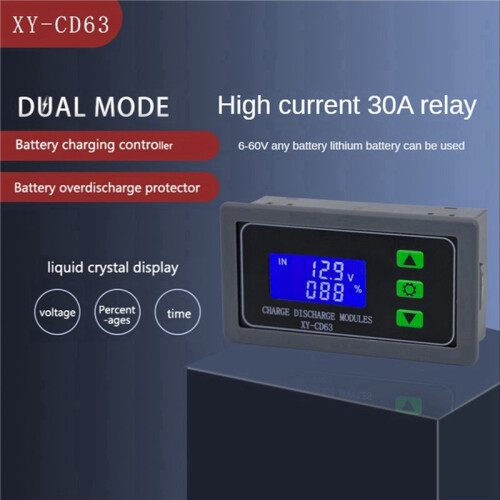

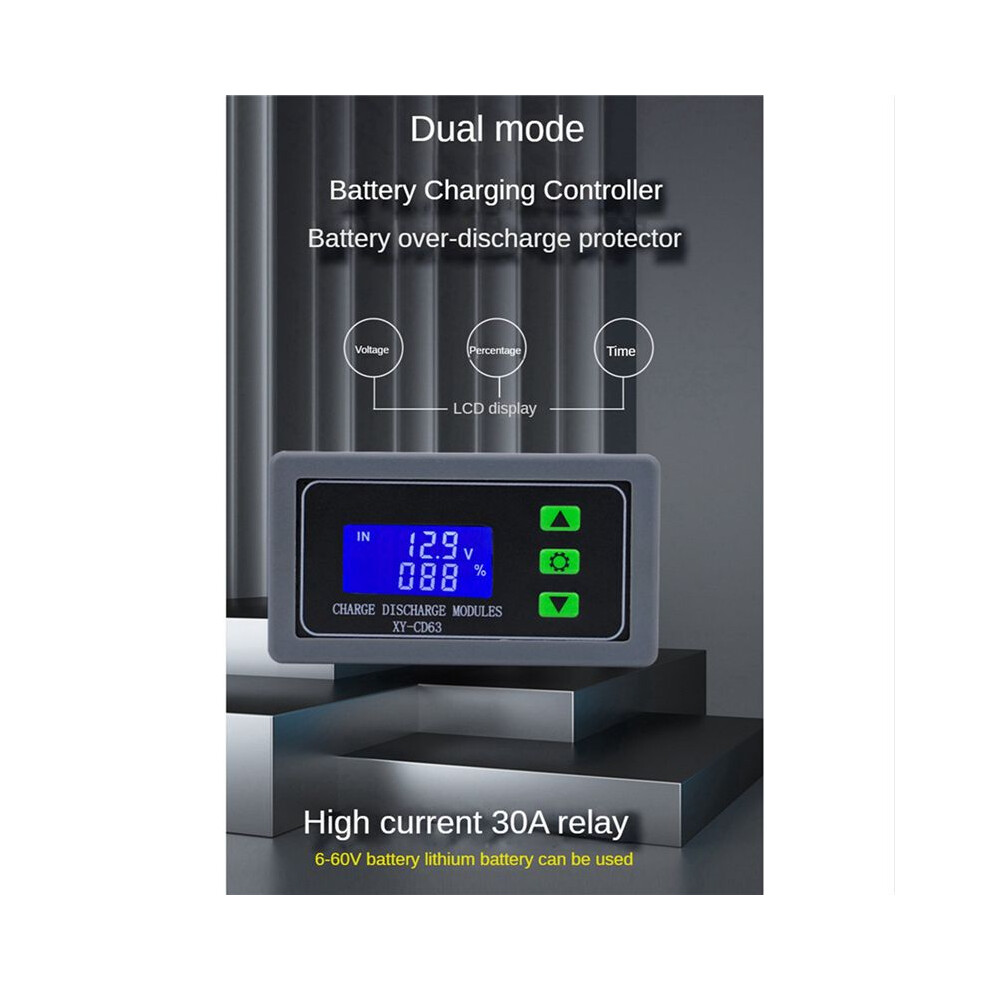

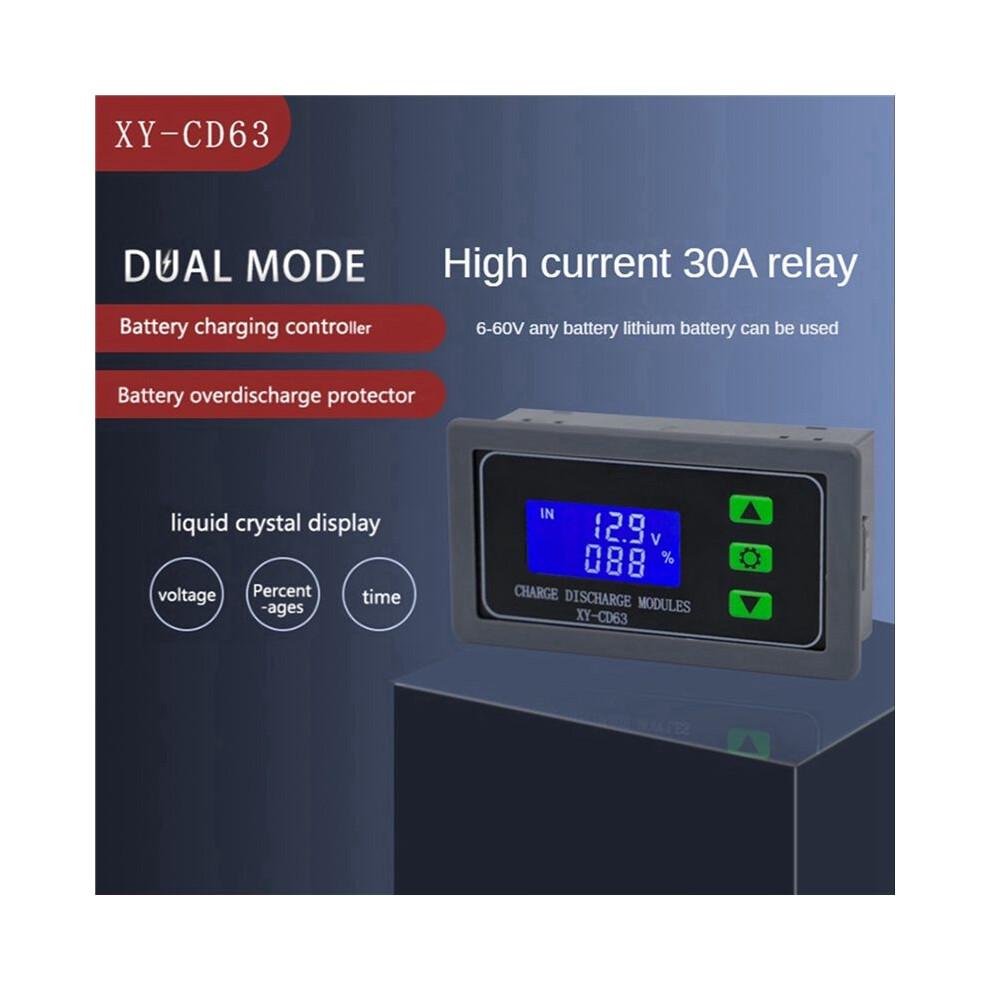

2X XY-CD63 CD63 30A Battery Charging Control Module Full Power Off Voltage Protection Undervoltage Power Protector

Descriere 2X XY-CD63 CD63 30A Battery Charging Control Module Full Power Off Voltage Protection Undervoltage Power Protector

Calculation of voltage percentage: battery voltage / (upper limit voltage - lower limit voltage)

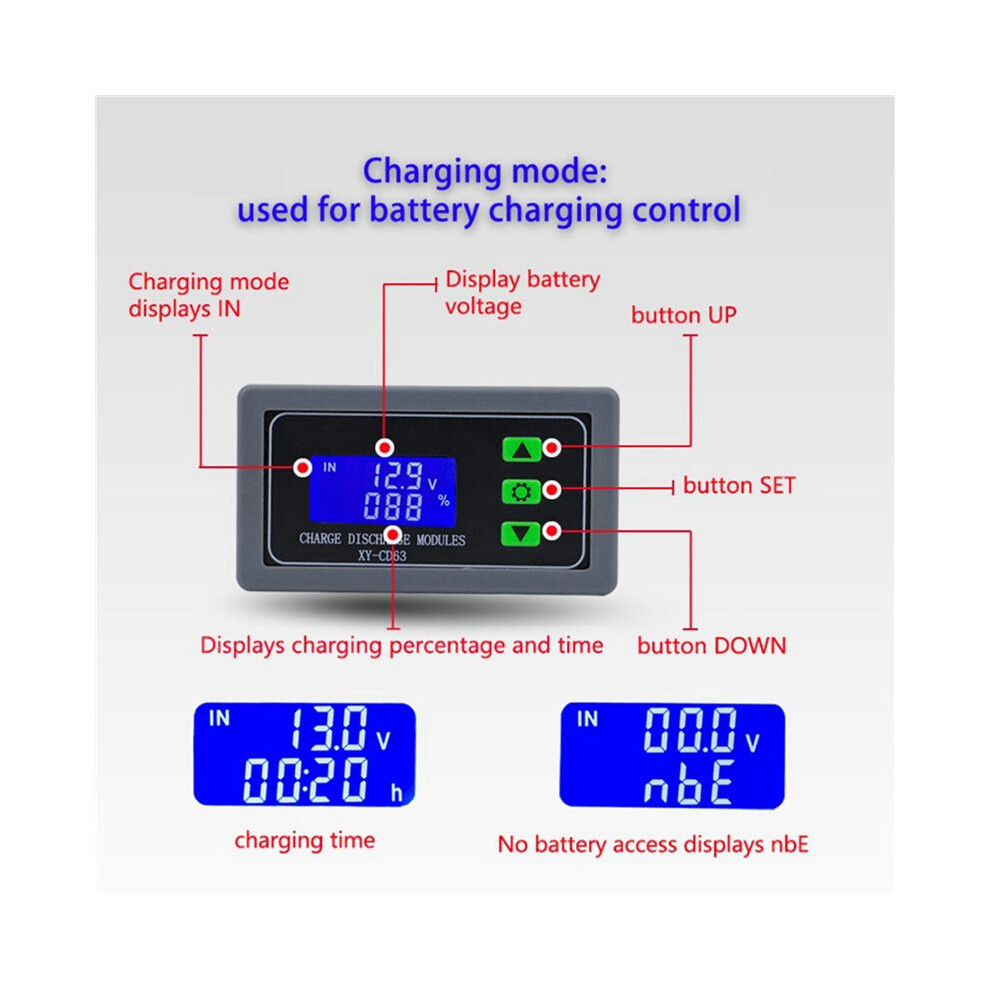

Key function: button: short press to display% and , long press for 5 seconds to mode, charging mode: in, discharging mode: out
Set button: short press to view the currently set parameters; long press set button to enter the parameter setting interface, setting : upper voltage limit, DN: lower voltage limit, Op: conduction , DOP: delayed conduction (0-999 seconds), FOP: forced conduction (0-10 seconds) in discharge mode
Down button: short press the close / open relay enable (emergency stop function) to close, the LCD displays off, and the relay is disconnected. Long press the down button to set the LCD backlight status. L-P: off backlight is always , : backlight automatically goes out after 5-10 minutes; after it goes out, press any button to wake .

Parameter setting: 1. Press and hold the set key to enter the parameter setting interface; 2. After entering the parameter setting interface, short press the set key to the set parameters; 3. After the parameters are selected, they can be set by / down key. Short press and long press are supported; 4. If you want to set other parameters, repeat steps b) and C); 5. After all parameters are set, long press set key to exit and save
Color: black
Material: ABS

Package Contents:

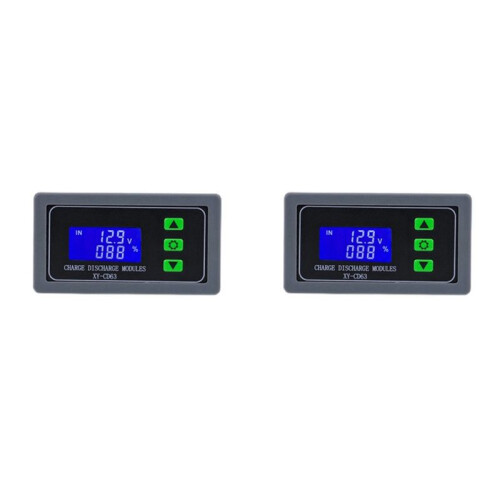

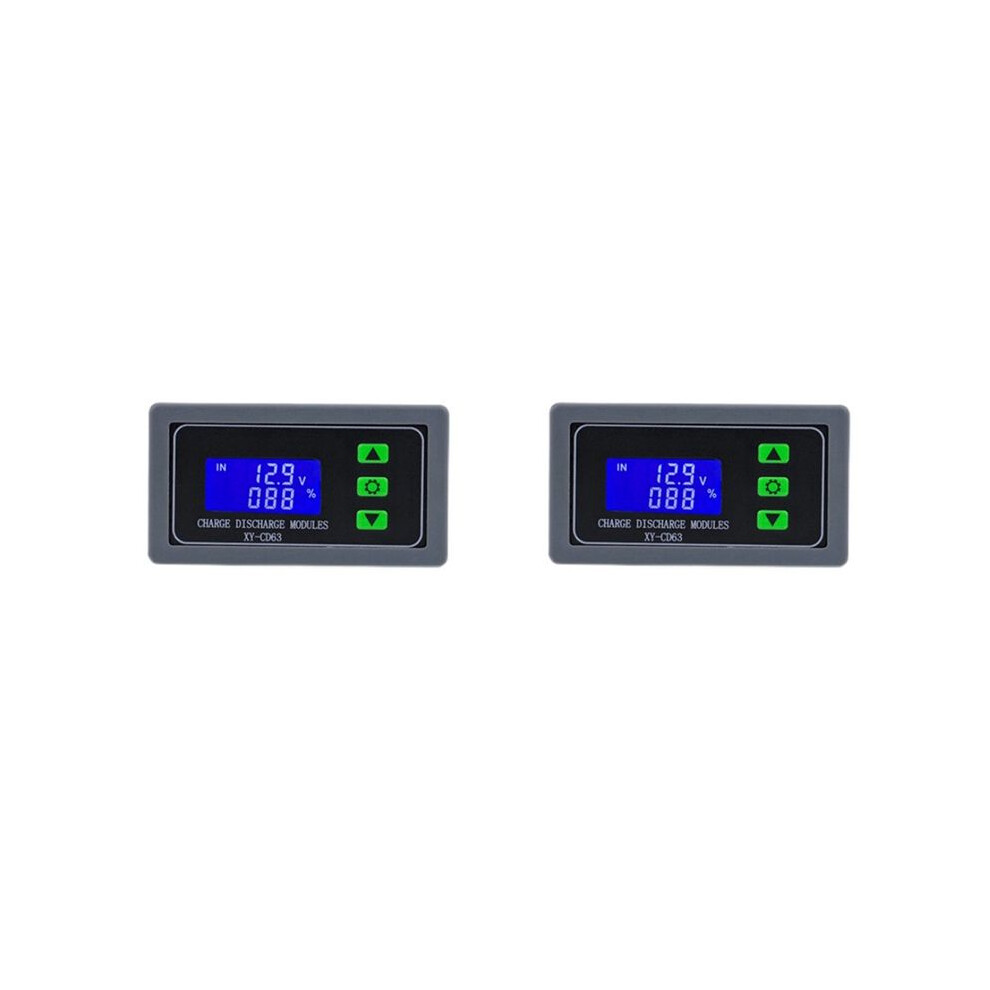

2 x Battery protector
